Part Number
Manufacturer
Description
Unit Price
In Stock

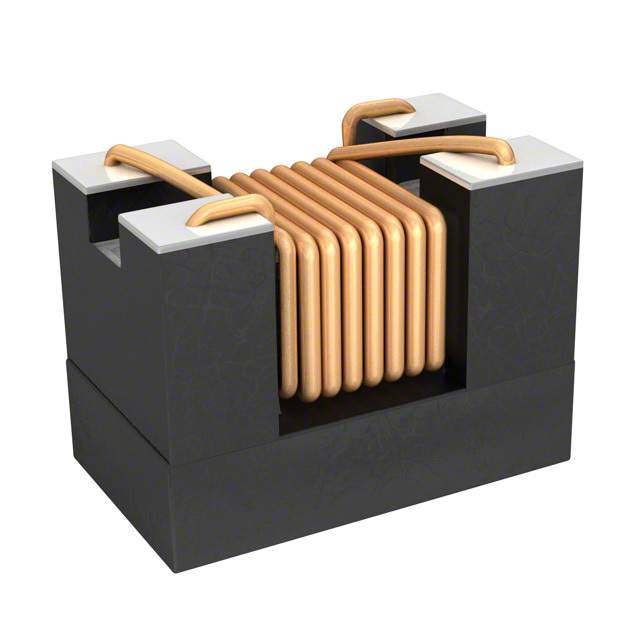

744233900
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW HF
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 280mA
DC Resistance (DCR) (Max) : 300 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.055" (1.40mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW HF
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : -
Current Rating (Max) : 280mA
DC Resistance (DCR) (Max) : 300 mOhm
Voltage Rating - DC : 50V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) : 0.055" (1.40mm)
Package / Case : Horizontal, 4 PC Pad
0
2454 in stock
744235101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 8 kOhms @ 10MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 150mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.179" L x 0.126" W (4.55mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 8 kOhms @ 10MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 150mA
DC Resistance (DCR) (Max) : 2 Ohm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.179" L x 0.126" W (4.55mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
417 in stock
744235110
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 5 kOhms @ 100MHz
Inductance @ Frequency : 11µH @ 100kHz
Current Rating (Max) : 450mA
DC Resistance (DCR) (Max) : 800 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 5 kOhms @ 100MHz
Inductance @ Frequency : 11µH @ 100kHz
Current Rating (Max) : 450mA
DC Resistance (DCR) (Max) : 800 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
3928 in stock
744235220
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 8 kOhms @ 100MHz
Inductance @ Frequency : 22µH @ 100kHz
Current Rating (Max) : 250mA
DC Resistance (DCR) (Max) : 2.65 Ohm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 8 kOhms @ 100MHz
Inductance @ Frequency : 22µH @ 100kHz
Current Rating (Max) : 250mA
DC Resistance (DCR) (Max) : 2.65 Ohm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
1273 in stock
744235510
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3 kOhms @ 10MHz
Inductance @ Frequency : 51µH @ 100kHz
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.179" L x 0.126" W (4.55mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3 kOhms @ 10MHz
Inductance @ Frequency : 51µH @ 100kHz
Current Rating (Max) : 200mA
DC Resistance (DCR) (Max) : 1 Ohm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.179" L x 0.126" W (4.55mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
534 in stock
744235601
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 100MHz
Inductance @ Frequency : 1µH @ 100kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 600 Ohms @ 100MHz
Inductance @ Frequency : 1µH @ 100kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
5469 in stock
744235801
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 100MHz
Inductance @ Frequency : 1.3µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 100MHz
Inductance @ Frequency : 1.3µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 120 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
3859 in stock

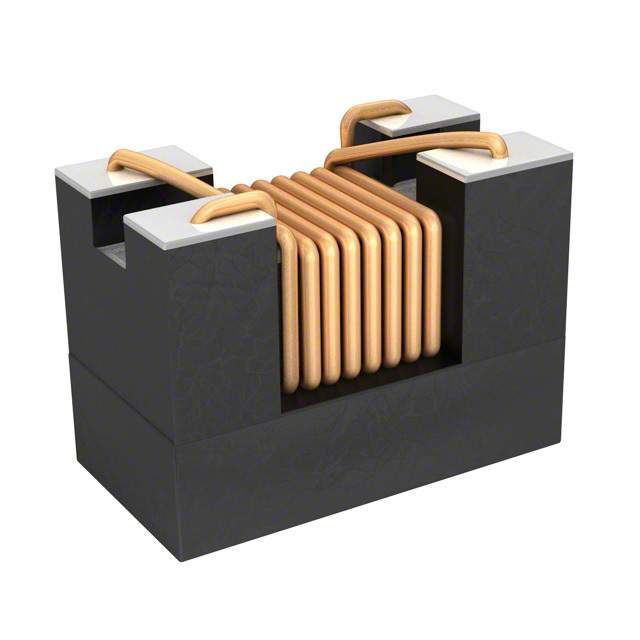

744235900
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : 300nH @ 100kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-CNSW
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 90 Ohms @ 100MHz
Inductance @ Frequency : 300nH @ 100kHz
Current Rating (Max) : 2A
DC Resistance (DCR) (Max) : 50 mOhm
Voltage Rating - DC : 60V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) : 0.118" (3.00mm)
Package / Case : Horizontal, 4 PC Pad
0
3946 in stock
744242101
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 4 kOhms @ 9MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 580 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 4 kOhms @ 9MHz
Inductance @ Frequency : 100µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 580 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
0
1421 in stock
744242110
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 135MHz
Inductance @ Frequency : 11µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 180 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 800 Ohms @ 135MHz
Inductance @ Frequency : 11µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 180 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
0
116 in stock
744242220
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.5 kOhms @ 65MHz
Inductance @ Frequency : 22µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 230 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.5 kOhms @ 65MHz
Inductance @ Frequency : 22µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 230 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
0
1759 in stock
744242330
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 2 kOhms @ 50MHz
Inductance @ Frequency : 33µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 270 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SLM
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 2 kOhms @ 50MHz
Inductance @ Frequency : 33µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 270 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max) : 0.138" (3.50mm)
Package / Case : Horizontal, 4 Flat Lead
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
