Part Number
Manufacturer
Description
Unit Price
In Stock
744212510
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL1
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 300MHz
Inductance @ Frequency : 51µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) : 0.071" (1.80mm)
Package / Case : Horizontal, 4 J-Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL1
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 300 Ohms @ 300MHz
Inductance @ Frequency : 51µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) : 0.071" (1.80mm)
Package / Case : Horizontal, 4 J-Lead
0
1622 in stock

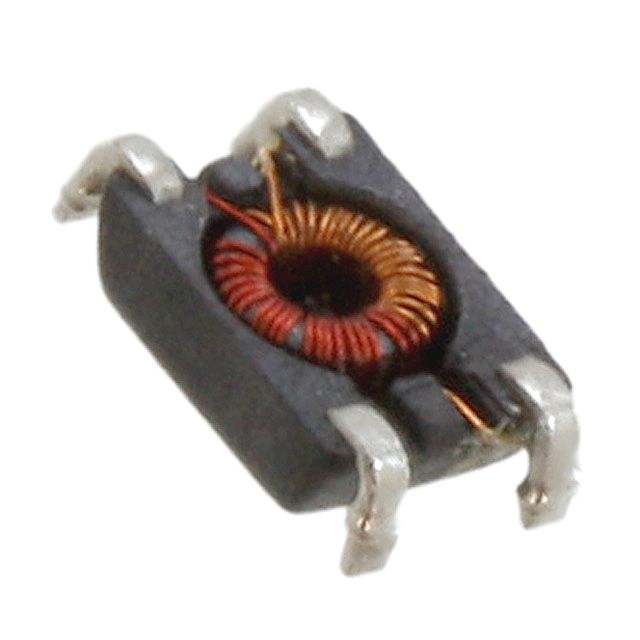

744212820
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL1
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 440 Ohms @ 180MHz
Inductance @ Frequency : 82µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) : 0.071" (1.80mm)
Package / Case : Horizontal, 4 J-Lead
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL1
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 440 Ohms @ 180MHz
Inductance @ Frequency : 82µH @ 100kHz
Current Rating (Max) : 300mA
DC Resistance (DCR) (Max) : 200 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 105°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max) : 0.071" (1.80mm)
Package / Case : Horizontal, 4 J-Lead
0
731 in stock

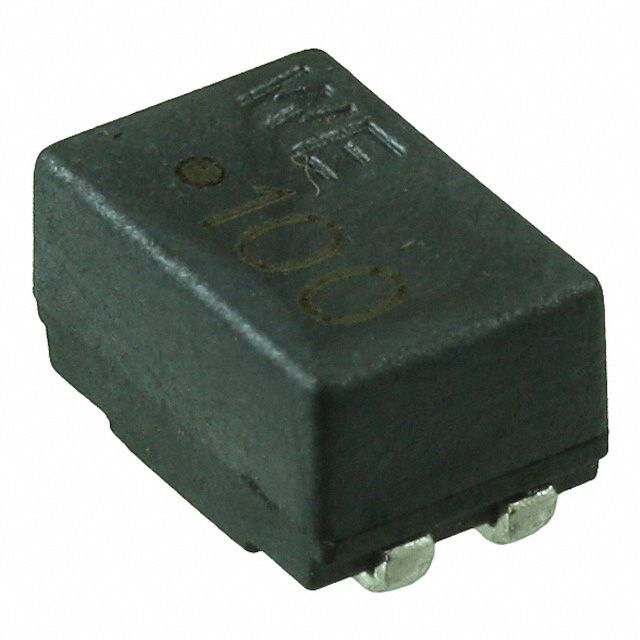

744220
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 20 kOhms @ 1MHz
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 750 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 20 kOhms @ 1MHz
Inductance @ Frequency : 4.7mH @ 100kHz
Current Rating (Max) : 500mA
DC Resistance (DCR) (Max) : 750 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
0
6284 in stock
744221
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 9.2 kOhms @ 2MHz
Inductance @ Frequency : 2mH @ 100kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 420 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 9.2 kOhms @ 2MHz
Inductance @ Frequency : 2mH @ 100kHz
Current Rating (Max) : 600mA
DC Resistance (DCR) (Max) : 420 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
3399 in stock
744222
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 6 kOhms @ 4MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 310 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 6 kOhms @ 4MHz
Inductance @ Frequency : 1mH @ 100kHz
Current Rating (Max) : 800mA
DC Resistance (DCR) (Max) : 310 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
5304 in stock
744223
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.3 kOhms @ 6MHz
Inductance @ Frequency : 500µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.3 kOhms @ 6MHz
Inductance @ Frequency : 500µH @ 100kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 150 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
3284 in stock
744224
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.8 kOhms @ 8MHz
Inductance @ Frequency : 250µH @ 100kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 130 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 1.8 kOhms @ 8MHz
Inductance @ Frequency : 250µH @ 100kHz
Current Rating (Max) : 1.2A
DC Resistance (DCR) (Max) : 130 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
0
3675 in stock
744225
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.1 kOhms @ 40MHz
Inductance @ Frequency : 40µH @ 1kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.1 kOhms @ 40MHz
Inductance @ Frequency : 40µH @ 1kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
27 in stock
744225S
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.1 kOhms @ 50MHz
Inductance @ Frequency : 40µH @ 1kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 3.1 kOhms @ 50MHz
Inductance @ Frequency : 40µH @ 1kHz
Current Rating (Max) : 900mA
DC Resistance (DCR) (Max) : 250 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
5423 in stock
744226
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 920 Ohms @ 100MHz
Inductance @ Frequency : 10µH @ 1kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Signal Line
Number of Lines : 2
Impedance @ Frequency : 920 Ohms @ 100MHz
Inductance @ Frequency : 10µH @ 1kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
0
983 in stock
744226S
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 920 Ohms @ 110MHz
Inductance @ Frequency : 10µH @ 1kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 920 Ohms @ 110MHz
Inductance @ Frequency : 10µH @ 1kHz
Current Rating (Max) : 1.6A
DC Resistance (DCR) (Max) : 80 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.205" (5.20mm)
Package / Case : Horizontal, 4 PC Pad
0
4854 in stock

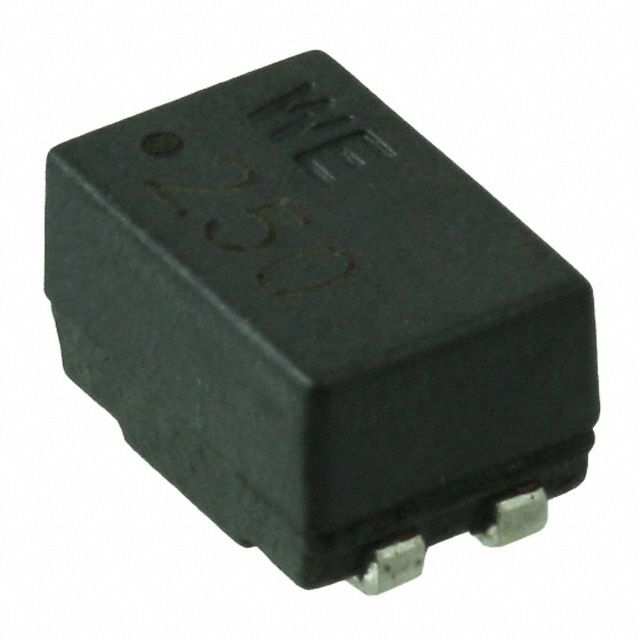

744227
Wurth Electronics
Manufacturer : Wurth Electronics Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 5.5 kOhms @ 10MHz
Inductance @ Frequency : 51µH @ 1kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
Packaging : Cut Tape (CT)
Alternate Packaging
Series : WE-SL2
Part Status : Active
Filter Type : Power, Signal Line
Number of Lines : 2
Impedance @ Frequency : 5.5 kOhms @ 10MHz
Inductance @ Frequency : 51µH @ 1kHz
Current Rating (Max) : 1A
DC Resistance (DCR) (Max) : 160 mOhm
Voltage Rating - DC : 80V
Voltage Rating - AC : -
Operating Temperature : -40°C ~ 125°C
Ratings : -
Approvals : -
Features : -
Mounting Type : Surface Mount
Size / Dimension : 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) : 0.209" (5.30mm)
Package / Case : Horizontal, 4 PC Pad
0
1855 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
