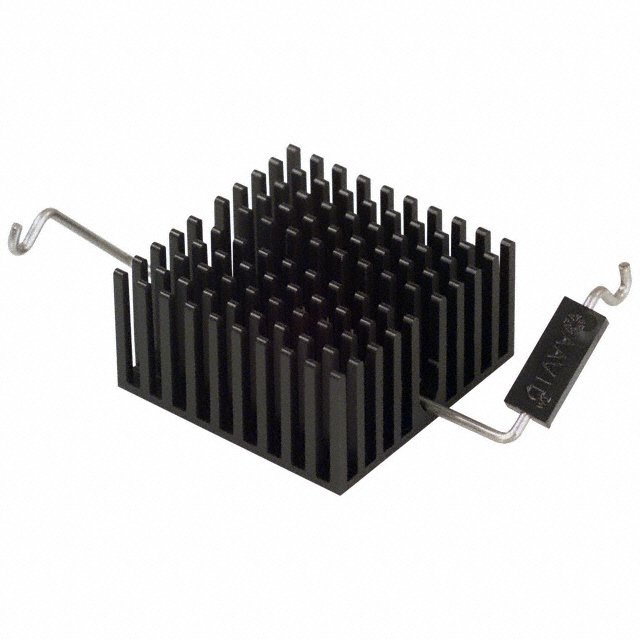

374724B60024G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Solder Anchor
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Solder Anchor
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1040 in stock

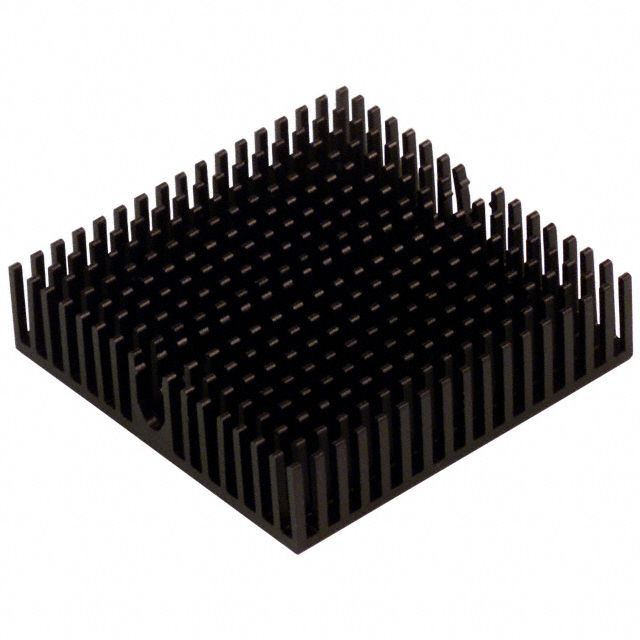

374924B00032G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.575" (40.00mm)
Width : 1.575" (40.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 4.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 6.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.575" (40.00mm)
Width : 1.575" (40.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 4.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 6.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

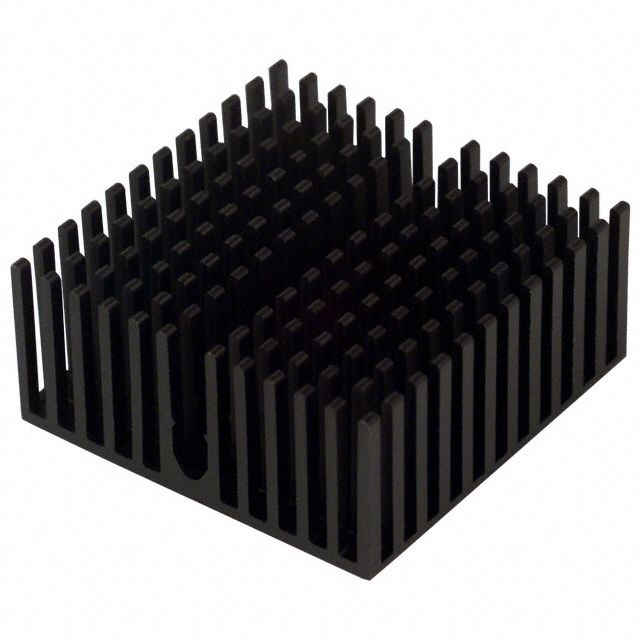

375024B00032G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.575" (40.00mm)
Width : 1.575" (40.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.30°C/W @ 200 LFM
Thermal Resistance @ Natural : 12.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.575" (40.00mm)
Width : 1.575" (40.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 2.0W @ 30°C
Thermal Resistance @ Forced Air Flow : 4.30°C/W @ 200 LFM
Thermal Resistance @ Natural : 12.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

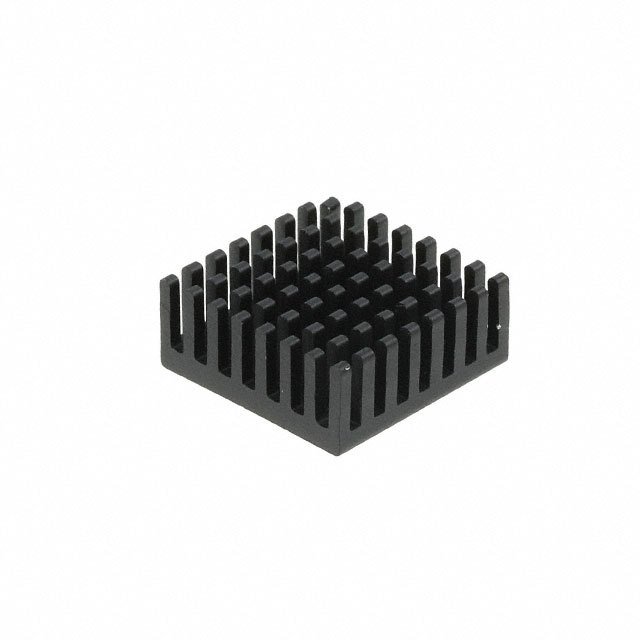

375424B00034G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
Series : *
Part Status : Active
Type : -
Package Cooled : -
Attachment Method : -
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : -
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : -
Material : -
Material Finish : -
0
100 in stock

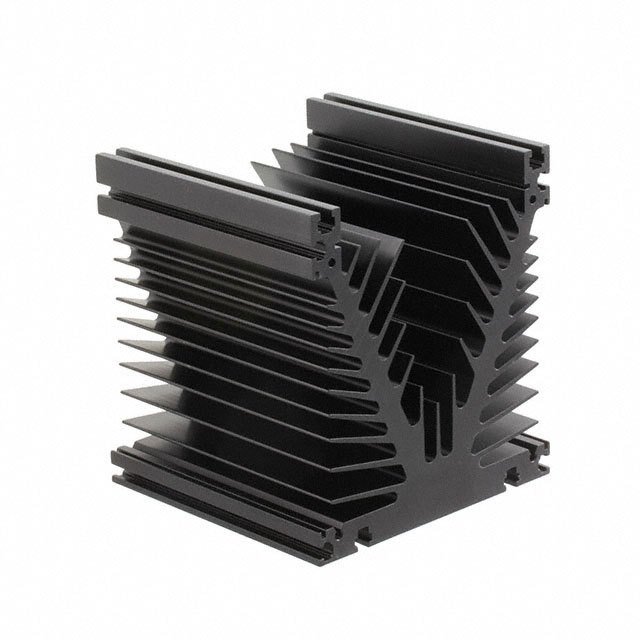

392-120AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 392
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 4.724" (120.00mm)
Width : 4.921" (124.99mm)
Diameter : -
Height Off Base (Height of Fin) : 5.346" (135.79mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.20°C/W @ 100 LFM
Thermal Resistance @ Natural : 0.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 392
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 4.724" (120.00mm)
Width : 4.921" (124.99mm)
Diameter : -
Height Off Base (Height of Fin) : 5.346" (135.79mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.20°C/W @ 100 LFM
Thermal Resistance @ Natural : 0.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
59 in stock

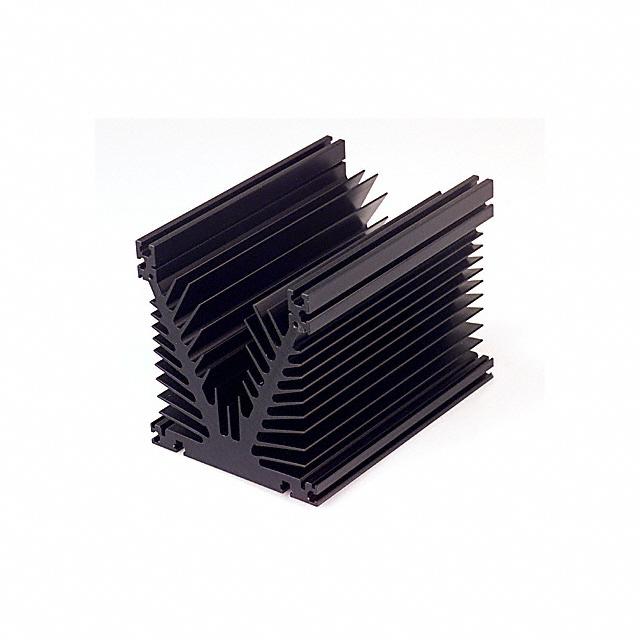

392-180AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 392
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 7.087" (180.01mm)
Width : 4.921" (124.99mm)
Diameter : -
Height Off Base (Height of Fin) : 5.346" (135.79mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.10°C/W @ 100 LFM
Thermal Resistance @ Natural : 0.43°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 392
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 7.087" (180.01mm)
Width : 4.921" (124.99mm)
Diameter : -
Height Off Base (Height of Fin) : 5.346" (135.79mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.10°C/W @ 100 LFM
Thermal Resistance @ Natural : 0.43°C/W
Material : Aluminum
Material Finish : Black Anodized
0
193 in stock

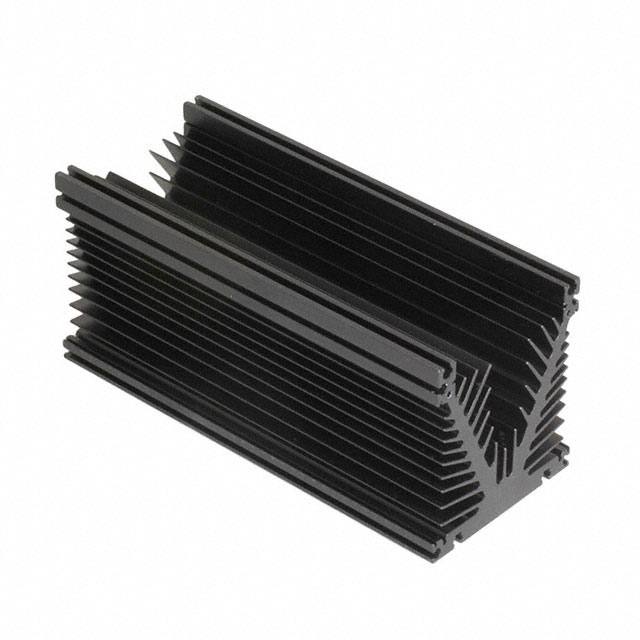

392-300AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 392
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 11.811" (300.00mm)
Width : 4.921" (124.99mm)
Diameter : -
Height Off Base (Height of Fin) : 5.346" (135.79mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.10°C/W @ 100 LFM
Thermal Resistance @ Natural : 0.33°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 392
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 11.811" (300.00mm)
Width : 4.921" (124.99mm)
Diameter : -
Height Off Base (Height of Fin) : 5.346" (135.79mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.10°C/W @ 100 LFM
Thermal Resistance @ Natural : 0.33°C/W
Material : Aluminum
Material Finish : Black Anodized
0
78 in stock

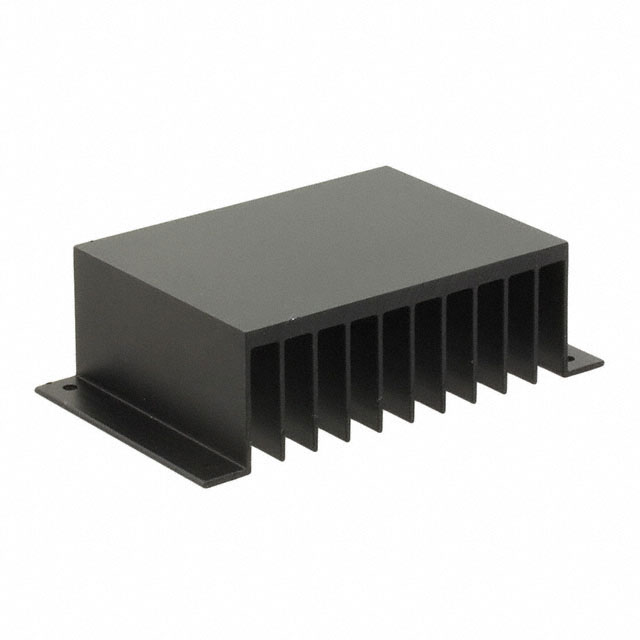

394-1AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 394
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.500" (38.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.90°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 394
Part Status : Active
Type : Top Mount
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.500" (38.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.90°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
71 in stock

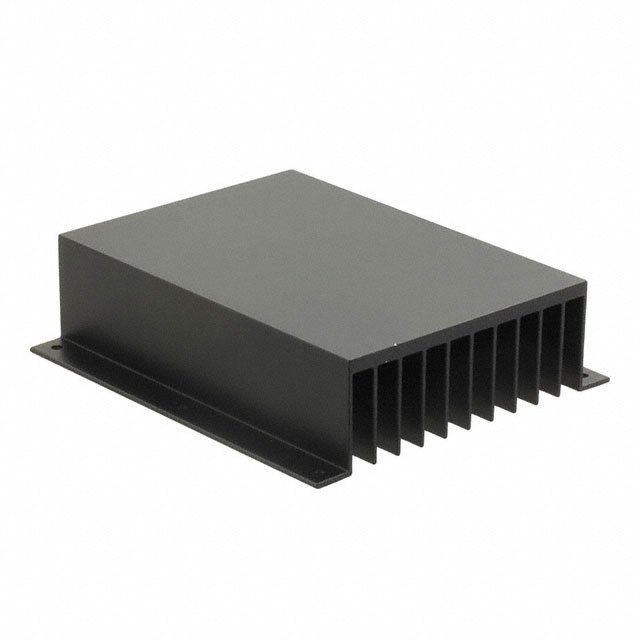

394-2AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 394
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.500" (139.70mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.500" (38.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 394
Part Status : Active
Type : Top Mount, Extrusion
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.500" (139.70mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.500" (38.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1253 in stock

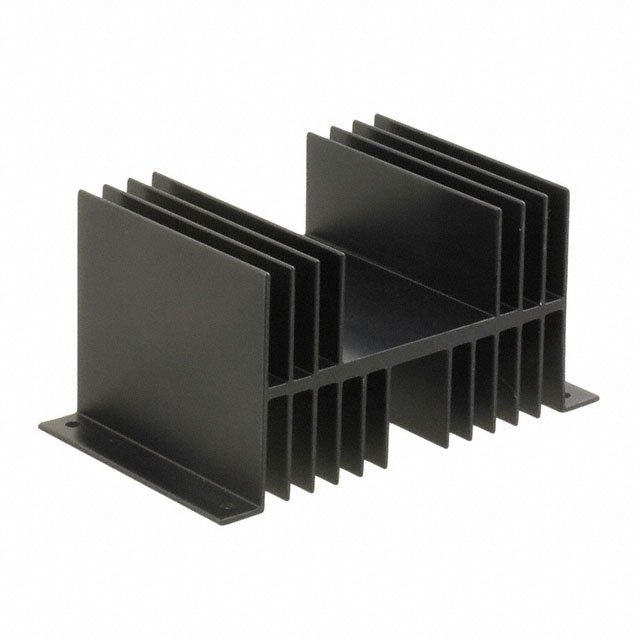

395-1AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 395
Part Status : Active
Type : Board Level
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 2.500" (63.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.10°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 395
Part Status : Active
Type : Board Level
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 2.500" (63.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.50°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.10°C/W
Material : Aluminum
Material Finish : Black Anodized
0
59 in stock

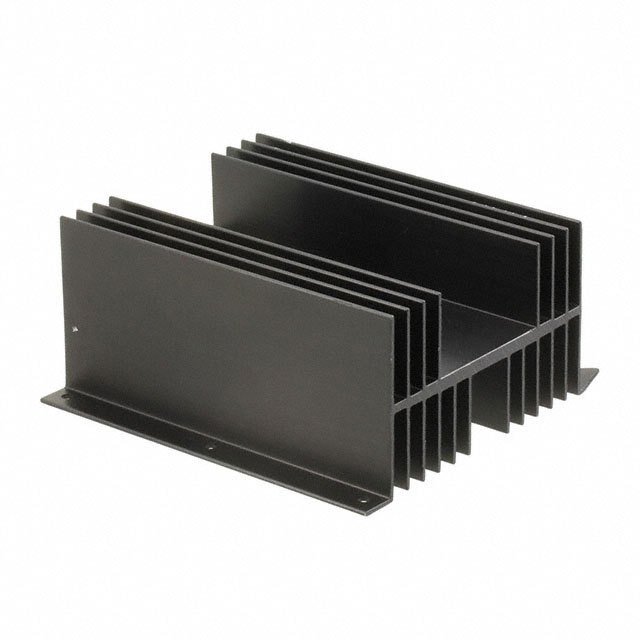

395-2AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 395
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.500" (139.70mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 2.500" (63.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.30°C/W @ 500 LFM
Thermal Resistance @ Natural : 0.90°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 395
Part Status : Active
Type : Board Level, Extrusion
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 5.500" (139.70mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 2.500" (63.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.30°C/W @ 500 LFM
Thermal Resistance @ Natural : 0.90°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock
396-1AB
Wakefield-Vette
Manufacturer : Wakefield-Vette
Series : 396
Part Status : Active
Type : Board Level
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.382" (35.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.10°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : 396
Part Status : Active
Type : Board Level
Package Cooled : Power Modules
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 3.000" (76.20mm)
Width : 5.000" (127.00mm)
Diameter : -
Height Off Base (Height of Fin) : 1.382" (35.10mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.10°C/W @ 500 LFM
Thermal Resistance @ Natural : 1.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
