Part Number
Manufacturer
Description
Unit Price
In Stock

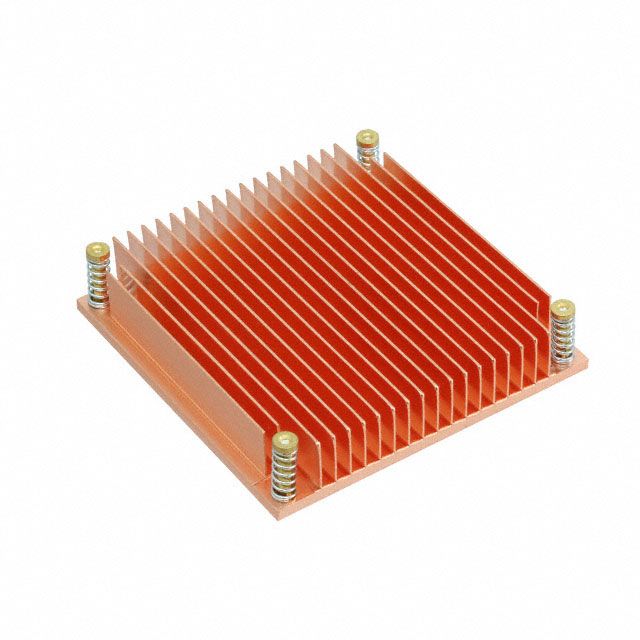

342948
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 2.717" (69.00mm)
Width : 2.756" (70.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.40°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.60°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 2.717" (69.00mm)
Width : 2.756" (70.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.40°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.60°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
74 in stock

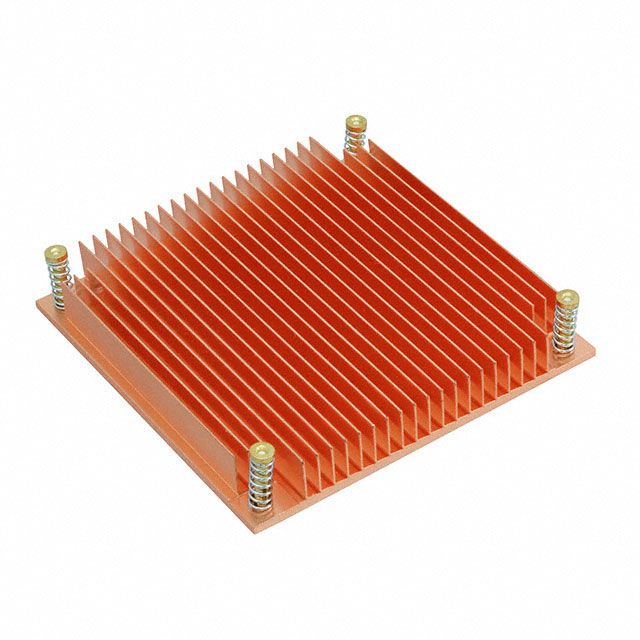

342949
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 3.150" (80.00mm)
Width : 3.150" (80.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.10°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 3.150" (80.00mm)
Width : 3.150" (80.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.10°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
159 in stock

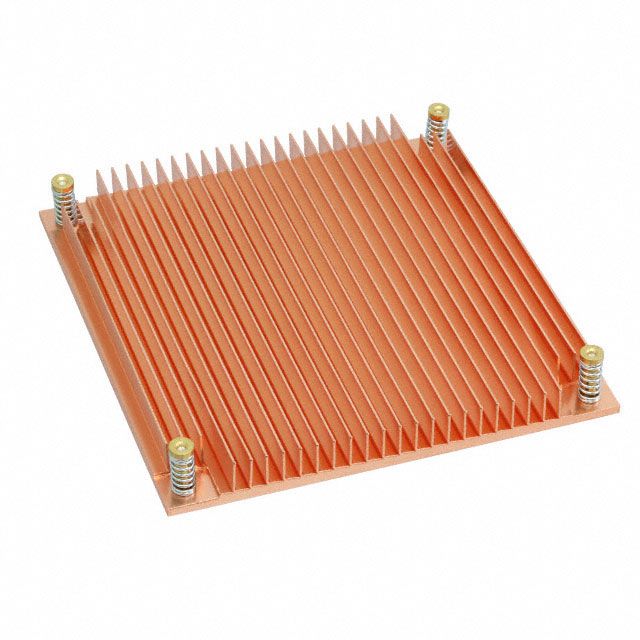

342950
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 3.543" (90.00mm)
Width : 3.543" (90.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.30°C/W @ 200 LFM
Thermal Resistance @ Natural : 4.50°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 3.543" (90.00mm)
Width : 3.543" (90.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.30°C/W @ 200 LFM
Thermal Resistance @ Natural : 4.50°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
94 in stock

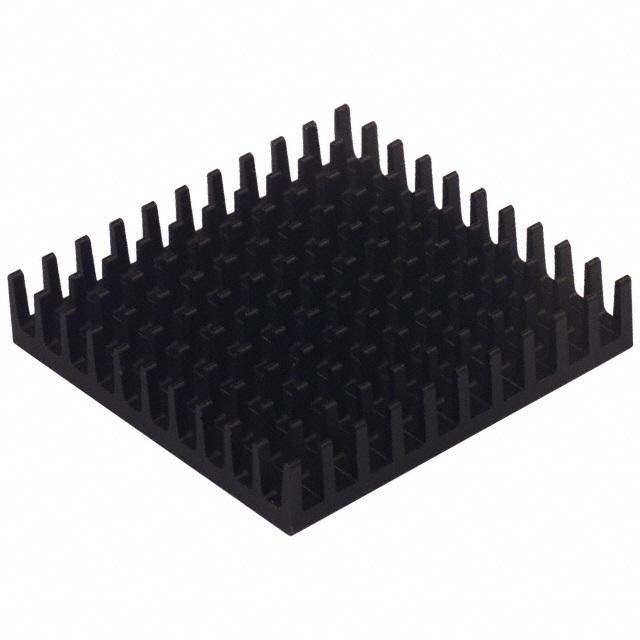

371824B00032G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.275" (7.00mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 9.70°C/W @ 200 LFM
Thermal Resistance @ Natural : 31.90°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.275" (7.00mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 9.70°C/W @ 200 LFM
Thermal Resistance @ Natural : 31.90°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

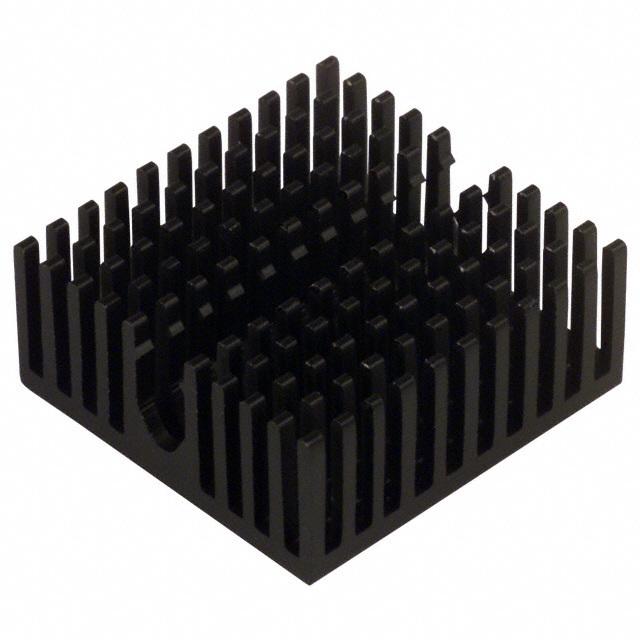

374024B00035G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.906" (23.01mm)
Width : 0.906" (23.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 11.70°C/W @ 200 LFM
Thermal Resistance @ Natural : 40.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.906" (23.01mm)
Width : 0.906" (23.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 1.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 11.70°C/W @ 200 LFM
Thermal Resistance @ Natural : 40.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1227 in stock

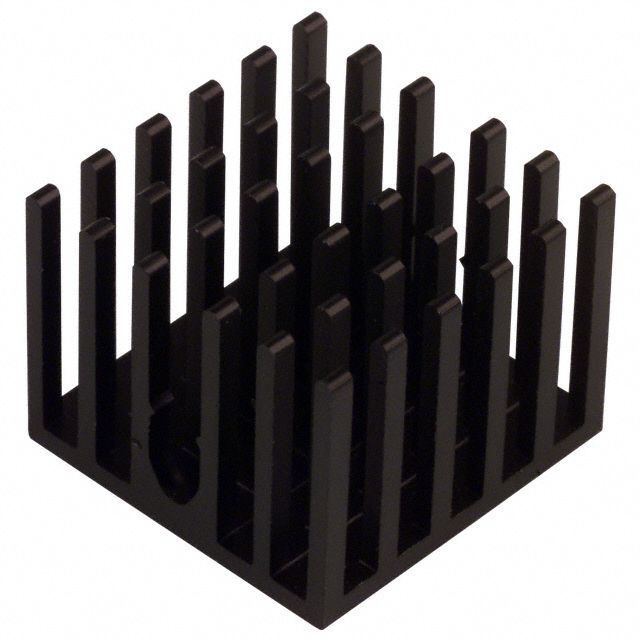

374124B00035G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.906" (23.01mm)
Width : 0.906" (23.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 2.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 7.40°C/W @ 200 LFM
Thermal Resistance @ Natural : 23.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 0.906" (23.01mm)
Width : 0.906" (23.01mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 2.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 7.40°C/W @ 200 LFM
Thermal Resistance @ Natural : 23.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

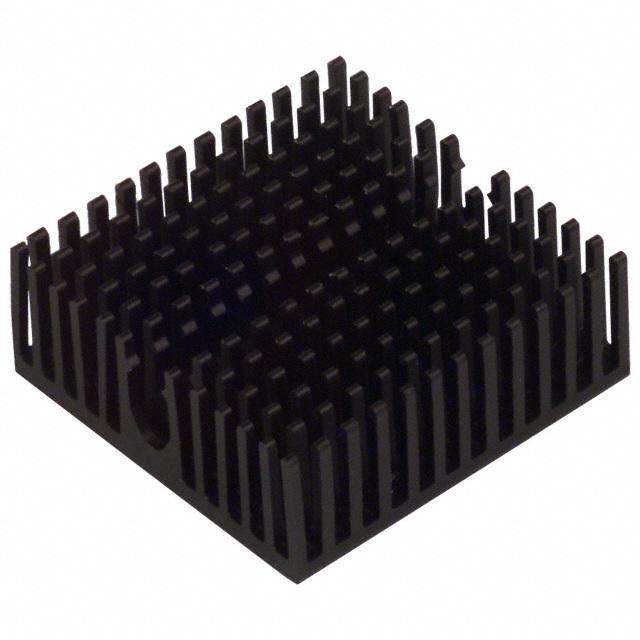

374324B00035G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.063" (27.00mm)
Width : 1.063" (27.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 90°C
Thermal Resistance @ Forced Air Flow : 9.30°C/W @ 200 LFM
Thermal Resistance @ Natural : 30.60°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.063" (27.00mm)
Width : 1.063" (27.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 90°C
Thermal Resistance @ Forced Air Flow : 9.30°C/W @ 200 LFM
Thermal Resistance @ Natural : 30.60°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1030 in stock
374324B60023G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : -
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Solder Anchor
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : 0.390" (9.91mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 30.60°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : -
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Solder Anchor
Shape : -
Length : -
Width : -
Diameter : -
Height Off Base (Height of Fin) : 0.390" (9.91mm)
Power Dissipation @ Temperature Rise : 1.5W @ 50°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 500 LFM
Thermal Resistance @ Natural : 30.60°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

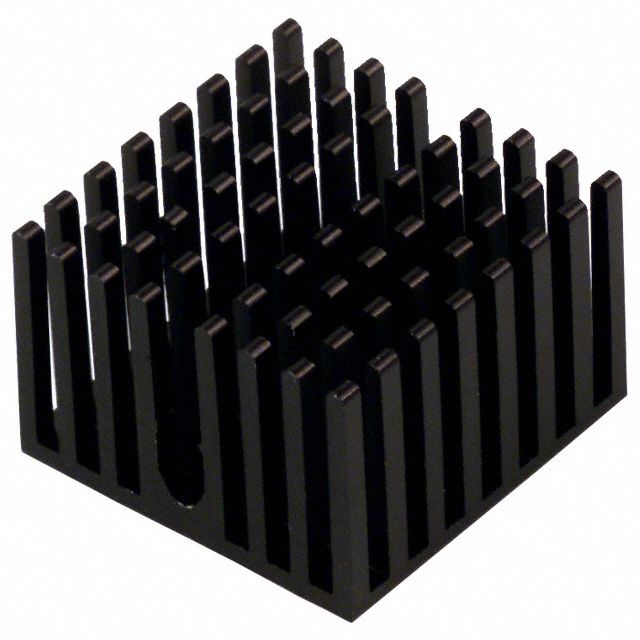

374424B00035G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.063" (27.00mm)
Width : 1.063" (27.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 4.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 6.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.063" (27.00mm)
Width : 1.063" (27.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 4.0W @ 80°C
Thermal Resistance @ Forced Air Flow : 6.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 20.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1080 in stock
374624B00032G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 7.60°C/W @ 200 LFM
Thermal Resistance @ Natural : 23.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.394" (10.00mm)
Power Dissipation @ Temperature Rise : 1.5W @ 40°C
Thermal Resistance @ Forced Air Flow : 7.60°C/W @ 200 LFM
Thermal Resistance @ Natural : 23.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock
374724B00032G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock
374724B00035G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.30°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.378" (35.00mm)
Width : 1.378" (35.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.709" (18.00mm)
Power Dissipation @ Temperature Rise : 3.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 5.20°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.30°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
