Part Number
Manufacturer
Description
Unit Price
In Stock

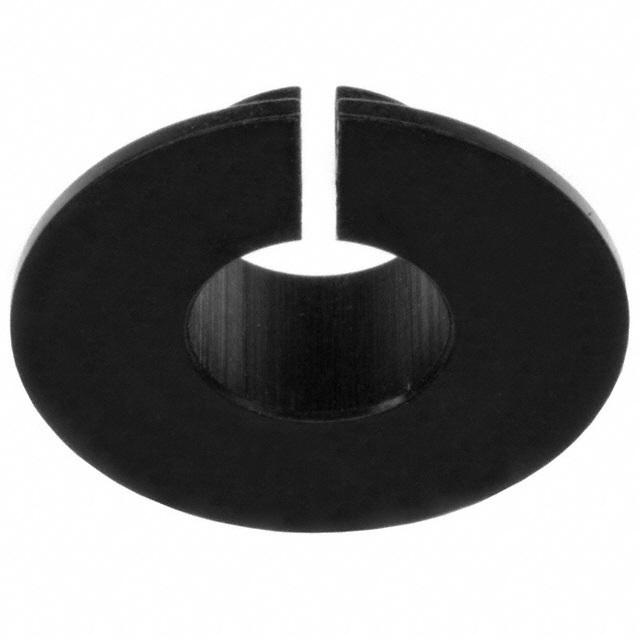

322605B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.315" (8.00mm) ID, 0.750" (19.05mm) OD
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 25.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 54.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.315" (8.00mm) ID, 0.750" (19.05mm) OD
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 25.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 54.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
11954 in stock

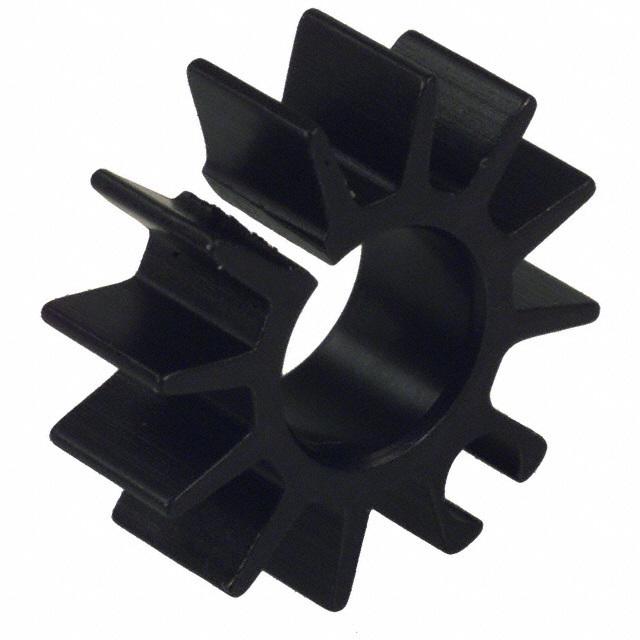

323005B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.318" (8.07mm) ID, 0.750" (19.05mm) OD
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.4W @ 70°C
Thermal Resistance @ Forced Air Flow : 35.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 56.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.318" (8.07mm) ID, 0.750" (19.05mm) OD
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.4W @ 70°C
Thermal Resistance @ Forced Air Flow : 35.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 56.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2474 in stock

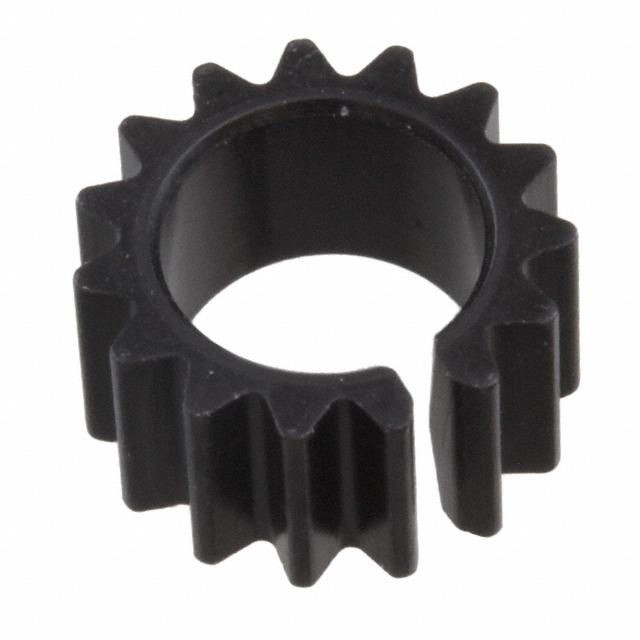

325705B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.318" (8.07mm) ID, 0.500" (12.70mm) OD
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 35.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 60.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.318" (8.07mm) ID, 0.500" (12.70mm) OD
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : 1.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 35.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 60.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
6052 in stock

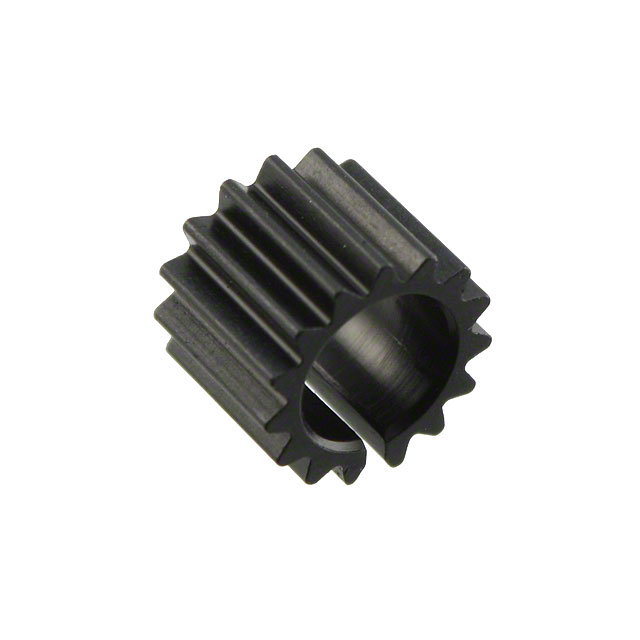

326005B00000G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.318" (8.07mm) ID, 0.500" (12.70mm) OD
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 1.8W @ 90°C
Thermal Resistance @ Forced Air Flow : 30.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 57.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-5
Attachment Method : Press Fit
Shape : Cylindrical
Length : -
Width : -
Diameter : 0.318" (8.07mm) ID, 0.500" (12.70mm) OD
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : 1.8W @ 90°C
Thermal Resistance @ Forced Air Flow : 30.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 57.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
520 in stock

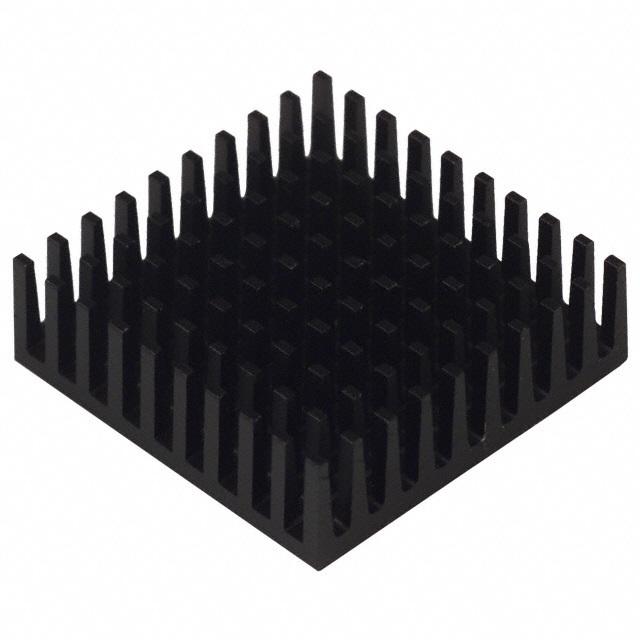

335824B00034G
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.180" (29.97mm)
Width : 1.180" (29.97mm)
Diameter : -
Height Off Base (Height of Fin) : 0.370" (9.40mm)
Power Dissipation @ Temperature Rise : 2.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 9.10°C/W @ 200 LFM
Thermal Resistance @ Natural : 29.40°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Thermal Tape, Adhesive (Included)
Shape : Square, Pin Fins
Length : 1.180" (29.97mm)
Width : 1.180" (29.97mm)
Diameter : -
Height Off Base (Height of Fin) : 0.370" (9.40mm)
Power Dissipation @ Temperature Rise : 2.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 9.10°C/W @ 200 LFM
Thermal Resistance @ Natural : 29.40°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

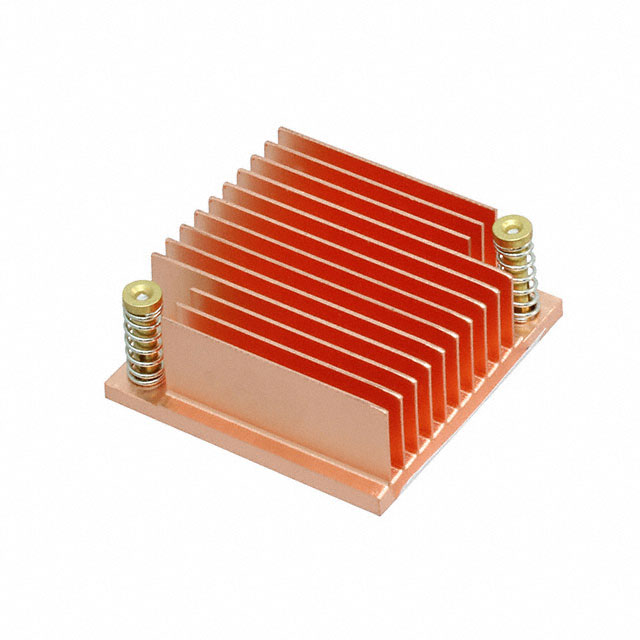

342940
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Rectangular, Fins
Length : 1.480" (37.59mm)
Width : 1.516" (38.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.60°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.90°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Rectangular, Fins
Length : 1.480" (37.59mm)
Width : 1.516" (38.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.60°C/W @ 200 LFM
Thermal Resistance @ Natural : 15.90°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
156 in stock
342941
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.594" (40.50mm)
Width : 1.575" (40.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.531" (13.49mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 13.30°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.594" (40.50mm)
Width : 1.575" (40.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.531" (13.49mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.50°C/W @ 200 LFM
Thermal Resistance @ Natural : 13.30°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
84 in stock

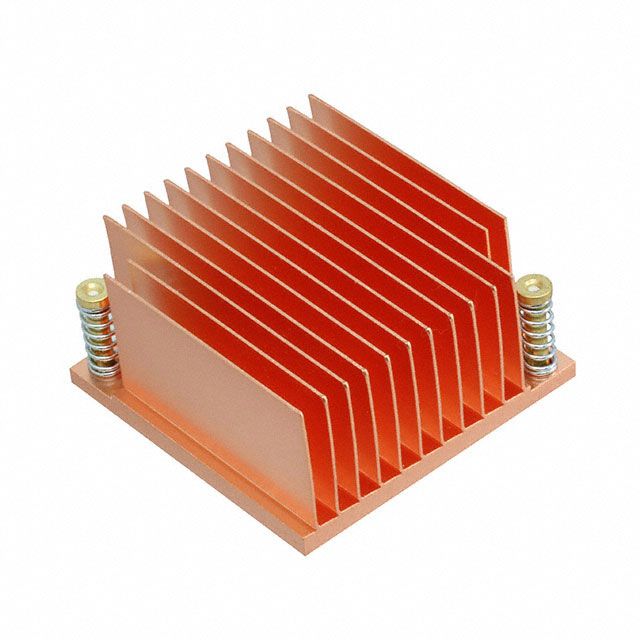

342942
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.732" (44.00mm)
Width : 1.772" (45.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.886" (22.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.65°C/W @ 200 LFM
Thermal Resistance @ Natural : 8.00°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.732" (44.00mm)
Width : 1.772" (45.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.886" (22.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.65°C/W @ 200 LFM
Thermal Resistance @ Natural : 8.00°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
44 in stock

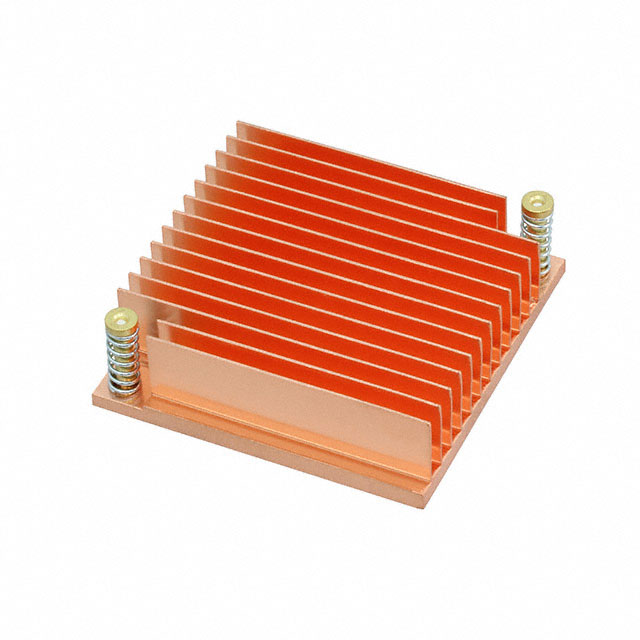

342943
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.969" (50.00mm)
Width : 1.969" (50.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.10°C/W @ 200 LFM
Thermal Resistance @ Natural : 8.90°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 1.969" (50.00mm)
Width : 1.969" (50.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 2.10°C/W @ 200 LFM
Thermal Resistance @ Natural : 8.90°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
21 in stock
342945
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 2.362" (60.00mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.70°C/W @ 200 LFM
Thermal Resistance @ Natural : 7.00°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 2.362" (60.00mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.551" (14.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.70°C/W @ 200 LFM
Thermal Resistance @ Natural : 7.00°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
30 in stock

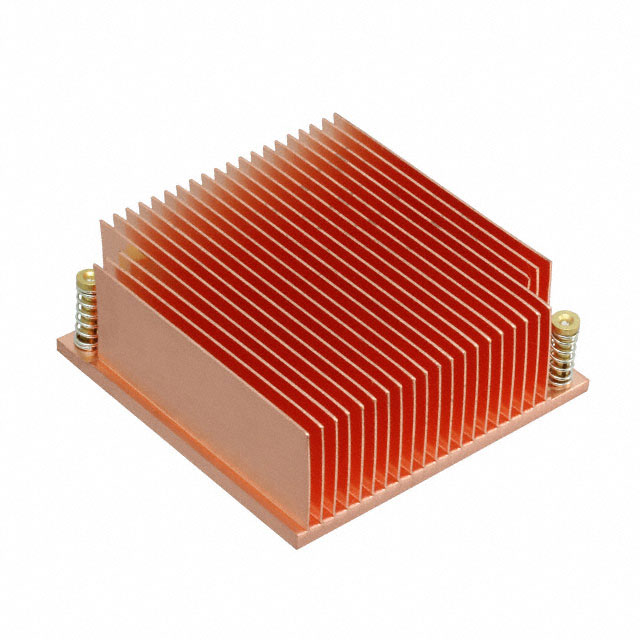

342946
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 2.362" (60.00mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.866" (22.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.80°C/W @ 300 LFM
Thermal Resistance @ Natural : 7.20°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Square, Fins
Length : 2.362" (60.00mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.866" (22.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 0.80°C/W @ 300 LFM
Thermal Resistance @ Natural : 7.20°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
178 in stock

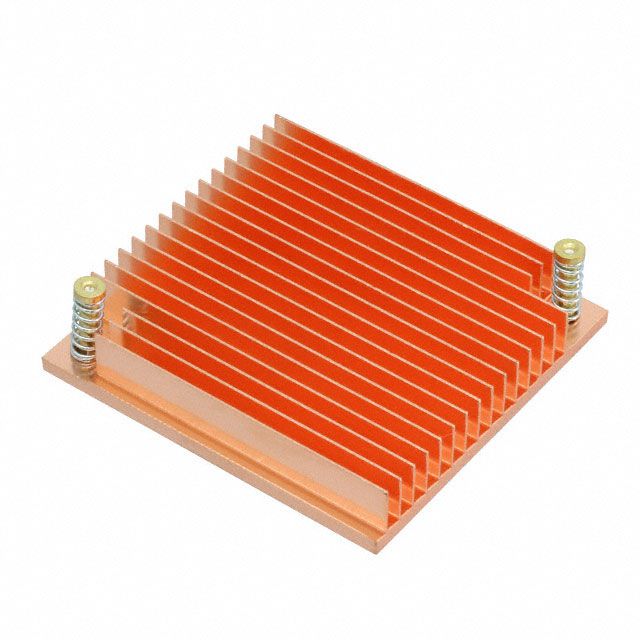

342947
Aavid
Manufacturer : Aavid, Thermal Division of Boyd Corporation
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Rectangular, Fins
Length : 2.323" (59.00mm)
Width : 2.280" (57.91mm)
Diameter : -
Height Off Base (Height of Fin) : 0.433" (11.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.90°C/W @ 200 LFM
Thermal Resistance @ Natural : 7.70°C/W
Material : Copper
Material Finish : AavSHIELD 3C
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : BGA
Attachment Method : Push Pin
Shape : Rectangular, Fins
Length : 2.323" (59.00mm)
Width : 2.280" (57.91mm)
Diameter : -
Height Off Base (Height of Fin) : 0.433" (11.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : 1.90°C/W @ 200 LFM
Thermal Resistance @ Natural : 7.70°C/W
Material : Copper
Material Finish : AavSHIELD 3C
0
59 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
