Part Number
Manufacturer
Description
Unit Price
In Stock

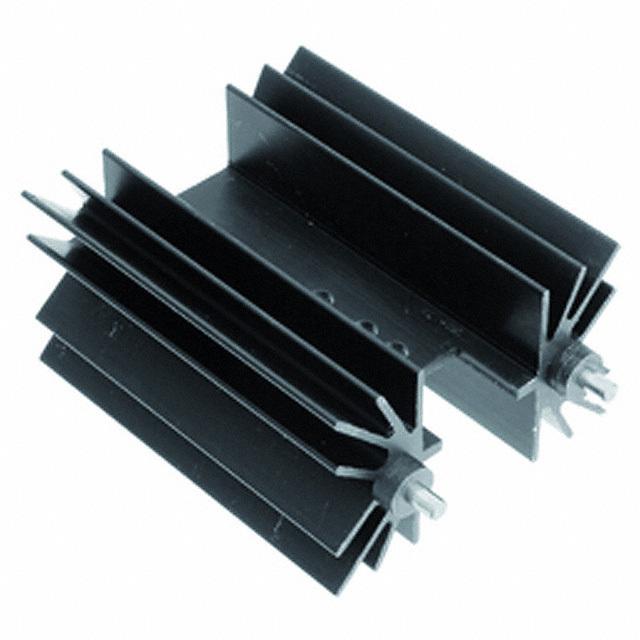

V8511Z
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.378" (35.00mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 3.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.378" (35.00mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 3.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
584 in stock

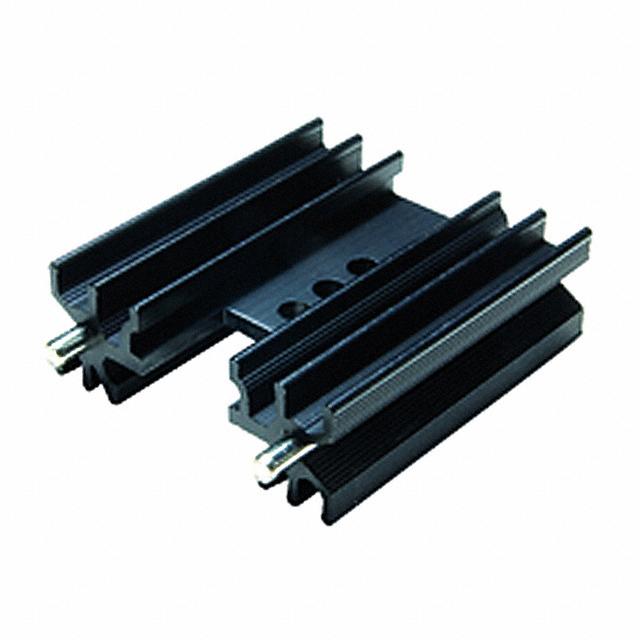

V8813W
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : SOT-32, TO-220, TOP-3
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.984" (25.00mm)
Width : 1.359" (34.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.492" (12.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 6.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : SOT-32, TO-220, TOP-3
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.984" (25.00mm)
Width : 1.359" (34.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.492" (12.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 6.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2334 in stock
V8813X
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : SOT-32, TO-220, TOP-3
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.496" (38.00mm)
Width : 1.359" (34.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.492" (12.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : SOT-32, TO-220, TOP-3
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.496" (38.00mm)
Width : 1.359" (34.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.492" (12.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
359 in stock
V8813Y
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : SOT-32, TO-220, TOP-3
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.969" (50.00mm)
Width : 1.359" (34.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.492" (12.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 4.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : SOT-32, TO-220, TOP-3
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.969" (50.00mm)
Width : 1.359" (34.50mm)
Diameter : -
Height Off Base (Height of Fin) : 0.492" (12.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 4.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

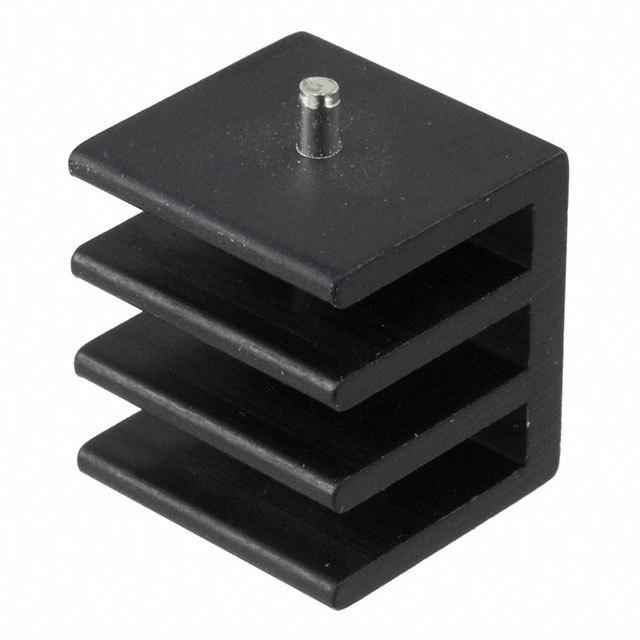

V8818N
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.787" (20.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.844" (21.44mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 10.10°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.787" (20.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.844" (21.44mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 10.10°C/W
Material : Aluminum
Material Finish : Black Anodized
0
819 in stock

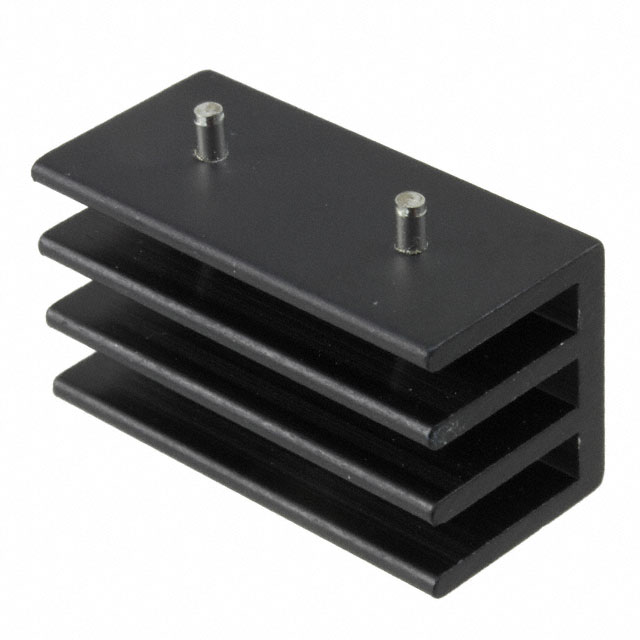

V8818Q
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.575" (40.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.844" (21.44mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.80°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.575" (40.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.844" (21.44mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.80°C/W
Material : Aluminum
Material Finish : Black Anodized
0
59 in stock

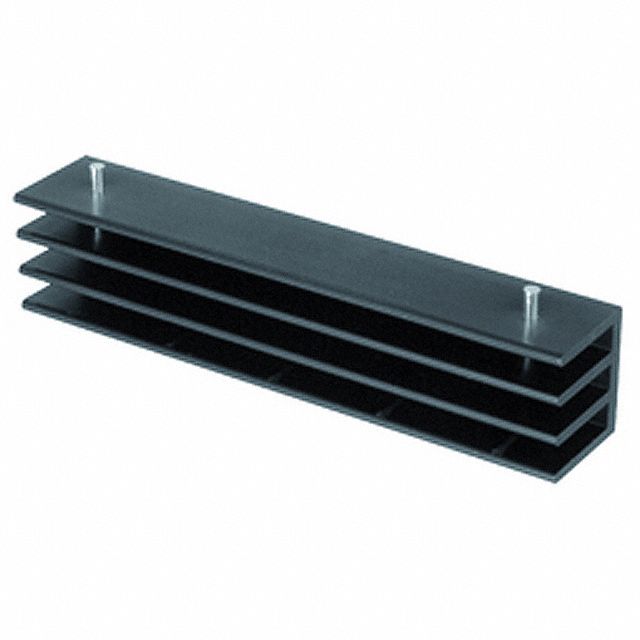

V8818V
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.362" (60.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.844" (21.44mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 7.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 2.362" (60.00mm)
Width : 0.748" (19.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.844" (21.44mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 7.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
782 in stock

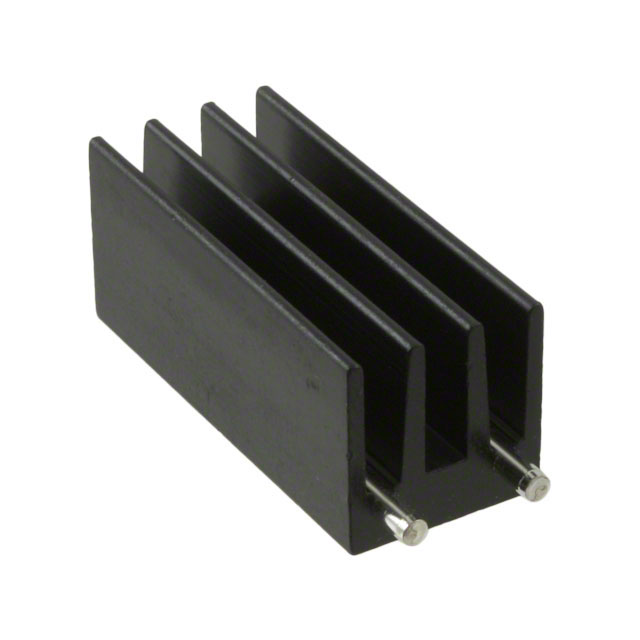

V9582X-LP
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : SOT-32, TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.500" (38.10mm)
Width : 0.640" (16.26mm)
Diameter : -
Height Off Base (Height of Fin) : 0.640" (16.26mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
275 in stock

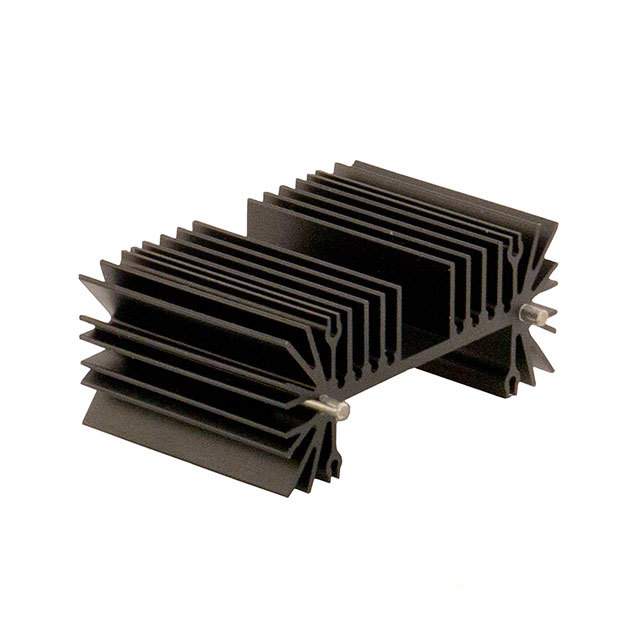

VM1-038-1AE
Ohmite
Manufacturer : Ohmite
Series : VM
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-247
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 1.520" (38.61mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 600 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : VM
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-247
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 1.520" (38.61mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 600 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
395 in stock
VM2-038-1AE
Ohmite
Manufacturer : Ohmite
Series : VM
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-247
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 1.520" (38.61mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 600 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : VM
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-247
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 1.520" (38.61mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 600 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
38 in stock
VM3-038-1AE
Ohmite
Manufacturer : Ohmite
Series : VM
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-247
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 1.520" (38.61mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 600 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : VM
Part Status : Active
Type : Board Level
Package Cooled : TO-220, TO-247
Attachment Method : Solderable Feet
Shape : Rectangular, Fins
Length : 1.520" (38.61mm)
Width : 2.362" (60.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : 10.0W @ 50°C
Thermal Resistance @ Forced Air Flow : 0.60°C/W @ 600 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
15 in stock
WA-DT2-101E
Ohmite
Manufacturer : Ohmite
Series : W
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-247 (Dual)
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.200" (30.48mm)
Width : 1.710" (43.43mm)
Diameter : -
Height Off Base (Height of Fin) : 0.630" (16.00mm)
Power Dissipation @ Temperature Rise : 4.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : W
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220, TO-247 (Dual)
Attachment Method : Clip and PC Pin
Shape : Rectangular, Fins
Length : 1.200" (30.48mm)
Width : 1.710" (43.43mm)
Diameter : -
Height Off Base (Height of Fin) : 0.630" (16.00mm)
Power Dissipation @ Temperature Rise : 4.0W @ 40°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 200 LFM
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
84 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
