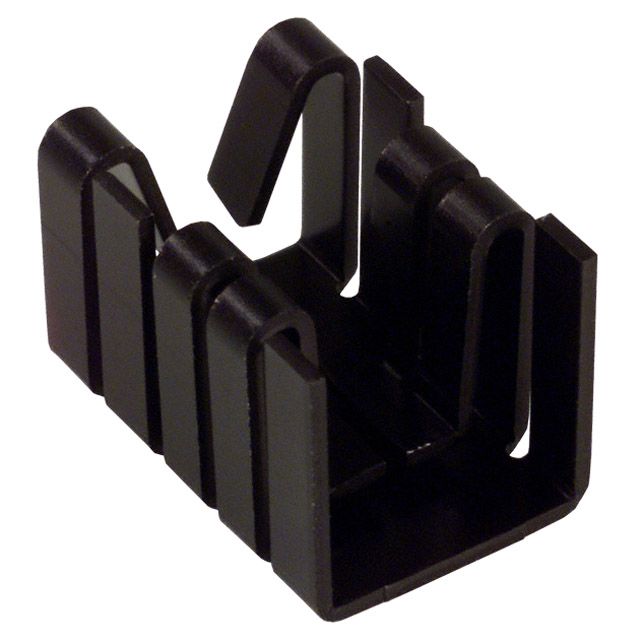

V8508C
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.827" (21.00mm)
Width : 0.827" (21.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 21.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.827" (21.00mm)
Width : 0.827" (21.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 600 LFM
Thermal Resistance @ Natural : 21.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
942 in stock

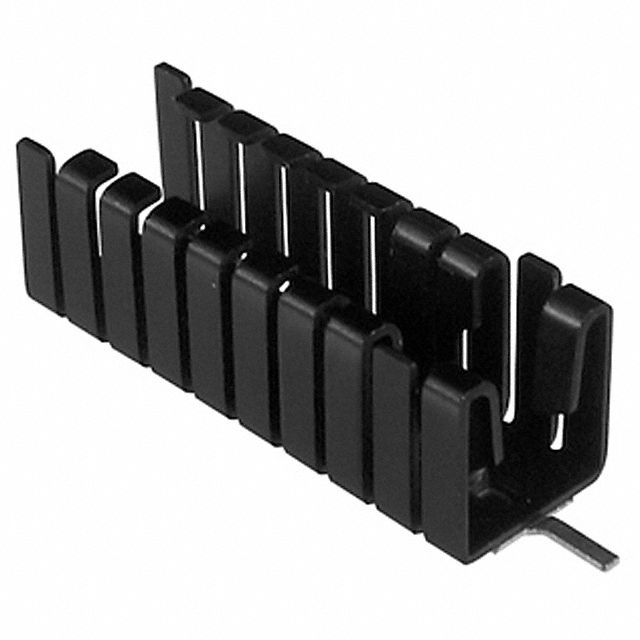

V8508D
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.551" (14.00mm)
Width : 0.551" (14.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 16.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.551" (14.00mm)
Width : 0.551" (14.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 16.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
12 in stock

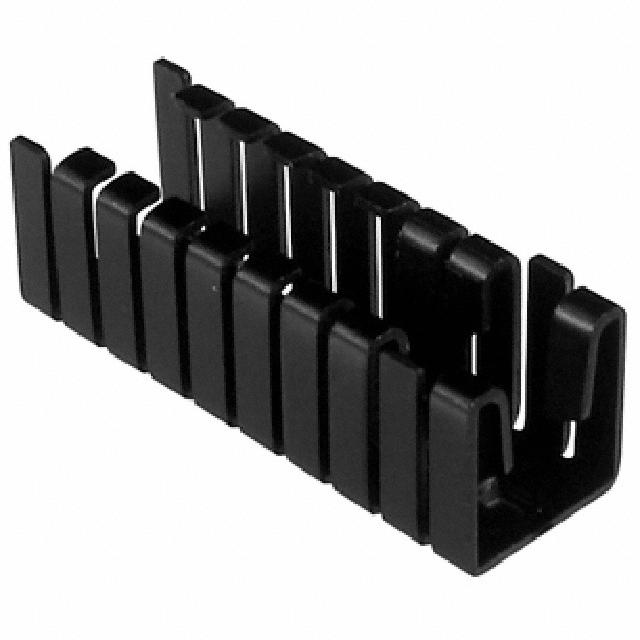

V8508E
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Press Fit
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 300 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Press Fit
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 1.0W @ 20°C
Thermal Resistance @ Forced Air Flow : 6.00°C/W @ 300 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
2659 in stock

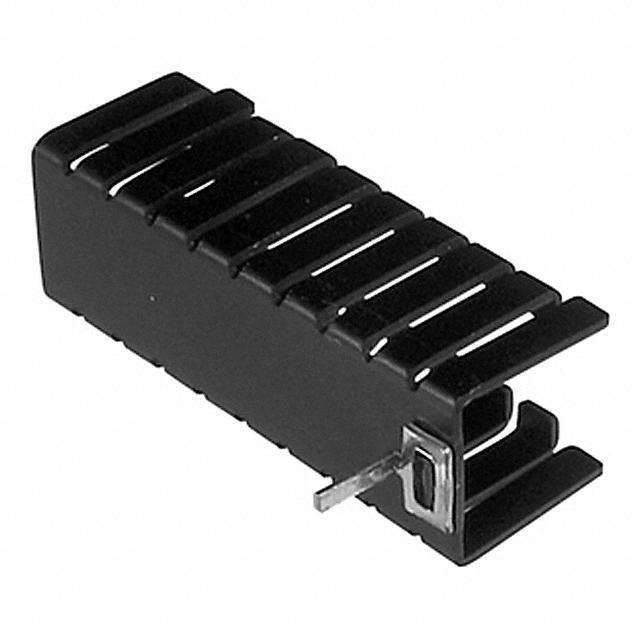

V8508F
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 16.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 16.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2120 in stock

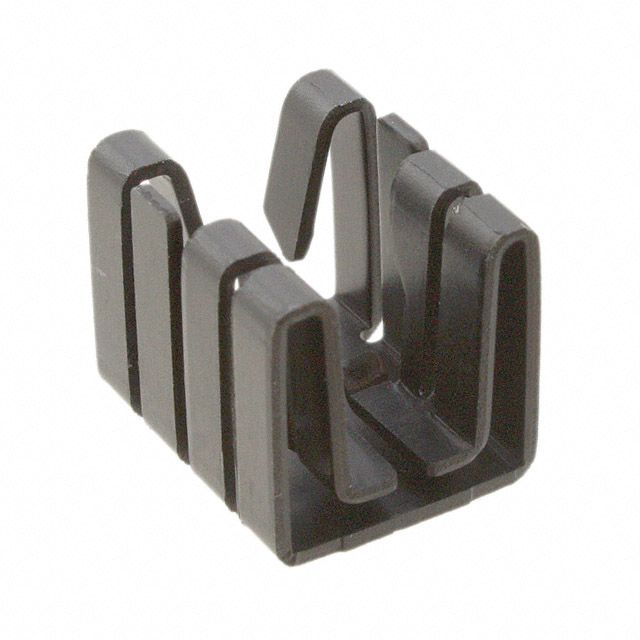

V8508G
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 0.591" (15.00mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 14.00°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Press Fit
Shape : Rectangular, Fins
Length : 0.591" (15.00mm)
Width : 0.504" (12.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow : 14.00°C/W @ 200 LFM
Thermal Resistance @ Natural : -
Material : Aluminum
Material Finish : Black Anodized
0
1792 in stock

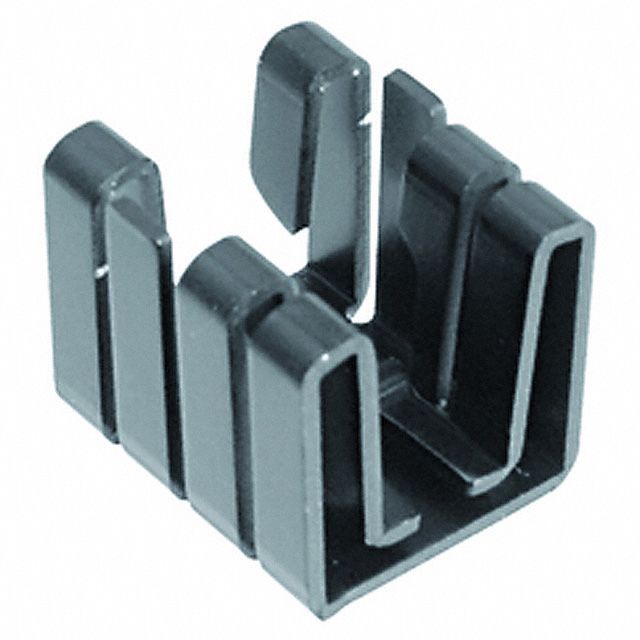

V8508H
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 26.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : PC Pin
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 26.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1344 in stock
V8508I
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.591" (15.00mm)
Width : 0.425" (10.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 26.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : PC Pin
Shape : Rectangular, Fins
Length : 0.591" (15.00mm)
Width : 0.425" (10.80mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 26.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1354 in stock

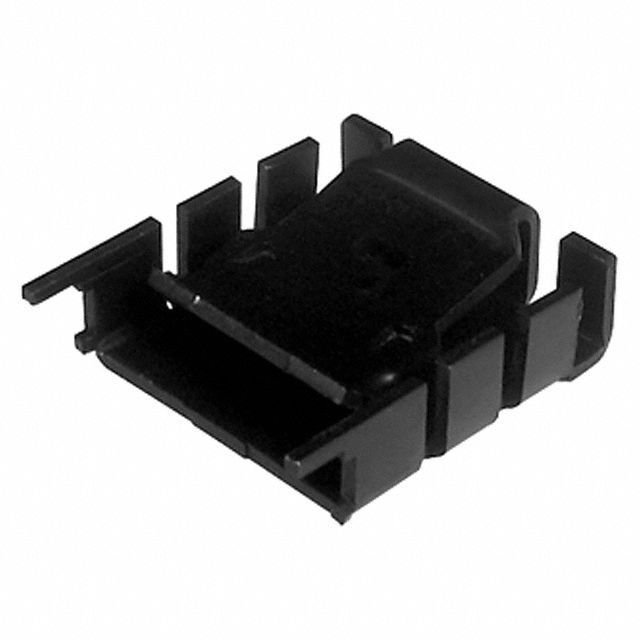

V8510B-T
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Clip and Board Mounts
Shape : Square, Pin Fins
Length : 0.906" (23.00mm)
Width : 0.906" (23.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.335" (8.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Clip and Board Mounts
Shape : Square, Pin Fins
Length : 0.906" (23.00mm)
Width : 0.906" (23.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.335" (8.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1000 in stock

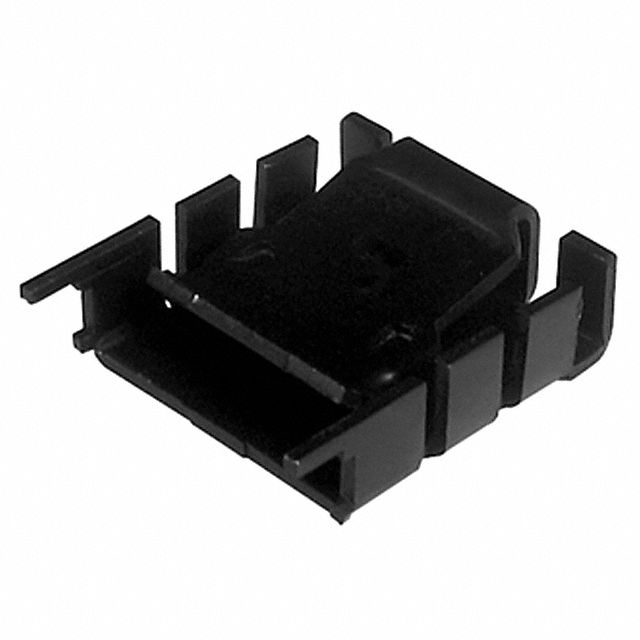

V8510SN-T
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Clip and Board Mounts
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.335" (8.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Tin
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Clip and Board Mounts
Shape : Square, Pin Fins
Length : 0.984" (25.00mm)
Width : 0.984" (25.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.335" (8.50mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 18.00°C/W
Material : Aluminum
Material Finish : Tin
0
959 in stock

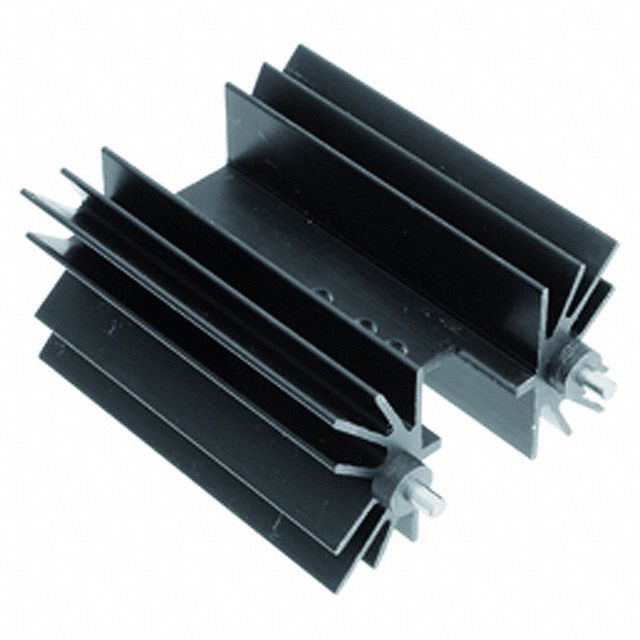

V8511W
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.181" (30.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 6.50°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.181" (30.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 6.50°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1007 in stock

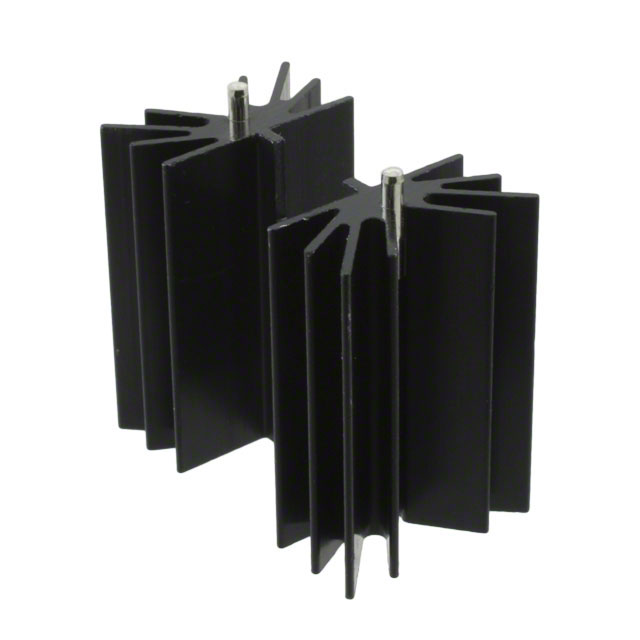

V8511X
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.181" (30.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.181" (30.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 5.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2853 in stock
V8511Y
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.181" (30.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 4.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.181" (30.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.984" (25.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 4.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
395 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
