Part Number
Manufacturer
Description
Unit Price
In Stock

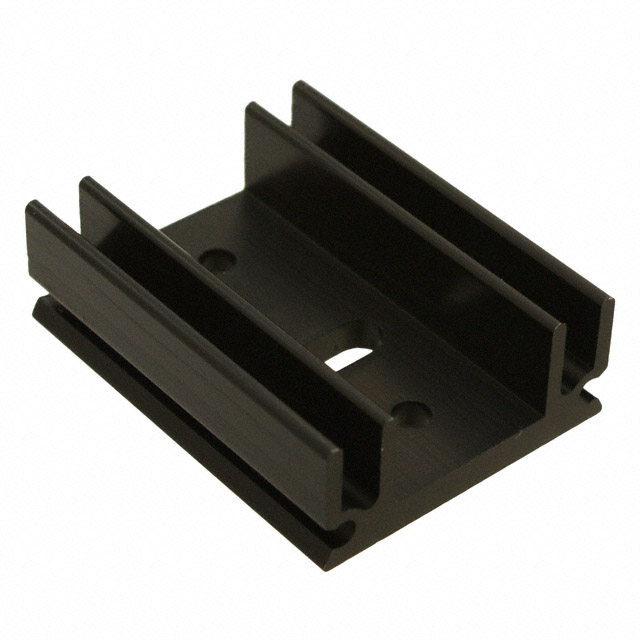

V6560K
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : KLP
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.476" (37.50mm)
Width : 1.142" (29.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 13.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : KLP
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.476" (37.50mm)
Width : 1.142" (29.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 13.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
394 in stock

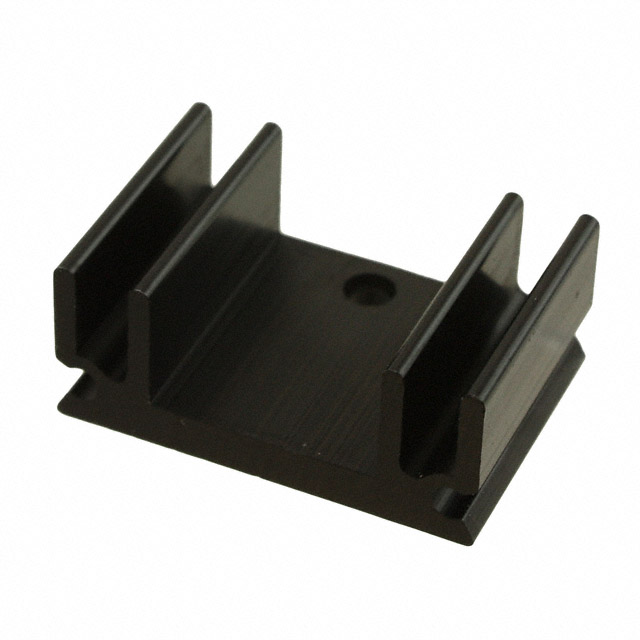

V6560N
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.787" (20.00mm)
Width : 1.142" (29.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.787" (20.00mm)
Width : 1.142" (29.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 15.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
11 in stock

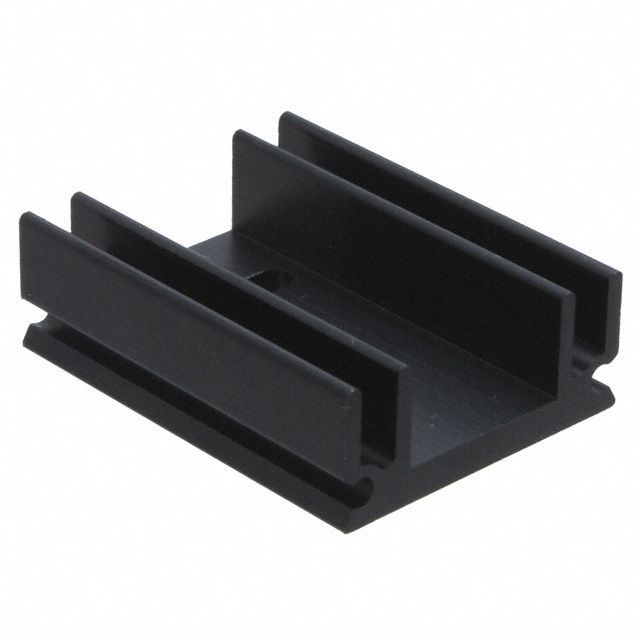

V6560R
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : KLM
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.476" (37.50mm)
Width : 1.142" (29.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 13.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : KLM
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 1.476" (37.50mm)
Width : 1.142" (29.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 13.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
517 in stock

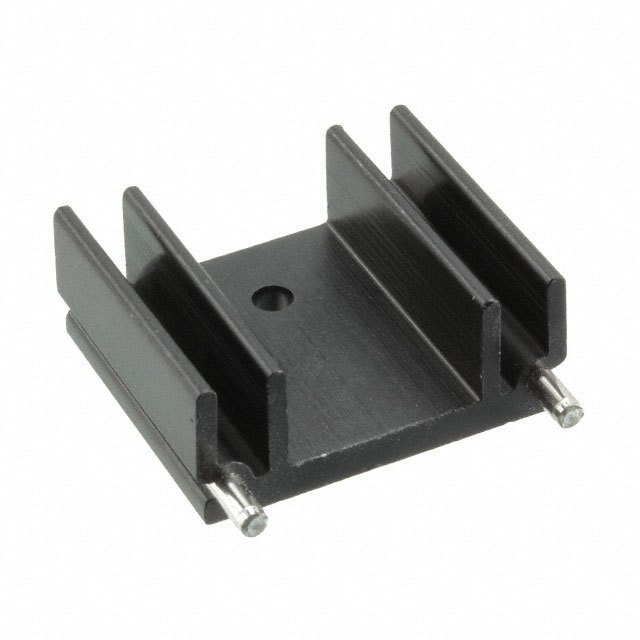

V6560W
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.984" (25.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 10.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.984" (25.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 10.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2361 in stock

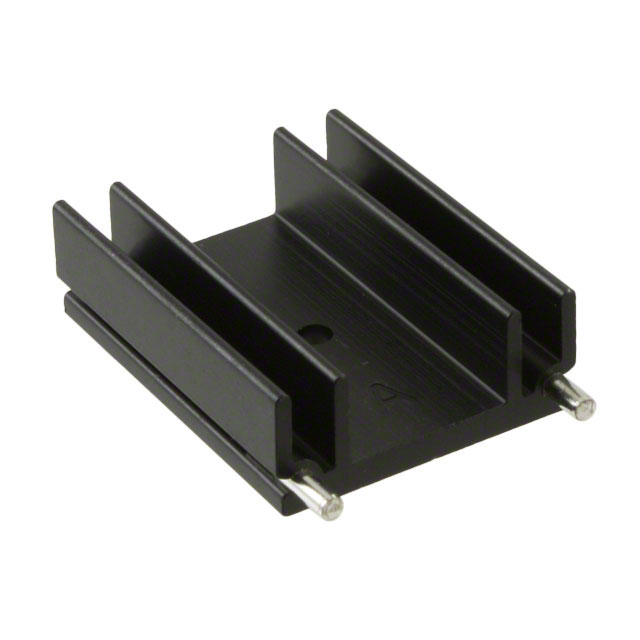

V6560X
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.575" (40.00mm)
Width : 1.575" (40.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Square, Fins
Length : 1.575" (40.00mm)
Width : 1.575" (40.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 8.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
1340 in stock

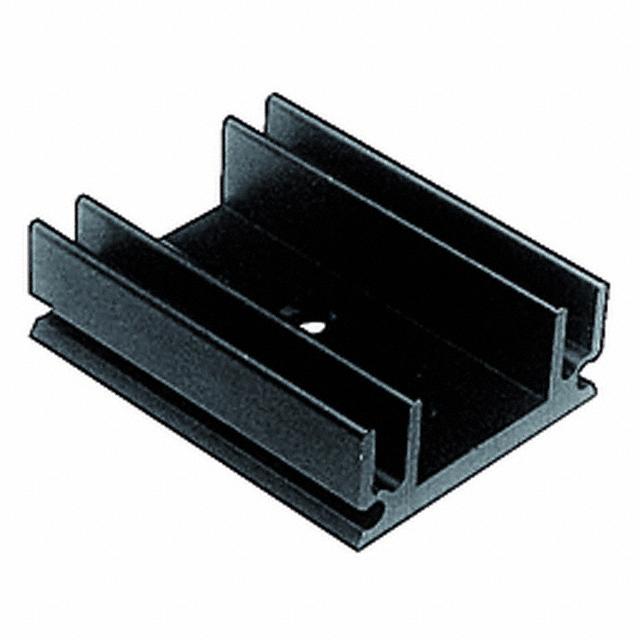

V6560Y
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.969" (50.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 7.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.969" (50.00mm)
Width : 1.181" (30.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.472" (12.00mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 7.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
8196 in stock

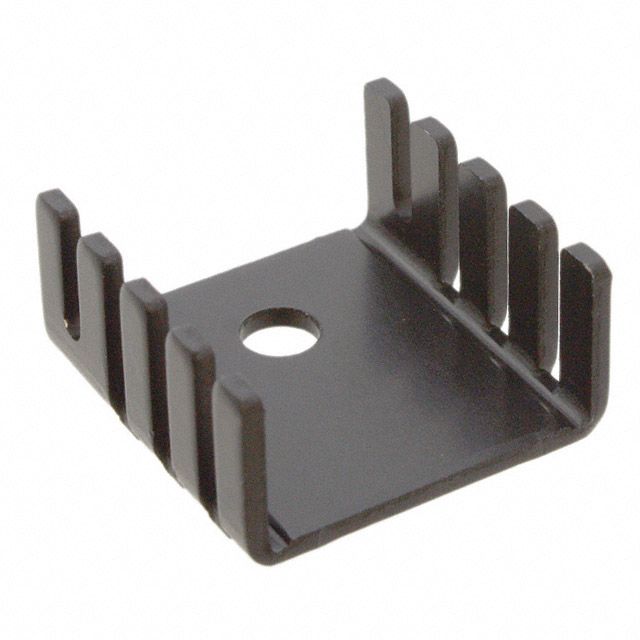

V7235-T
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Square, Fins
Length : 0.750" (19.05mm)
Width : 0.750" (19.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Square, Fins
Length : 0.750" (19.05mm)
Width : 0.750" (19.05mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
8014 in stock

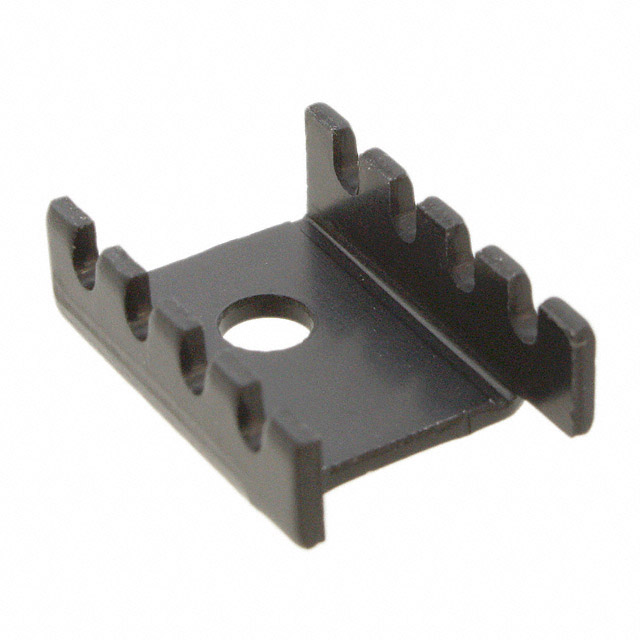

V7236A1
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 28.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 28.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
100 in stock

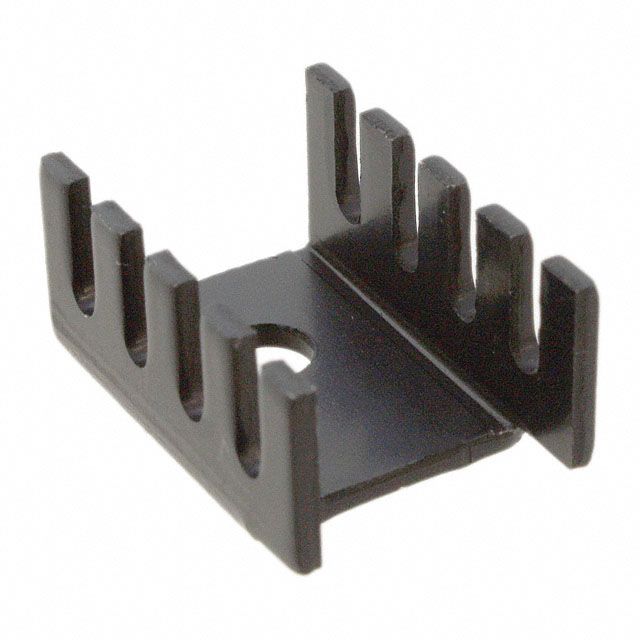

V7236B1
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level
Package Cooled : TO-220
Attachment Method : Bolt On
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2430 in stock

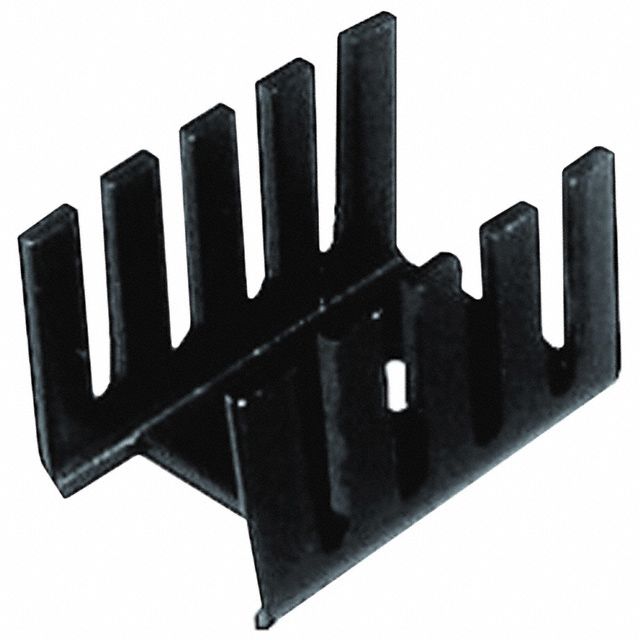

V7236C1
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 0.472" (12.00mm)
Width : 0.472" (12.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 21.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On
Shape : Square, Pin Fins
Length : 0.472" (12.00mm)
Width : 0.472" (12.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.500" (12.70mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 21.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
625 in stock

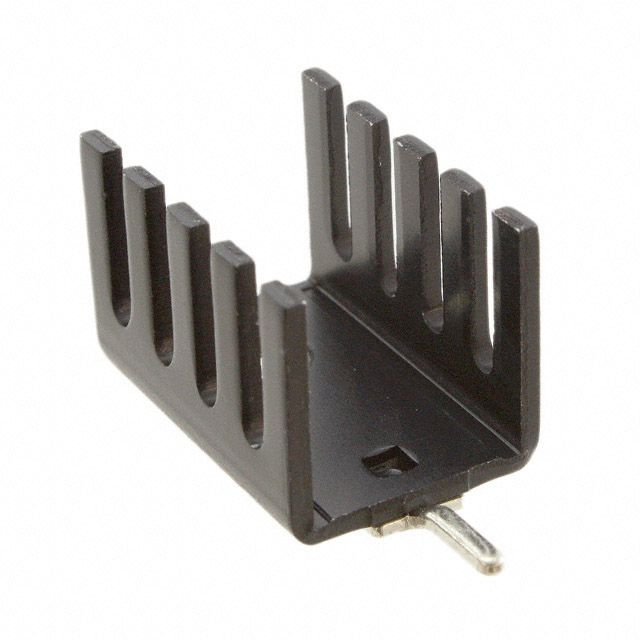

V7237A
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.378" (35.00mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 32.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Top Mount
Package Cooled : Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 1.378" (35.00mm)
Width : 0.866" (22.00mm)
Diameter : -
Height Off Base (Height of Fin) : 0.250" (6.35mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 32.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
2213 in stock
V7237B
ASSMANN WSW Components
Manufacturer : Assmann WSW Components
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
Series : -
Part Status : Active
Type : Board Level, Vertical
Package Cooled : TO-220
Attachment Method : Bolt On and PC Pin
Shape : Rectangular, Fins
Length : 0.750" (19.05mm)
Width : 0.520" (13.21mm)
Diameter : -
Height Off Base (Height of Fin) : 0.375" (9.52mm)
Power Dissipation @ Temperature Rise : -
Thermal Resistance @ Forced Air Flow : -
Thermal Resistance @ Natural : 24.00°C/W
Material : Aluminum
Material Finish : Black Anodized
0
220 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
