Category
  • DC Fans
Part Number
Manufacturer
Description
Unit Price
In Stock

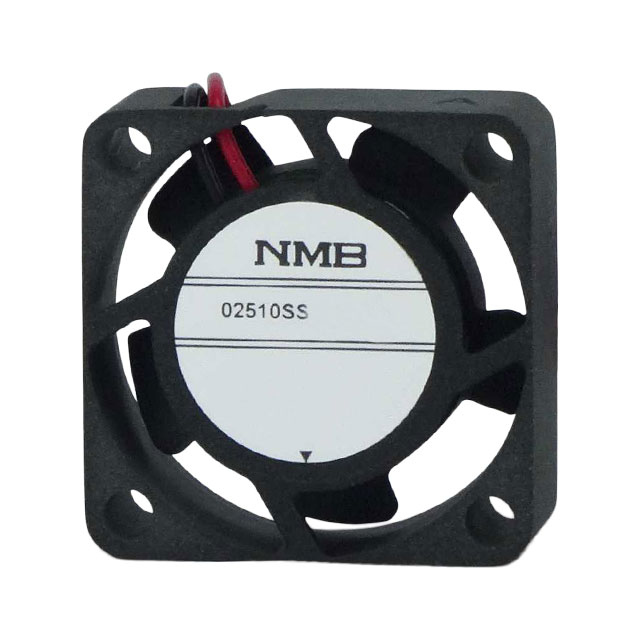

Picture of 02510SS-05P-AT-00

02510SS-05P-AT-00 02510SS-05P-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 02510SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.6 CFM (0.073m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.5 dB
Power (Watts) : 900mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.018 lb (8.16g)
0
340 in stock
Picture of 02510SS-12P-AT-00

02510SS-12P-AT-00 02510SS-12P-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 02510SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 25mm L x 25mm H
Width : 10.00mm
Air Flow : 2.6 CFM (0.073m鲁/min)
Static Pressure : 0.270 in H2O (67.2 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.5 dB
Power (Watts) : 840mW
RPM : 13000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.018 lb (8.16g)
0
838 in stock

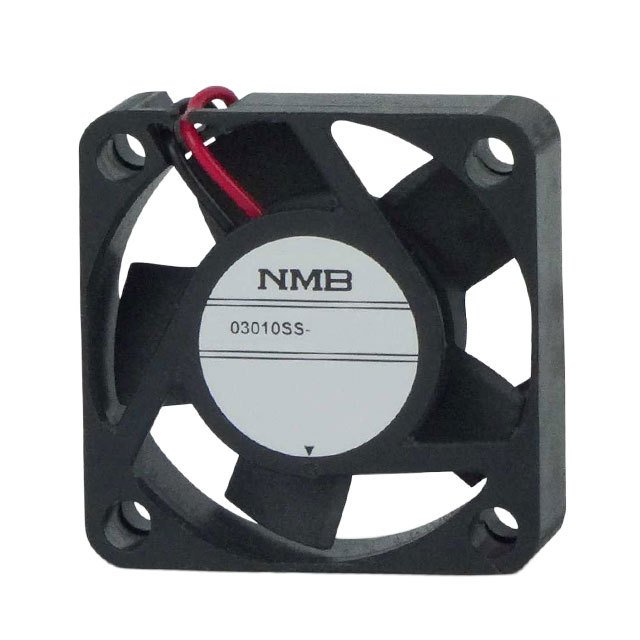

Picture of 03010SS-05N-AT-00

03010SS-05N-AT-00 03010SS-05N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03010SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB
Power (Watts) : 1.05W
RPM : 10500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.019 lb (8.62g)
0
331 in stock
Picture of 03010SS-12N-AT-00

03010SS-12N-AT-00 03010SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03010SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 30mm L x 30mm H
Width : 10.00mm
Air Flow : 4.2 CFM (0.118m鲁/min)
Static Pressure : 0.240 in H2O (59.8 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 28.0 dB
Power (Watts) : 960mW
RPM : 10500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.019 lb (8.62g)
0
263 in stock

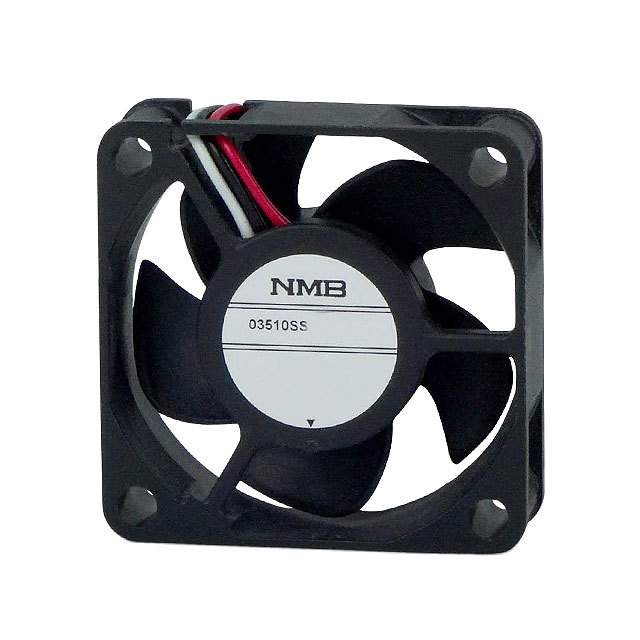

Picture of 03510SS-05N-AT-00

03510SS-05N-AT-00 03510SS-05N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03510SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 27.0 dB
Power (Watts) : 1.00W
RPM : 10000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.023 lb (10.43g)
0
391 in stock
Picture of 03510SS-12N-AT-00

03510SS-12N-AT-00 03510SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03510SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 10.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.230 in H2O (57.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 27.0 dB
Power (Watts) : 840mW
RPM : 10000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.023 lb (10.43g)
0
445 in stock
Picture of 03515SS-05N-AT-00

03515SS-05N-AT-00 03515SS-05N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03515SS
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 15.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 24.0 dB
Power (Watts) : 900mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.028 lb (12.7g)
0
517 in stock

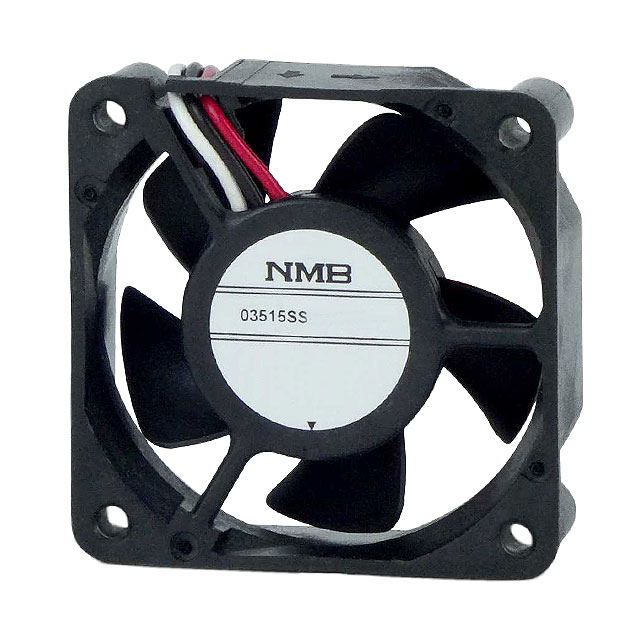

Picture of 03515SS-12N-AT-00

03515SS-12N-AT-00 03515SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03515SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 35mm L x 35mm H
Width : 15.00mm
Air Flow : 5.6 CFM (0.157m鲁/min)
Static Pressure : 0.140 in H2O (34.9 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 24.0 dB
Power (Watts) : 840mW
RPM : 8000 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.028 lb (12.7g)
0
152 in stock

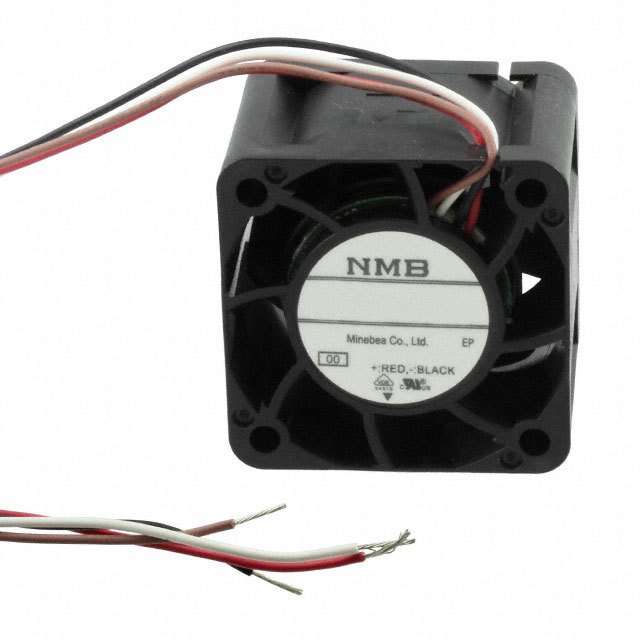

Picture of 03828DA-12Q-AU-00

03828DA-12Q-AU-00 03828DA-12Q-AU-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03828DA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 19.4 CFM (0.543m鲁/min)
Static Pressure : 2.160 in H2O (540.0 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 55.0 dB
Power (Watts) : 5.90W
RPM : 20000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : cUL, UL, VDE
Weight : 0.104 lb (47.17g)
0
108 in stock

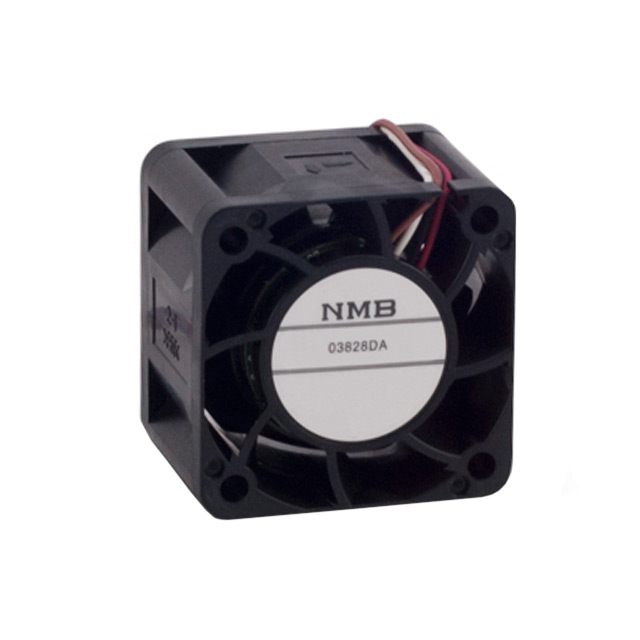

Picture of 03828DA-12R-AU-00

03828DA-12R-AU-00 03828DA-12R-AU-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 03828DA
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 38mm L x 38mm H
Width : 28.00mm
Air Flow : 21.5 CFM (0.602m鲁/min)
Static Pressure : 2.610 in H2O (650.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Auto Restart, PWM Control, Speed Sensor (Tach)
Noise : 58.0 dB
Power (Watts) : 7.56W
RPM : 22000 RPM
Termination : 4 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : -
0
189 in stock

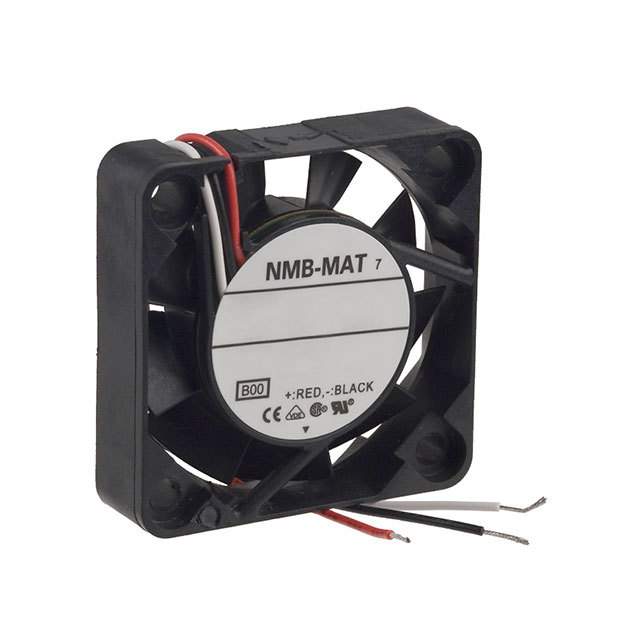

Picture of 04010KA-05M-AT-00

04010KA-05M-AT-00 04010KA-05M-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010KA
Part Status : Active
Voltage - Rated : 5VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 5.3 CFM (0.148m鲁/min)
Static Pressure : 0.136 in H2O (33.9 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 25.0 dB
Power (Watts) : 600mW
RPM : 5500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.033 lb (14.97g)
0
218 in stock

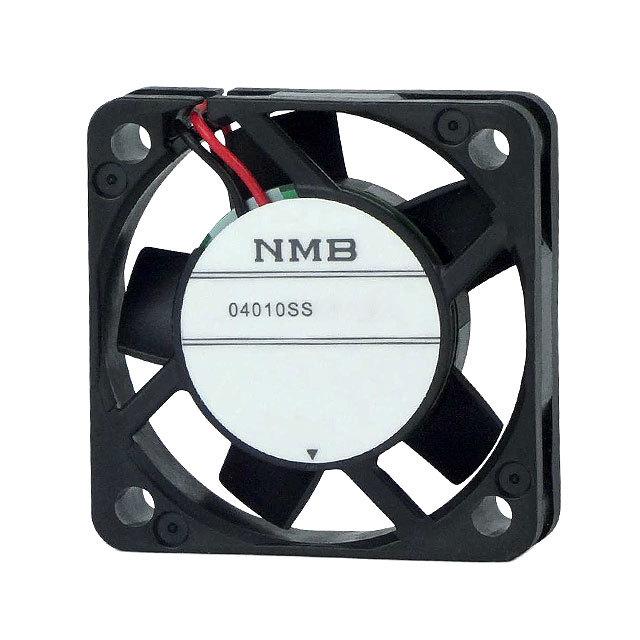

Picture of 04010SS-12N-AT-00

04010SS-12N-AT-00 04010SS-12N-AT-00

NMB Technologies Corp.
Manufacturer : NMB Technologies Corporation
Series : 04010SS
Part Status : Active
Voltage - Rated : 12VDC
Size / Dimension : Square - 40mm L x 40mm H
Width : 10.00mm
Air Flow : 6.7 CFM (0.188m鲁/min)
Static Pressure : 0.190 in H2O (47.3 Pa)
Bearing Type : Sleeve
Fan Type : Tubeaxial
Features : Speed Sensor (Tach)
Noise : 29.0 dB
Power (Watts) : 700mW
RPM : 7500 RPM
Termination : 3 Wire Leads
Ingress Protection : -
Operating Temperature : 14 ~ 158°F (-10 ~ 70°C)
Approvals : -
Weight : 0.035 lb (15.88g)
0
430 in stock
