Part Number
Manufacturer
Description
Unit Price
In Stock
AIKW40N65DF5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock

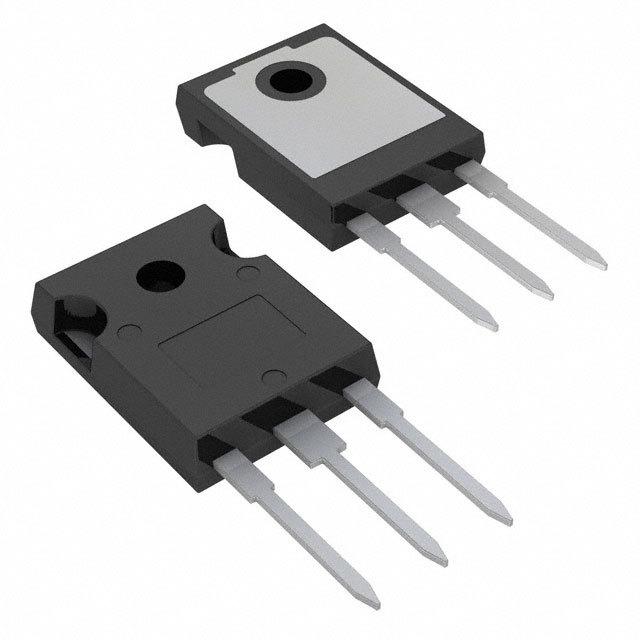

AIKW40N65DH5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 74A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 40A
Power - Max : 250W
Switching Energy : 350µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 95nC
Td (on/off) @ 25°C : 19ns/165ns
Test Condition : 400V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
100 in stock
AIKW50N60CTXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 1.2mJ (on), 1.4mJ (off)
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 50A
Power - Max : 333W
Switching Energy : 1.2mJ (on), 1.4mJ (off)
Input Type : Standard
Gate Charge : 310nC
Td (on/off) @ 25°C : 26ns/299ns
Test Condition : 400V, 50A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
480 in stock
AIKW50N65DF5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 1018nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 1018nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
200 in stock
AIKW50N65DH5XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 1018nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, Trenchstop™5
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : -
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 50A
Power - Max : 270W
Switching Energy : 490µJ (on), 140µJ (off)
Input Type : Standard
Gate Charge : 1018nC
Td (on/off) @ 25°C : 21ns/156ns
Test Condition : 400V, 25A, 12 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
173 in stock
AIKW75N60CTXKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 75A
Power - Max : 428W
Switching Energy : 2mJ (on), 2.5mJ (off)
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 33ns/330ns
Test Condition : 400V, 75A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
Packaging : Tube
Series : Automotive, AEC-Q101, TrenchStop™
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 225A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 75A
Power - Max : 428W
Switching Energy : 2mJ (on), 2.5mJ (off)
Input Type : Standard
Gate Charge : 470nC
Td (on/off) @ 25°C : 33ns/330ns
Test Condition : 400V, 75A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : PG-TO247-3
0
480 in stock
AOB10B65M1
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 10A
Power - Max : 150W
Switching Energy : 180µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 12ns/91ns
Test Condition : 400V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 262ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 10A
Power - Max : 150W
Switching Energy : 180µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 12ns/91ns
Test Condition : 400V, 10A, 30 Ohm, 15V
Reverse Recovery Time (trr) : 262ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
1 in stock
AOB15B65M1
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 15A
Power - Max : 214W
Switching Energy : 290µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 13ns/116ns
Test Condition : 400V, 15A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 317ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 15A
Power - Max : 214W
Switching Energy : 290µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 13ns/116ns
Test Condition : 400V, 15A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 317ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
365 in stock
AOB5B65M1
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 1.98V @ 15V, 5A
Power - Max : 83W
Switching Energy : 80µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 8.5ns/106ns
Test Condition : 400V, 5A, 60 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 1.98V @ 15V, 5A
Power - Max : 83W
Switching Energy : 80µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 8.5ns/106ns
Test Condition : 400V, 5A, 60 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
541 in stock
AOD5B65M1
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 1.98V @ 15V, 5A
Power - Max : 69W
Switching Energy : 80µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 8.5ns/106ns
Test Condition : 400V, 5A, 60 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 15A
Vce(on) (Max) @ Vge, Ic : 1.98V @ 15V, 5A
Power - Max : 69W
Switching Energy : 80µJ (on), 70µJ (off)
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 8.5ns/106ns
Test Condition : 400V, 5A, 60 Ohm, 15V
Reverse Recovery Time (trr) : 195ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252
0
1034 in stock
AOK20B120E1
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tube
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 20A
Power - Max : 333W
Switching Energy : 830µJ (off)
Input Type : Standard
Gate Charge : 60.5nC
Td (on/off) @ 25°C : -/134ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 20A
Power - Max : 333W
Switching Energy : 830µJ (off)
Input Type : Standard
Gate Charge : 60.5nC
Td (on/off) @ 25°C : -/134ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
11 in stock
AOK20B135D1
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tube
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 340W
Switching Energy : 1.05mJ (off)
Input Type : Standard
Gate Charge : 66nC
Td (on/off) @ 25°C : -/156ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Alpha IGBT™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1350V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 20A
Power - Max : 340W
Switching Energy : 1.05mJ (off)
Input Type : Standard
Gate Charge : 66nC
Td (on/off) @ 25°C : -/156ns
Test Condition : 600V, 20A, 15 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
42 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
