- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

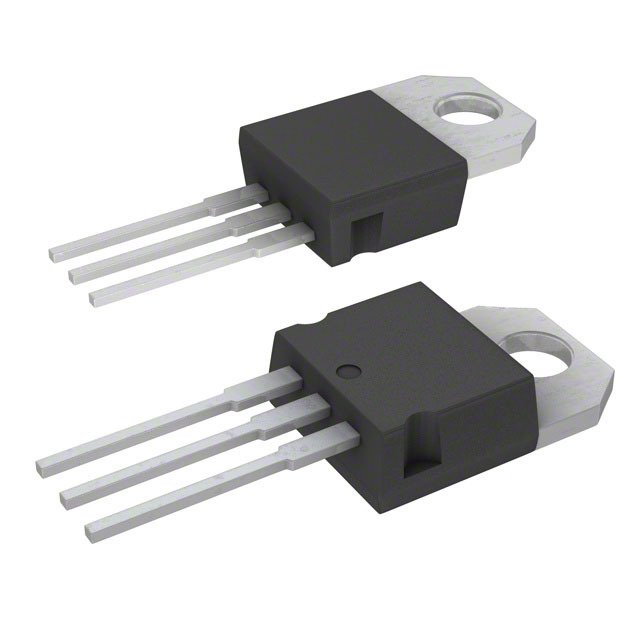

STGP7NB60KD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 80W
Switching Energy : 140µJ (off)
Input Type : Standard
Gate Charge : 32.7nC
Td (on/off) @ 25°C : 15ns/50ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 56A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 7A
Power - Max : 80W
Switching Energy : 140µJ (off)
Input Type : Standard
Gate Charge : 32.7nC
Td (on/off) @ 25°C : 15ns/50ns
Test Condition : 480V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 50ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP7NC60H
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP7NC60HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP8NC60K
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.75V @ 15V, 3A
Power - Max : 65W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.75V @ 15V, 3A
Power - Max : 65W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP8NC60KD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.75V @ 15V, 3A
Power - Max : 65W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 23.5ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.75V @ 15V, 3A
Power - Max : 65W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 23.5ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
327 in stock
STGW10M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 10A
Power - Max : 115W
Switching Energy : 120µJ (on), 270µJ (off)
Input Type : Standard
Gate Charge : 28nC
Td (on/off) @ 25°C : 19ns/91ns
Test Condition : 400V, 10A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 96ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 10A
Power - Max : 115W
Switching Energy : 120µJ (on), 270µJ (off)
Input Type : Standard
Gate Charge : 28nC
Td (on/off) @ 25°C : 19ns/91ns
Test Condition : 400V, 10A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 96ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
984 in stock
STGW15H120DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 15A
Power - Max : 259W
Switching Energy : 380µJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 23ns/111ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 231ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 15A
Power - Max : 259W
Switching Energy : 380µJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 23ns/111ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 231ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
STGW15H120F2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 15A
Power - Max : 259W
Switching Energy : 380µJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 23ns/111ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 15A
Power - Max : 259W
Switching Energy : 380µJ (on), 370µJ (off)
Input Type : Standard
Gate Charge : 67nC
Td (on/off) @ 25°C : 23ns/111ns
Test Condition : 600V, 15A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
100 in stock
STGW15S120DF3
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 15A
Power - Max : 259W
Switching Energy : 540µJ (on), 1.38mJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 23ns/140ns
Test Condition : 600V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 270ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.05V @ 15V, 15A
Power - Max : 259W
Switching Energy : 540µJ (on), 1.38mJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 23ns/140ns
Test Condition : 600V, 15A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 270ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
63 in stock
STGW19NC60H
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 140W
Switching Energy : 85µJ (on), 189µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/97ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 140W
Switching Energy : 85µJ (on), 189µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/97ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
1418 in stock
STGW19NC60HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 140W
Switching Energy : 85µJ (on), 189µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/97ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 140W
Switching Energy : 85µJ (on), 189µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/97ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 31ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
3000 in stock
STGW19NC60W
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 140W
Switching Energy : 81µJ (on), 125µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/90ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 42A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 12A
Power - Max : 140W
Switching Energy : 81µJ (on), 125µJ (off)
Input Type : Standard
Gate Charge : 53nC
Td (on/off) @ 25°C : 25ns/90ns
Test Condition : 390V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247 Long Leads
0
1174 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
