Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
RJH60A83RDPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 10A
Power - Max : 52W
Switching Energy : 230µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19.7nC
Td (on/off) @ 25°C : 31ns/54ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 10A
Power - Max : 52W
Switching Energy : 230µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19.7nC
Td (on/off) @ 25°C : 31ns/54ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock

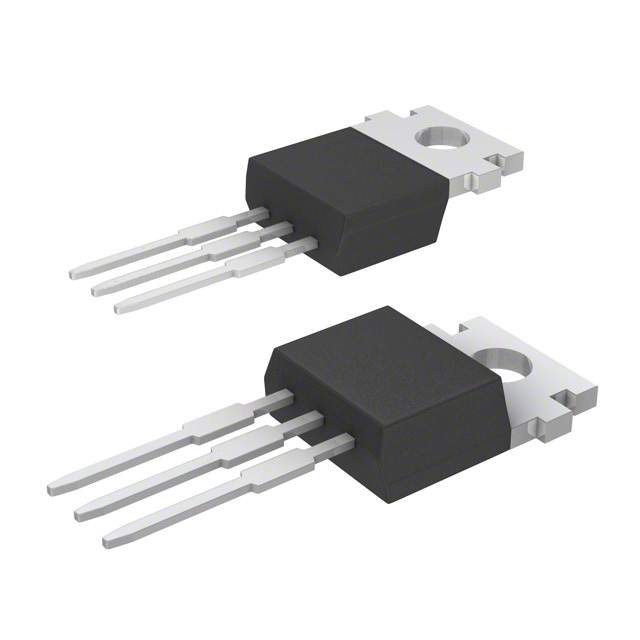

RJH60A83RDPN-E0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : -
Power - Max : -
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 150ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
94 in stock
RJH60A83RDPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 10A
Power - Max : 30W
Switching Energy : 230µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19.7nC
Td (on/off) @ 25°C : 31ns/54ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 10A
Power - Max : 30W
Switching Energy : 230µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19.7nC
Td (on/off) @ 25°C : 31ns/54ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 130ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock

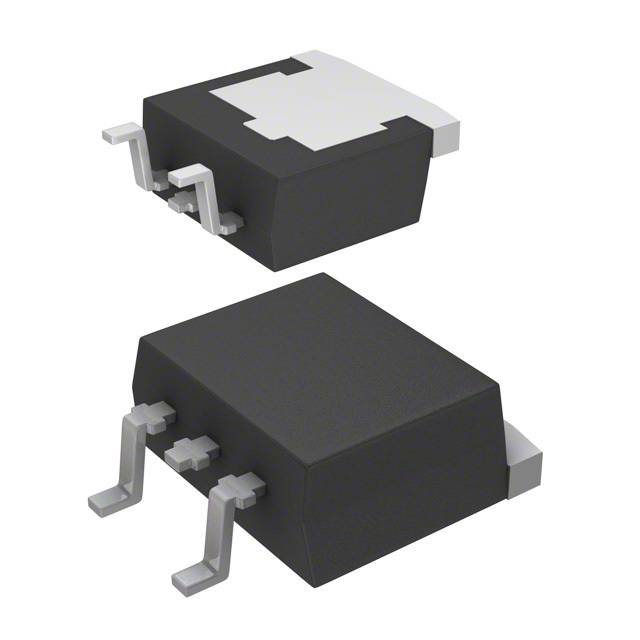

RJH60A85RDPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 15A
Power - Max : 113W
Switching Energy : 430µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 56nC
Td (on/off) @ 25°C : 40ns/86ns
Test Condition : 300V, 15A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 1.8V @ 15V, 15A
Power - Max : 113W
Switching Energy : 430µJ (on), 300µJ (off)
Input Type : Standard
Gate Charge : 56nC
Td (on/off) @ 25°C : 40ns/86ns
Test Condition : 300V, 15A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 160ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock

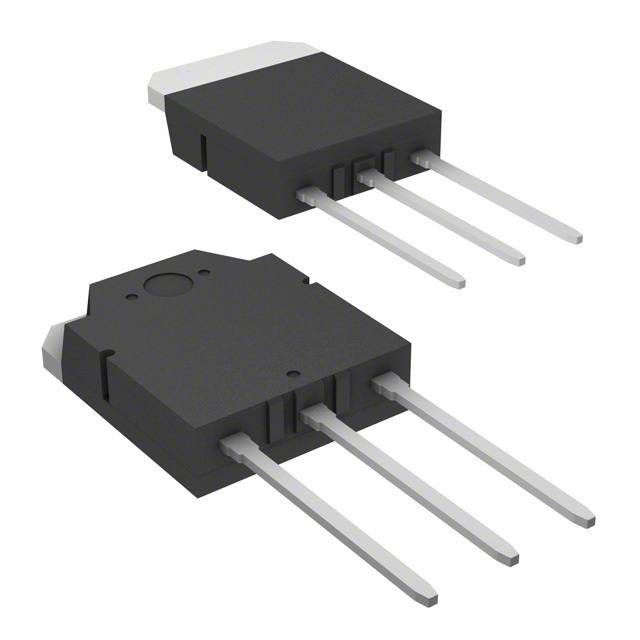

RJH60D0DPK-00#T0
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 22A
Power - Max : 140W
Switching Energy : 230µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 40ns/80ns
Test Condition : 300V, 22A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 22A
Power - Max : 140W
Switching Energy : 230µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 40ns/80ns
Test Condition : 300V, 22A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock

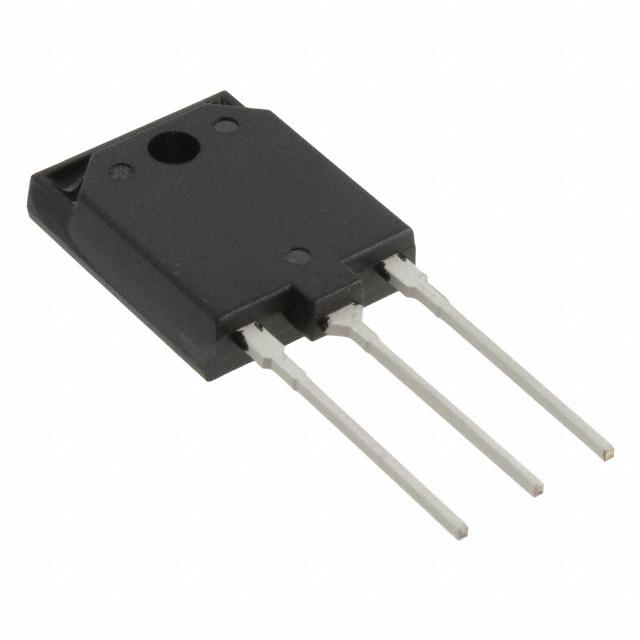

RJH60D0DPM-00#T1
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 22A
Power - Max : 40W
Switching Energy : 230µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 40ns/80ns
Test Condition : 300V, 22A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PFM
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 45A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 22A
Power - Max : 40W
Switching Energy : 230µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 40ns/80ns
Test Condition : 300V, 22A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PFM
0
100 in stock
RJH60D1DPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 52W
Switching Energy : 100µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 13nC
Td (on/off) @ 25°C : 30ns/42ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 52W
Switching Energy : 100µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 13nC
Td (on/off) @ 25°C : 30ns/42ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock

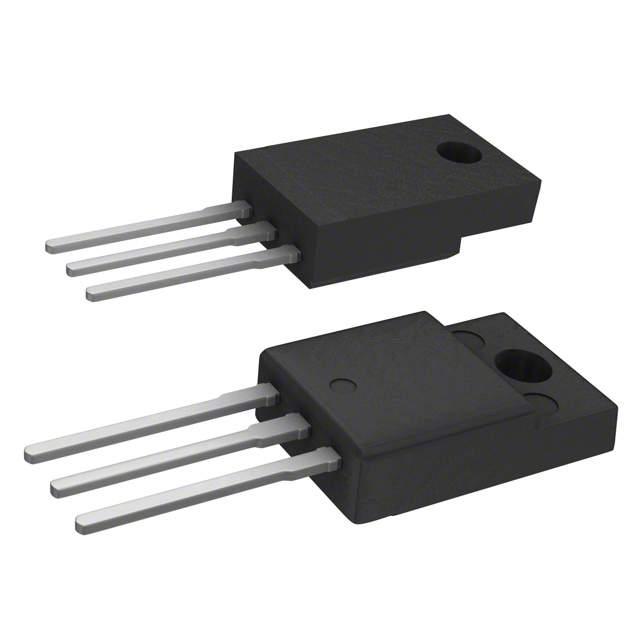

RJH60D1DPP-E0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 30W
Switching Energy : 100µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 13nC
Td (on/off) @ 25°C : 30ns/42ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 30W
Switching Energy : 100µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 13nC
Td (on/off) @ 25°C : 30ns/42ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
100 in stock
RJH60D1DPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 30W
Switching Energy : 100µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 13nC
Td (on/off) @ 25°C : 30ns/42ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 10A
Power - Max : 30W
Switching Energy : 100µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 13nC
Td (on/off) @ 25°C : 30ns/42ns
Test Condition : 300V, 10A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 70ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock
RJH60D2DPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 63W
Switching Energy : 100µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 32ns/85ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 63W
Switching Energy : 100µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 32ns/85ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock
RJH60D2DPP-M0#T2
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 34W
Switching Energy : 100µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 32ns/85ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 12A
Power - Max : 34W
Switching Energy : 100µJ (on), 160µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 32ns/85ns
Test Condition : 300V, 12A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FL
0
100 in stock
RJH60D3DPE-00#J3
Renesas Electronics America
Manufacturer : Renesas Electronics America
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 17A
Power - Max : 113W
Switching Energy : 200µJ (on), 210µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 35ns/80ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 35A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 17A
Power - Max : 113W
Switching Energy : 200µJ (on), 210µJ (off)
Input Type : Standard
Gate Charge : 37nC
Td (on/off) @ 25°C : 35ns/80ns
Test Condition : 300V, 17A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-83
Supplier Device Package : 4-LDPAK
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
