Part Number
Manufacturer
Description
Unit Price
In Stock
CM150TL-24NF
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 23nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Active
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 23nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM150TU-12F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Active
IGBT Type : Trench
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Power - Max : 520W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 41nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Active
IGBT Type : Trench
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Power - Max : 520W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 41nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM150TU-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Power - Max : 600W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 13.2nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 150A
Power - Max : 600W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 13.2nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

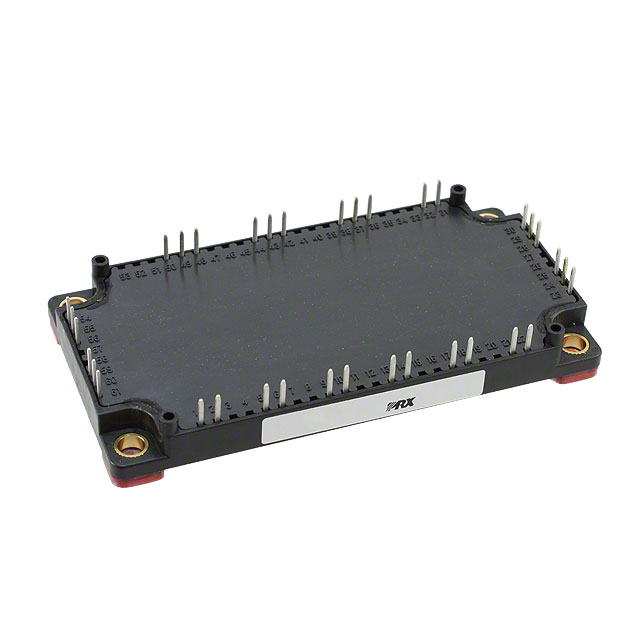

CM150TX-24S
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 1150W
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 15nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 1150W
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 15nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

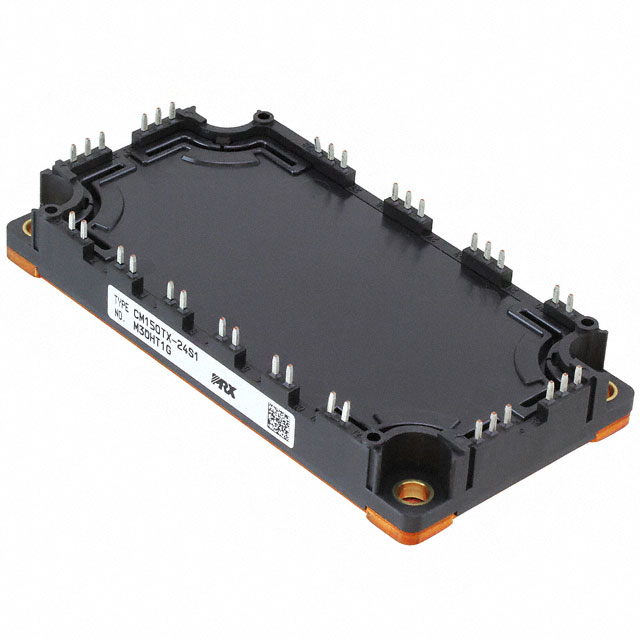

CM150TX-24S1
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 935W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 15nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 150A
Power - Max : 935W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 150A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 15nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM15TF-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Power - Max : 100W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 15A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 1.5nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Power - Max : 100W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 15A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 1.5nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM15TF-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 15A
Power - Max : 150W
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 3nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 15A
Power - Max : 150W
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 15A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 3nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

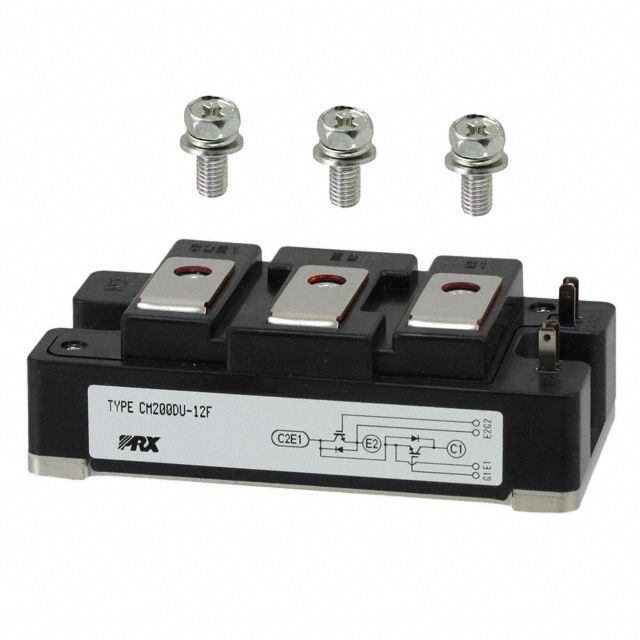

CM200DU-12F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 590W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 54nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 590W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 54nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
10 in stock
CM200DU-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 650W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 17.6nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 650W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 17.6nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

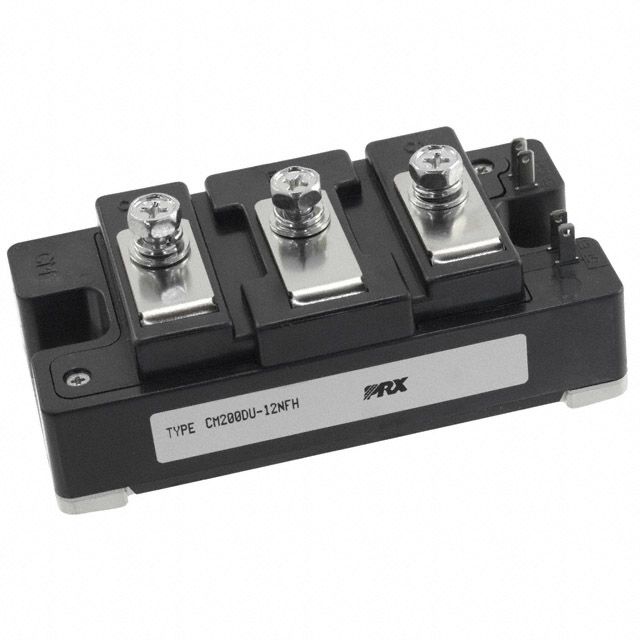

CM200DU-12NFH
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 590W
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 55nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 200A
Power - Max : 590W
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 55nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM200DU-24F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 78nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 78nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM200DU-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 200A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 200A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
