Part Number
Manufacturer
Description
Unit Price
In Stock

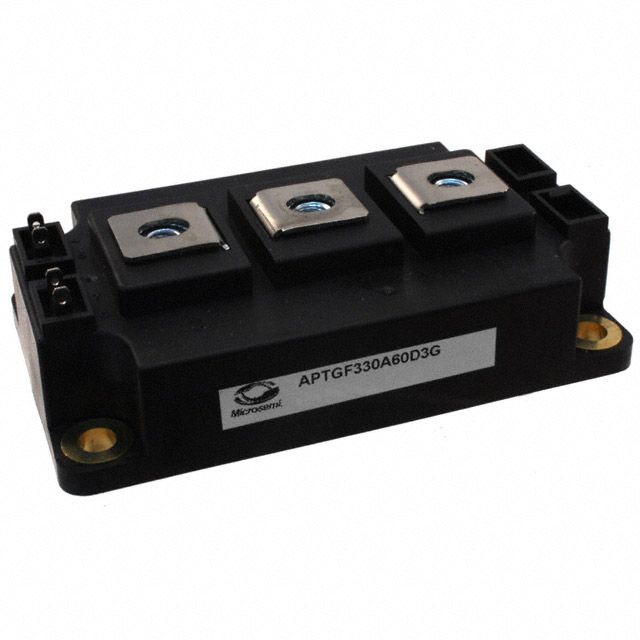

APTGF330A60D3G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 520A
Power - Max : 1560W
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 400A
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 18nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 520A
Power - Max : 1560W
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 400A
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 18nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
100 in stock

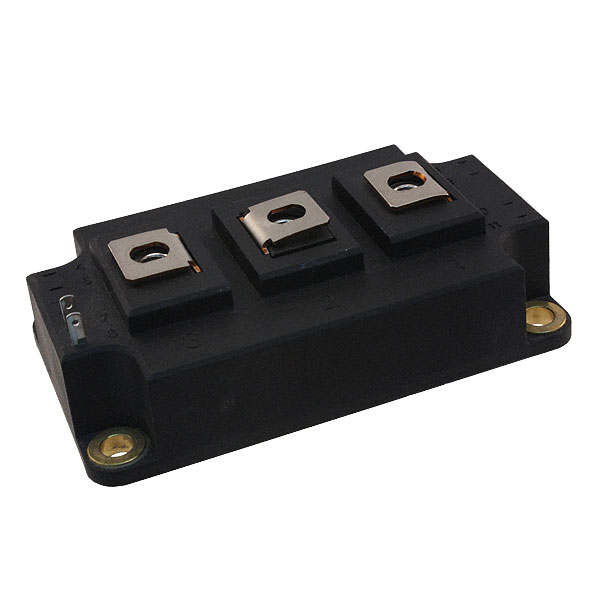

APTGF330DA60D3G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 460A
Power - Max : 1400W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 400A
Current - Collector Cutoff (Max) : 750µA
Input Capacitance (Cies) @ Vce : 18nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 460A
Power - Max : 1400W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 400A
Current - Collector Cutoff (Max) : 750µA
Input Capacitance (Cies) @ Vce : 18nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
100 in stock
APTGF330SK60D3G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 460A
Power - Max : 1400W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 400A
Current - Collector Cutoff (Max) : 750µA
Input Capacitance (Cies) @ Vce : 18nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 460A
Power - Max : 1400W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 400A
Current - Collector Cutoff (Max) : 750µA
Input Capacitance (Cies) @ Vce : 18nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D-3 Module
Supplier Device Package : D3
0
100 in stock

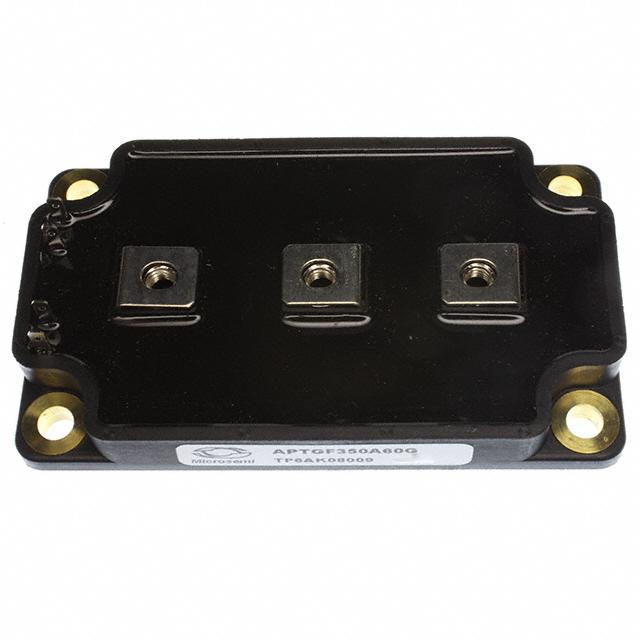

APTGF350A60G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
0
100 in stock
APTGF350DA60G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
0
100 in stock

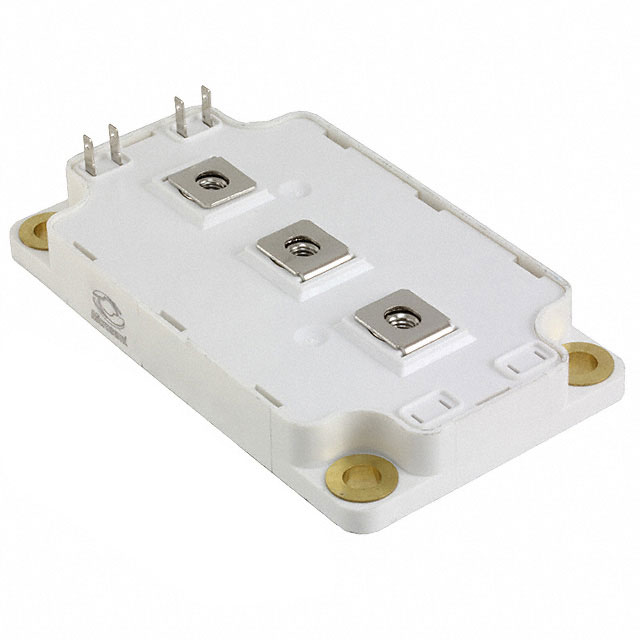

APTGF350DU60G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Dual, Common Source
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Dual, Common Source
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
0
100 in stock
APTGF350SK60G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 430A
Power - Max : 1562W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 360A
Current - Collector Cutoff (Max) : 200µA
Input Capacitance (Cies) @ Vce : 17.2nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP6
Supplier Device Package : SP6
0
100 in stock
APTGF360U60D4G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 450A
Power - Max : 1560W
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 360A
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 17nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D4
Supplier Device Package : D4
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 450A
Power - Max : 1560W
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 360A
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 17nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D4
Supplier Device Package : D4
0
100 in stock
APTGF400U120D4G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 510A
Power - Max : 2500W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 5mA
Input Capacitance (Cies) @ Vce : 26nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : D4
Supplier Device Package : D4
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 510A
Power - Max : 2500W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 5mA
Input Capacitance (Cies) @ Vce : 26nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : D4
Supplier Device Package : D4
0
100 in stock

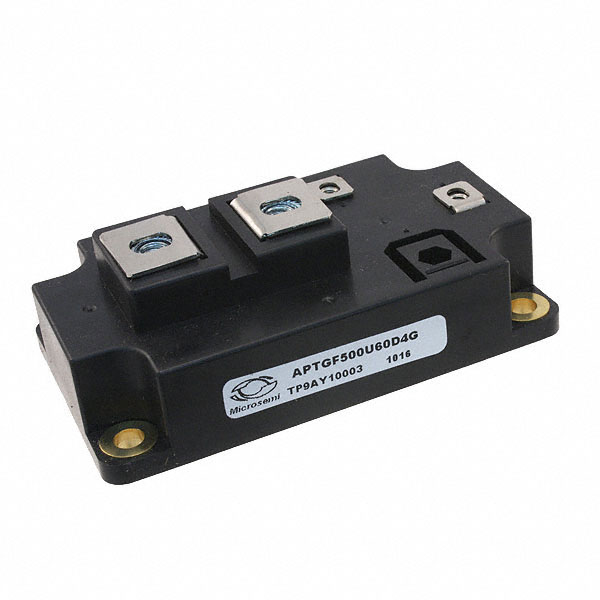

APTGF500U60D4G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 625A
Power - Max : 2000W
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 500A
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 26nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D4
Supplier Device Package : D4
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 625A
Power - Max : 2000W
Vce(on) (Max) @ Vge, Ic : 2.45V @ 15V, 500A
Current - Collector Cutoff (Max) : 500µA
Input Capacitance (Cies) @ Vce : 26nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : D4
Supplier Device Package : D4
0
100 in stock
APTGF50A120T1G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Power - Max : 312W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 3.45nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Power - Max : 312W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 3.45nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
0
100 in stock
APTGF50A120TG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Discontinued at
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Power - Max : 312W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 3.45nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
Series : -
Part Status : Discontinued at
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 75A
Power - Max : 312W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 3.45nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
