Part Number
Manufacturer
Description
Unit Price
In Stock
APTCV60TLM70T3G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Power - Max : 176W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 3.15nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : SP3
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Level Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Power - Max : 176W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 50A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 3.15nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : SP3
0
100 in stock
APTCV60TLM99T3G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Level Inverter - IGBT, FET
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 50A
Power - Max : 90W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 1.6nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Configuration : Three Level Inverter - IGBT, FET
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 50A
Power - Max : 90W
Vce(on) (Max) @ Vge, Ic : 1.9V @ 15V, 30A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 1.6nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
0
100 in stock
APTCV90TL12T3G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Last Time Buy
IGBT Type : Trench Field Stop
Configuration : Three Level Inverter - IGBT, FET
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Power - Max : 280W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 50A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 2.77nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
Series : -
Part Status : Last Time Buy
IGBT Type : Trench Field Stop
Configuration : Three Level Inverter - IGBT, FET
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 80A
Power - Max : 280W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 50A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 2.77nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 175°C (TJ)
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
0
100 in stock
APTGF100A1202G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP2
Supplier Device Package : SP2
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : No
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP2
Supplier Device Package : SP2
0
100 in stock
APTGF100A120T3AG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 130A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 130A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
0
100 in stock

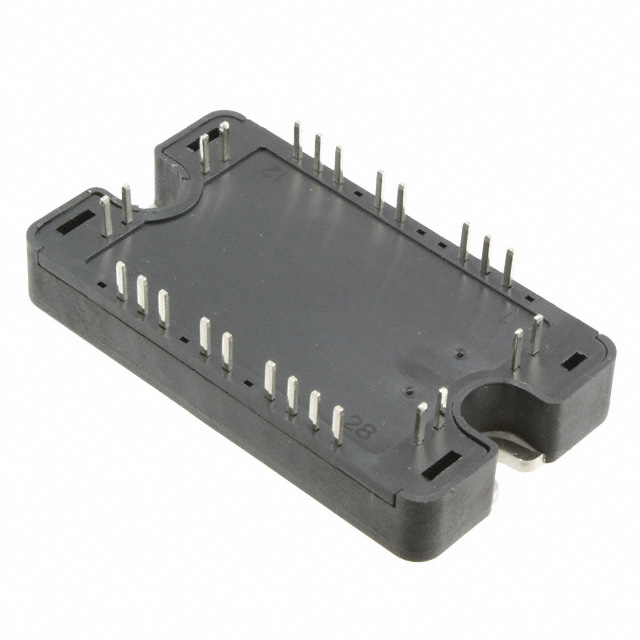

APTGF100A120T3WG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 130A
Power - Max : 657W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 130A
Power - Max : 657W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
0
100 in stock

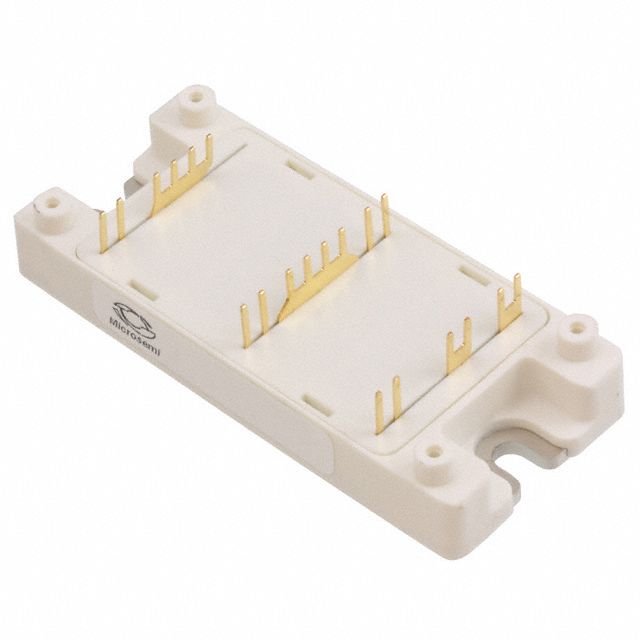

APTGF100A120TG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
0
100 in stock

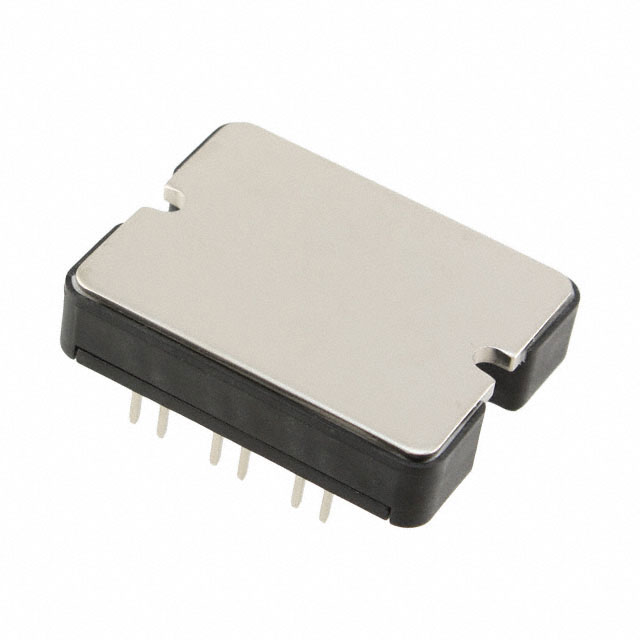

APTGF100DA120T1G
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 130A
Power - Max : 735W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 130A
Power - Max : 735W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 6.5nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP1
Supplier Device Package : SP1
0
100 in stock
APTGF100DA120TG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
0
100 in stock
APTGF100DU120TG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Dual, Common Source
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Dual, Common Source
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
0
100 in stock
APTGF100SK120TG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 135A
Power - Max : 568W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 100A
Current - Collector Cutoff (Max) : 350µA
Input Capacitance (Cies) @ Vce : 6.9nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP4
Supplier Device Package : SP4
0
100 in stock
APTGF150A120T3AG
Microsemi
Manufacturer : Microsemi Corporation
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 210A
Power - Max : 1041W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 150A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 9.3nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
Series : -
Part Status : Obsolete
IGBT Type : NPT
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 210A
Power - Max : 1041W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 150A
Current - Collector Cutoff (Max) : 250µA
Input Capacitance (Cies) @ Vce : 9.3nF @ 25V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : SP3
Supplier Device Package : SP3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
