Part Number
Manufacturer
Description
Unit Price
In Stock

2N7000-D74Z 2N7000-D74Z

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 400mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
0
4276 in stock

2N7000-D75Z 2N7000-D75Z

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 400mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
0
743 in stock

2N7000G 2N7000G

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 60pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
0
100 in stock

2N7000-G 2N7000-G

Microchip Technology
Manufacturer : Microchip Technology
Packaging : Bulk
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Tj)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 60pF @ 25V
FET Feature : -
Power Dissipation (Max) : 1W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
0
5367 in stock

2N7000RLRA 2N7000RLRA

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 60pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
0
100 in stock

2N7000RLRAG 2N7000RLRAG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 60pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
0
100 in stock

2N7000RLRMG 2N7000RLRMG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Box (TB)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 60pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
0
100 in stock

2N7000RLRPG 2N7000RLRPG

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Box (TB)
Series : -
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 60pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
0
100 in stock

2N7000TA 2N7000TA

Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 200mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 400mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-92-3
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
0
2445 in stock

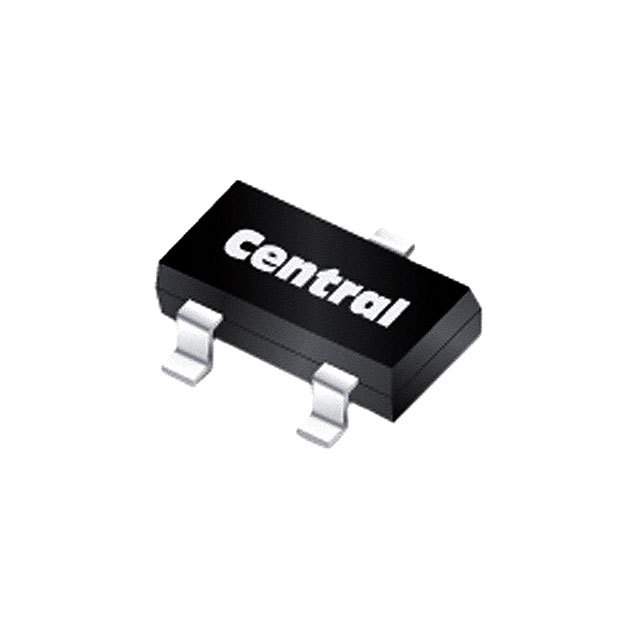

2N7002 BK 2N7002 BK

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.59nC @ 4.5V
Vgs (Max) : 40V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
100 in stock

2N7002 TR 2N7002 TR

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : 40V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
80112 in stock

2N7002 TR13 2N7002 TR13

Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 5V, 10V
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.59nC @ 4.5V
Vgs (Max) : 40V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
FET Feature : -
Power Dissipation (Max) : 350mW (Ta)
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : SOT-23
Package / Case : TO-236-3, SC-59, SOT-23-3
0
4290 in stock
