FDQ7236AS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 14A, 11A
Rds On (Max) @ Id, Vgs : 8.7 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 15V
Power - Max : 1.3W, 1.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SO
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 14A, 11A
Rds On (Max) @ Id, Vgs : 8.7 mOhm @ 14A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 15V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 15V
Power - Max : 1.3W, 1.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SO
0
100 in stock
FDQ7238AS
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 14A, 11A
Rds On (Max) @ Id, Vgs : 13.2 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 15V
Power - Max : 1.3W, 1.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SO
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 14A, 11A
Rds On (Max) @ Id, Vgs : 13.2 mOhm @ 11A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 15V
Power - Max : 1.3W, 1.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 14-SO
0
100 in stock

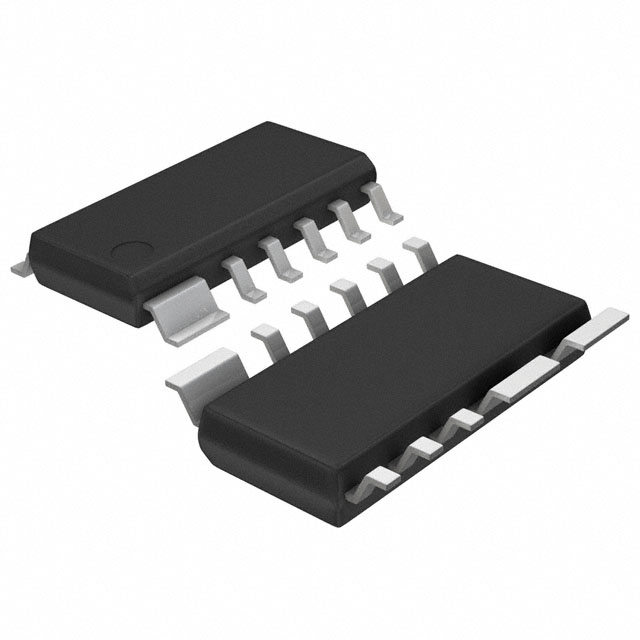

FDQ7698S
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 12A, 15A
Rds On (Max) @ Id, Vgs : 7.5 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 1324pF @ 15V
Power - Max : 1.1W, 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads
Supplier Device Package : 14-SO
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 12A, 15A
Rds On (Max) @ Id, Vgs : 7.5 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 1324pF @ 15V
Power - Max : 1.1W, 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 14-SOIC (0.154", 3.90mm Width), 11 Leads, Fused Leads
Supplier Device Package : 14-SO
0
100 in stock
FDR8305N
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.5A
Rds On (Max) @ Id, Vgs : 22 mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.5A
Rds On (Max) @ Id, Vgs : 22 mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 23nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
0
100 in stock
FDR8308P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.2A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1240pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.2A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1240pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
0
100 in stock
FDR8508P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 52 mOhm @ 3A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 750pF @ 15V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 52 mOhm @ 3A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 750pF @ 15V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
0
100 in stock
FDR8702H
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.6A, 2.6A
Rds On (Max) @ Id, Vgs : 38 mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 650pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.6A, 2.6A
Rds On (Max) @ Id, Vgs : 38 mOhm @ 3.6A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 650pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Gull Wing
Supplier Device Package : SuperSOT™8
0
100 in stock
FDS3601
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.3A
Rds On (Max) @ Id, Vgs : 480 mOhm @ 1.3A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 153pF @ 50V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 1.3A
Rds On (Max) @ Id, Vgs : 480 mOhm @ 1.3A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 153pF @ 50V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
FDS3812
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 3.4A
Rds On (Max) @ Id, Vgs : 74 mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 634pF @ 40V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 3.4A
Rds On (Max) @ Id, Vgs : 74 mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 18nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 634pF @ 40V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
FDS3890
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 4.7A
Rds On (Max) @ Id, Vgs : 44 mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1180pF @ 40V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 4.7A
Rds On (Max) @ Id, Vgs : 44 mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 35nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1180pF @ 40V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
186 in stock
FDS3912
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 125 mOhm @ 3A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 632pF @ 50V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 125 mOhm @ 3A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 632pF @ 50V
Power - Max : 900mW
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
FDS3992
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 4.5A
Rds On (Max) @ Id, Vgs : 62 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 750pF @ 25V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 4.5A
Rds On (Max) @ Id, Vgs : 62 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 750pF @ 25V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2996 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
