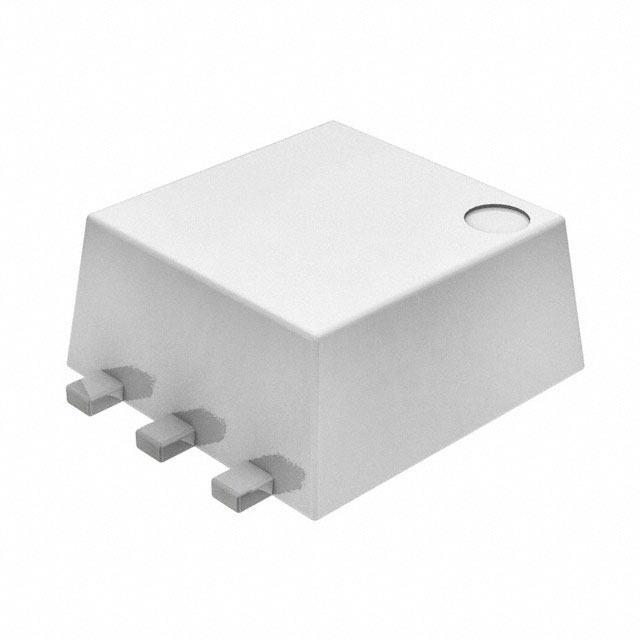

FDJ1027P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.8A
Rds On (Max) @ Id, Vgs : 160 mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC75-6 FLMP
Supplier Device Package : SC75-6 FLMP
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.8A
Rds On (Max) @ Id, Vgs : 160 mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC75-6 FLMP
Supplier Device Package : SC75-6 FLMP
0
100 in stock
FDJ1028N
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.2A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 10V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC75-6 FLMP
Supplier Device Package : SC75-6 FLMP
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.2A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 10V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC75-6 FLMP
Supplier Device Package : SC75-6 FLMP
0
100 in stock
FDJ1032C
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.2A, 2.8A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC75-6 FLMP
Supplier Device Package : SC75-6 FLMP
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.2A, 2.8A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 200pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC75-6 FLMP
Supplier Device Package : SC75-6 FLMP
0
100 in stock
FDM2509NZ
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 8.7A
Rds On (Max) @ Id, Vgs : 18 mOhm @ 8.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1200pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WFDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x5)
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 8.7A
Rds On (Max) @ Id, Vgs : 18 mOhm @ 8.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1200pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WFDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x5)
0
100 in stock

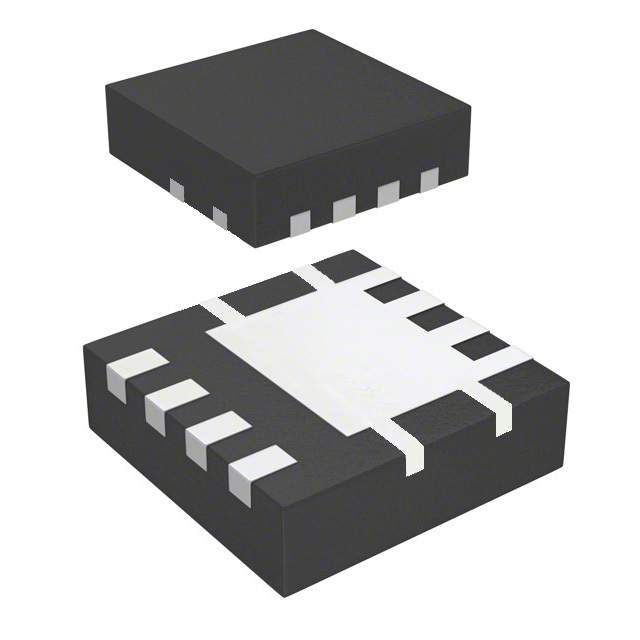

FDM3300NZ
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 10A
Rds On (Max) @ Id, Vgs : 23 mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1610pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-WFDFN Exposed Pad
Supplier Device Package : 8-MLP (3x3)
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 10A
Rds On (Max) @ Id, Vgs : 23 mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1610pF @ 10V
Power - Max : 900mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-WFDFN Exposed Pad
Supplier Device Package : 8-MLP (3x3)
0
100 in stock
FDMA1023PZ
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A
Rds On (Max) @ Id, Vgs : 72 mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 655pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A
Rds On (Max) @ Id, Vgs : 72 mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 655pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
0
27647 in stock
FDMA1024NZ
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 54 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 500pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 54 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 500pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
0
34919 in stock
FDMA1025P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.1A
Rds On (Max) @ Id, Vgs : 155 mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 450pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.1A
Rds On (Max) @ Id, Vgs : 155 mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 450pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
0
3079 in stock

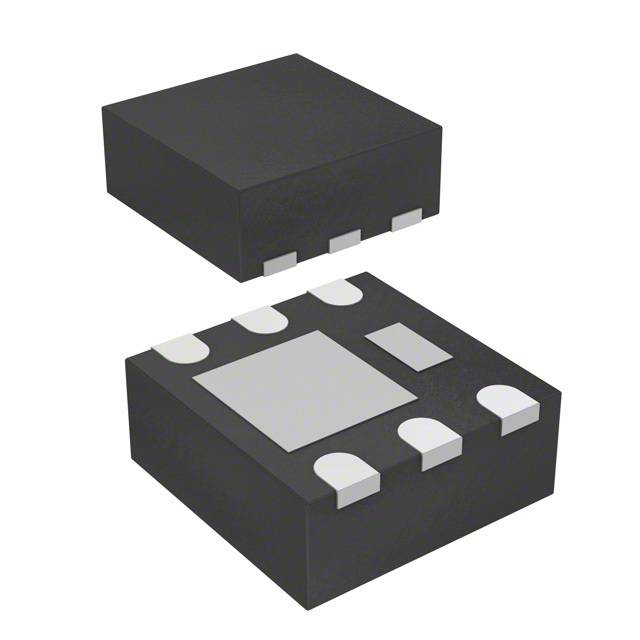

FDMA1027P
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 435pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 435pF @ 10V
Power - Max : 800mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
0
2984 in stock
FDMA1027PT
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 435pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : MicroFET 2x2 Thin
Packaging : Tape & Reel (TR)
Series : PowerTrench®
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 435pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UFDFN Exposed Pad
Supplier Device Package : MicroFET 2x2 Thin
0
100 in stock

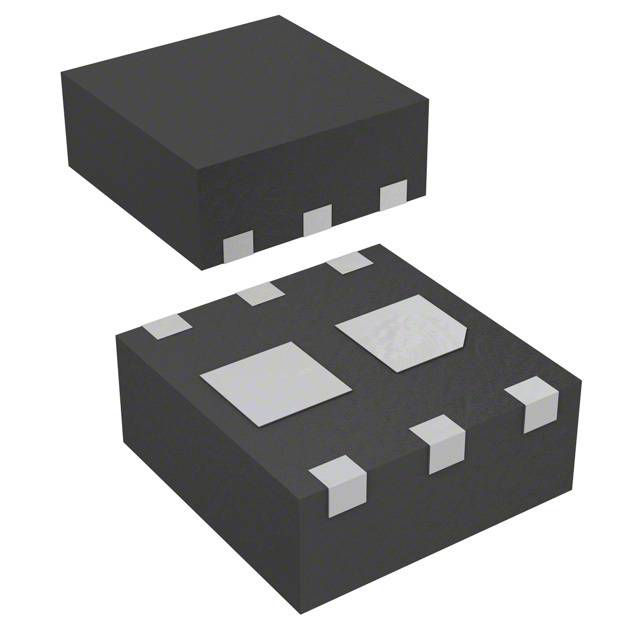

FDMA1028NZ
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 340pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 340pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
0
48252 in stock
FDMA1028NZ-F021
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 340pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerTrench®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 3.7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 340pF @ 10V
Power - Max : 700mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VDFN Exposed Pad
Supplier Device Package : 6-MicroFET (2x2)
0
2811 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
