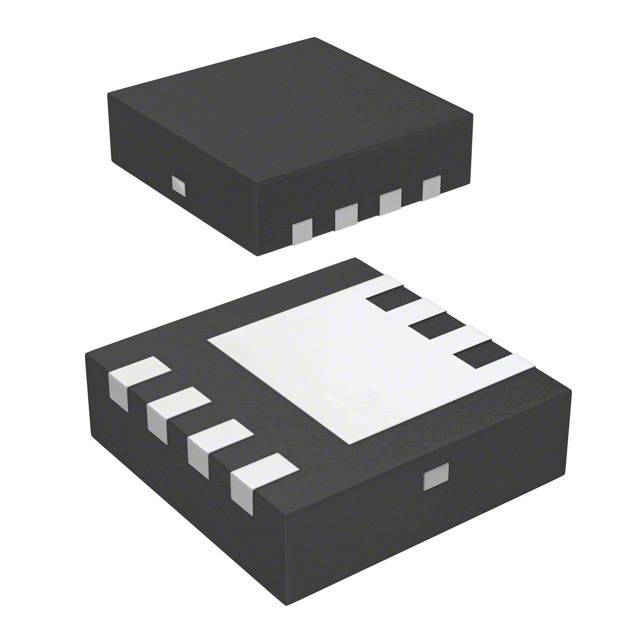

DMG8601UFG-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 6.1A
Rds On (Max) @ Id, Vgs : 23 mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id : 1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 143pF @ 10V
Power - Max : 920mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerUDFN
Supplier Device Package : U-DFN3030-8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 6.1A
Rds On (Max) @ Id, Vgs : 23 mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id : 1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 143pF @ 10V
Power - Max : 920mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerUDFN
Supplier Device Package : U-DFN3030-8
0
8795 in stock
DMG8822UTS-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.9A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 841pF @ 10V
Power - Max : 870mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 8-TSSOP
Packaging : Cut Tape (CT)
Series : -
Part Status : Discontinued at
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.9A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 841pF @ 10V
Power - Max : 870mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 8-TSSOP
0
1302 in stock
DMG9926UDM-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.2A
Rds On (Max) @ Id, Vgs : 28 mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 856pF @ 10V
Power - Max : 980mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6
Supplier Device Package : SOT-26
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.2A
Rds On (Max) @ Id, Vgs : 28 mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 856pF @ 10V
Power - Max : 980mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6
Supplier Device Package : SOT-26
0
18487 in stock
DMG9926USD-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 8A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 867pF @ 15V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 8A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 867pF @ 15V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
11911 in stock
DMG9933USD-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.6A
Rds On (Max) @ Id, Vgs : 75 mOhm @ 4.8A, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 608.4pF @ 6V
Power - Max : 1.15W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.6A
Rds On (Max) @ Id, Vgs : 75 mOhm @ 4.8A, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 608.4pF @ 6V
Power - Max : 1.15W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
953 in stock
DMHC10H170SFJ-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 2.9A, 2.3A
Rds On (Max) @ Id, Vgs : 160 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1167pF @ 25V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 12-VDFN Exposed Pad
Supplier Device Package : V-DFN5045-12
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 2.9A, 2.3A
Rds On (Max) @ Id, Vgs : 160 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1167pF @ 25V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 12-VDFN Exposed Pad
Supplier Device Package : V-DFN5045-12
0
100 in stock
DMHC3025LSD-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6A, 4.2A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 15V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6A, 4.2A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 15V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
407 in stock
DMHC3025LSDQ-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6A, 4.2A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 15V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6A, 4.2A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 590pF @ 15V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
DMHC4035LSD-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 4.5A, 3.7A
Rds On (Max) @ Id, Vgs : 45 mOhm @ 3.9A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 574pF @ 20V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 4.5A, 3.7A
Rds On (Max) @ Id, Vgs : 45 mOhm @ 3.9A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 574pF @ 20V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
DMHC6070LSD-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.1A, 2.4A
Rds On (Max) @ Id, Vgs : 100 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 731pF @ 20V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N and 2 P-Channel (H-Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.1A, 2.4A
Rds On (Max) @ Id, Vgs : 100 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 731pF @ 20V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock

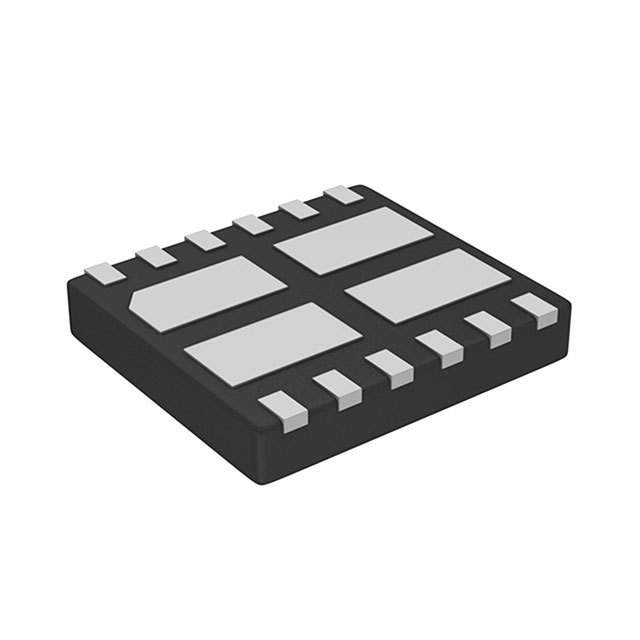

DMHT6016LFJ-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : 4 N-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : 14.8A (Ta)
Rds On (Max) @ Id, Vgs : 22 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 864pF @ 30V
Power - Max : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 12-VDFN Exposed Pad
Supplier Device Package : V-DFN5045-12
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : 4 N-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : 14.8A (Ta)
Rds On (Max) @ Id, Vgs : 22 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 864pF @ 30V
Power - Max : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 12-VDFN Exposed Pad
Supplier Device Package : V-DFN5045-12
0
100 in stock

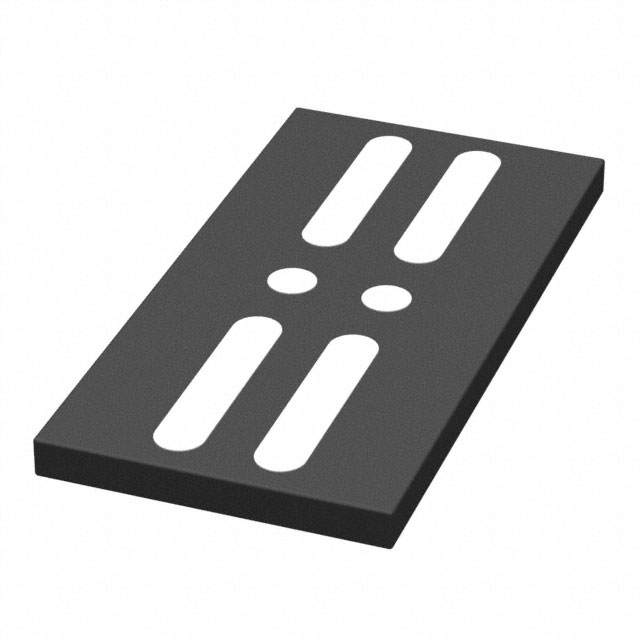

DMN1002UCA6-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 68.6nC @ 4V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 1.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : X4-DSN3118-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 68.6nC @ 4V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 1.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : X4-DSN3118-6
0
1975 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
