Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - FETs, MOSFETs - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock

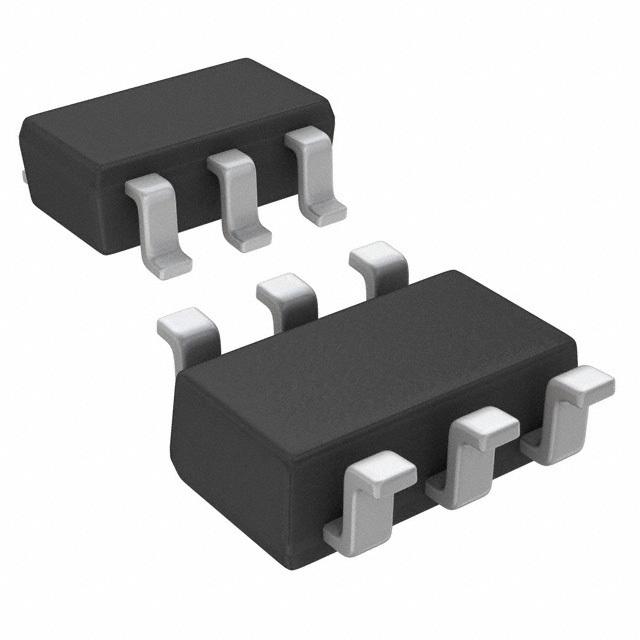

DMC2038LVTQ-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A (Ta), 2.6A (Ta)
Rds On (Max) @ Id, Vgs : 35 mOhm @ 4A, 4.5V, 74 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.7nC @ 4.5V, 10nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 530pF @ 10V, 705pF @ 10V
Power - Max : 800mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : TSOT-26
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.7A (Ta), 2.6A (Ta)
Rds On (Max) @ Id, Vgs : 35 mOhm @ 4A, 4.5V, 74 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.7nC @ 4.5V, 10nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 530pF @ 10V, 705pF @ 10V
Power - Max : 800mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : TSOT-26
0
2902 in stock

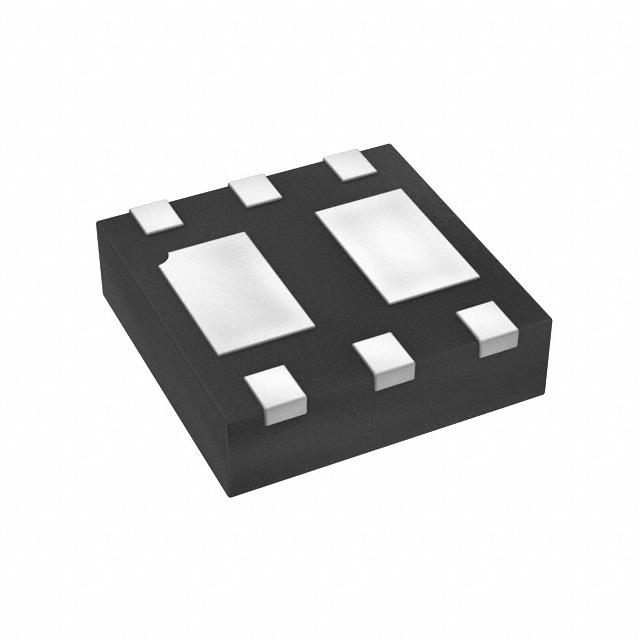

DMC2041UFDB-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.7A, 3.2A
Rds On (Max) @ Id, Vgs : 40 mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds : 713pF @ 10V
Power - Max : 1.4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : U-DFN2020-6 (Type B)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.7A, 3.2A
Rds On (Max) @ Id, Vgs : 40 mOhm @ 4.2A, 4.5V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds : 713pF @ 10V
Power - Max : 1.4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : U-DFN2020-6 (Type B)
0
2970 in stock

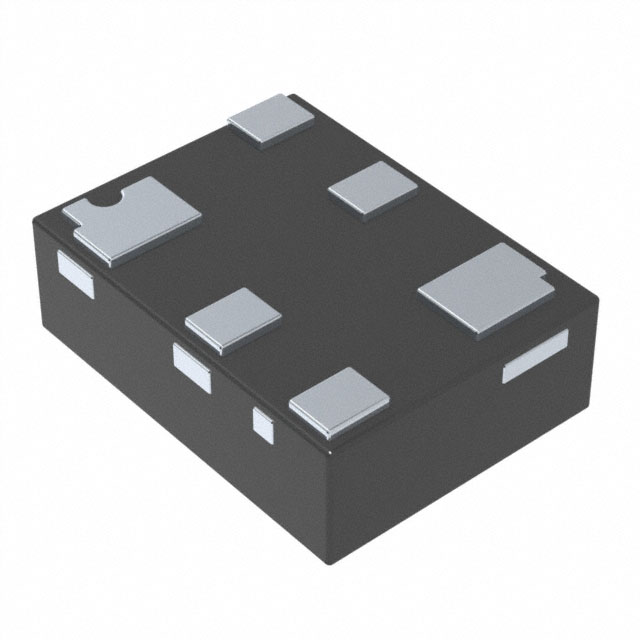

DMC21D1UDA-7B
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 455mA (Ta), 328mA (Ta)
Rds On (Max) @ Id, Vgs : 990 mOhm @ 100mA, 4.5V, 1.9 Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.41nC @ 4.5V, 0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 31pF @ 15V, 28.5pF @ 15V
Power - Max : 300mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : X2-DFN0806-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 455mA (Ta), 328mA (Ta)
Rds On (Max) @ Id, Vgs : 990 mOhm @ 100mA, 4.5V, 1.9 Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.41nC @ 4.5V, 0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 31pF @ 15V, 28.5pF @ 15V
Power - Max : 300mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, No Lead
Supplier Device Package : X2-DFN0806-6
0
5950 in stock

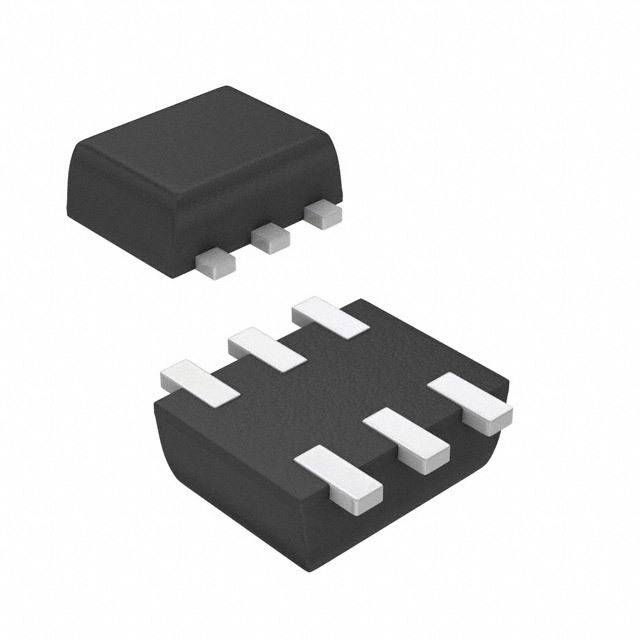

DMC2400UV-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.03A, 700mA
Rds On (Max) @ Id, Vgs : 480 mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 37.1pF @ 10V
Power - Max : 450mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.03A, 700mA
Rds On (Max) @ Id, Vgs : 480 mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 37.1pF @ 10V
Power - Max : 450mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
6621 in stock
DMC2400UV-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.03A, 700mA
Rds On (Max) @ Id, Vgs : 480 mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 37.1pF @ 10V
Power - Max : 450mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.03A, 700mA
Rds On (Max) @ Id, Vgs : 480 mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 37.1pF @ 10V
Power - Max : 450mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
DMC2450UV-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.03A, 700mA
Rds On (Max) @ Id, Vgs : 480 mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 37.1pF @ 10V
Power - Max : 450mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.03A, 700mA
Rds On (Max) @ Id, Vgs : 480 mOhm @ 200mA, 5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 37.1pF @ 10V
Power - Max : 450mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2808 in stock
DMC25D0UVT-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V, 30V
Current - Continuous Drain (Id) @ 25°C : 400mA, 3.2A
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds : 26.2pF @ 10V
Power - Max : 1.2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : TSOT-26
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V, 30V
Current - Continuous Drain (Id) @ 25°C : 400mA, 3.2A
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds : 26.2pF @ 10V
Power - Max : 1.2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : TSOT-26
0
986 in stock

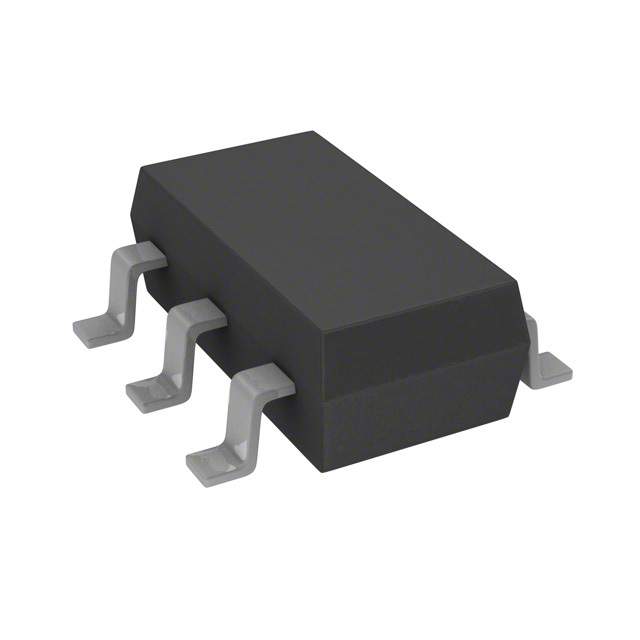

DMC25D1UVT-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V, 12V
Current - Continuous Drain (Id) @ 25°C : 500mA, 3.9A
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 27.6pF @ 10V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : TSOT-26
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N and P-Channel
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V, 12V
Current - Continuous Drain (Id) @ 25°C : 500mA, 3.9A
Rds On (Max) @ Id, Vgs : 4 Ohm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 27.6pF @ 10V
Power - Max : 1.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6 Thin, TSOT-23-6
Supplier Device Package : TSOT-26
0
1544 in stock
DMC2700UDM-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.34A, 1.14A
Rds On (Max) @ Id, Vgs : 400 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.74nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 60.67pF @ 16V
Power - Max : 1.12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6
Supplier Device Package : SOT-26
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.34A, 1.14A
Rds On (Max) @ Id, Vgs : 400 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.74nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 60.67pF @ 16V
Power - Max : 1.12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-6
Supplier Device Package : SOT-26
0
7593 in stock
DMC2990UDJ-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 450mA, 310mA
Rds On (Max) @ Id, Vgs : 990 mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 27.6pF @ 15V
Power - Max : 350mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 450mA, 310mA
Rds On (Max) @ Id, Vgs : 990 mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 27.6pF @ 15V
Power - Max : 350mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-963
Supplier Device Package : SOT-963
0
203093 in stock
DMC3016LDV-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 21A (Tc), 15A (Tc)
Rds On (Max) @ Id, Vgs : 12 mOhm @ 7A, 10V, 25 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1184pF @ 15V, 1188pF @ 15V
Power - Max : 900mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerVDFN
Supplier Device Package : PowerDI3333-8
Packaging : Tape & Reel (TR)
Series : Automotive, AEC-Q101
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 21A (Tc), 15A (Tc)
Rds On (Max) @ Id, Vgs : 12 mOhm @ 7A, 10V, 25 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1184pF @ 15V, 1188pF @ 15V
Power - Max : 900mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerVDFN
Supplier Device Package : PowerDI3333-8
0
100 in stock
DMC3016LSD-13
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 8.2A, 6.2A
Rds On (Max) @ Id, Vgs : 16 mOhm @ 12A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 25.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1415pF @ 15V
Power - Max : 1.2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 8.2A, 6.2A
Rds On (Max) @ Id, Vgs : 16 mOhm @ 12A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 25.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1415pF @ 15V
Power - Max : 1.2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
1 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
