Part Number
Manufacturer
Description
Unit Price
In Stock
CAS100H12AM1
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-FET?br/>Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 168A
Rds On (Max) @ Id, Vgs : 20 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 3.1V @ 50mA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 9500pF @ 800V
Power - Max : 568W
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-FET?br/>Part Status : Obsolete
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 168A
Rds On (Max) @ Id, Vgs : 20 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 3.1V @ 50mA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 9500pF @ 800V
Power - Max : 568W
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CAS120M12BM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 193A (Tc)
Rds On (Max) @ Id, Vgs : 16 mOhm @ 120A, 20V
Vgs(th) (Max) @ Id : 2.6V @ 6mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 378nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 6300pF @ 1000V
Power - Max : 925W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 193A (Tc)
Rds On (Max) @ Id, Vgs : 16 mOhm @ 120A, 20V
Vgs(th) (Max) @ Id : 2.6V @ 6mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 378nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 6300pF @ 1000V
Power - Max : 925W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CAS300M12BM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-FET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 423A (Tc)
Rds On (Max) @ Id, Vgs : 5.7 mOhm @ 300A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1025nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 11700pF @ 600V
Power - Max : 1660W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module, Screw Terminals
Supplier Device Package : Module
Packaging : Bulk
Series : Z-FET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 423A (Tc)
Rds On (Max) @ Id, Vgs : 5.7 mOhm @ 300A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1025nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 11700pF @ 600V
Power - Max : 1660W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module, Screw Terminals
Supplier Device Package : Module
0
100 in stock
CAS300M17BM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C : 325A (Tc)
Rds On (Max) @ Id, Vgs : 10 mOhm @ 225A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1076nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 20000pF @ 1000V
Power - Max : 1760W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C : 325A (Tc)
Rds On (Max) @ Id, Vgs : 10 mOhm @ 225A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 1076nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 20000pF @ 1000V
Power - Max : 1760W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
27 in stock
CAS325M12HM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-REC?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 444A (Tc)
Rds On (Max) @ Id, Vgs : 4.3 mOhm @ 400A, 20V
Vgs(th) (Max) @ Id : 4V @ 105mA
Gate Charge (Qg) (Max) @ Vgs : 1127nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 3000W
Operating Temperature : 175°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-REC?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 444A (Tc)
Rds On (Max) @ Id, Vgs : 4.3 mOhm @ 400A, 20V
Vgs(th) (Max) @ Id : 4V @ 105mA
Gate Charge (Qg) (Max) @ Vgs : 1127nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 3000W
Operating Temperature : 175°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
0
64 in stock
CCS020M12CM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 29.5A (Tc)
Rds On (Max) @ Id, Vgs : 98 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 2.2V @ 1mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 61.5nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 900pF @ 800V
Power - Max : 167W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Tray
Series : Z-Rec®
Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 29.5A (Tc)
Rds On (Max) @ Id, Vgs : 98 mOhm @ 20A, 20V
Vgs(th) (Max) @ Id : 2.2V @ 1mA (Typ)
Gate Charge (Qg) (Max) @ Vgs : 61.5nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 900pF @ 800V
Power - Max : 167W
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CCS050M12CM2
Cree Wolfspeed
Manufacturer : Cree/Wolfspeed
Packaging : Bulk
Series : Z-FET™Z-Rec?br/>Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 87A (Tc)
Rds On (Max) @ Id, Vgs : 34 mOhm @ 50A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 180nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 2.810nF @ 800V
Power - Max : 337W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : Z-FET™Z-Rec?br/>Part Status : Active
FET Type : 6 N-Channel (3-Phase Bridge)
FET Feature : Silicon Carbide (SiC)
Drain to Source Voltage (Vdss) : 1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C : 87A (Tc)
Rds On (Max) @ Id, Vgs : 34 mOhm @ 50A, 20V
Vgs(th) (Max) @ Id : 2.3V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs : 180nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds : 2.810nF @ 800V
Power - Max : 337W
Operating Temperature : 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

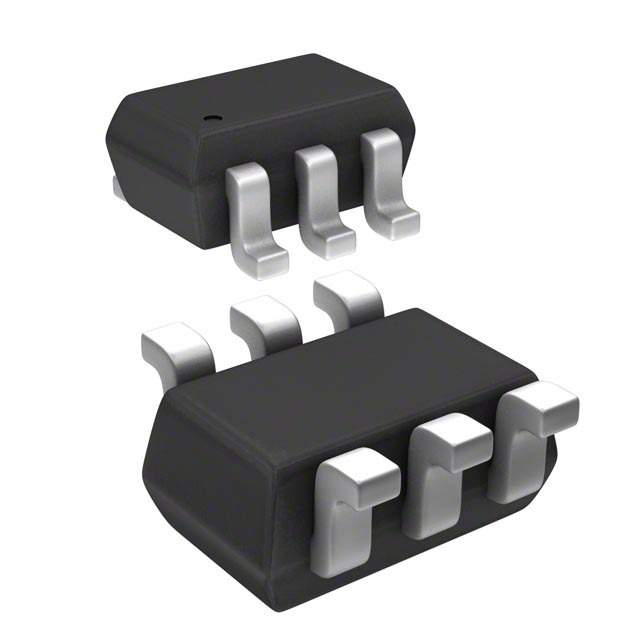

CJ3139KDW-G
Comchip Technology
Manufacturer : Comchip Technology
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 660mA (Ta)
Rds On (Max) @ Id, Vgs : 520 mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 170pF @ 16V
Power - Max : 150mW
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 660mA (Ta)
Rds On (Max) @ Id, Vgs : 520 mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 170pF @ 16V
Power - Max : 150mW
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
5558 in stock
CMKDM8005 TR
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 650mA
Rds On (Max) @ Id, Vgs : 360 mOhm @ 350mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 100pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 650mA
Rds On (Max) @ Id, Vgs : 360 mOhm @ 350mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 100pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
1669 in stock
CMLDM3737 TR
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 540mA
Rds On (Max) @ Id, Vgs : 550 mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.58nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 540mA
Rds On (Max) @ Id, Vgs : 550 mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.58nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2195 in stock
CMLDM3757 TR
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 540mA, 430mA
Rds On (Max) @ Id, Vgs : 550 mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.58nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 540mA, 430mA
Rds On (Max) @ Id, Vgs : 550 mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.58nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
7301 in stock

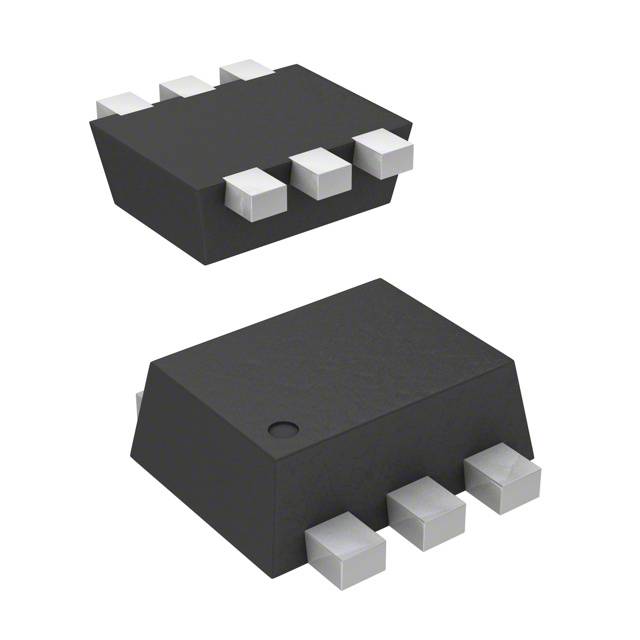

CMLDM5757 TR
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 430mA
Rds On (Max) @ Id, Vgs : 900 mOhm @ 430mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 175pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 430mA
Rds On (Max) @ Id, Vgs : 900 mOhm @ 430mA, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 175pF @ 16V
Power - Max : 350mW
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
2935 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
