Part Number
Manufacturer
Description
Unit Price
In Stock
ZXMC3A18DN8TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5.8A, 4.8A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 5.8A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 36nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 25V
Power - Max : 1.8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5.8A, 4.8A
Rds On (Max) @ Id, Vgs : 25 mOhm @ 5.8A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 36nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 25V
Power - Max : 1.8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOP
0
100 in stock

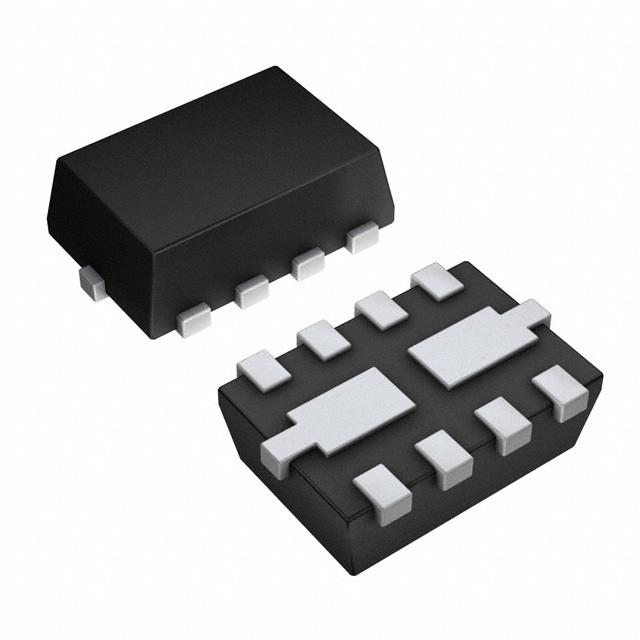

ZXMC3AM832TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.9A, 2.1A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 3.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 190pF @ 25V
Power - Max : 1.7W
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-MLP (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.9A, 2.1A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 3.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 190pF @ 25V
Power - Max : 1.7W
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 8-VDFN Exposed Pad
Supplier Device Package : 8-MLP (3x3)
0
573 in stock

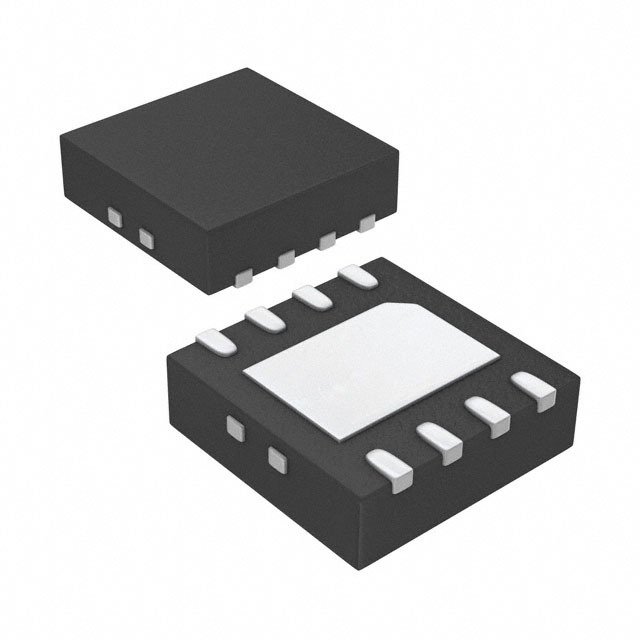

ZXMC3AMCTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.9A, 2.1A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 190pF @ 25V
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-WDFN Exposed Pad
Supplier Device Package : 8-DFN (3x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.9A, 2.1A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 190pF @ 25V
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-WDFN Exposed Pad
Supplier Device Package : 8-DFN (3x2)
0
2775 in stock
ZXMC3F31DN8TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6.8A, 4.9A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 608pF @ 15V
Power - Max : 1.8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6.8A, 4.9A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 608pF @ 15V
Power - Max : 1.8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
390 in stock
ZXMC4559DN8TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.6A, 2.6A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1063pF @ 30V
Power - Max : 1.25W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.6A, 2.6A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1063pF @ 30V
Power - Max : 1.25W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
ZXMC4559DN8TC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.6A, 2.6A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1063pF @ 30V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.6A, 2.6A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1063pF @ 30V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2155 in stock
ZXMC4A16DN8TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 5.2A (Ta), 4.7A (Ta)
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.5A, 10V, 60 mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id : 1V @ 250mA (Min)
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 770pF @ 40V, 1000pF @ 20V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 5.2A (Ta), 4.7A (Ta)
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.5A, 10V, 60 mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id : 1V @ 250mA (Min)
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 770pF @ 40V, 1000pF @ 20V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
ZXMC4A16DN8TC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N and P-Channel Complementary
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 5.2A (Ta), 4.7A (Ta)
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.5A, 10V, 60 mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id : 1V @ 250mA (Min)
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 770pF @ 40V, 1000pF @ 20V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : N and P-Channel Complementary
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 5.2A (Ta), 4.7A (Ta)
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.5A, 10V, 60 mOhm @ 3.8A, 10V
Vgs(th) (Max) @ Id : 1V @ 250mA (Min)
Gate Charge (Qg) (Max) @ Vgs : 17nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 770pF @ 40V, 1000pF @ 20V
Power - Max : 2.1W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
ZXMC6A09DN8TA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.9A, 3.7A
Rds On (Max) @ Id, Vgs : 45 mOhm @ 8.2A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 24.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1407pF @ 40V
Power - Max : 1.8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3.9A, 3.7A
Rds On (Max) @ Id, Vgs : 45 mOhm @ 8.2A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 24.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1407pF @ 40V
Power - Max : 1.8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
347 in stock
ZXMD63C02XTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Series : -
Part Status : Last Time Buy
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 130 mOhm @ 1.7A, 4.5V
Vgs(th) (Max) @ Id : 700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 15V
Power - Max : 1.04W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Cut Tape (CT)
Series : -
Part Status : Last Time Buy
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 130 mOhm @ 1.7A, 4.5V
Vgs(th) (Max) @ Id : 700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 15V
Power - Max : 1.04W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
100 in stock
ZXMD63C02XTC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 130 mOhm @ 1.7A, 4.5V
Vgs(th) (Max) @ Id : 700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 15V
Power - Max : 1.04W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 130 mOhm @ 1.7A, 4.5V
Vgs(th) (Max) @ Id : 700mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 350pF @ 15V
Power - Max : 1.04W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
100 in stock
ZXMD63C03XTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 135 mOhm @ 1.7A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 25V
Power - Max : 1.04W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 135 mOhm @ 1.7A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs : 8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 25V
Power - Max : 1.04W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-MSOP
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
