- Discrete Semiconductor Products
- Transistors - FETs, MOSFETs - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock
STS1DN45K3
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : SuperMESH3™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 450V
Current - Continuous Drain (Id) @ 25°C : 500mA
Rds On (Max) @ Id, Vgs : 3.8 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 25V
Power - Max : 1.3W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : SuperMESH3™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 450V
Current - Continuous Drain (Id) @ 25°C : 500mA
Rds On (Max) @ Id, Vgs : 3.8 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 150pF @ 25V
Power - Max : 1.3W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
STS1DNC45
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SuperMESH™
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 450V
Current - Continuous Drain (Id) @ 25°C : 400mA
Rds On (Max) @ Id, Vgs : 4.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 160pF @ 25V
Power - Max : 1.6W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SuperMESH™
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 450V
Current - Continuous Drain (Id) @ 25°C : 400mA
Rds On (Max) @ Id, Vgs : 4.5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 3.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 160pF @ 25V
Power - Max : 1.6W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
13399 in stock
STS1DNF20
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
STS2DNF30L
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : STripFET™
Part Status : Not For New Designs
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 110 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 121pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : STripFET™
Part Status : Not For New Designs
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 110 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 121pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2500 in stock
STS2DPF80
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 2A
Rds On (Max) @ Id, Vgs : 250 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 739pF @ 25V
Power - Max : 2.5W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 80V
Current - Continuous Drain (Id) @ 25°C : 2A
Rds On (Max) @ Id, Vgs : 250 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 739pF @ 25V
Power - Max : 2.5W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
STS3C2F100
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 145 mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 460pF @ 25V
Power - Max : 2W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 145 mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 460pF @ 25V
Power - Max : 2W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
STS3DNE60L
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 815pF @ 25V
Power - Max : 2W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 80 mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 815pF @ 25V
Power - Max : 2W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
STS3DPF60L
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 630pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 630pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
STS4C3F60L
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 4A, 3A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1030pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 4A, 3A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1030pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock

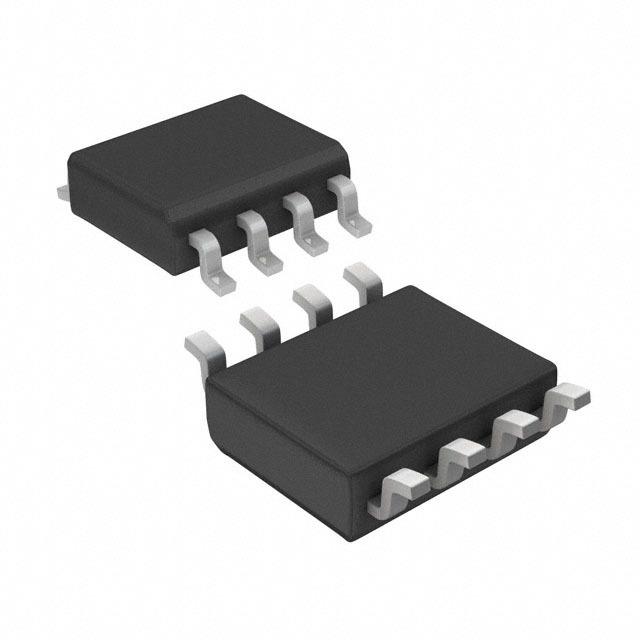

STS4DNF30L
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 330pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 330pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
STS4DNF60
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 315pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : STripFET™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 90 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 315pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
STS4DNF60L
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : STripFET™
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1030pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Cut Tape (CT)
Alternate Packaging
Series : STripFET™
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 55 mOhm @ 2A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1030pF @ 25V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
9939 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
