SIS902DN-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Tape & Reel (TR)
Series : TrenchFET®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 75V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 186 mOhm @ 3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 175pF @ 38V
Power - Max : 15.4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
Packaging : Tape & Reel (TR)
Series : TrenchFET®
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 75V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 186 mOhm @ 3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 175pF @ 38V
Power - Max : 15.4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
0
100 in stock

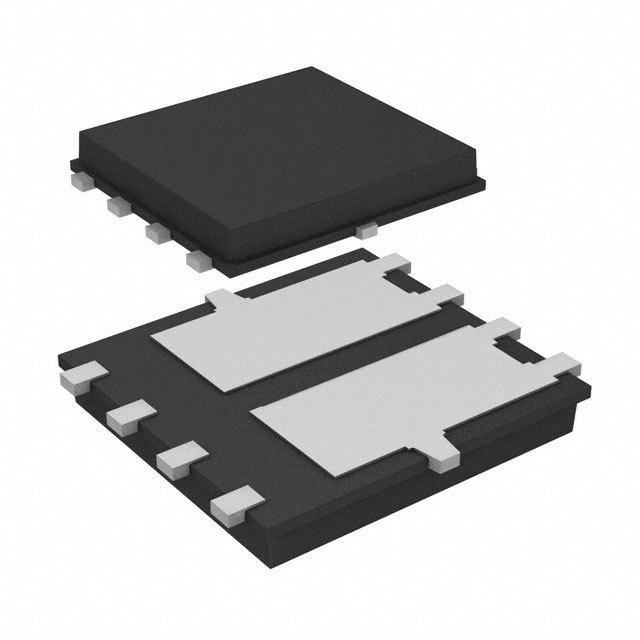

SIS903DN-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen III
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 6A (Tc)
Rds On (Max) @ Id, Vgs : 20.1 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 42nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 2565pF @ 10V
Power - Max : 2.6W (Ta), 23W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen III
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 6A (Tc)
Rds On (Max) @ Id, Vgs : 20.1 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 42nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 2565pF @ 10V
Power - Max : 2.6W (Ta), 23W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
0
100 in stock

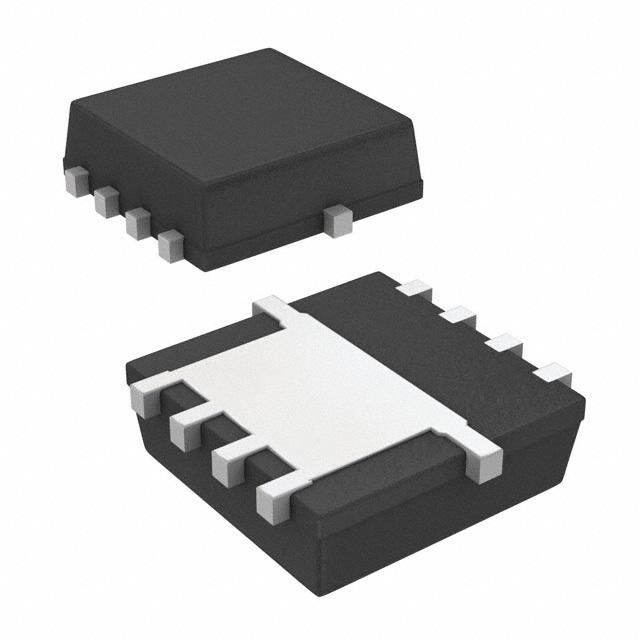

SIS932EDN-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6A (Tc)
Rds On (Max) @ Id, Vgs : 22 mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1000pF @ 15V
Power - Max : 2.6W (Ta), 23W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6A (Tc)
Rds On (Max) @ Id, Vgs : 22 mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1000pF @ 15V
Power - Max : 2.6W (Ta), 23W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
0
15 in stock
SIS990DN-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 12.1A
Rds On (Max) @ Id, Vgs : 85 mOhm @ 8A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 50V
Power - Max : 25W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 100V
Current - Continuous Drain (Id) @ 25°C : 12.1A
Rds On (Max) @ Id, Vgs : 85 mOhm @ 8A, 10V
Vgs(th) (Max) @ Id : 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 50V
Power - Max : 25W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
0
5038 in stock
SISB46DN-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 34A (Tc)
Rds On (Max) @ Id, Vgs : 11.71 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 20V
Power - Max : 23W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 34A (Tc)
Rds On (Max) @ Id, Vgs : 11.71 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 11nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 20V
Power - Max : 23W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8 Dual
Supplier Device Package : PowerPAK® 1212-8 Dual
0
100 in stock

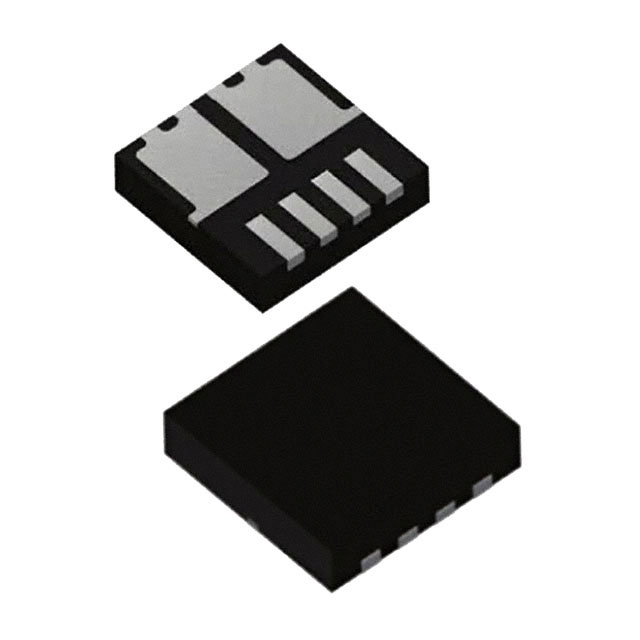

SISF00DN-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Rds On (Max) @ Id, Vgs : 5 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 53nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 2700pF @ 15V
Power - Max : 69.4W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8SCD
Supplier Device Package : PowerPAK® 1212-8SCD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 60A (Tc)
Rds On (Max) @ Id, Vgs : 5 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 53nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 2700pF @ 15V
Power - Max : 69.4W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : PowerPAK® 1212-8SCD
Supplier Device Package : PowerPAK® 1212-8SCD
0
100 in stock

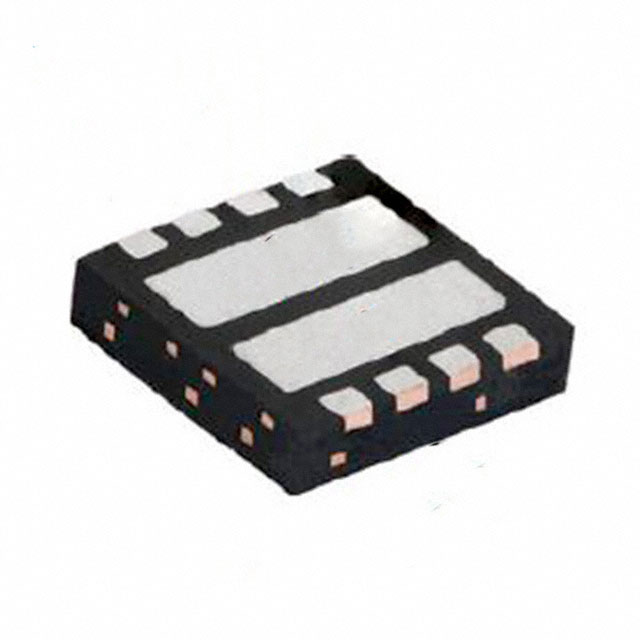

SIZ200DT-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta), 61A (Tc), 22A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs : 5.5 mOhm @ 10A, 10V, 5.8 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 28nC @ 10V, 30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1510pF @ 15V, 1600pF @ 15V
Power - Max : 4.3W (Ta), 33W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-PowerPair® (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 22A (Ta), 61A (Tc), 22A (Ta), 60A (Tc)
Rds On (Max) @ Id, Vgs : 5.5 mOhm @ 10A, 10V, 5.8 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 28nC @ 10V, 30nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1510pF @ 15V, 1600pF @ 15V
Power - Max : 4.3W (Ta), 33W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-PowerPair® (3.3x3.3)
0
100 in stock
SIZ300DT-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 11A, 28A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 400pF @ 15V
Power - Max : 16.7W, 31W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-PowerPair®
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 11A, 28A
Rds On (Max) @ Id, Vgs : 24 mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 400pF @ 15V
Power - Max : 16.7W, 31W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-PowerPair®
0
341 in stock
SIZ320DT-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerPAIR®, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 16.7W, 31W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerPAIR®, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 16.7W, 31W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
0
5900 in stock
SIZ322DT-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 6.35 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 950pF @ 12.5V
Power - Max : 16.7W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 30A (Tc)
Rds On (Max) @ Id, Vgs : 6.35 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 20.1nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 950pF @ 12.5V
Power - Max : 16.7W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
0
2993 in stock
SIZ328DT-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 11.1A (Ta), 25.3A (Tc), 15A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs : 15 mOhm @ 5A, 10V, 10 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.9nC @ 10V, 11.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 325pF @ 10V, 600pF @ 10V
Power - Max : 2.9W (Ta), 15W (Tc), 3.6W (Ta), 16.2W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET® Gen IV
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 11.1A (Ta), 25.3A (Tc), 15A (Ta), 30A (Tc)
Rds On (Max) @ Id, Vgs : 15 mOhm @ 5A, 10V, 10 mOhm @ 5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.9nC @ 10V, 11.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 325pF @ 10V, 600pF @ 10V
Power - Max : 2.9W (Ta), 15W (Tc), 3.6W (Ta), 16.2W (Tc)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
0
50 in stock
SIZ340DT-T1-GE3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Siliconix
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerPAIR®, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A, 40A
Rds On (Max) @ Id, Vgs : 9.5 mOhm @ 15.6A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 760pF @ 15V
Power - Max : 16.7W, 31W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PowerPAIR®, TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A, 40A
Rds On (Max) @ Id, Vgs : 9.5 mOhm @ 15.6A, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 760pF @ 15V
Power - Max : 16.7W, 31W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-Power33 (3x3)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
