Part Number
Manufacturer
Description
Unit Price
In Stock
AON3816_101
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 22 mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 10V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x3)
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 22 mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id : 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1100pF @ 10V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x3)
0
100 in stock
AON4605
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4.3A, 3.4A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 210pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4.3A, 3.4A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 210pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
0
100 in stock

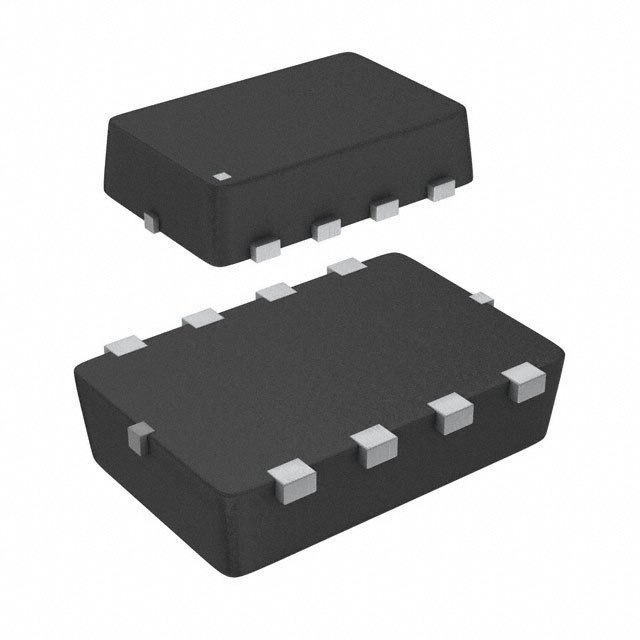

AON4605_001
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4.3A, 3.4A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 210pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4.3A, 3.4A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 210pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
0
100 in stock
AON4807
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
0
100 in stock
AON4807_001
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
Packaging : Bulk
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
0
100 in stock
AON4807_101
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 68 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 290pF @ 15V
Power - Max : 1.9W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SMD, Flat Lead
Supplier Device Package : 8-DFN (3x2)
0
100 in stock
AON5802A
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 7.2A
Rds On (Max) @ Id, Vgs : 20 mOhm @ 7.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1115pF @ 15V
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 7.2A
Rds On (Max) @ Id, Vgs : 20 mOhm @ 7.2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1115pF @ 15V
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
0
100 in stock
AON5802ALS
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : *
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
Packaging : Tape & Reel (TR)
Series : *
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
0
100 in stock
AON5802B
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 7.2A
Rds On (Max) @ Id, Vgs : 19 mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 7.2A
Rds On (Max) @ Id, Vgs : 19 mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
0
100 in stock
AON5802B_101
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : *
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
Packaging : Tape & Reel (TR)
Series : *
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
0
100 in stock
AON5802BL
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 7.2A (Tc)
Rds On (Max) @ Id, Vgs : 19 mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VFDFN Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 7.2A (Tc)
Rds On (Max) @ Id, Vgs : 19 mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-VFDFN Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
0
100 in stock
AON5810
Alpha and Omega Semiconductor, Inc.
Manufacturer : Alpha & Omega Semiconductor Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 7.7A
Rds On (Max) @ Id, Vgs : 18 mOhm @ 7.7A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1360pF @ 10V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 7.7A
Rds On (Max) @ Id, Vgs : 18 mOhm @ 7.7A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1360pF @ 10V
Power - Max : 1.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-SMD, Flat Lead Exposed Pad
Supplier Device Package : 6-DFN-EP (2x5)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
