Part Number
Manufacturer
Description
Unit Price
In Stock
2N7002KDW-TP
Micro Commercial Components (MCC)
Manufacturer : Micro Commercial Co
Packaging : -
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 340mA
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 40pF @ 10V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
Packaging : -
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 340mA
Rds On (Max) @ Id, Vgs : 5 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 40pF @ 10V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
100 in stock
2N7002PS,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 420mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 420mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
227449 in stock
2N7002PS,125
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 420mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 420mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
5913 in stock
2N7002PS/ZLH
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : -
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA (Ta)
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 990mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
Packaging : -
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA (Ta)
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 990mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
100 in stock
2N7002PS/ZLX
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : -
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA (Ta)
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 990mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
Packaging : -
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 320mA (Ta)
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 990mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SOT-363
0
100 in stock
2N7002PV,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 350mA
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 330mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 350mA
Rds On (Max) @ Id, Vgs : 1.6 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id : 2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 10V
Power - Max : 330mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
1008 in stock

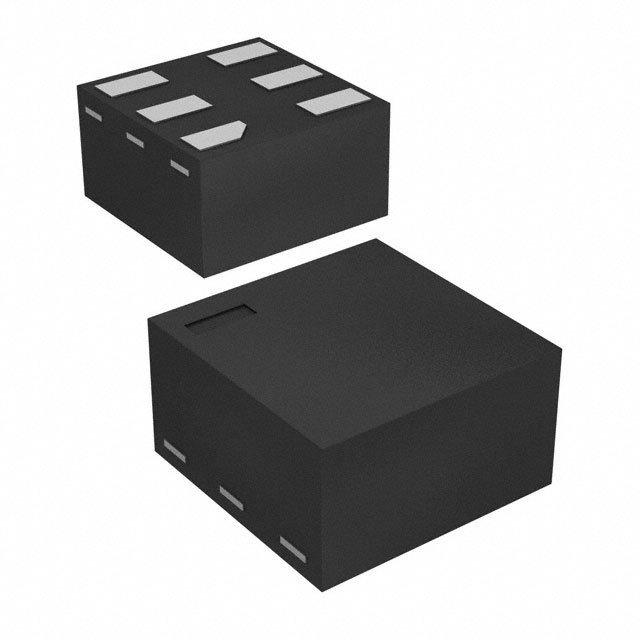

2N7002V
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 250mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 250mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563F
0
567 in stock
2N7002V-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
2N7002VA
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 250mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 250mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563F
0
4396 in stock

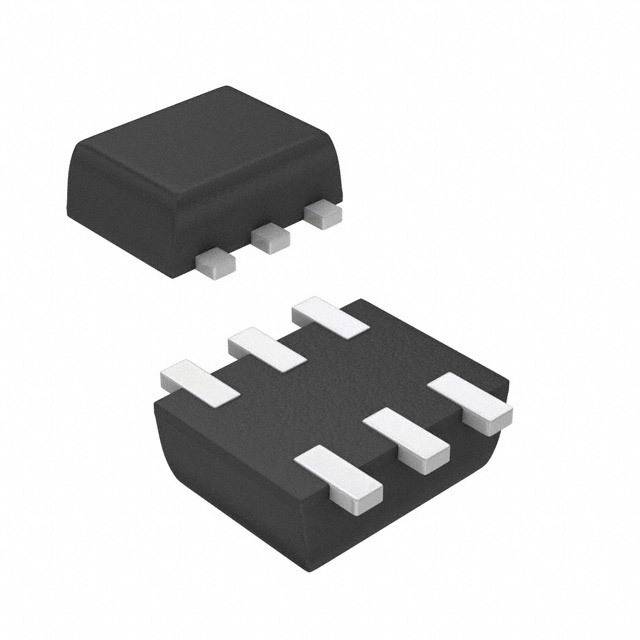

2N7002VA-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
100 in stock
2N7002VA-7-F
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
4990 in stock
2N7002VC-7
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 280mA
Rds On (Max) @ Id, Vgs : 7.5 Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : 50pF @ 25V
Power - Max : 150mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-563
0
28573 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
