Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - Bipolar (BJT) - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
2SC57250SL
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : NPN
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 30mA, 1.5A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 600mW
Frequency - Transition : 280MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : Mini3-G1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : NPN
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 30mA, 1.5A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 600mW
Frequency - Transition : 280MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : Mini3-G1
0
6000 in stock

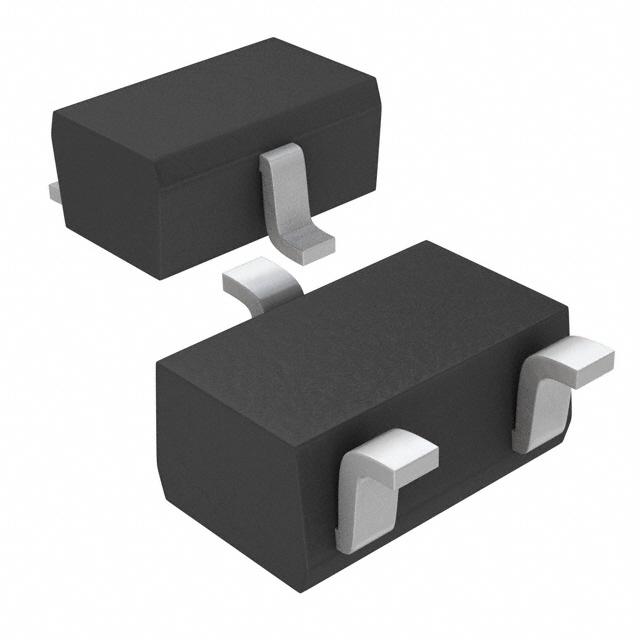

2SC5729T106Q
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 50mA, 2V
Power - Max : 200mW
Frequency - Transition : 300MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : UMT3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 50mA, 2V
Power - Max : 200mW
Frequency - Transition : 300MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : UMT3
0
100 in stock
2SC5729T106R
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 50mA, 2V
Power - Max : 200mW
Frequency - Transition : 300MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : UMT3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 30V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 50mA, 2V
Power - Max : 200mW
Frequency - Transition : 300MHz
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : UMT3
0
100 in stock

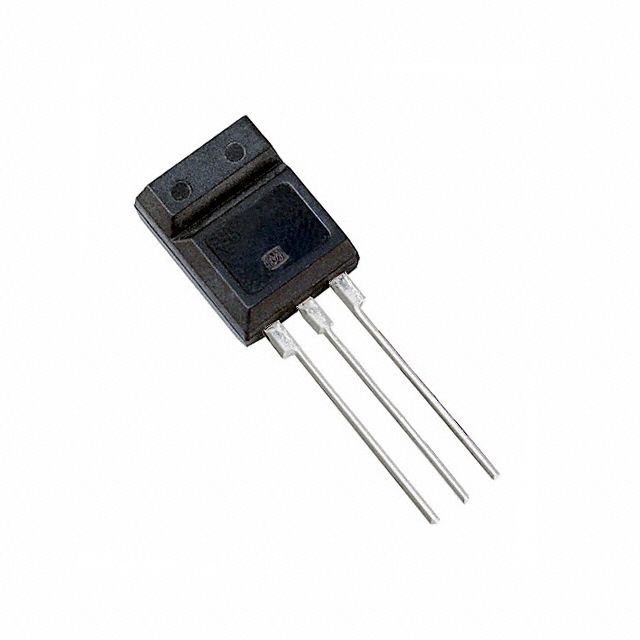

2SC57880PA
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 800mV @ 375mA, 3A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 160 @ 1A, 4V
Power - Max : 2W
Frequency - Transition : 180MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-SIP
Supplier Device Package : MT-4-A1
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 800mV @ 375mA, 3A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 160 @ 1A, 4V
Power - Max : 2W
Frequency - Transition : 180MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-SIP
Supplier Device Package : MT-4-A1
0
1000 in stock
2SC5824T100Q
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 2W
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 2W
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
0
2934 in stock

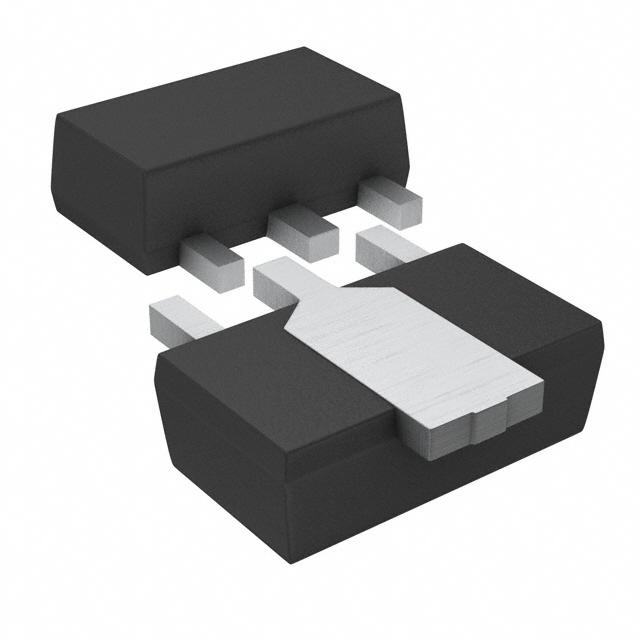

2SC5824T100R
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 100mA, 2V
Power - Max : 2W
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 200mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 100mA, 2V
Power - Max : 2W
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
0
1168 in stock
2SC58630QL
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : NPN
Current - Collector (Ic) (Max) : 70mA
Voltage - Collector Emitter Breakdown (Max) : 300V
Vce Saturation (Max) @ Ib, Ic : 1.2V @ 5mA, 50mA
Current - Collector Cutoff (Max) : 1µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 60 @ 5mA, 10V
Power - Max : 200mW
Frequency - Transition : 80MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : Mini3-G1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : NPN
Current - Collector (Ic) (Max) : 70mA
Voltage - Collector Emitter Breakdown (Max) : 300V
Vce Saturation (Max) @ Ib, Ic : 1.2V @ 5mA, 50mA
Current - Collector Cutoff (Max) : 1µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 60 @ 5mA, 10V
Power - Max : 200mW
Frequency - Transition : 80MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : Mini3-G1
0
100 in stock
2SC5865TLQ
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 250MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 250MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
0
100 in stock
2SC5865TLR
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 250MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 250MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
0
100 in stock
2SC5866TLQ
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
0
11720 in stock
2SC5866TLR
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 100mA, 1A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
0
832 in stock
2SC5868TLQ
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 50mA, 2V
Power - Max : 500mW
Frequency - Transition : 300MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Not For New Designs
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 10mA, 100mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 50mA, 2V
Power - Max : 500mW
Frequency - Transition : 300MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-96
Supplier Device Package : TSMT3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
