- Discrete Semiconductor Products
- Transistors - Bipolar (BJT) - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
2SB15040QA
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 8mA, 4A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 4A, 3V
Power - Max : 1.5W
Frequency - Transition : 20MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-SIP
Supplier Device Package : MT-3-A1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 8mA, 4A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 4A, 3V
Power - Max : 1.5W
Frequency - Transition : 20MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-SIP
Supplier Device Package : MT-3-A1
0
1000 in stock

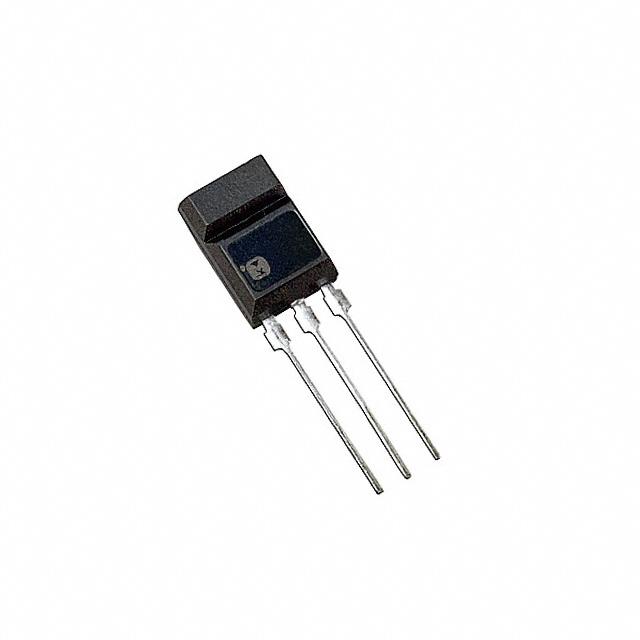

2SB15040RA
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 8mA, 4A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 4000 @ 4A, 3V
Power - Max : 1.5W
Frequency - Transition : 20MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-SIP
Supplier Device Package : MT-3-A1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 8mA, 4A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 4000 @ 4A, 3V
Power - Max : 1.5W
Frequency - Transition : 20MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-SIP
Supplier Device Package : MT-3-A1
0
1000 in stock
2SB1559
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 6mA, 6A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 6A, 4V
Power - Max : 80W
Frequency - Transition : 65MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 6mA, 6A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 6A, 4V
Power - Max : 80W
Frequency - Transition : 65MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
531 in stock
2SB1560
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 7mA, 7A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 7A, 4V
Power - Max : 100W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 7mA, 7A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 7A, 4V
Power - Max : 100W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
685 in stock

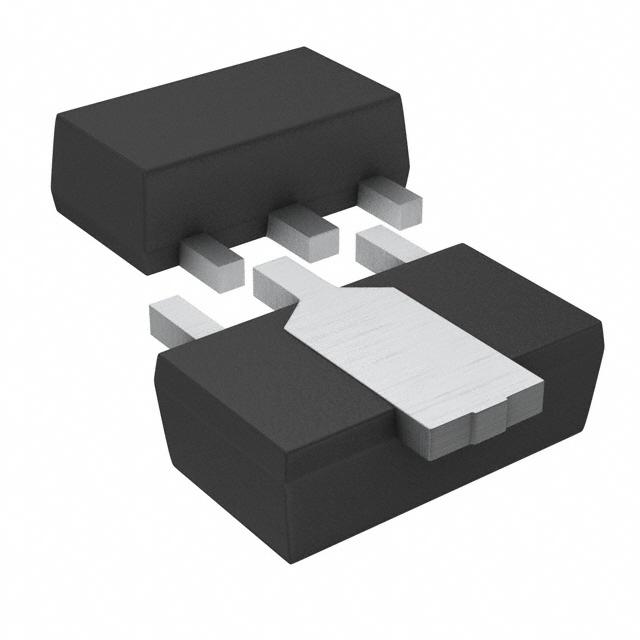

2SB1561T100Q
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 50mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2W
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 350mV @ 50mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 500mA, 2V
Power - Max : 2W
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
0
955 in stock

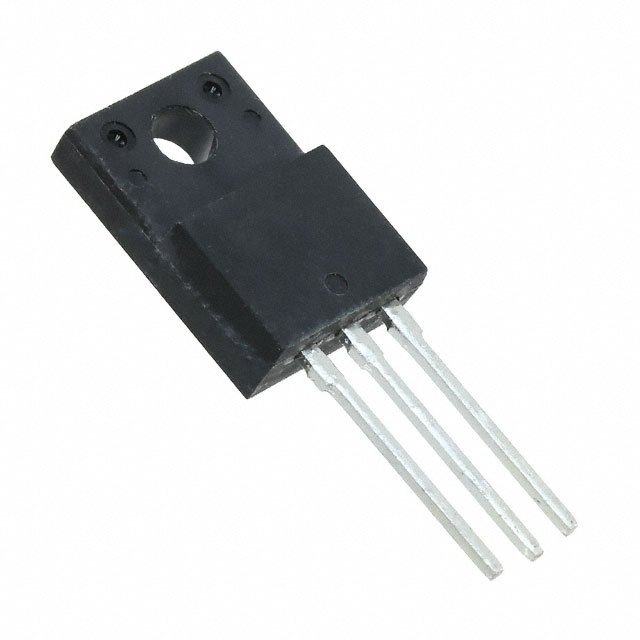

2SB1565FU6E
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Bulk
Series : -
Part Status : Not For New Designs
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 200mA, 2A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 500mA, 5V
Power - Max : 2W
Frequency - Transition : 15MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FN
Packaging : Bulk
Series : -
Part Status : Not For New Designs
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 200mA, 2A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 500mA, 5V
Power - Max : 2W
Frequency - Transition : 15MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FN
0
100 in stock
2SB1570
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 12A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 7mA, 7A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 7A, 4V
Power - Max : 150W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-ESIP
Supplier Device Package : MT-200
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 12A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 7mA, 7A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 7A, 4V
Power - Max : 150W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 3-ESIP
Supplier Device Package : MT-200
0
188 in stock
2SB1580T100
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 1A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 1A, 2V
Power - Max : 2W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 1A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 1A, 2V
Power - Max : 2W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MPT3
0
100 in stock
2SB15990QL
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 1A, 5V
Power - Max : 1W
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MiniP3-F1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 80 @ 1A, 5V
Power - Max : 1W
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MiniP3-F1
0
2000 in stock

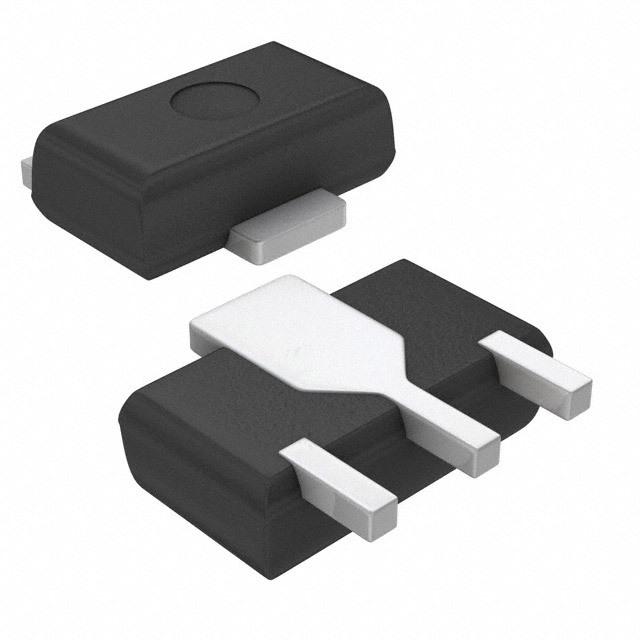

2SB15990RL
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1W
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MiniP3-F1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1W
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : MiniP3-F1
0
1000 in stock
2SB1647
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 10mA, 10A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 10A, 4V
Power - Max : 130W
Frequency - Transition : 45MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 10mA, 10A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 5000 @ 10A, 4V
Power - Max : 130W
Frequency - Transition : 45MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
164 in stock
2SB1689T106
Kionix
Manufacturer : Rohm Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 25mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 270 @ 200mA, 2V
Power - Max : 200mW
Frequency - Transition : 400MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : UMT3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 200mV @ 25mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 270 @ 200mA, 2V
Power - Max : 200mW
Frequency - Transition : 400MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SC-70, SOT-323
Supplier Device Package : UMT3
0
3738 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
