- Discrete Semiconductor Products
- Transistors - Bipolar (BJT) - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
2SB07920SL
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 50mA
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 1V @ 3mA, 30mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 185 @ 10mA, 5V
Power - Max : 200mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : Mini3-G1
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 50mA
Voltage - Collector Emitter Breakdown (Max) : 150V
Vce Saturation (Max) @ Ib, Ic : 1V @ 3mA, 30mA
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 185 @ 10mA, 5V
Power - Max : 200mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : Mini3-G1
0
3000 in stock
2SB0942AP
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 400mA, 4A
Current - Collector Cutoff (Max) : 700µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 1A, 4V
Power - Max : 2W
Frequency - Transition : 30MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-A1
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 400mA, 4A
Current - Collector Cutoff (Max) : 700µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 1A, 4V
Power - Max : 2W
Frequency - Transition : 30MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-A1
0
21 in stock
2SB09490Q
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 8mA, 2A
Current - Collector Cutoff (Max) : 2mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 2A, 4V
Power - Max : 2W
Frequency - Transition : 20MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-A1
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 2.5V @ 8mA, 2A
Current - Collector Cutoff (Max) : 2mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 2A, 4V
Power - Max : 2W
Frequency - Transition : 20MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F-A1
0
27 in stock
2SB09680RL
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 1A, 5V
Power - Max : 10W
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : U-G2
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 1V @ 150mA, 1.5A
Current - Collector Cutoff (Max) : 100µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 120 @ 1A, 5V
Power - Max : 10W
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : U-G2
0
100 in stock
2SB09760RA
Panasonic
Manufacturer : Panasonic Electronic Components
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 18V
Vce Saturation (Max) @ Ib, Ic : 1V @ 100mA, 3A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 2A, 2V
Power - Max : 750mW
Frequency - Transition : 120MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-B1
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 18V
Vce Saturation (Max) @ Ib, Ic : 1V @ 100mA, 3A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 180 @ 2A, 2V
Power - Max : 750mW
Frequency - Transition : 120MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-B1
0
100 in stock
2SB1121S-TD-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 75mA, 1.5A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 600mV @ 75mA, 1.5A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
0
1997 in stock
2SB1122S-TD-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
0
1823 in stock
2SB1122T-TD-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 50mA, 500mA
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
0
2988 in stock

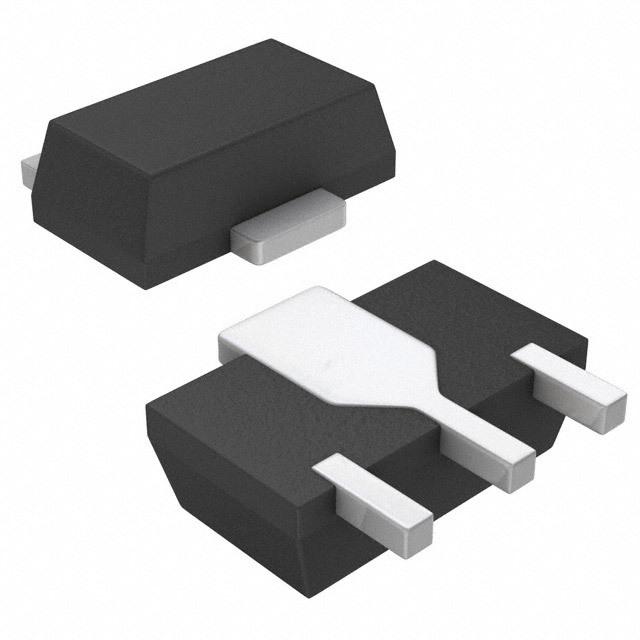

2SB1123S-TD-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 50mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 50mA, 1A
Current - Collector Cutoff (Max) : 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
0
3914 in stock

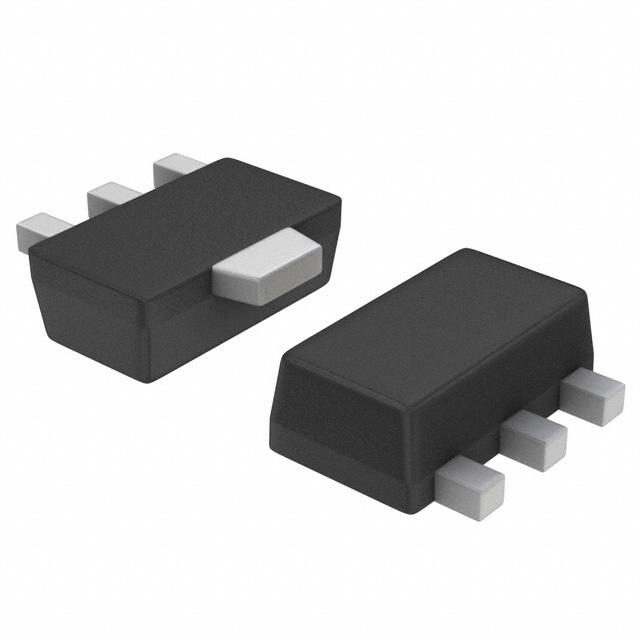

2SB1124S-TD-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 140 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 140 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
0
1987 in stock
2SB1124S-TD-H
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 140 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Last Time Buy
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 140 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
0
100 in stock
2SB1124T-TD-E
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 700mV @ 100mA, 2A
Current - Collector Cutoff (Max) : 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 500mW
Frequency - Transition : 150MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : PCP
0
3969 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
