ZXTP23015CFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 240mA, 6A
Current - Collector Cutoff (Max) : 20nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 500mA, 2V
Power - Max : 1.25W
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 240mA, 6A
Current - Collector Cutoff (Max) : 20nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 500mA, 2V
Power - Max : 1.25W
Frequency - Transition : 270MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
23248 in stock
ZXTP23140BFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2.5A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 250mA, 2.5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1.25W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2.5A
Voltage - Collector Emitter Breakdown (Max) : 140V
Vce Saturation (Max) @ Ib, Ic : 280mV @ 250mA, 2.5A
Current - Collector Cutoff (Max) : 20nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1.25W
Frequency - Transition : 130MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
5535 in stock
ZXTP25012EFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 310MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 310MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
12204 in stock
ZXTP25012EZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 285mV @ 450mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 310MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 285mV @ 450mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 310MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
100 in stock
ZXTP25015DFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 295MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 15V
Vce Saturation (Max) @ Ib, Ic : 220mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 295MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23
0
2377 in stock
ZXTP25020BFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 250MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 250MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
5141 in stock

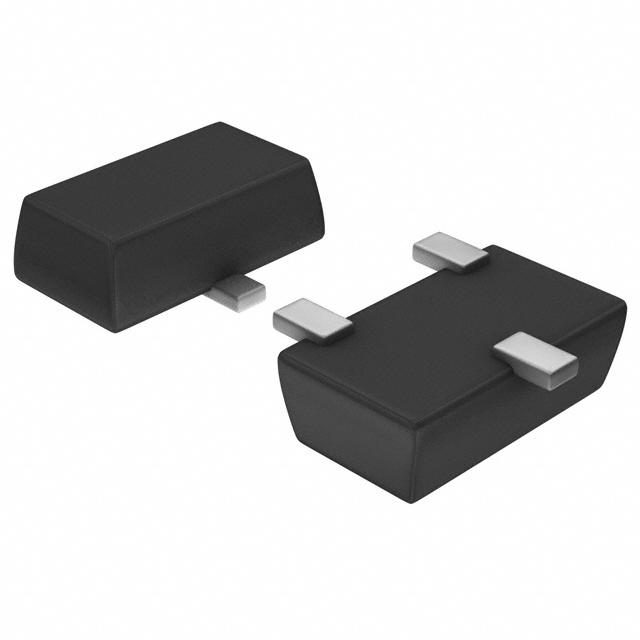

ZXTP25020CFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 225mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 285MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 225mA, 4.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 285MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
2972 in stock
ZXTP25020CFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 200mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 285MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 210mV @ 200mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 285MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
6067 in stock
ZXTP25020DFHTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 180mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 180mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.25W
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
12287 in stock
ZXTP25020DFLTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 350mW
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 1.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 400mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 350mW
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
2043 in stock
ZXTP25020DGTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 355mV @ 600mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 3W
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 355mV @ 600mA, 6A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 3W
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
88 in stock

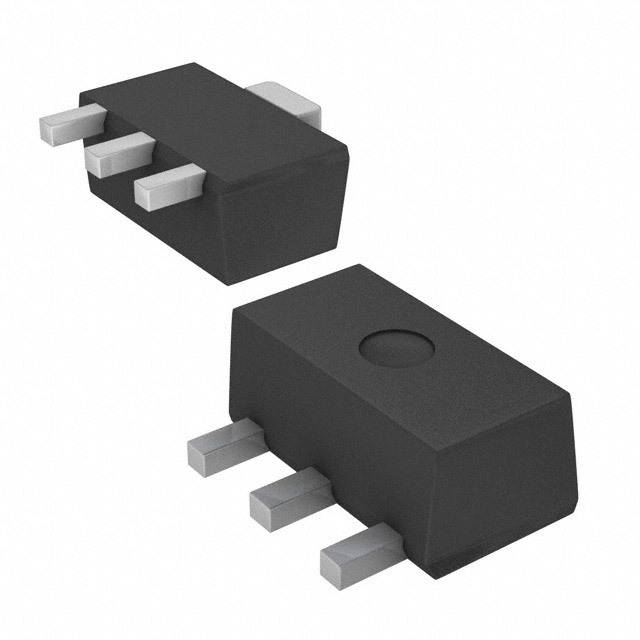

ZXTP25020DZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 265mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 265mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 2.4W
Frequency - Transition : 290MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89-3
0
945 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
