Part Number
Manufacturer
Description
Unit Price
In Stock
ZXTN649FTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 725mW
Frequency - Transition : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Transistor Type : NPN
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 25V
Vce Saturation (Max) @ Ib, Ic : 300mV @ 300mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 725mW
Frequency - Transition : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-236-3, SC-59, SOT-23-3
Supplier Device Package : SOT-23-3
0
1539 in stock

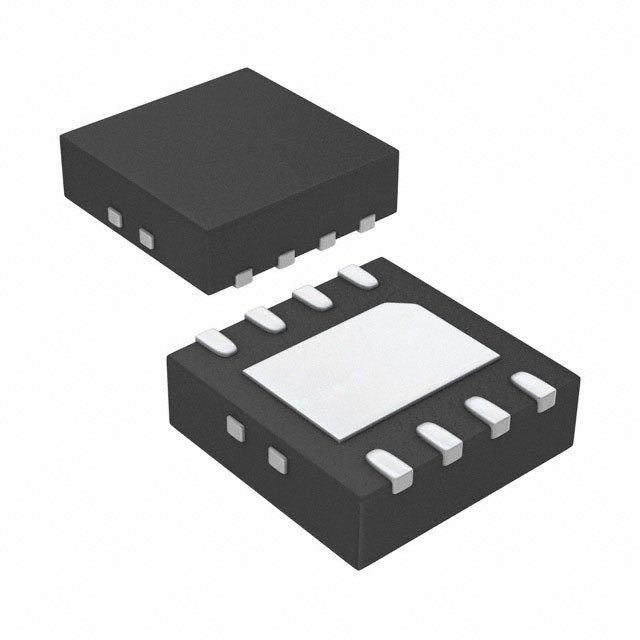

ZXTNS618MCTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN + Diode (Isolated)
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 270mV @ 125mA, 4.5A
Current - Collector Cutoff (Max) : 25nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2A, 2V
Power - Max : 3W
Frequency - Transition : 140MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-WDFN Exposed Pad
Supplier Device Package : 8-DFN (3x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN + Diode (Isolated)
Current - Collector (Ic) (Max) : 4.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 270mV @ 125mA, 4.5A
Current - Collector Cutoff (Max) : 25nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 2A, 2V
Power - Max : 3W
Frequency - Transition : 140MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-WDFN Exposed Pad
Supplier Device Package : 8-DFN (3x2)
0
3000 in stock
ZXTP01500BGTC
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 150mA
Voltage - Collector Emitter Breakdown (Max) : 500V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 10mA, 50mA
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1mA, 10V
Power - Max : 3W
Frequency - Transition : 60MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 150mA
Voltage - Collector Emitter Breakdown (Max) : 500V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 10mA, 50mA
Current - Collector Cutoff (Max) : 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1mA, 10V
Power - Max : 3W
Frequency - Transition : 60MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
100 in stock
ZXTP03200BGTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 200V
Vce Saturation (Max) @ Ib, Ic : 275mV @ 400mA, 2A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1.25W
Frequency - Transition : 105MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 200V
Vce Saturation (Max) @ Ib, Ic : 275mV @ 400mA, 2A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1.25W
Frequency - Transition : 105MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
100 in stock

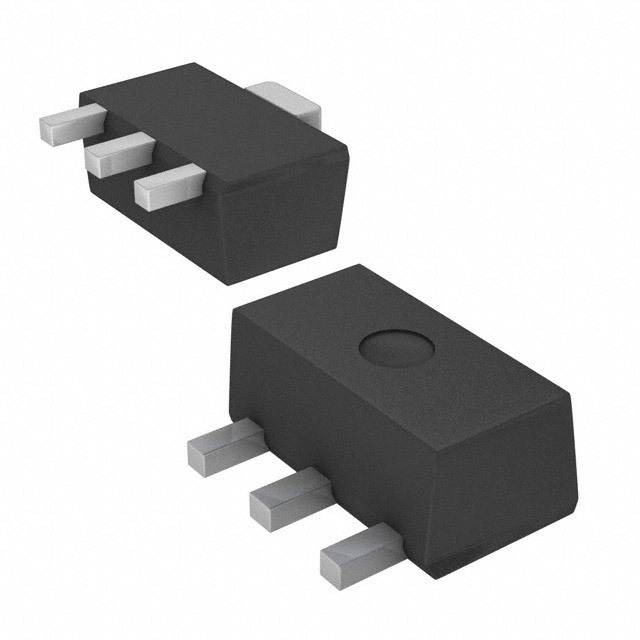

ZXTP03200BZTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 200V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 400mA, 2A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1.1W
Frequency - Transition : 105MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 200V
Vce Saturation (Max) @ Ib, Ic : 260mV @ 400mA, 2A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 1A, 5V
Power - Max : 1.1W
Frequency - Transition : 105MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-243AA
Supplier Device Package : SOT-89
0
1219 in stock
ZXTP05120HFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 2V @ 2mA, 2A
Current - Collector Cutoff (Max) : 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 3000 @ 1A, 5V
Power - Max : 1.5W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP - Darlington
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 2V @ 2mA, 2A
Current - Collector Cutoff (Max) : 10µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 3000 @ 1A, 5V
Power - Max : 1.5W
Frequency - Transition : 150MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
16969 in stock

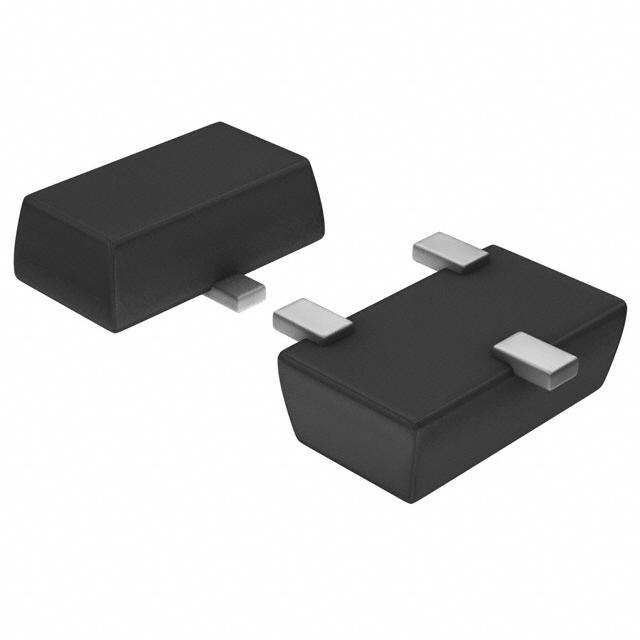

ZXTP07012EFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 340mV @ 80mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 250MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 12V
Vce Saturation (Max) @ Ib, Ic : 340mV @ 80mA, 4A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 250MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
46 in stock
ZXTP07040DFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 390mV @ 150mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 390mV @ 150mA, 3A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 10mA, 2V
Power - Max : 1.5W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
100 in stock
ZXTP08400BFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 400V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 40mA, 200mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 50mA, 5V
Power - Max : 1.5W
Frequency - Transition : 70MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 200mA
Voltage - Collector Emitter Breakdown (Max) : 400V
Vce Saturation (Max) @ Ib, Ic : 190mV @ 40mA, 200mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 100 @ 50mA, 5V
Power - Max : 1.5W
Frequency - Transition : 70MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
7950 in stock
ZXTP19020CFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 135mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 135mV @ 500mA, 5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 200 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 200MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
100 in stock
ZXTP19020DFFTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 550mA, 5.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 176MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 5.5A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 175mV @ 550mA, 5.5A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 1.5W
Frequency - Transition : 176MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-23-3 Flat Leads
Supplier Device Package : SOT-23F
0
22533 in stock
ZXTP19020DGTA
Diodes Incorporated
Manufacturer : Diodes Incorporated
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 275mV @ 800mA, 8A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 176MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 8A
Voltage - Collector Emitter Breakdown (Max) : 20V
Vce Saturation (Max) @ Ib, Ic : 275mV @ 800mA, 8A
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 100mA, 2V
Power - Max : 3W
Frequency - Transition : 176MHz
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223
0
2482 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
