Part Number
Manufacturer
Description
Unit Price
In Stock
2N6292G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 70V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 3A, 7A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 2A, 4V
Power - Max : 40W
Frequency - Transition : 4MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 7A
Voltage - Collector Emitter Breakdown (Max) : 70V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 3A, 7A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 2A, 4V
Power - Max : 40W
Frequency - Transition : 4MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
633 in stock

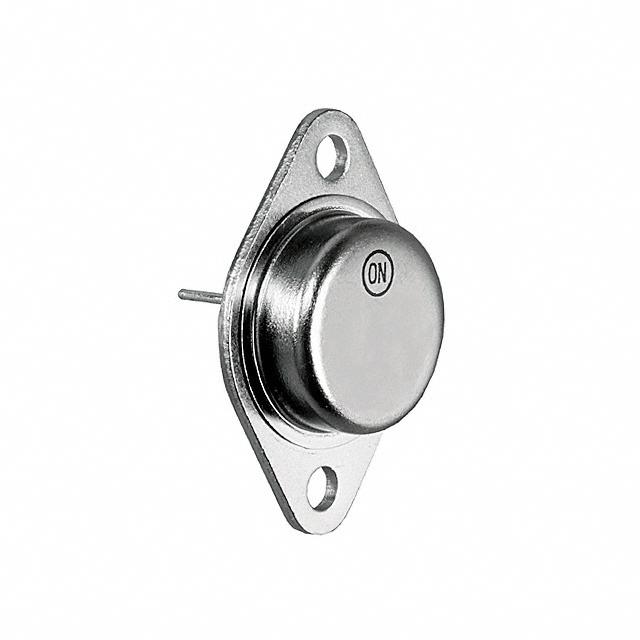

2N6338G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tray
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 25A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 1.8V @ 2.5A, 25A
Current - Collector Cutoff (Max) : 50µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 10A, 2V
Power - Max : 200W
Frequency - Transition : 40MHz
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AA, TO-3
Supplier Device Package : TO-204 (TO-3)
Packaging : Tray
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 25A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 1.8V @ 2.5A, 25A
Current - Collector Cutoff (Max) : 50µA
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 10A, 2V
Power - Max : 200W
Frequency - Transition : 40MHz
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AA, TO-3
Supplier Device Package : TO-204 (TO-3)
0
95 in stock

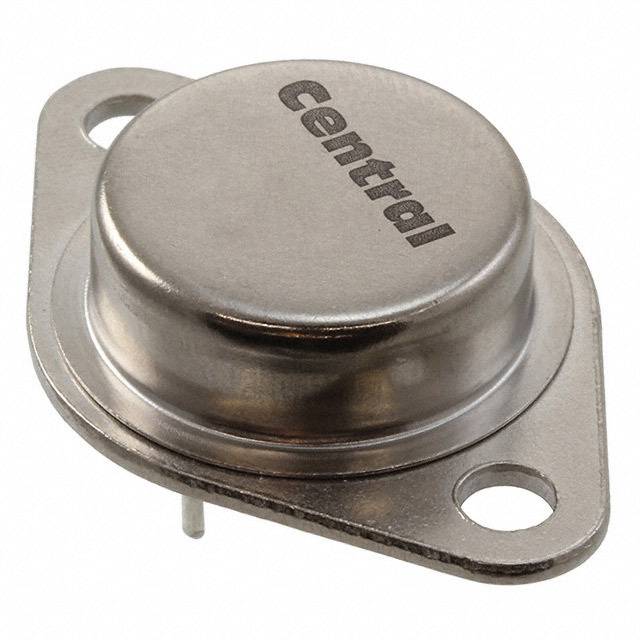

2N6384
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3V @ 100mA, 10A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 5A, 3V
Power - Max : 100W
Frequency - Transition : -
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AA, TO-3
Supplier Device Package : TO-3
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3V @ 100mA, 10A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 5A, 3V
Power - Max : 100W
Frequency - Transition : -
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-204AA, TO-3
Supplier Device Package : TO-3
0
471 in stock
2N6387G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3V @ 100mA, 10A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 5A, 3V
Power - Max : 2W
Frequency - Transition : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3V @ 100mA, 10A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 5A, 3V
Power - Max : 2W
Frequency - Transition : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
682 in stock
2N6388G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 3V @ 100mA, 10A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 5A, 3V
Power - Max : 2W
Frequency - Transition : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN - Darlington
Current - Collector (Ic) (Max) : 10A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 3V @ 100mA, 10A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 5A, 3V
Power - Max : 2W
Frequency - Transition : -
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
567 in stock
2N6486
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 40V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
183 in stock
2N6487G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1120 in stock
2N6488G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
904 in stock
2N6490G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
41 in stock
2N6491G
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : PNP
Current - Collector (Ic) (Max) : 15A
Voltage - Collector Emitter Breakdown (Max) : 80V
Vce Saturation (Max) @ Ib, Ic : 3.5V @ 5A, 15A
Current - Collector Cutoff (Max) : 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 5A, 4V
Power - Max : 1.8W
Frequency - Transition : 5MHz
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
2188 in stock
2N6517BU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 350V
Vce Saturation (Max) @ Ib, Ic : 1V @ 5mA, 50mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 50mA, 10V
Power - Max : 625mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 350V
Vce Saturation (Max) @ Ib, Ic : 1V @ 5mA, 50mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 50mA, 10V
Power - Max : 625mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
6025 in stock
2N6517CTA
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 350V
Vce Saturation (Max) @ Ib, Ic : 1V @ 5mA, 50mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 50mA, 10V
Power - Max : 625mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Transistor Type : NPN
Current - Collector (Ic) (Max) : 500mA
Voltage - Collector Emitter Breakdown (Max) : 350V
Vce Saturation (Max) @ Ib, Ic : 1V @ 5mA, 50mA
Current - Collector Cutoff (Max) : 50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 50mA, 10V
Power - Max : 625mW
Frequency - Transition : 200MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package : TO-92-3
0
1549 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
