Part Number
Manufacturer
Description
Unit Price
In Stock
2225-4L
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 40V
Frequency - Transition : 2.2GHz ~ 2.5GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.5dB
Power - Max : 10W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 200mA, 5V
Current - Collector (Ic) (Max) : 600mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55LV
Supplier Device Package : 55LV
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 40V
Frequency - Transition : 2.2GHz ~ 2.5GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.5dB
Power - Max : 10W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 200mA, 5V
Current - Collector (Ic) (Max) : 600mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55LV
Supplier Device Package : 55LV
0
100 in stock
2301
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 45V
Frequency - Transition : 2.3GHz
Noise Figure (dB Typ @ f) : -
Gain : 8dB
Power - Max : 5.6W
DC Current Gain (hFE) (Min) @ Ic, Vce : 10 @ 100mA, 5V
Current - Collector (Ic) (Max) : 300mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 45V
Frequency - Transition : 2.3GHz
Noise Figure (dB Typ @ f) : -
Gain : 8dB
Power - Max : 5.6W
DC Current Gain (hFE) (Min) @ Ic, Vce : 10 @ 100mA, 5V
Current - Collector (Ic) (Max) : 300mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
0
100 in stock
2307
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 42V
Frequency - Transition : 2.3GHz
Noise Figure (dB Typ @ f) : -
Gain : 8dB
Power - Max : 20.5W
DC Current Gain (hFE) (Min) @ Ic, Vce : 10 @ 500mA, 5V
Current - Collector (Ic) (Max) : 1A
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 42V
Frequency - Transition : 2.3GHz
Noise Figure (dB Typ @ f) : -
Gain : 8dB
Power - Max : 20.5W
DC Current Gain (hFE) (Min) @ Ic, Vce : 10 @ 500mA, 5V
Current - Collector (Ic) (Max) : 1A
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
0
100 in stock
2324-20
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : -
Voltage - Collector Emitter Breakdown (Max) : 40V
Frequency - Transition : 2.3GHz ~ 2.4GHz
Noise Figure (dB Typ @ f) : -
Gain : 7dB
Power - Max : 58W
DC Current Gain (hFE) (Min) @ Ic, Vce : 10 @ 160mA, 5V
Current - Collector (Ic) (Max) : 3A
Operating Temperature : 200°C
Mounting Type : Chassis Mount
Package / Case : 55AW
Supplier Device Package : 55AW
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : -
Voltage - Collector Emitter Breakdown (Max) : 40V
Frequency - Transition : 2.3GHz ~ 2.4GHz
Noise Figure (dB Typ @ f) : -
Gain : 7dB
Power - Max : 58W
DC Current Gain (hFE) (Min) @ Ic, Vce : 10 @ 160mA, 5V
Current - Collector (Ic) (Max) : 3A
Operating Temperature : 200°C
Mounting Type : Chassis Mount
Package / Case : 55AW
Supplier Device Package : 55AW
0
100 in stock
23A005
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 22V
Frequency - Transition : 4.3GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.5dB ~ 9.5dB
Power - Max : 3W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 100mA, 5V
Current - Collector (Ic) (Max) : 400mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 22V
Frequency - Transition : 4.3GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.5dB ~ 9.5dB
Power - Max : 3W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 100mA, 5V
Current - Collector (Ic) (Max) : 400mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
0
100 in stock
23A008
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 22V
Frequency - Transition : 3.7GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.5dB ~ 9.5dB
Power - Max : 5W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 100mA, 5V
Current - Collector (Ic) (Max) : 400mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 22V
Frequency - Transition : 3.7GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.5dB ~ 9.5dB
Power - Max : 5W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 100mA, 5V
Current - Collector (Ic) (Max) : 400mA
Operating Temperature : 200°C (TJ)
Mounting Type : Chassis Mount
Package / Case : 55BT
Supplier Device Package : 55BT
0
100 in stock
2731-200P
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Frequency - Transition : 2.7GHz ~ 3.1GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.7dB
Power - Max : -
DC Current Gain (hFE) (Min) @ Ic, Vce : -
Current - Collector (Ic) (Max) : -
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : -
Voltage - Collector Emitter Breakdown (Max) : -
Frequency - Transition : 2.7GHz ~ 3.1GHz
Noise Figure (dB Typ @ f) : -
Gain : 8.7dB
Power - Max : -
DC Current Gain (hFE) (Min) @ Ic, Vce : -
Current - Collector (Ic) (Max) : -
Operating Temperature : -
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
2A5
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 22V
Frequency - Transition : 3.4GHz ~ 3.7GHz
Noise Figure (dB Typ @ f) : -
Gain : 7dB ~ 9dB
Power - Max : 5.3W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 100mA, 5V
Current - Collector (Ic) (Max) : 3mA
Operating Temperature : 200°C (TJ)
Mounting Type : Stud Mount
Package / Case : 55ET
Supplier Device Package : 55ET
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 22V
Frequency - Transition : 3.4GHz ~ 3.7GHz
Noise Figure (dB Typ @ f) : -
Gain : 7dB ~ 9dB
Power - Max : 5.3W
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 100mA, 5V
Current - Collector (Ic) (Max) : 3mA
Operating Temperature : 200°C (TJ)
Mounting Type : Stud Mount
Package / Case : 55ET
Supplier Device Package : 55ET
0
100 in stock
2N2857
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 15V
Frequency - Transition : 500MHz
Noise Figure (dB Typ @ f) : 4.5dB @ 450MHz
Gain : 12.5dB ~ 21dB @ 450MHz
Power - Max : 200mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 3mA, 1V
Current - Collector (Ic) (Max) : 40mA
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-206AF, TO-72-4 Metal Can
Supplier Device Package : TO-72
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 15V
Frequency - Transition : 500MHz
Noise Figure (dB Typ @ f) : 4.5dB @ 450MHz
Gain : 12.5dB ~ 21dB @ 450MHz
Power - Max : 200mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 3mA, 1V
Current - Collector (Ic) (Max) : 40mA
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-206AF, TO-72-4 Metal Can
Supplier Device Package : TO-72
0
100 in stock

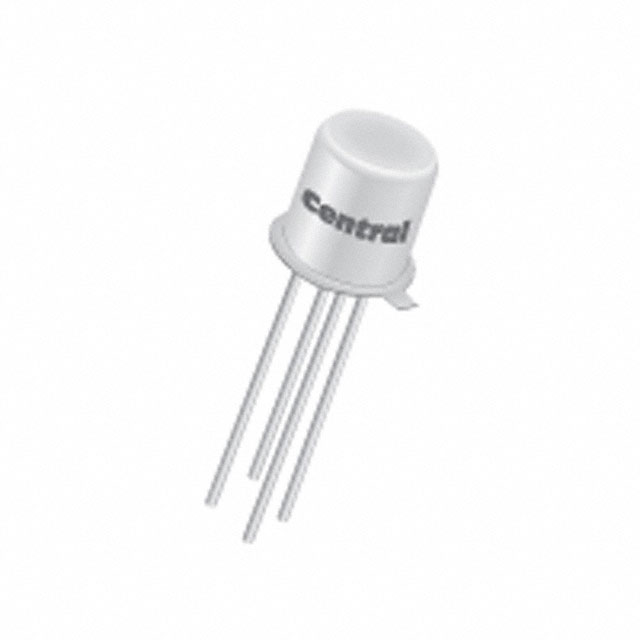

2N2857
Central Semiconductor
Manufacturer : Central Semiconductor Corp
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 15V
Frequency - Transition : 1.9GHz
Noise Figure (dB Typ @ f) : 4.5dB @ 450MHz
Gain : -
Power - Max : 200mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 3mA, 1V
Current - Collector (Ic) (Max) : 40mA
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-206AF, TO-72-4 Metal Can
Supplier Device Package : TO-72
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 15V
Frequency - Transition : 1.9GHz
Noise Figure (dB Typ @ f) : 4.5dB @ 450MHz
Gain : -
Power - Max : 200mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 3mA, 1V
Current - Collector (Ic) (Max) : 40mA
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-206AF, TO-72-4 Metal Can
Supplier Device Package : TO-72
0
1961 in stock
2N2857UB
Microsemi
Manufacturer : Microsemi Corporation
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 15V
Frequency - Transition : -
Noise Figure (dB Typ @ f) : 4.5dB @ 450MHz
Gain : 21dB
Power - Max : 200mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 3mA, 1V
Current - Collector (Ic) (Max) : 40mA
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : UB
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 15V
Frequency - Transition : -
Noise Figure (dB Typ @ f) : 4.5dB @ 450MHz
Gain : 21dB
Power - Max : 200mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 30 @ 3mA, 1V
Current - Collector (Ic) (Max) : 40mA
Operating Temperature : -65°C ~ 200°C (TJ)
Mounting Type : Surface Mount
Package / Case : 3-SMD, No Lead
Supplier Device Package : UB
0
100 in stock
2N3663
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 12V
Frequency - Transition : 2.1GHz
Noise Figure (dB Typ @ f) : 6.5dB @ 60MHz
Gain : 1.5dB
Power - Max : 350mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 8mA, 10V
Current - Collector (Ic) (Max) : 50mA
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : NPN
Voltage - Collector Emitter Breakdown (Max) : 12V
Frequency - Transition : 2.1GHz
Noise Figure (dB Typ @ f) : 6.5dB @ 60MHz
Gain : 1.5dB
Power - Max : 350mW
DC Current Gain (hFE) (Min) @ Ic, Vce : 20 @ 8mA, 10V
Current - Collector (Ic) (Max) : 50mA
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package : TO-92-3
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
