- Discrete Semiconductor Products
- Thyristors - SCRs
Part Number
Manufacturer
Description
Unit Price
In Stock

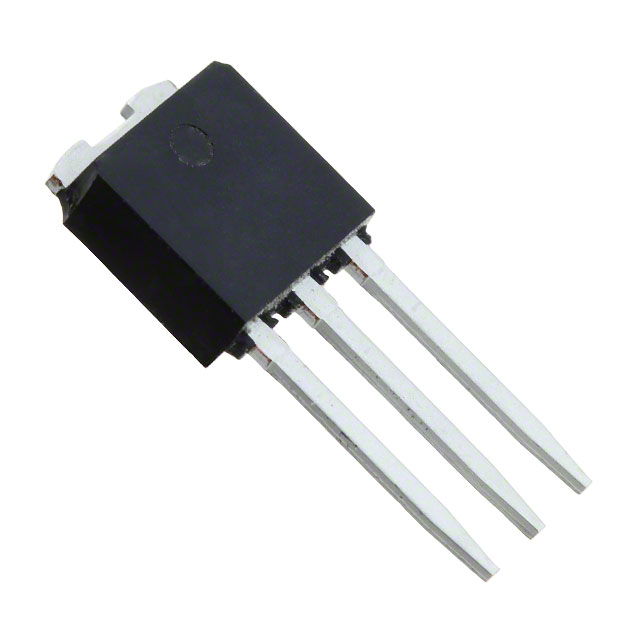

TN22-1500H
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 1.5mA
Voltage - On State (Vtm) (Max) : 3.1V
Current - On State (It (AV)) (Max) : 1.8A
Current - On State (It (RMS)) (Max) : 2A
Current - Hold (Ih) (Max) : 175mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 20A, 22A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 3V
Current - Gate Trigger (Igt) (Max) : 1.5mA
Voltage - On State (Vtm) (Max) : 3.1V
Current - On State (It (AV)) (Max) : 1.8A
Current - On State (It (RMS)) (Max) : 2A
Current - Hold (Ih) (Max) : 175mA
Current - Off State (Max) : 100µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 20A, 22A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 110°C
Mounting Type : Through Hole
Package / Case : TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package : I-PAK
0
2197 in stock
TN2540-600G-TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 16A
Current - On State (It (RMS)) (Max) : 25A
Current - Hold (Ih) (Max) : 50mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 314A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 16A
Current - On State (It (RMS)) (Max) : 25A
Current - Hold (Ih) (Max) : 50mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 314A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D²PAK
0
303 in stock
TN2540-800G-TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 16A
Current - On State (It (RMS)) (Max) : 25A
Current - Hold (Ih) (Max) : 50mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 314A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 800V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 16A
Current - On State (It (RMS)) (Max) : 25A
Current - Hold (Ih) (Max) : 50mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 314A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
559 in stock
TN3050H-12GY-TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, ECOPACK®1
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 19A
Current - On State (It (RMS)) (Max) : 30A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 330A
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, ECOPACK®1
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 19A
Current - On State (It (RMS)) (Max) : 30A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 330A
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
147 in stock

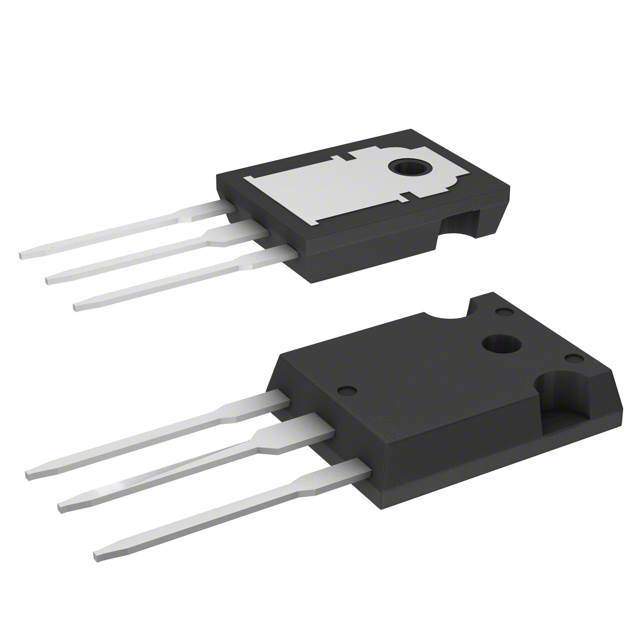

TN3050H-12WY
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : Automotive, AEC-Q101, ECOPACK®2
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 19A
Current - On State (It (RMS)) (Max) : 30A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 330A
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : Automotive, AEC-Q101, ECOPACK®2
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 19A
Current - On State (It (RMS)) (Max) : 30A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 300A, 330A
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
259 in stock

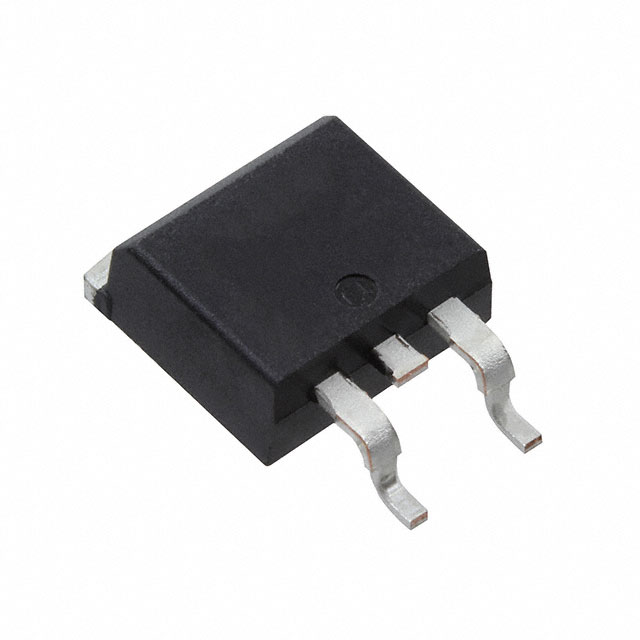

TN4015H-6G-TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 394A, 360A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 394A, 360A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
100 in stock
TN4015H-6I
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 22A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : 360A, 390A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 22A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : 360A, 390A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
226 in stock
TN4015H-6T
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 22A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : 360A, 390A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 22A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : 360A, 390A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1037 in stock

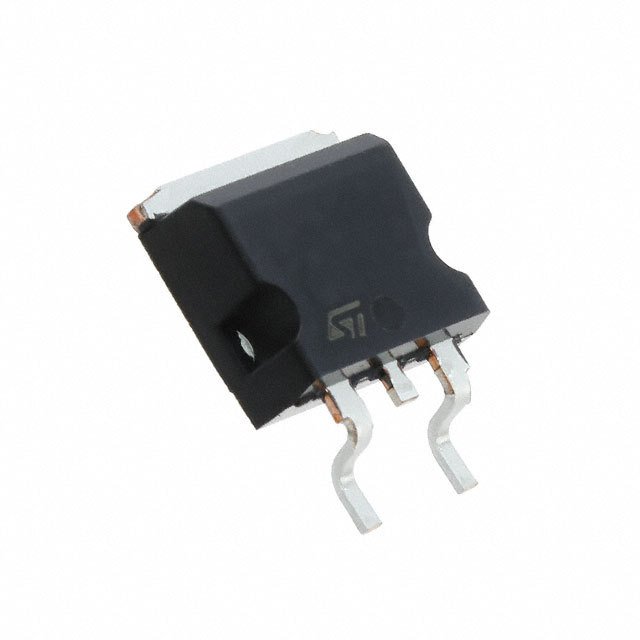

TN5015H-6G-TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 30A
Current - On State (It (RMS)) (Max) : 50A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 493A, 450A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 30A
Current - On State (It (RMS)) (Max) : 50A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 493A, 450A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
0
776 in stock
TN5015H-6I
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : -
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 30A
Current - On State (It (RMS)) (Max) : 50A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 493A, 450A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : -
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 30A
Current - On State (It (RMS)) (Max) : 50A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 493A, 450A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
718 in stock
TN5015H-6T
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : -
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 30A
Current - On State (It (RMS)) (Max) : 50A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 493A, 450A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : -
Series : -
Part Status : Active
Voltage - Off State : 600V
Voltage - Gate Trigger (Vgt) (Max) : 1.3V
Current - Gate Trigger (Igt) (Max) : 15mA
Voltage - On State (Vtm) (Max) : 1.65V
Current - On State (It (AV)) (Max) : 30A
Current - On State (It (RMS)) (Max) : 50A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 493A, 450A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
TN5050H-12WY
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.55V
Current - On State (It (AV)) (Max) : 51A
Current - On State (It (RMS)) (Max) : 80A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 580A, 633A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
Packaging : Tube
Series : Automotive, AEC-Q101
Part Status : Active
Voltage - Off State : 1.2kV
Voltage - Gate Trigger (Vgt) (Max) : 1V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.55V
Current - On State (It (AV)) (Max) : 51A
Current - On State (It (RMS)) (Max) : 80A
Current - Hold (Ih) (Max) : 100mA
Current - Off State (Max) : 5µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 580A, 633A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247-3
0
474 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
