Part Number
Manufacturer
Description
Unit Price
In Stock
S4040NQ3RP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : -
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : -
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : -
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
356 in stock
S4040NQRP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
461 in stock
S4040RQ2TP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
0
481 in stock
S4040RQ3TP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB-R
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB-R
0
453 in stock
S4040RTP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 25A
Current - On State (It (RMS)) (Max) : 40A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 430A, 520A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220 Non-Isolated Tab
0
104 in stock

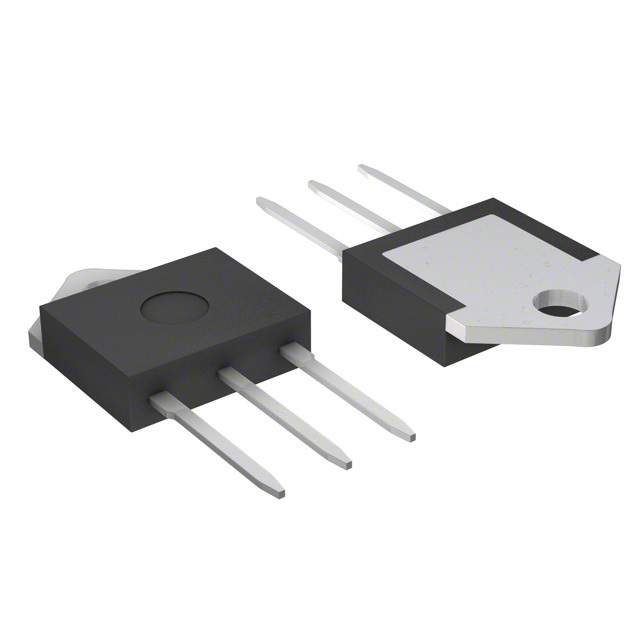

S4055MTP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 35A
Current - On State (It (RMS)) (Max) : 55A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 650A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-218-3, TO-218AC
Supplier Device Package : TO-218 Non-Isolated Tab
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 35A
Current - On State (It (RMS)) (Max) : 55A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 650A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-218-3, TO-218AC
Supplier Device Package : TO-218 Non-Isolated Tab
0
229 in stock
S4055NRP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 35A
Current - On State (It (RMS)) (Max) : 55A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 650A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 35A
Current - On State (It (RMS)) (Max) : 55A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 650A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
250 in stock
S4055RTP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 35A
Current - On State (It (RMS)) (Max) : 55A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 650A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB-R
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 40mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 35A
Current - On State (It (RMS)) (Max) : 55A
Current - Hold (Ih) (Max) : 60mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 550A, 650A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB-R
0
475 in stock

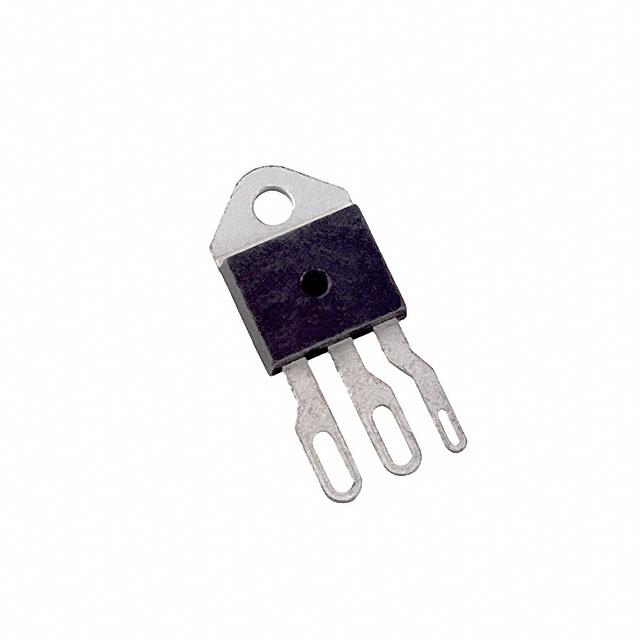

S4065JTP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 41A
Current - On State (It (RMS)) (Max) : 65A
Current - Hold (Ih) (Max) : 80mA
Current - Off State (Max) : 20µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 800A, 950A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-218X-3 Isolated Tab
Supplier Device Package : TO-218X Isolated
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 41A
Current - On State (It (RMS)) (Max) : 65A
Current - Hold (Ih) (Max) : 80mA
Current - Off State (Max) : 20µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 800A, 950A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-218X-3 Isolated Tab
Supplier Device Package : TO-218X Isolated
0
296 in stock

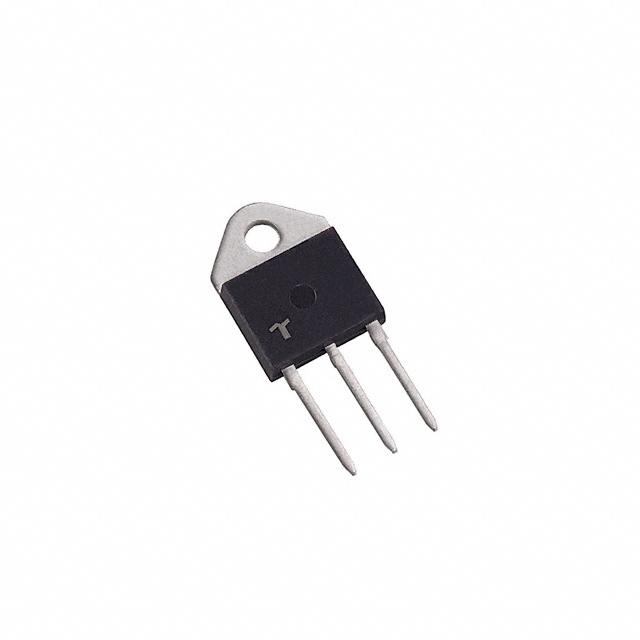

S4065KTP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 41A
Current - On State (It (RMS)) (Max) : 65A
Current - Hold (Ih) (Max) : 80mA
Current - Off State (Max) : 20µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 800A, 950A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package : TO-218 Isolated Tab
Packaging : Tube
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 2V
Current - Gate Trigger (Igt) (Max) : 50mA
Voltage - On State (Vtm) (Max) : 1.8V
Current - On State (It (AV)) (Max) : 41A
Current - On State (It (RMS)) (Max) : 65A
Current - Hold (Ih) (Max) : 80mA
Current - Off State (Max) : 20µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 800A, 950A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Through Hole
Package / Case : TO-218-3 Isolated Tab, TO-218AC
Supplier Device Package : TO-218 Isolated Tab
0
270 in stock
S4N1RP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 10mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 640mA
Current - On State (It (RMS)) (Max) : 1A
Current - Hold (Ih) (Max) : 30mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 25A, 30A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : Compak
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 1.5V
Current - Gate Trigger (Igt) (Max) : 10mA
Voltage - On State (Vtm) (Max) : 1.6V
Current - On State (It (AV)) (Max) : 640mA
Current - On State (It (RMS)) (Max) : 1A
Current - Hold (Ih) (Max) : 30mA
Current - Off State (Max) : 10µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 25A, 30A
SCR Type : Standard Recovery
Operating Temperature : -40°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : Compak
0
137 in stock

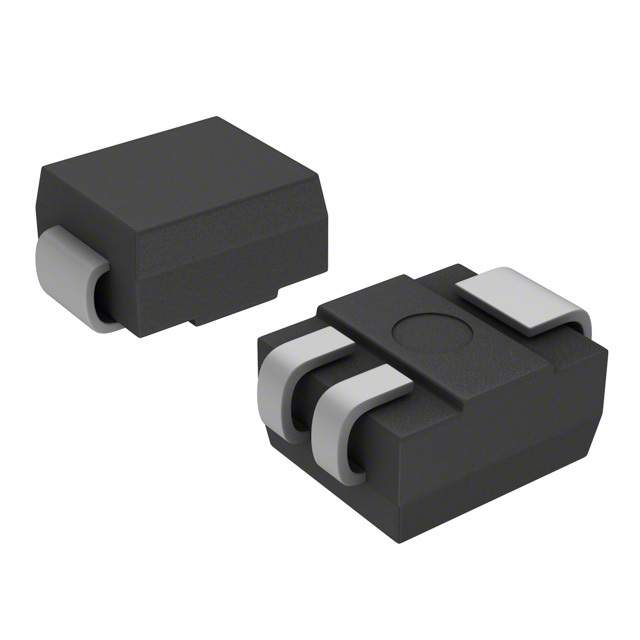

S4S1RP
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 12µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 510mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 1µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 16A, 20A
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : Compak
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Voltage - Off State : 400V
Voltage - Gate Trigger (Vgt) (Max) : 800mV
Current - Gate Trigger (Igt) (Max) : 12µA
Voltage - On State (Vtm) (Max) : 1.7V
Current - On State (It (AV)) (Max) : 510mA
Current - On State (It (RMS)) (Max) : 800mA
Current - Hold (Ih) (Max) : 5mA
Current - Off State (Max) : 1µA
Current - Non Rep. Surge 50, 60Hz (Itsm) : 16A, 20A
SCR Type : Sensitive Gate
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : DO-214AA, SMB (3 Leads), Compak
Supplier Device Package : Compak
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
