- Discrete Semiconductor Products
- Diodes - Rectifiers - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

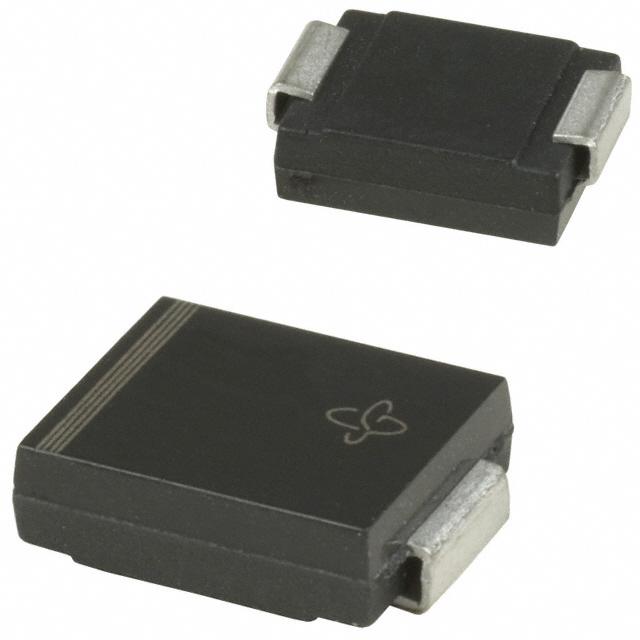

VSSC520S-M3/9AT
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 5A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 200V
Capacitance @ Vr, F : 280pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 5A (DC)
Voltage - Forward (Vf) (Max) @ If : 1.7V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 200V
Capacitance @ Vr, F : 280pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
Operating Temperature - Junction : -40°C ~ 150°C
0
100 in stock
VSSC8L45-M3/9AT
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 4.9A
Voltage - Forward (Vf) (Max) @ If : 420mV @ 4A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.85mA @ 45V
Capacitance @ Vr, F : 1216pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TMBS®
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 4.9A
Voltage - Forward (Vf) (Max) @ If : 420mV @ 4A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.85mA @ 45V
Capacitance @ Vr, F : 1216pF @ 4V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AB, SMC
Supplier Device Package : DO-214AB (SMC)
Operating Temperature - Junction : -40°C ~ 150°C
0
13010 in stock

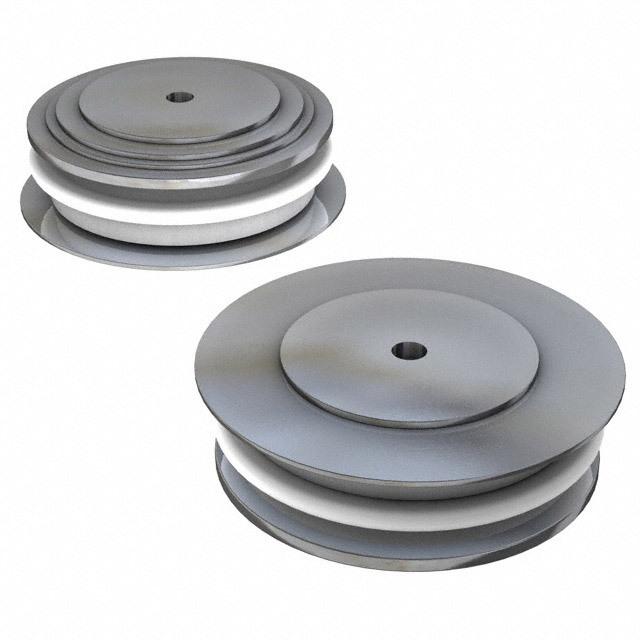

VS-SD1100C12C
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 1400A
Voltage - Forward (Vf) (Max) @ If : 1.31V @ 1500A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 35mA @ 1200V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-200AA, A-PUK
Supplier Device Package : B-43, Hockey PUK
Operating Temperature - Junction : -
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 1400A
Voltage - Forward (Vf) (Max) @ If : 1.31V @ 1500A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 35mA @ 1200V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-200AA, A-PUK
Supplier Device Package : B-43, Hockey PUK
Operating Temperature - Junction : -
0
15 in stock

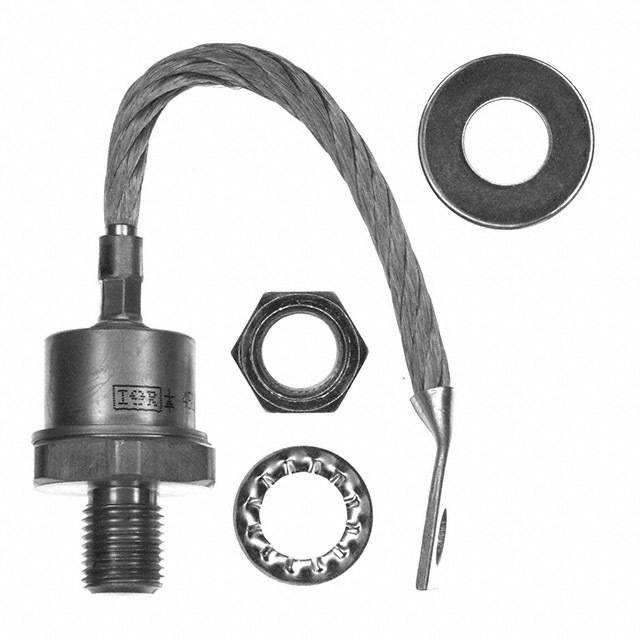

VS-SD200N20PC
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 2000V
Current - Average Rectified (Io) : 200A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 630A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 2000V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AC, DO-30, Stud
Supplier Device Package : DO-205AC (DO-30)
Operating Temperature - Junction : -40°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 2000V
Current - Average Rectified (Io) : 200A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 630A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 2000V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AC, DO-30, Stud
Supplier Device Package : DO-205AC (DO-30)
Operating Temperature - Junction : -40°C ~ 180°C
0
17 in stock

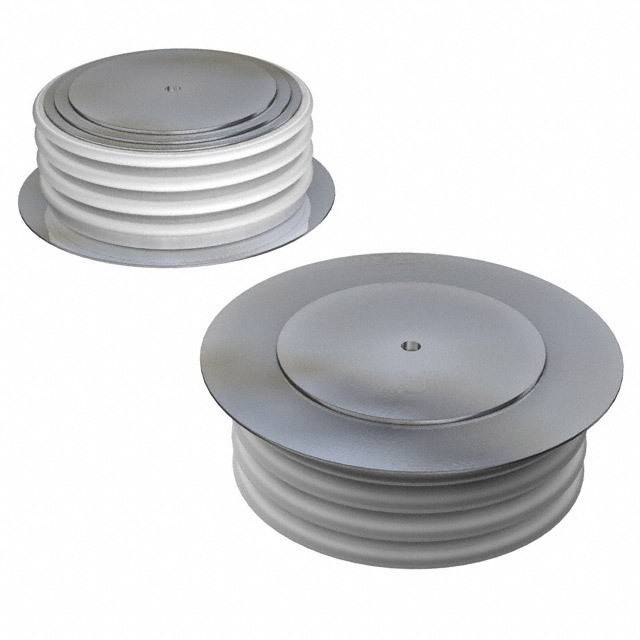

VS-SD3000C10K
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 3800A
Voltage - Forward (Vf) (Max) @ If : 1.22V @ 6000A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 75mA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Clamp On
Package / Case : DO-200AC, K-PUK
Supplier Device Package : DO-200AC, K-PUK
Operating Temperature - Junction : -
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 3800A
Voltage - Forward (Vf) (Max) @ If : 1.22V @ 6000A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 75mA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Clamp On
Package / Case : DO-200AC, K-PUK
Supplier Device Package : DO-200AC, K-PUK
Operating Temperature - Junction : -
0
4 in stock

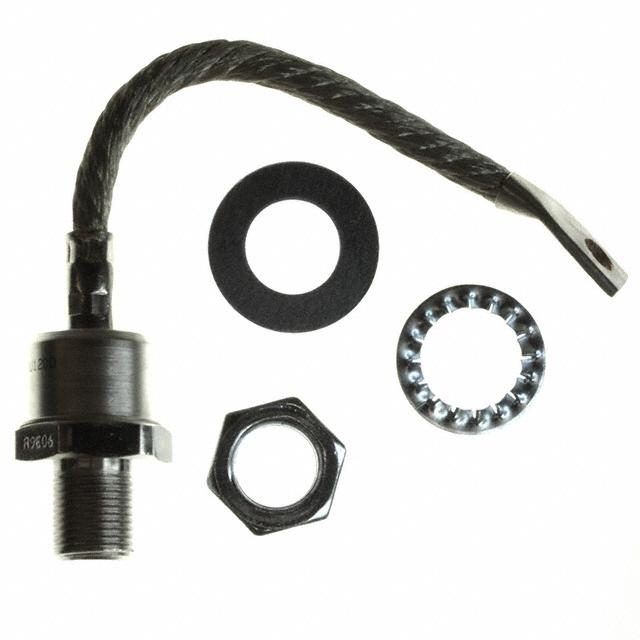

VS-SD400N16PC
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 400A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 1600V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AB, DO-9, Stud
Supplier Device Package : DO-205AB, DO-9
Operating Temperature - Junction : -40°C ~ 190°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 400A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 1600V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AB, DO-9, Stud
Supplier Device Package : DO-205AB, DO-9
Operating Temperature - Junction : -40°C ~ 190°C
0
2 in stock
VS-SD400N20PC
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 2000V
Current - Average Rectified (Io) : 400A
Voltage - Forward (Vf) (Max) @ If : 1.62V @ 1500A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 2000V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AB, DO-9, Stud
Supplier Device Package : DO-205AB, DO-9
Operating Temperature - Junction : -40°C ~ 190°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 2000V
Current - Average Rectified (Io) : 400A
Voltage - Forward (Vf) (Max) @ If : 1.62V @ 1500A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 2000V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AB, DO-9, Stud
Supplier Device Package : DO-205AB, DO-9
Operating Temperature - Junction : -40°C ~ 190°C
0
1 in stock
VS-SD400N24PC
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 2400V
Current - Average Rectified (Io) : 400A
Voltage - Forward (Vf) (Max) @ If : 1.62V @ 1500A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 2400V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AB, DO-9, Stud
Supplier Device Package : DO-205AB, DO-9
Operating Temperature - Junction : -40°C ~ 190°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 2400V
Current - Average Rectified (Io) : 400A
Voltage - Forward (Vf) (Max) @ If : 1.62V @ 1500A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 2400V
Capacitance @ Vr, F : -
Mounting Type : Stud Mount
Package / Case : DO-205AB, DO-9, Stud
Supplier Device Package : DO-205AB, DO-9
Operating Temperature - Junction : -40°C ~ 190°C
0
12 in stock
VS-STPS20L15GPBF
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : -
Part Status : Discontinued at
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 15V
Current - Average Rectified (Io) : 20A
Voltage - Forward (Vf) (Max) @ If : 410mV @ 19A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10mA @ 15V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Operating Temperature - Junction : -55°C ~ 125°C
Packaging : Tube
Series : -
Part Status : Discontinued at
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 15V
Current - Average Rectified (Io) : 20A
Voltage - Forward (Vf) (Max) @ If : 410mV @ 19A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10mA @ 15V
Capacitance @ Vr, F : -
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : D2PAK
Operating Temperature - Junction : -55°C ~ 125°C
0
602 in stock

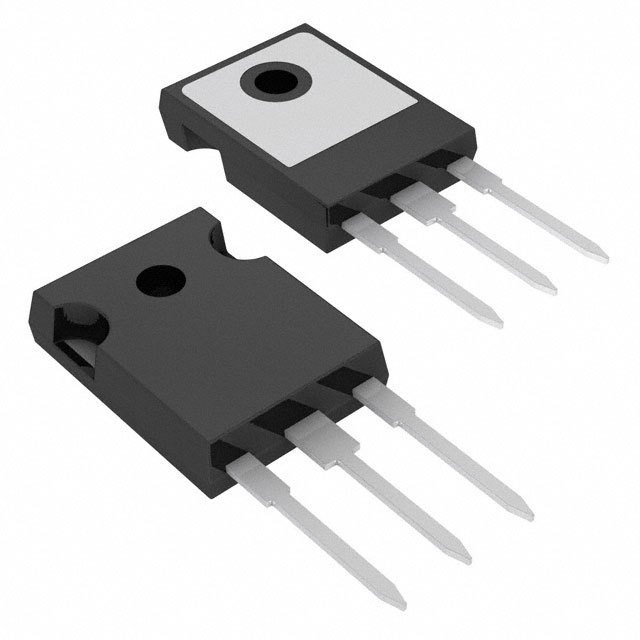

VS-STPS30L60CW-N3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 480µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 30A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 480µA @ 60V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Operating Temperature - Junction : -55°C ~ 150°C
0
126 in stock
VS-STPS40L15CW-N3
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 15V
Current - Average Rectified (Io) : 40A
Voltage - Forward (Vf) (Max) @ If : 520mV @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10mA @ 15V
Capacitance @ Vr, F : 2000pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Operating Temperature - Junction : -55°C ~ 125°C
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 15V
Current - Average Rectified (Io) : 40A
Voltage - Forward (Vf) (Max) @ If : 520mV @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10mA @ 15V
Capacitance @ Vr, F : 2000pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247AC
Operating Temperature - Junction : -55°C ~ 125°C
0
178 in stock
VS-T110HF100
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 110A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 20mA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Chassis Mount
Package / Case : D-55 T-Module
Supplier Device Package : D-55
Operating Temperature - Junction : -
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 110A
Voltage - Forward (Vf) (Max) @ If : -
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 20mA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Chassis Mount
Package / Case : D-55 T-Module
Supplier Device Package : D-55
Operating Temperature - Junction : -
0
95 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
