Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Diodes - Rectifiers - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
VS-70HFLR100S05
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.85V @ 219.8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 500ns
Current - Reverse Leakage @ Vr : 100µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -40°C ~ 125°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.85V @ 219.8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 500ns
Current - Reverse Leakage @ Vr : 100µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -40°C ~ 125°C
0
7 in stock
VS-70HFLR60S02
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.85V @ 219.8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 200ns
Current - Reverse Leakage @ Vr : 100µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -40°C ~ 125°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.85V @ 219.8A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 200ns
Current - Reverse Leakage @ Vr : 100µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -40°C ~ 125°C
0
17 in stock

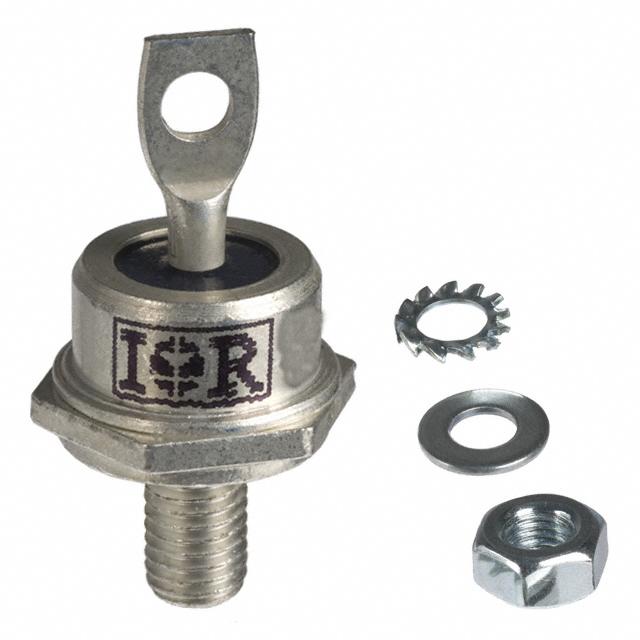

VS-70HFR10
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
0
22 in stock
VS-70HFR120
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 9mA @ 1200V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 9mA @ 1200V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
0
247 in stock
VS-70HFR140
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1400V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.46V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 4.5mA @ 1400V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 150°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1400V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.46V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 4.5mA @ 1400V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 150°C
0
71 in stock
VS-70HFR160
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.46V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 4.5mA @ 1600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 150°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 1600V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.46V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 4.5mA @ 1600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 150°C
0
140 in stock
VS-70HFR20
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
0
121 in stock
VS-70HFR40
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
0
84 in stock
VS-70HFR60
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 9mA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 9mA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
0
100 in stock
VS-70HFR80
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 9mA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 9mA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
0
76 in stock
VS-71HF40
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB
Operating Temperature - Junction : -65°C ~ 180°C
0
70 in stock
VS-72HF120
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB (DO-5)
Operating Temperature - Junction : -65°C ~ 180°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) : 70A
Voltage - Forward (Vf) (Max) @ If : 1.35V @ 220A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : -
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-203AB, DO-5, Stud
Supplier Device Package : DO-203AB (DO-5)
Operating Temperature - Junction : -65°C ~ 180°C
0
77 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
