Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Diodes - Rectifiers - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

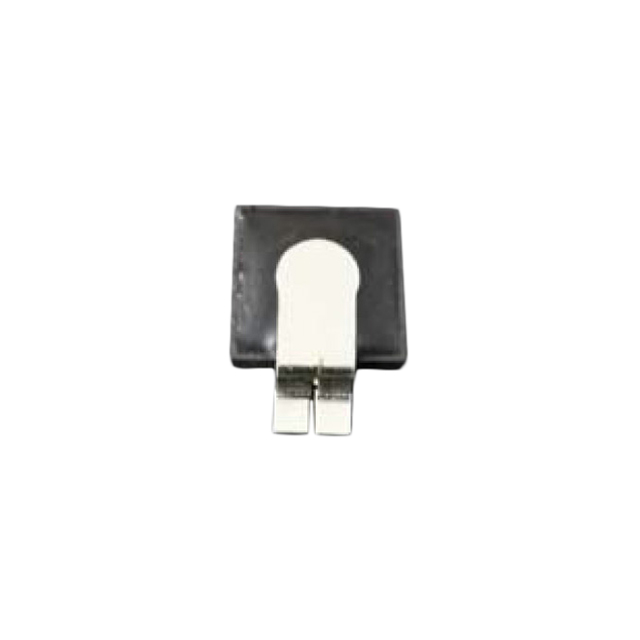

123SPC100A
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 120A
Voltage - Forward (Vf) (Max) @ If : 870mV @ 120A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 100V
Capacitance @ Vr, F : 3000pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : SPD-3A
Supplier Device Package : SPD-3A
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 120A
Voltage - Forward (Vf) (Max) @ If : 870mV @ 120A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 100V
Capacitance @ Vr, F : 3000pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : SPD-3A
Supplier Device Package : SPD-3A
Operating Temperature - Junction : -55°C ~ 175°C
0
225 in stock
123SPD100A
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : -
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 120A
Voltage - Forward (Vf) (Max) @ If : 870mV @ 120A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 100V
Capacitance @ Vr, F : 2400pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : SPD-4
Supplier Device Package : SPD-4
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : -
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 120A
Voltage - Forward (Vf) (Max) @ If : 870mV @ 120A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 100V
Capacitance @ Vr, F : 2400pF @ 5V, 1MHz
Mounting Type : Surface Mount
Package / Case : SPD-4
Supplier Device Package : SPD-4
Operating Temperature - Junction : -55°C ~ 175°C
0
357 in stock

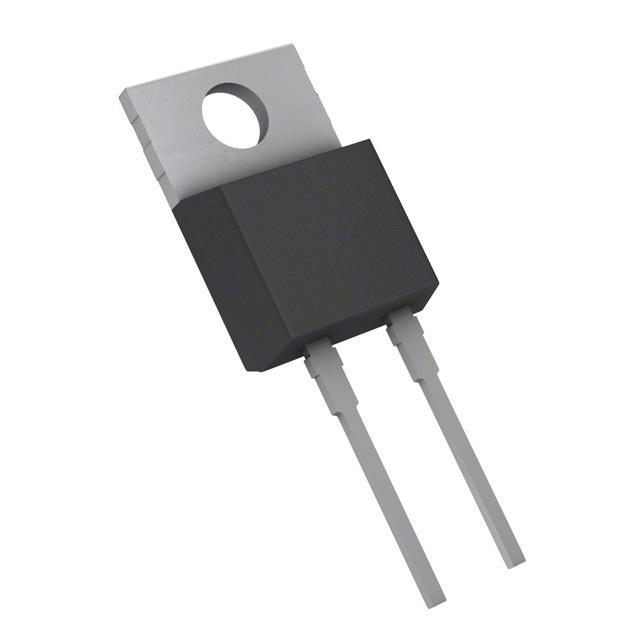

12TQ045
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 560mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 45V
Capacitance @ Vr, F : 900pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 560mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 45V
Capacitance @ Vr, F : 900pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 150°C
0
57 in stock
12TQ100
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 840mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 550µA @ 100V
Capacitance @ Vr, F : 500pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 840mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 550µA @ 100V
Capacitance @ Vr, F : 500pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
0
726 in stock
12TQ150
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 860mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 150V
Capacitance @ Vr, F : 500pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 860mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 150V
Capacitance @ Vr, F : 500pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
0
1763 in stock
12TQ200
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 550µA @ 200V
Capacitance @ Vr, F : 300pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Tube
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 550µA @ 200V
Capacitance @ Vr, F : 300pF @ 5V, 1MHz
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Operating Temperature - Junction : -55°C ~ 175°C
0
1888 in stock

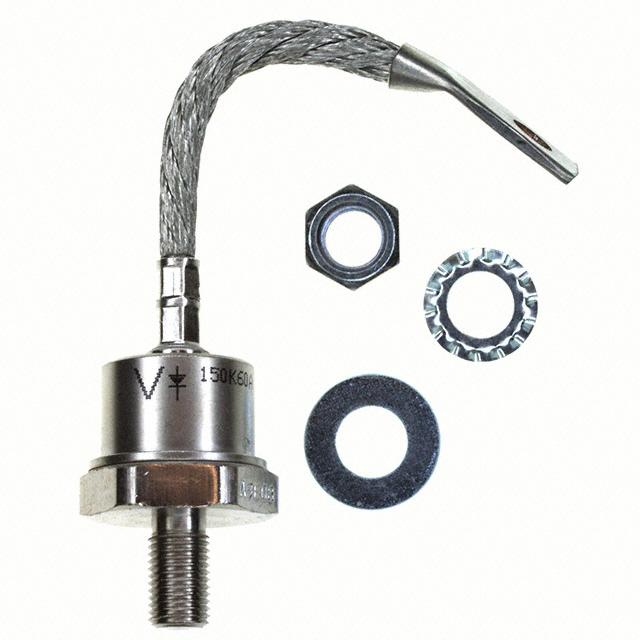

150KR60A
GeneSiC Semiconductor
Manufacturer : GeneSiC Semiconductor
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 150A
Voltage - Forward (Vf) (Max) @ If : 1.33V @ 150A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 35mA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-205AA, DO-8, Stud
Supplier Device Package : DO-205AA (DO-8)
Operating Temperature - Junction : -40°C ~ 200°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 150A
Voltage - Forward (Vf) (Max) @ If : 1.33V @ 150A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 35mA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Chassis, Stud Mount
Package / Case : DO-205AA, DO-8, Stud
Supplier Device Package : DO-205AA (DO-8)
Operating Temperature - Junction : -40°C ~ 200°C
0
48 in stock
15MQ040NTR
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 2.1A
Voltage - Forward (Vf) (Max) @ If : 490mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 40V
Capacitance @ Vr, F : 134pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 2.1A
Voltage - Forward (Vf) (Max) @ If : 490mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 40V
Capacitance @ Vr, F : 134pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
Operating Temperature - Junction : -55°C ~ 150°C
0
64172 in stock

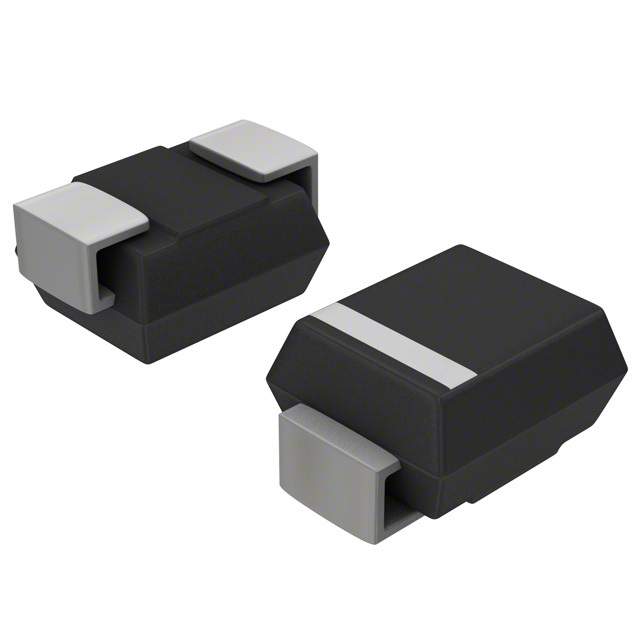

15MQ060NTR
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 2.1A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 1.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 60V
Capacitance @ Vr, F : 250pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
Operating Temperature - Junction : -55°C ~ 125°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) : 2.1A
Voltage - Forward (Vf) (Max) @ If : 500mV @ 1.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1mA @ 60V
Capacitance @ Vr, F : 250pF @ 10V, 1MHz
Mounting Type : Surface Mount
Package / Case : DO-214AC, SMA
Supplier Device Package : SMA (DO-214AC)
Operating Temperature - Junction : -55°C ~ 125°C
0
46143 in stock
15SQ045TR
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 45V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 45V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 150°C
0
7924 in stock
15SQ100TR
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 830mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 15A
Voltage - Forward (Vf) (Max) @ If : 830mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : R6, Axial
Supplier Device Package : R-6
Operating Temperature - Junction : -55°C ~ 150°C
0
7500 in stock
183NQ100-1
SMC Diode Solutions
Manufacturer : SMC Diode Solutions
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 180A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 180A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 4.5mA @ 100V
Capacitance @ Vr, F : 4150pF @ 5V, 1MHz
Mounting Type : Chassis Mount
Package / Case : HALF-PAK
Supplier Device Package : PRM1-1 (Half Pak Module)
Operating Temperature - Junction : -55°C ~ 175°C
Packaging : Bulk
Series : -
Part Status : Active
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) : 180A
Voltage - Forward (Vf) (Max) @ If : 950mV @ 180A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 4.5mA @ 100V
Capacitance @ Vr, F : 4150pF @ 5V, 1MHz
Mounting Type : Chassis Mount
Package / Case : HALF-PAK
Supplier Device Package : PRM1-1 (Half Pak Module)
Operating Temperature - Junction : -55°C ~ 175°C
0
27 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
