Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Diodes - Rectifiers - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock
DHH55-36N1F
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1800V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 2.04V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 230ns
Current - Reverse Leakage @ Vr : 200µA @ 1800V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : i4-Pac™3
Supplier Device Package : i4-PAC™
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1800V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 2.04V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 230ns
Current - Reverse Leakage @ Vr : 200µA @ 1800V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : i4-Pac™3
Supplier Device Package : i4-PAC™
0
305 in stock
DPF240X400NA
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 120A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 120A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 45ns
Current - Reverse Leakage @ Vr : 5µA @ 400V
Operating Temperature - Junction : -
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
Packaging : Tube
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 120A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 120A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 45ns
Current - Reverse Leakage @ Vr : 5µA @ 400V
Operating Temperature - Junction : -
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
100 in stock
DPG20C300PN
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.27V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 300V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220ABFP
Packaging : Tube
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.27V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 300V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack, Isolated Tab
Supplier Device Package : TO-220ABFP
0
46 in stock
DPG30C200PB
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.26V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.26V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
96 in stock
DPG30C300PC
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.26V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 300V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.26V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 300V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package : TO-263 (D2Pak)
0
433 in stock
DPG60C300HB
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.34V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 300V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD (HB)
Packaging : Tube
Series : HiPerFRED²™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.34V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 1µA @ 300V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD (HB)
0
100 in stock
DSA80C100PB
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 40A
Voltage - Forward (Vf) (Max) @ If : 910mV @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 700µA @ 100V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 40A
Voltage - Forward (Vf) (Max) @ If : 910mV @ 40A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 700µA @ 100V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
800 in stock
DSA90C200HB
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 45A
Voltage - Forward (Vf) (Max) @ If : 960mV @ 45A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 900µA @ 200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD (HB)
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 45A
Voltage - Forward (Vf) (Max) @ If : 960mV @ 45A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 900µA @ 200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD (HB)
0
90 in stock

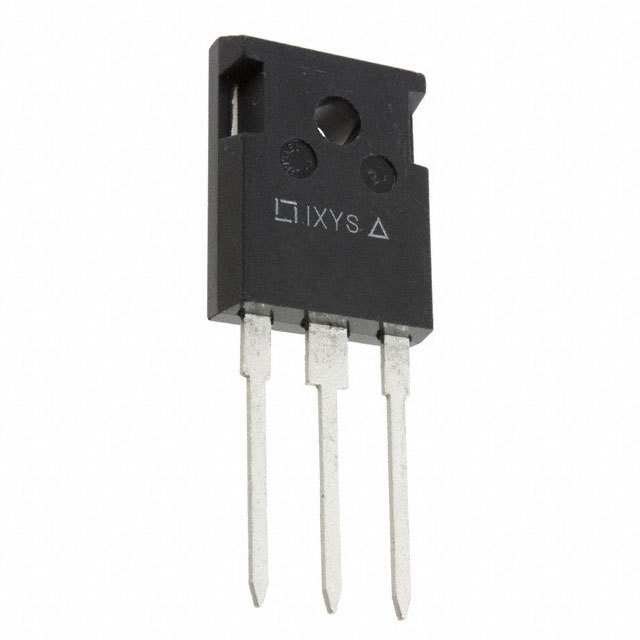

DSEC30-12A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 2.74V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 40ns
Current - Reverse Leakage @ Vr : 100µA @ 1200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 2.74V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 40ns
Current - Reverse Leakage @ Vr : 100µA @ 1200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
0
25 in stock
DSEC60-06A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.6V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 250µA @ 600V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 1.6V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 250µA @ 600V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
0
100 in stock
DSEE30-12A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 2.5V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 200µA @ 1200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
Packaging : Tube
Series : HiPerFRED™
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 30A
Voltage - Forward (Vf) (Max) @ If : 2.5V @ 30A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 30ns
Current - Reverse Leakage @ Vr : 200µA @ 1200V
Operating Temperature - Junction : -55°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-247AD
0
100 in stock
DSEI2X101-06A
IXYS Corporation / Littelfuse
Manufacturer : IXYS
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 96A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 100A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 3mA @ 600V
Operating Temperature - Junction : -
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 96A
Voltage - Forward (Vf) (Max) @ If : 1.25V @ 100A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 3mA @ 600V
Operating Temperature - Junction : -
Mounting Type : Chassis Mount
Package / Case : SOT-227-4, miniBLOC
Supplier Device Package : SOT-227B
0
143 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
