Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Diodes - Rectifiers - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock

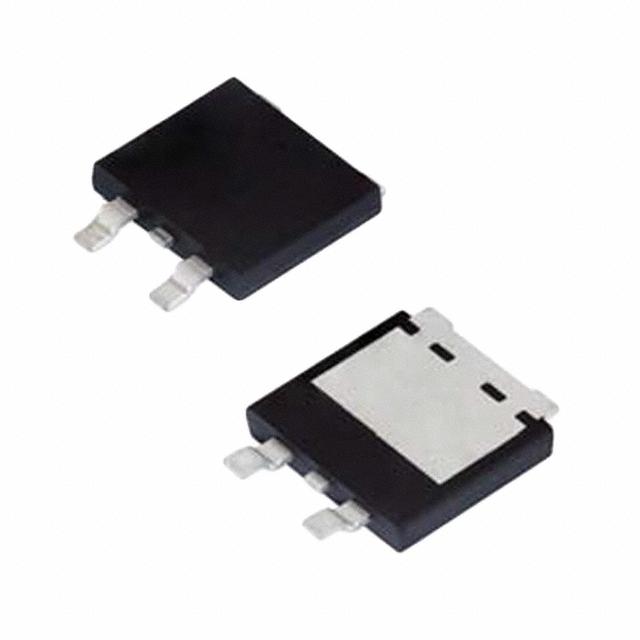

V40DM60C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 650mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.5mA @ 60V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : TO-263AC (SMPD)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 650mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.5mA @ 60V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : TO-263AC (SMPD)
0
100 in stock
V40M150C-M3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : Automotive, AEC-Q101, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.43V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 250µA @ 150V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : Automotive, AEC-Q101, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.43V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 250µA @ 150V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
232 in stock
V40PW10CHM3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 890mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 890mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4 in stock
V40PW10C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 890mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 890mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
2045 in stock
V40PW12CHM3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.03V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 750µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.03V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 750µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4500 in stock
V40PW12C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.03V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 750µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.03V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 750µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4500 in stock
V40PW15CHM3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.45V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 150V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.45V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 150V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4500 in stock
V40PW15C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.45V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 150V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 1.45V @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 150V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4372 in stock
V40PW45CHM3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 640mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.2mA @ 45V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 640mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.2mA @ 45V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
1884 in stock
V40PW45C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 640mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.2mA @ 45V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 45V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 640mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.2mA @ 45V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4402 in stock
V40PW60CHM3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 680mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2.4mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 680mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2.4mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4460 in stock
V40PW60C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 680mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2.4mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 680mV @ 20A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2.4mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : SlimDPAK
0
4494 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
