V20WM100C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 820mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 800µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 820mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 800µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : TO-252, (D-Pak)
0
100 in stock
V30100C-E3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1000 in stock

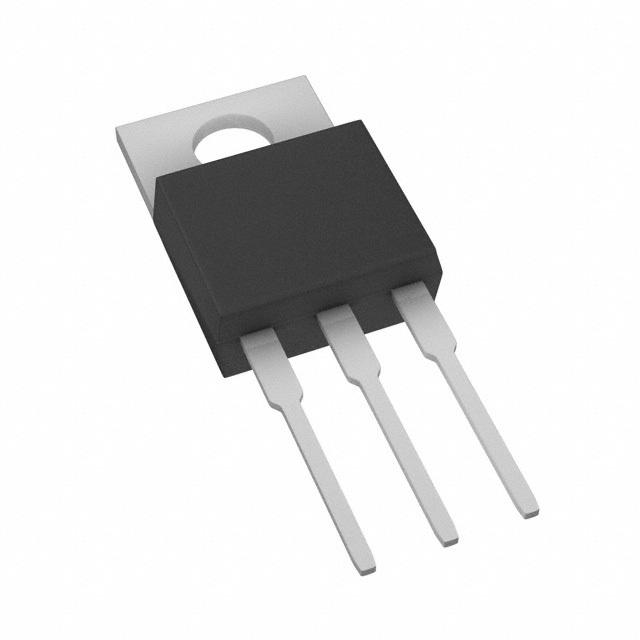

V30100C-M3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : Automotive, AEC-Q101, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : Automotive, AEC-Q101, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 100V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 800mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 500µA @ 100V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
V30120C-E3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 800µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 800µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1000 in stock
V30120C-M3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 800µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 120V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 800µA @ 120V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
V30150C-E3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.36V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 150V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 150V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.36V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 150V
Operating Temperature - Junction : -55°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
975 in stock
V30200C-E3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 160µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 1.1V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 160µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
V30202C-M3/4W
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 880mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 250µA @ 200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 880mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 250µA @ 200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1890 in stock
V30D202CHM3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 880mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : TO-263AC (SMPD)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 880mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : TO-263AC (SMPD)
0
100 in stock

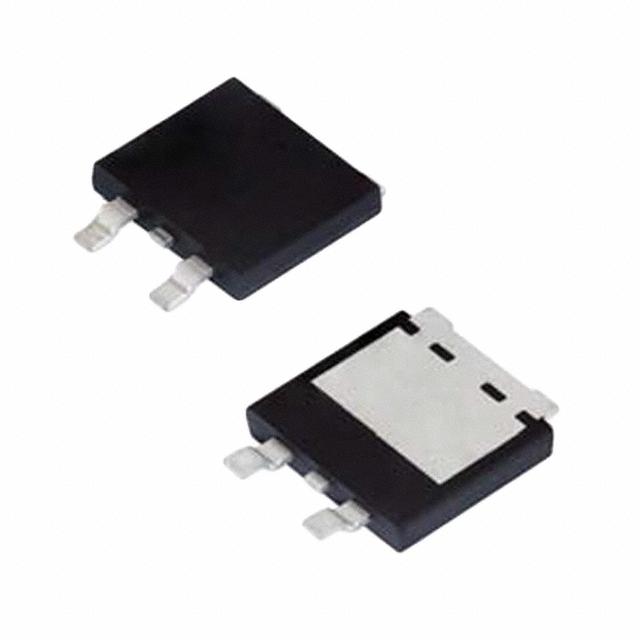

V30D202C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 880mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : TO-263AC (SMPD)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 880mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 200µA @ 200V
Operating Temperature - Junction : -40°C ~ 175°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : TO-263AC (SMPD)
0
7996 in stock
V30D60C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.2mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : SMPD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.2mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : SMPD
0
100 in stock
V30DL50C-M3/I
Electro-Films (EFI) / Vishay
Manufacturer : Vishay Semiconductor Diodes Division
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 50V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.8mA @ 50V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : SMPD
Packaging : Cut Tape (CT)
Alternate Packaging
Series : eSMP®, TMBS®
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 50V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 570mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 1.8mA @ 50V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Surface Mount
Package / Case : TO-263-3, D²Pak (2 Leads + Tab) Variant
Supplier Device Package : SMPD
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
