Part Number
Manufacturer
Description
Unit Price
In Stock
STTH1003SB-TR
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ECOPACK®2
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 10µA @ 300V
Operating Temperature - Junction : 175°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
Packaging : Cut Tape (CT)
Alternate Packaging
Series : ECOPACK®2
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 10µA @ 300V
Operating Temperature - Junction : 175°C (Max)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : DPAK
0
2250 in stock

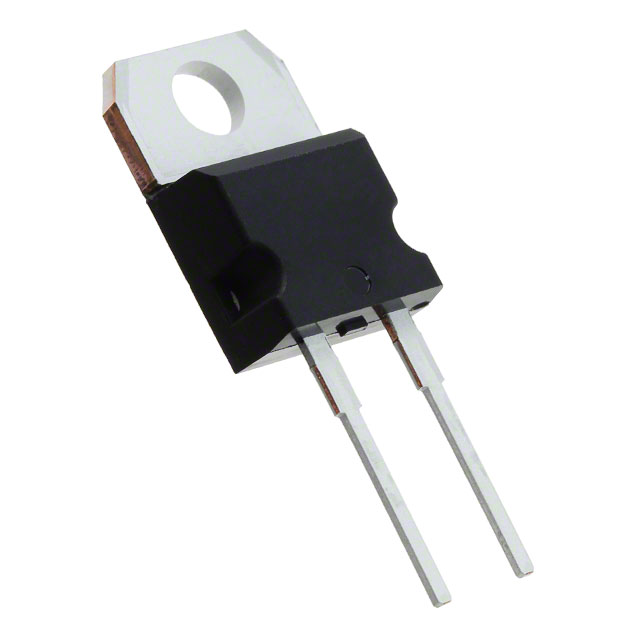

STTH1008DTI
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 2.5V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 55ns
Current - Reverse Leakage @ Vr : 20µA @ 800V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 2.5V @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 55ns
Current - Reverse Leakage @ Vr : 20µA @ 800V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-2
Supplier Device Package : TO-220AC
0
133 in stock

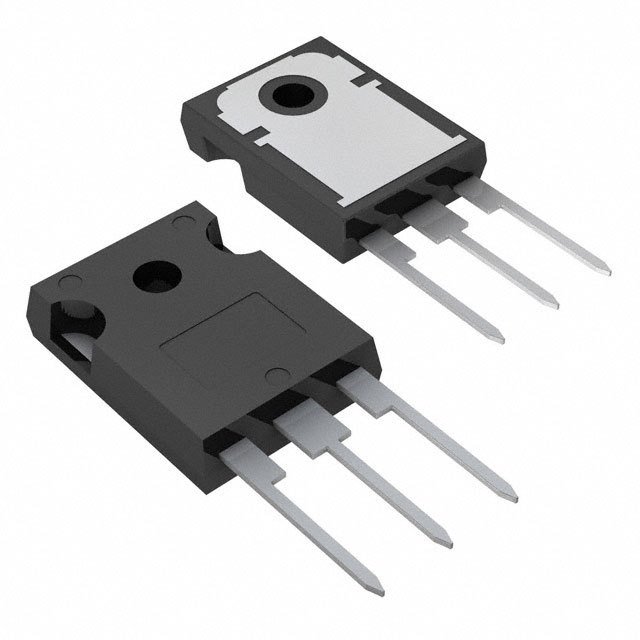

STTH100W04CW
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 50A
Voltage - Forward (Vf) (Max) @ If : 1.45V @ 50A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 25µA @ 400V
Operating Temperature - Junction : 175°C (Max)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 50A
Voltage - Forward (Vf) (Max) @ If : 1.45V @ 50A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 25µA @ 400V
Operating Temperature - Junction : 175°C (Max)
Mounting Type : Through Hole
Package / Case : TO-247-3
Supplier Device Package : TO-247
0
590 in stock
STTH10LCD06CFP
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 5A
Voltage - Forward (Vf) (Max) @ If : 2V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Operating Temperature - Junction : 175°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FPAB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 5A
Voltage - Forward (Vf) (Max) @ If : 2V @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Operating Temperature - Junction : 175°C (Max)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FPAB
0
2247 in stock
STTH12010TV1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 2V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 115ns
Current - Reverse Leakage @ Vr : 20µA @ 1000V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 2V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 115ns
Current - Reverse Leakage @ Vr : 20µA @ 1000V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
0
84 in stock
STTH12012TV1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 2.25V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 125ns
Current - Reverse Leakage @ Vr : 30µA @ 1200V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1200V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 2.25V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 125ns
Current - Reverse Leakage @ Vr : 30µA @ 1200V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
0
100 in stock
STTH120L06TV1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 1.55V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 105ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 1.55V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 105ns
Current - Reverse Leakage @ Vr : 50µA @ 600V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
0
286 in stock
STTH120R04TV1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 80ns
Current - Reverse Leakage @ Vr : 60µA @ 400V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 1.5V @ 60A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 80ns
Current - Reverse Leakage @ Vr : 60µA @ 400V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
0
100 in stock

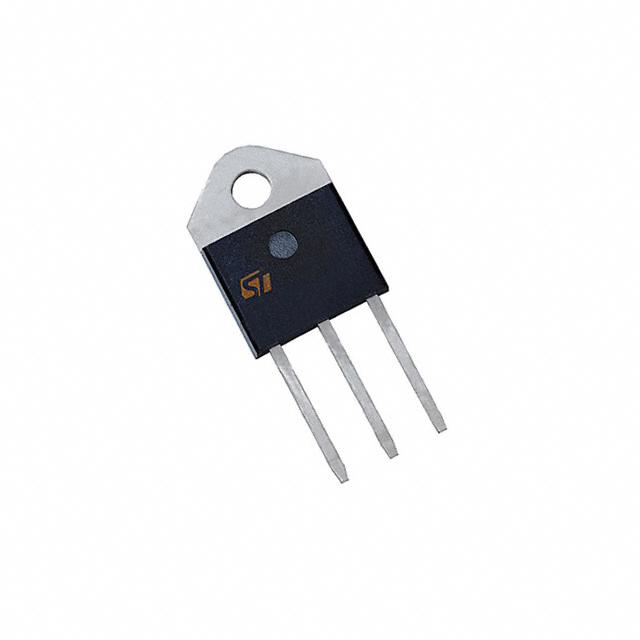

STTH1506TPI
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 3.6V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 20µA @ 600V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TOP-3 Insulated
Supplier Device Package : TOP-3I
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Series Connection
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 3.6V @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 35ns
Current - Reverse Leakage @ Vr : 20µA @ 600V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Through Hole
Package / Case : TOP-3 Insulated
Supplier Device Package : TOP-3I
0
100 in stock
STTH15AC06CFP
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 7.5A
Voltage - Forward (Vf) (Max) @ If : 1.9V @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FPAB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 7.5A
Voltage - Forward (Vf) (Max) @ If : 1.9V @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Operating Temperature - Junction : -65°C ~ 175°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FPAB
0
974 in stock
STTH15AC06CT
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 7.5A
Voltage - Forward (Vf) (Max) @ If : 1.9V @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) (per Diode) : 7.5A
Voltage - Forward (Vf) (Max) @ If : 1.9V @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 1µA @ 600V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
369 in stock
STTH16003TV1
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 80A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 80ns
Current - Reverse Leakage @ Vr : 200µA @ 300V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
Packaging : Tube
Series : -
Part Status : Active
Diode Configuration : 2 Independent
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 300V
Current - Average Rectified (Io) (per Diode) : 60A
Voltage - Forward (Vf) (Max) @ If : 1.2V @ 80A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 80ns
Current - Reverse Leakage @ Vr : 200µA @ 300V
Operating Temperature - Junction : 150°C (Max)
Mounting Type : Chassis Mount
Package / Case : ISOTOP
Supplier Device Package : ISOTOP®
0
21 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
