Welcome to Weijie Semiconductor
- Development Boards, Kits, Programmers
- Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Part Number
Manufacturer
Description
Unit Price
In Stock
STEVAL-ISA048V2
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Up
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 8V
Current - Output : 1A
Voltage - Input : 4 V ~ 6 V
Regulator Topology : Boost
Frequency - Switching : 1.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST8R00W
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Up
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 8V
Current - Output : 1A
Voltage - Input : 4 V ~ 6 V
Regulator Topology : Boost
Frequency - Switching : 1.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST8R00W
0
100 in stock

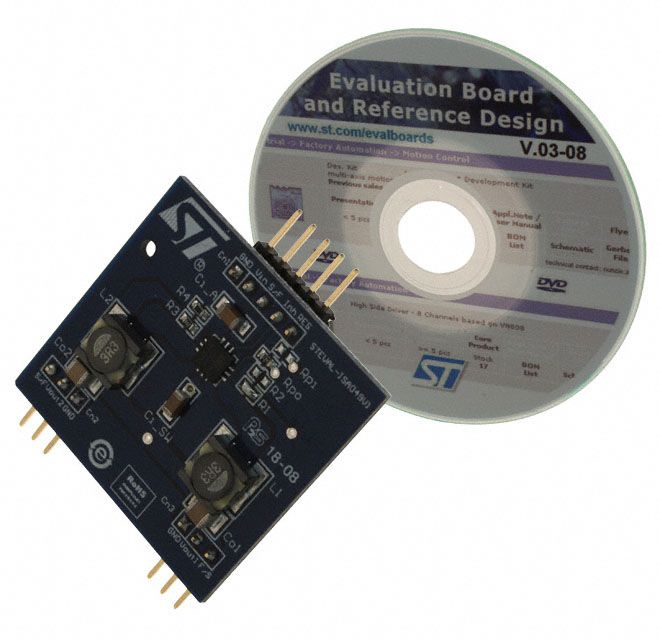

STEVAL-ISA049V1
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.2V, 3.3V
Current - Output : 500mA
Voltage - Input : 2.5 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 1.5MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST2S06A
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.2V, 3.3V
Current - Output : 500mA
Voltage - Input : 2.5 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 1.5MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST2S06A
0
2 in stock

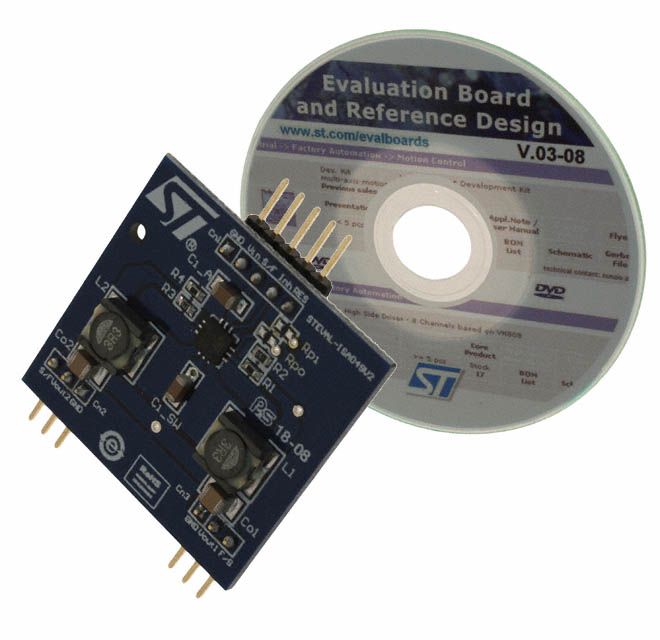

STEVAL-ISA049V2
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : -
Current - Output : 500mA
Voltage - Input : 2.5 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 1.5MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST2S06B
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : -
Current - Output : 500mA
Voltage - Input : 2.5 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 1.5MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST2S06B
0
4 in stock

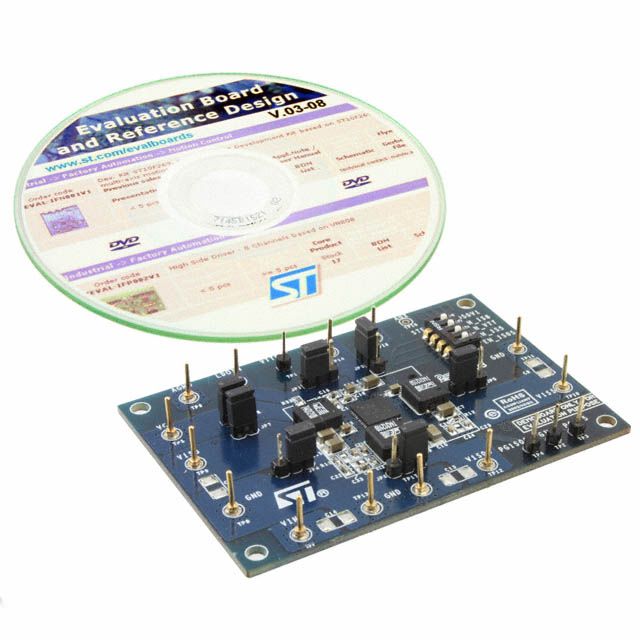

STEVAL-ISA050V1
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Active
Main Purpose : Special Purpose DC/DC, DDR Memory Supply
Outputs and Type : 5, Non-Isolated
Power - Output : 14.7W
Voltage - Output : 0.8V, 0.9V, 1.05V, 1.5V, 1.8V
Current - Output : 4A, 2.8A, 2.5A, 2A
Voltage - Input : 2.7 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 750kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6641
Series : -
Part Status : Active
Main Purpose : Special Purpose DC/DC, DDR Memory Supply
Outputs and Type : 5, Non-Isolated
Power - Output : 14.7W
Voltage - Output : 0.8V, 0.9V, 1.05V, 1.5V, 1.8V
Current - Output : 4A, 2.8A, 2.5A, 2A
Voltage - Input : 2.7 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 750kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6641
0
100 in stock

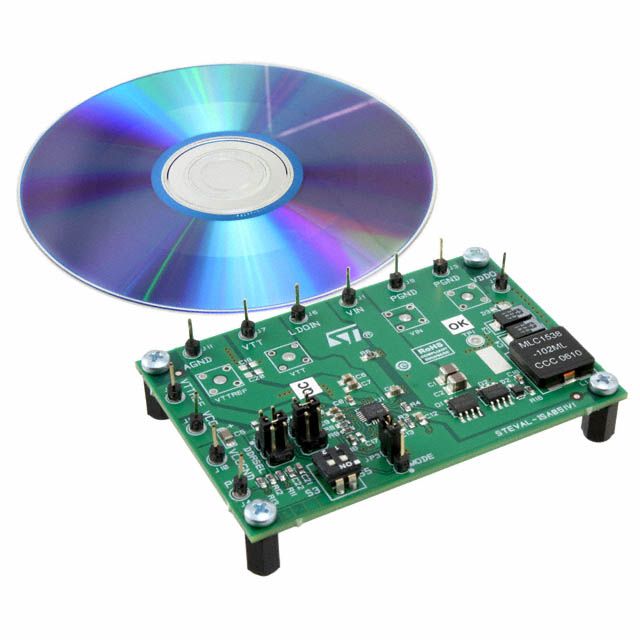

STEVAL-ISA051V1
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Obsolete
Main Purpose : Special Purpose DC/DC, DDR Memory Supply
Outputs and Type : 4, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 1.8V
Current - Output : -
Voltage - Input : 4.5 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6670
Series : -
Part Status : Obsolete
Main Purpose : Special Purpose DC/DC, DDR Memory Supply
Outputs and Type : 4, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 1.8V
Current - Output : -
Voltage - Input : 4.5 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6670
0
100 in stock

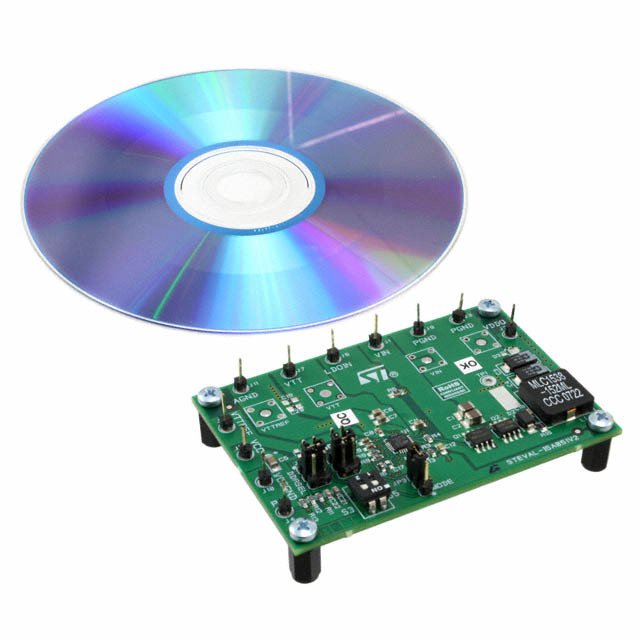

STEVAL-ISA051V2
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Obsolete
Main Purpose : Special Purpose DC/DC, DDR Memory Supply
Outputs and Type : 4, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 1.8V
Current - Output : -
Voltage - Input : 4.5 V ~ 36 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6670A
Series : -
Part Status : Obsolete
Main Purpose : Special Purpose DC/DC, DDR Memory Supply
Outputs and Type : 4, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 1.8V
Current - Output : -
Voltage - Input : 4.5 V ~ 36 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6670A
0
100 in stock

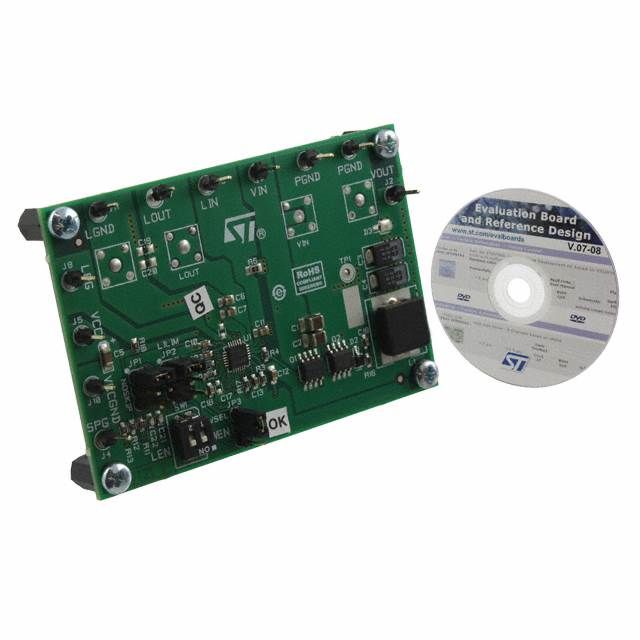

STEVAL-ISA052V1
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 0.6 ~ 3.3V
Current - Output : 10A, 2A
Voltage - Input : 4.5 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6675
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 0.6 ~ 3.3V
Current - Output : 10A, 2A
Voltage - Input : 4.5 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6675
0
3 in stock

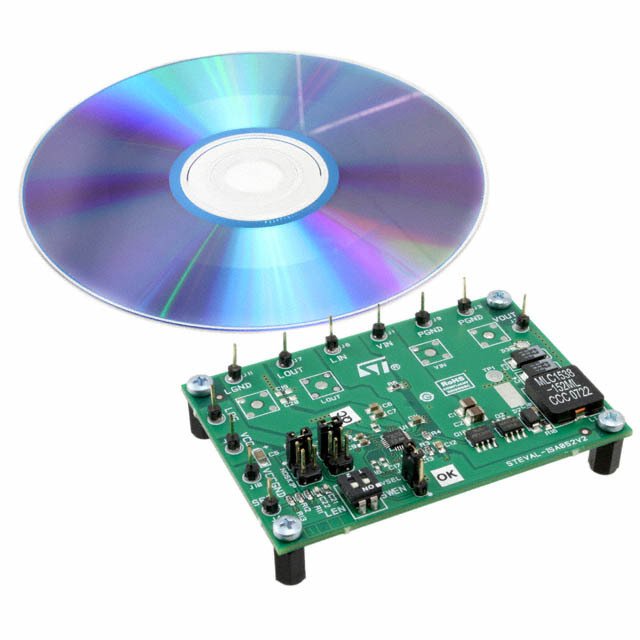

STEVAL-ISA052V2
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 0.6 ~ 3.3V
Current - Output : -
Voltage - Input : 4.5 V ~ 36 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6675AS
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 1.5V, 0.6 ~ 3.3V
Current - Output : -
Voltage - Input : 4.5 V ~ 36 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6675AS
0
100 in stock

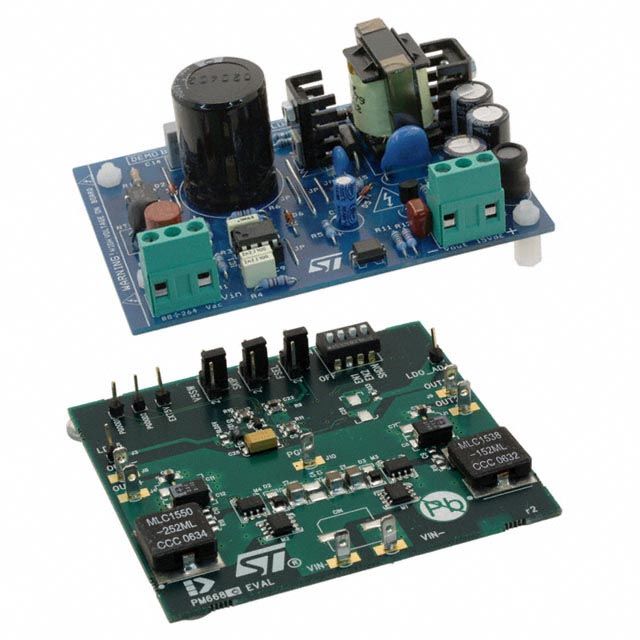

STEVAL-ISA053V1
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 3, Non-Isolated
Power - Output : -
Voltage - Output : 1.05V, 1.5V, 5V
Current - Output : 5A, 5A, 100mA
Voltage - Input : 6 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : 200kHz, 300kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6680
Series : -
Part Status : Obsolete
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 3, Non-Isolated
Power - Output : -
Voltage - Output : 1.05V, 1.5V, 5V
Current - Output : 5A, 5A, 100mA
Voltage - Input : 6 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : 200kHz, 300kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6680
0
100 in stock

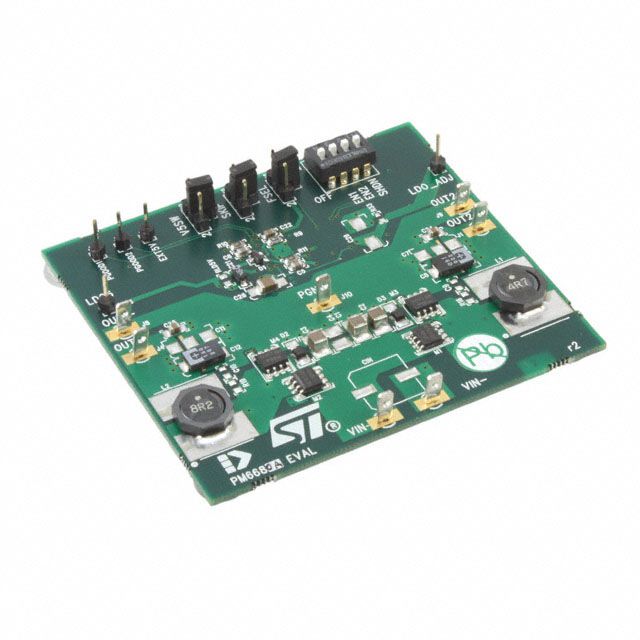

STEVAL-ISA053V2
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 3, Non-Isolated
Power - Output : -
Voltage - Output : 1.8V, 3.3V, 5V
Current - Output : 2.5A, 2.5A, 100mA
Voltage - Input : 6 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : 200kHz, 300kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6680A
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down with LDO
Outputs and Type : 3, Non-Isolated
Power - Output : -
Voltage - Output : 1.8V, 3.3V, 5V
Current - Output : 2.5A, 2.5A, 100mA
Voltage - Input : 6 V ~ 28 V
Regulator Topology : Buck
Frequency - Switching : 200kHz, 300kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PM6680A
0
100 in stock

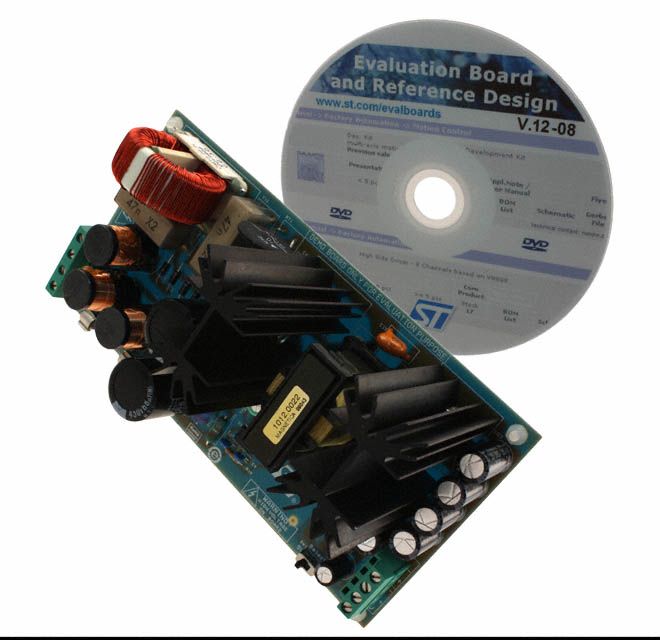

STEVAL-ISA054V1
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Obsolete
Main Purpose : AC/DC, Primary Side
Outputs and Type : 2, Isolated
Power - Output : 100W
Voltage - Output : 24V, 3.3V or 5V
Current - Output : 4A, 1A
Voltage - Input : 180 ~ 265 VAC, 320 ~ 480 VAC
Regulator Topology : Flyback
Frequency - Switching : 250kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : L5970, STW9N150, UC3844B
Series : -
Part Status : Obsolete
Main Purpose : AC/DC, Primary Side
Outputs and Type : 2, Isolated
Power - Output : 100W
Voltage - Output : 24V, 3.3V or 5V
Current - Output : 4A, 1A
Voltage - Input : 180 ~ 265 VAC, 320 ~ 480 VAC
Regulator Topology : Flyback
Frequency - Switching : 250kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : L5970, STW9N150, UC3844B
0
100 in stock
STEVAL-ISA055V1
STMicroelectronics
Manufacturer : STMicroelectronics
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 1.2V
Current - Output : 700mA
Voltage - Input : 2.5 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 1.7MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST1S12
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 1.2V
Current - Output : 700mA
Voltage - Input : 2.5 V ~ 5.5 V
Regulator Topology : Buck
Frequency - Switching : 1.7MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : ST1S12
0
100 in stock
