Part Number

Manufacturer

Description

Unit Price

In Stock

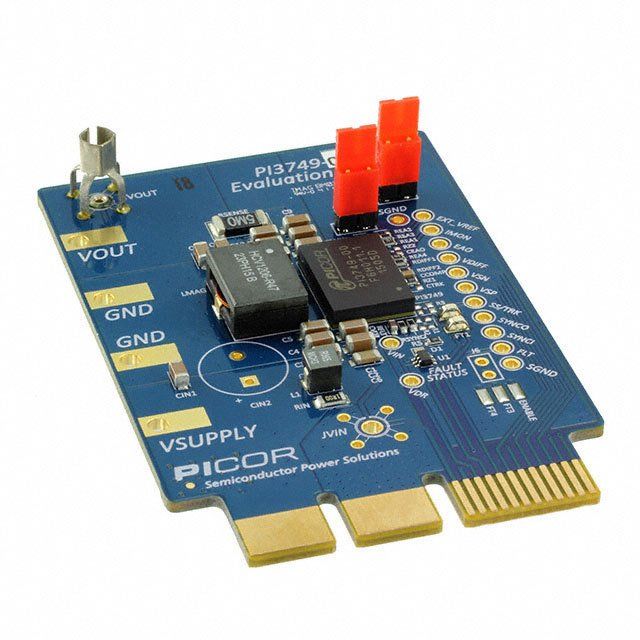

Picture of PI3749-00-EVAL1

PI3749-00-EVAL1

Vicor

Manufacturer : Vicor Corporation
Series : Cool-Power®
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : 180W
Voltage - Output : 12 V ~ 34 V
Current - Output : 7.5A
Voltage - Input : 16 V ~ 34 V
Regulator Topology : Buck-Boost
Frequency - Switching : 800kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PI3749-00

0

58 in stock

Picture of PMLKBOOSTEVM

PMLKBOOSTEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 24V, 24V
Current - Output : 2A, 1.9A
Voltage - Input : 5 V ~ 12 V, 9 V ~ 20 V
Regulator Topology : Boost
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5122, TPS55340

0

1 in stock

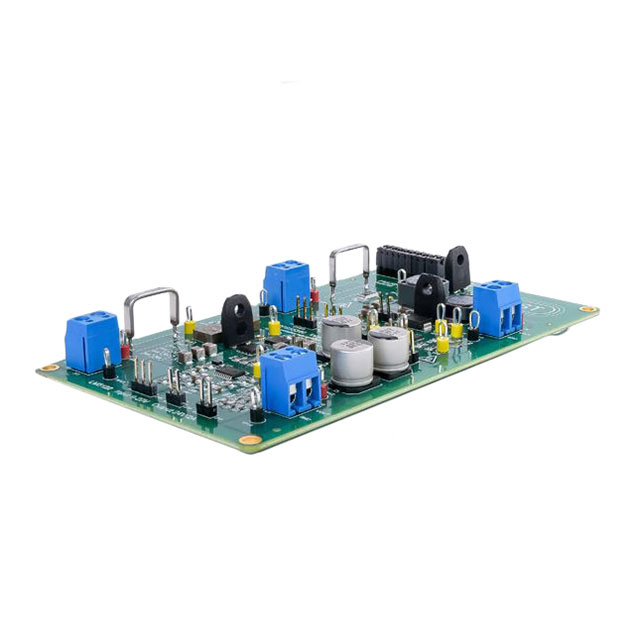

Picture of PMLKBOOSTEVMB

PMLKBOOSTEVMB

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 24V, 24V
Current - Output : 2A, 1.9A
Voltage - Input : 5 V ~ 12 V, 9 V ~ 20 V
Regulator Topology : Boost
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5122, TPS55340

0

7 in stock

Picture of PMLKBUCKBOOSTEVM

PMLKBUCKBOOSTEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : -
Current - Output : -
Voltage - Input : -
Regulator Topology : Buck-Boost
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5118

0

8 in stock

Picture of PMLKBUCKBOOSTEVMB

PMLKBUCKBOOSTEVMB

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : -
Current - Output : -
Voltage - Input : -
Regulator Topology : Buck-Boost
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5118

0

4 in stock

Picture of PMLKBUCKEVM

PMLKBUCKEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 2.5V, 3.3V
Current - Output : 2A, 1.5A
Voltage - Input : 5 V ~ 10 V, 6 V ~ 36 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM3475, TPS54160

0

11 in stock

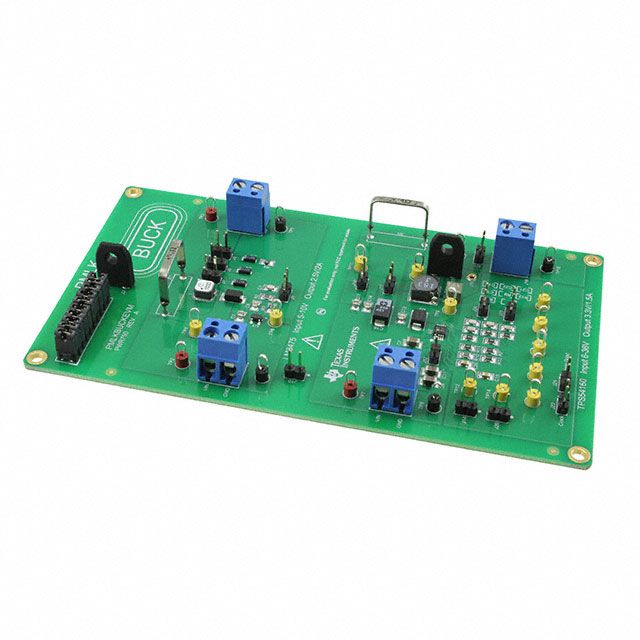

Picture of PMLKBUCKEVMB

PMLKBUCKEVMB

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 2.5V, 3.3V
Current - Output : 2A, 1.5A
Voltage - Input : 5 V ~ 10 V, 6 V ~ 36 V
Regulator Topology : Buck
Frequency - Switching : -
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM3475, TPS54160

0

6 in stock

Picture of POEPHYTEREV-E

POEPHYTEREV-E

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : PHYTER®
Part Status : Obsolete
Main Purpose : Special Purpose DC/DC, Power Over Ethernet
Outputs and Type : 1, Isolated
Power - Output : 24W
Voltage - Output : 3.3V
Current - Output : 7.3A
Voltage - Input : 39 V ~ 57 V
Regulator Topology : Flyback
Frequency - Switching : 250kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : DP83848, LM5072

0

100 in stock

Picture of POEPHYTEREV-I

POEPHYTEREV-I

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : PHYTER®
Part Status : Discontinued at
Main Purpose : Special Purpose DC/DC, Power Over Ethernet
Outputs and Type : 1, Isolated
Power - Output : 24W
Voltage - Output : 3.3V
Current - Output : 7.3A
Voltage - Input : 39 V ~ 57 V
Regulator Topology : Flyback
Frequency - Switching : 250kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : DP83848, LM5072

0

100 in stock

Picture of PRD48AF480T400A00

PRD48AF480T400A00

Vicor

Manufacturer : Vicor Corporation
Series : VI Chip® PRM®
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : 400W
Voltage - Output : 48V
Current - Output : 8.33A
Voltage - Input : 36 V ~ 75 V
Regulator Topology : Buck-Boost
Frequency - Switching : 1.03MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PRM48Ay480x400A00

0

100 in stock

Picture of PRD48AH480T200A00

PRD48AH480T200A00

Vicor

Manufacturer : Vicor Corporation
Series : VI Chip® PRM®
Part Status : Active
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : 200W
Voltage - Output : 48V
Current - Output : 4.17A
Voltage - Input : 36 V ~ 75 V
Regulator Topology : Buck-Boost
Frequency - Switching : 1.03MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PRM48AH480x200A00

0

100 in stock

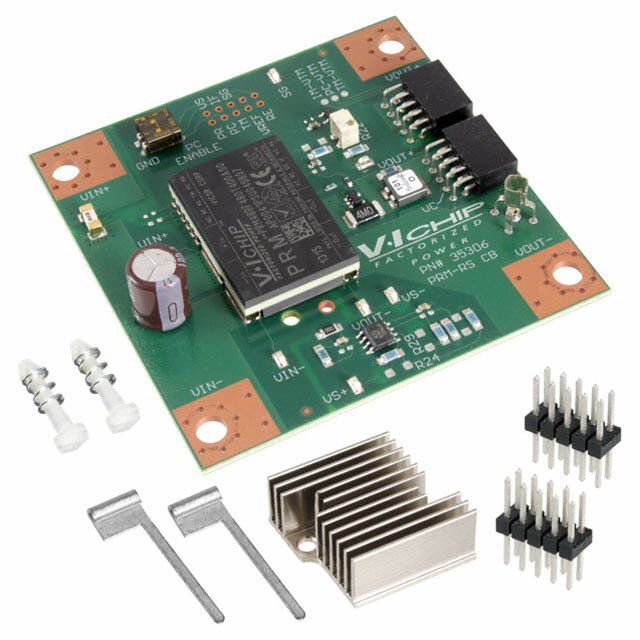

Picture of PRD48BF480T400A00

PRD48BF480T400A00

Vicor

Manufacturer : Vicor Corporation
Series : VI Chip® PRM®
Part Status : Obsolete
Main Purpose : DC/DC, Step Up or Down
Outputs and Type : 1, Non-Isolated
Power - Output : 400W
Voltage - Output : 5 V ~ 55 V
Current - Output : 8.33A
Voltage - Input : 38 V ~ 55 V
Regulator Topology : Buck-Boost
Frequency - Switching : 1MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : PRM48BF480T400A

0

100 in stock
