LM5121EVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 12V
Current - Output : 2A
Voltage - Input : 3 V ~ 12 V
Regulator Topology : Boost
Frequency - Switching : 250kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5121

3 in stock

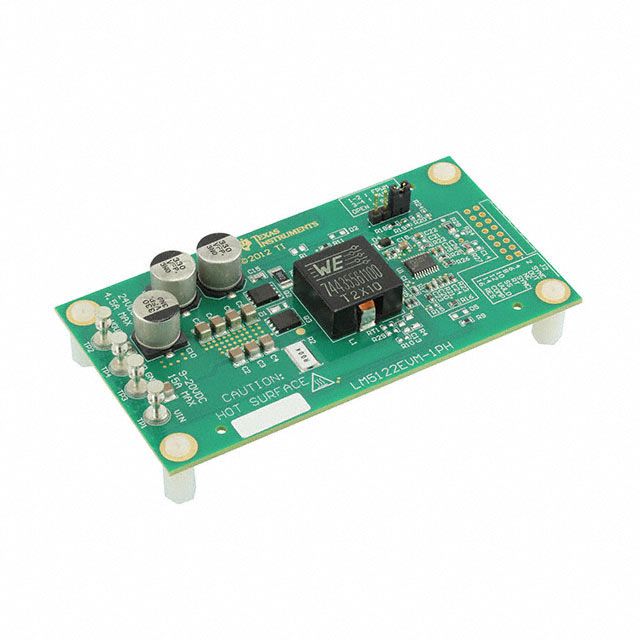

LM5122EVM-1PH

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 24V
Current - Output : 4.5A
Voltage - Input : 9 V ~ 20 V
Regulator Topology : Boost
Frequency - Switching : 250kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5122

10 in stock

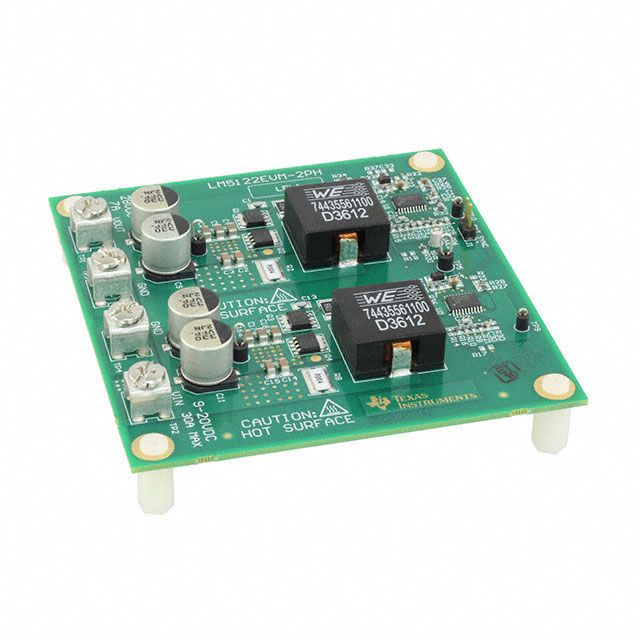

LM5122EVM-2PH

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 28V
Current - Output : 7A
Voltage - Input : 9 V ~ 20 V
Regulator Topology : Boost
Frequency - Switching : 250kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5122

2 in stock

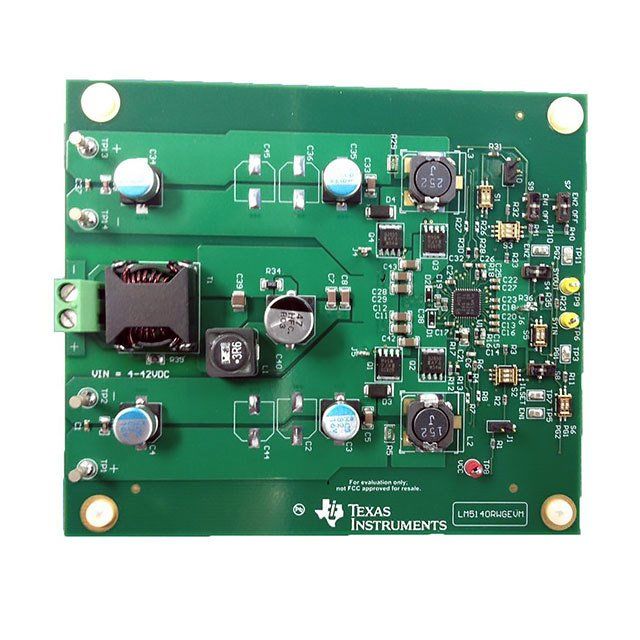

LM5140RWGEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V, 5V
Current - Output : 6A, 5A
Voltage - Input : 3.8 V ~ 42 V
Regulator Topology : Buck
Frequency - Switching : 2.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5140-Q1

2 in stock

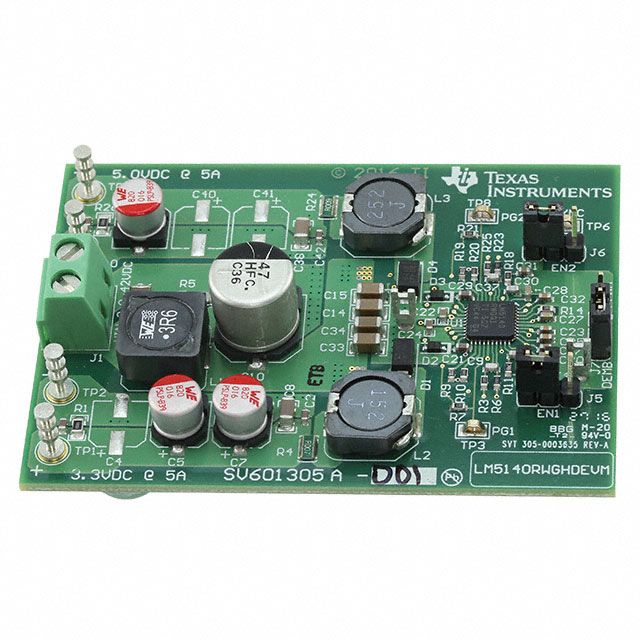

LM5140RWGEVMHD

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 2, Non-Isolated
Power - Output : -
Voltage - Output : 3.3V, 5V
Current - Output : 5A, 5A
Voltage - Input : 3.8 V ~ 42 V
Regulator Topology : Buck
Frequency - Switching : 2.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5140-Q1

7 in stock

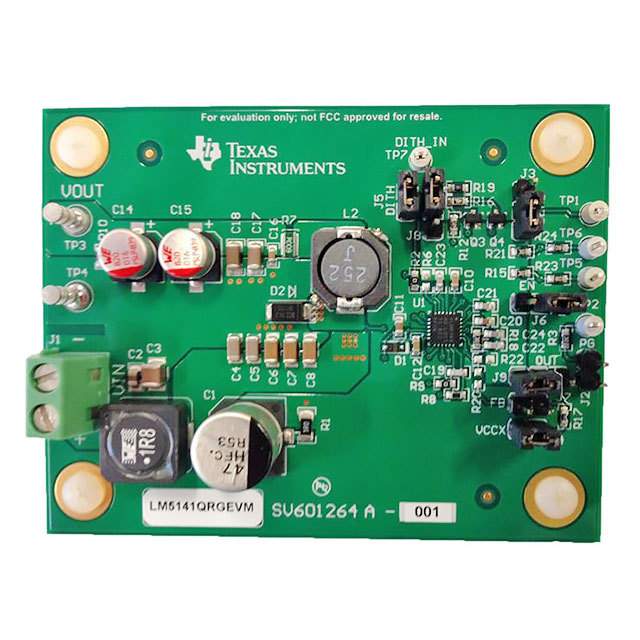

LM5141QRGEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 5V
Current - Output : 5A
Voltage - Input : 5.5 V ~ 42 V
Regulator Topology : Buck
Frequency - Switching : 2.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5141-Q1

11 in stock

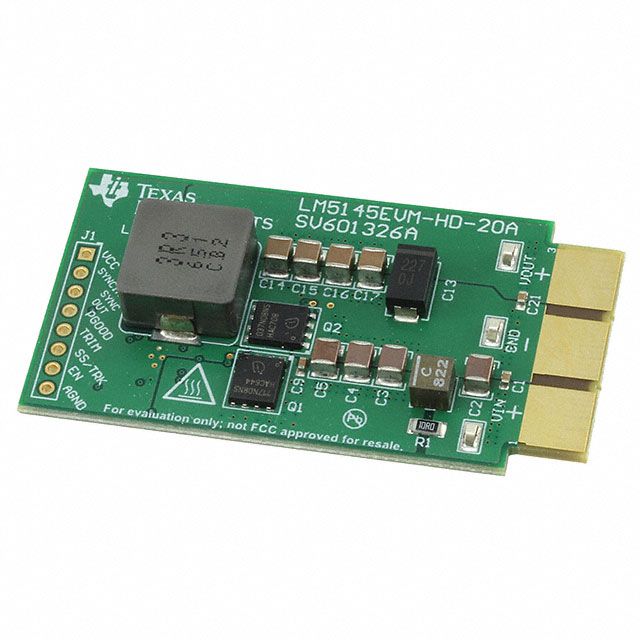

LM5145EVM-HD-20A

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 5V
Current - Output : 20A
Voltage - Input : 24 V ~ 72 V
Regulator Topology : Buck
Frequency - Switching : 220kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5145

14 in stock

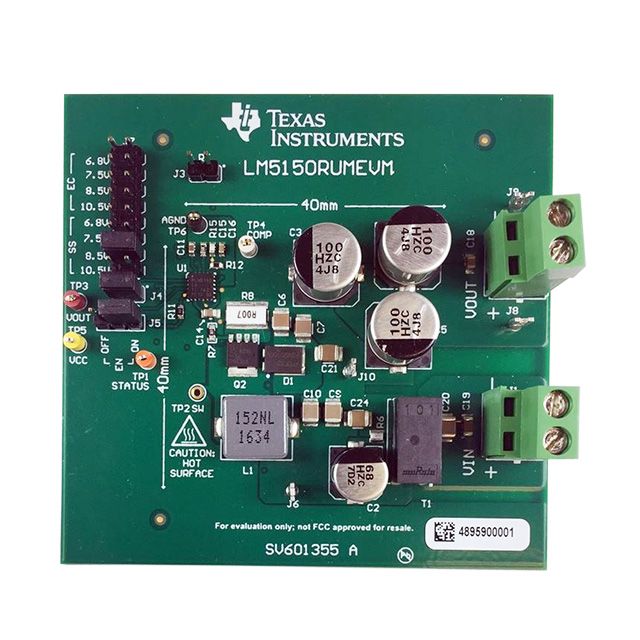

LM5150RUMEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 8.5V
Current - Output : 2.94A
Voltage - Input : 2.5 V ~ 40 V
Regulator Topology : Boost
Frequency - Switching : 440kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5150-Q1

5 in stock

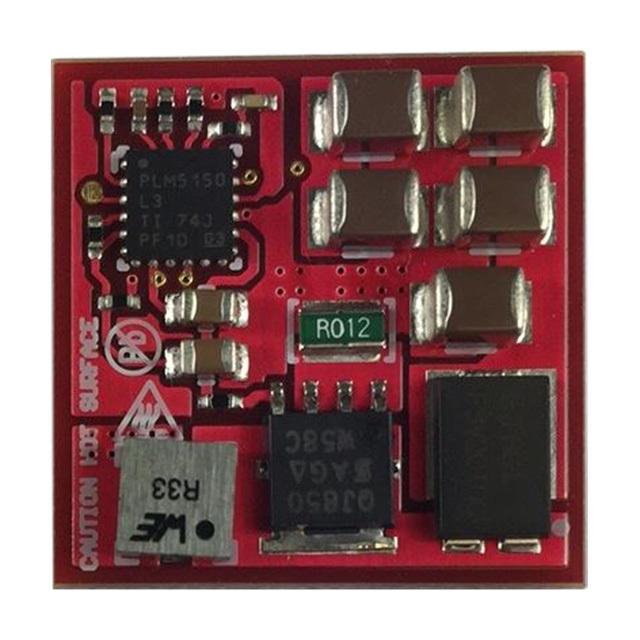

LM5150RUMHDEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Up
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 6.8V
Current - Output : 1.1A
Voltage - Input : 3.2 V ~ 40 V
Regulator Topology : Boost
Frequency - Switching : 2.2MHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5150-Q1

5 in stock

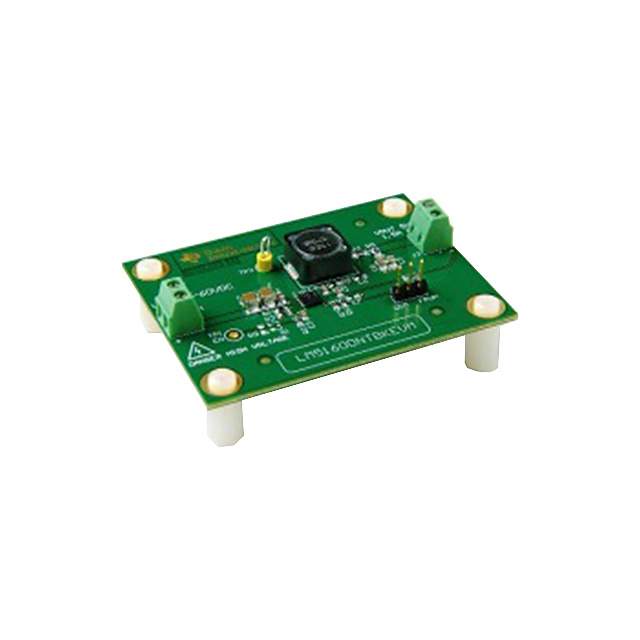

LM5160DNTBKEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 5V
Current - Output : 1.5A
Voltage - Input : 10 V ~ 60 V
Regulator Topology : Buck
Frequency - Switching : 300kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5160

4 in stock

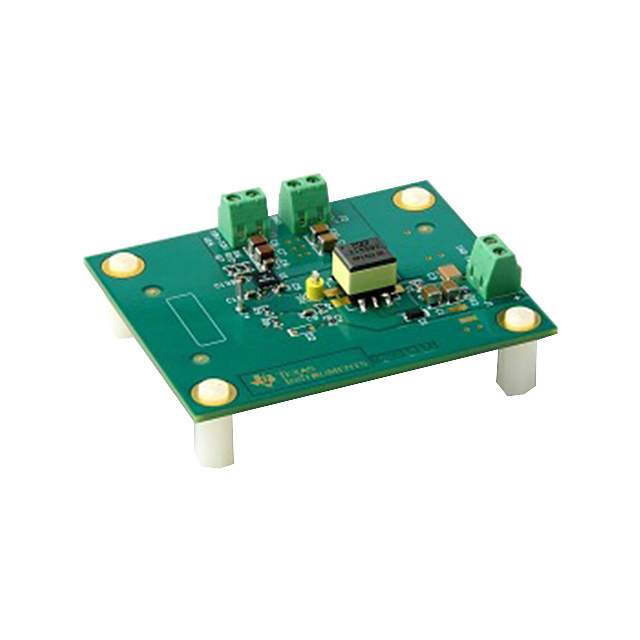

LM5160DNTFBKEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Isolated; 1, Non-Isolated
Power - Output : -
Voltage - Output : 8V, 12V
Current - Output : -
Voltage - Input : 18 V ~ 32 V
Regulator Topology : Buck
Frequency - Switching : 300kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5160

9 in stock

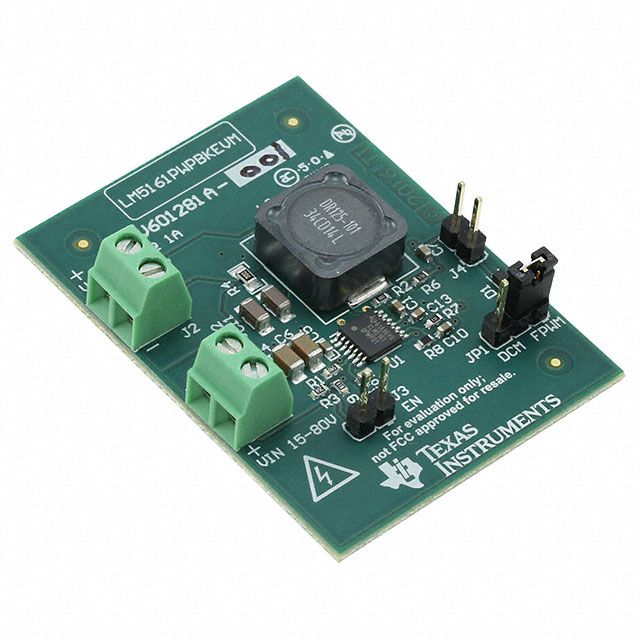

LM5161PWPBKEVM

Luminary Micro / Texas Instruments

Manufacturer : Texas Instruments
Series : -
Part Status : Active
Main Purpose : DC/DC, Step Down
Outputs and Type : 1, Non-Isolated
Power - Output : -
Voltage - Output : 12V
Current - Output : 1A
Voltage - Input : 15 V ~ 80 V
Regulator Topology : Buck
Frequency - Switching : 300kHz
Board Type : Fully Populated
Supplied Contents : Board(s)
Utilized IC / Part : LM5161-Q1

8 in stock
