Part Number
Manufacturer
Description
Unit Price
In Stock
HMC509LP5TR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Frequency Range : 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz
Frequency - Center : 4.15GHz, 8.3GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 10
Icc Max : 270mA
Pushing (MHz/V) : 10
Power (dBm) : 7.5±2.5, 12.5±2.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
Frequency Range : 3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz
Frequency - Center : 4.15GHz, 8.3GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 10
Icc Max : 270mA
Pushing (MHz/V) : 10
Power (dBm) : 7.5±2.5, 12.5±2.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
100 in stock
HMC510LP5E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz
Frequency - Center : 4.5GHz, 9GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 360mA
Pushing (MHz/V) : 20
Power (dBm) : -6±2, 11±3, 12.5±2.5
Phase Noise Typ (dBc/Hz) : -116
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz
Frequency - Center : 4.5GHz, 9GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 360mA
Pushing (MHz/V) : 20
Power (dBm) : -6±2, 11±3, 12.5±2.5
Phase Noise Typ (dBc/Hz) : -116
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
61 in stock
HMC510LP5ETR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz
Frequency - Center : 4.5GHz, 9GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 360mA
Pushing (MHz/V) : 20
Power (dBm) : -6±2, 11±3, 12.5±2.5
Phase Noise Typ (dBc/Hz) : -116
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz
Frequency - Center : 4.5GHz, 9GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 360mA
Pushing (MHz/V) : 20
Power (dBm) : -6±2, 11±3, 12.5±2.5
Phase Noise Typ (dBc/Hz) : -116
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
599 in stock
HMC511LP5E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center : 4.8GHz, 9.6GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 300mA
Pushing (MHz/V) : 15
Power (dBm) : 8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center : 4.8GHz, 9.6GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 300mA
Pushing (MHz/V) : 15
Power (dBm) : 8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
98 in stock
HMC511LP5ETR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center : 4.8GHz, 9.6GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 300mA
Pushing (MHz/V) : 15
Power (dBm) : 8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center : 4.8GHz, 9.6GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 300mA
Pushing (MHz/V) : 15
Power (dBm) : 8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
572 in stock

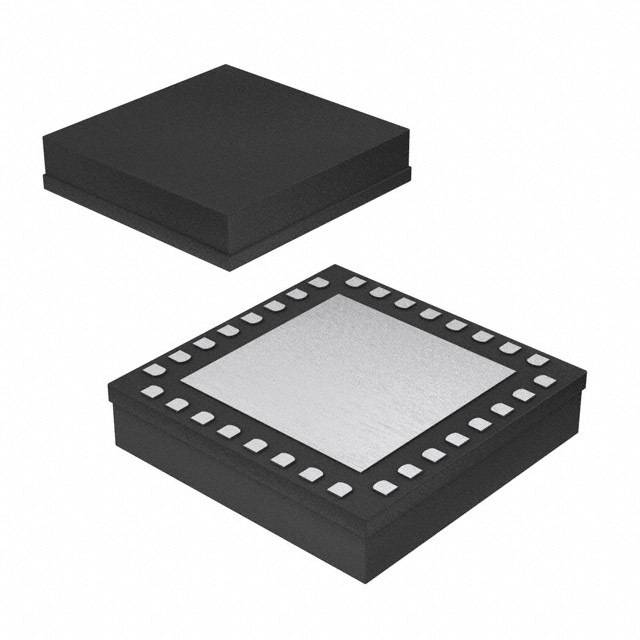

HMC511LP5TR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center : 4.8GHz, 9.6GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 300mA
Pushing (MHz/V) : 15
Power (dBm) : 8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center : 4.8GHz, 9.6GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 300mA
Pushing (MHz/V) : 15
Power (dBm) : 8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz) : -115
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
100 in stock
HMC5128LP5E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Bulk
Series : HMC512
Part Status : Obsolete
Frequency Range : 2.4 ~ 2.7GHz, 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz
Frequency - Center : 2.55GHz, 5.1GHz, 10.2GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 25
Icc Max : 370mA
Pushing (MHz/V) : 30 (Typ)
Power (dBm) : -5.5 ±2.5, 10 ±4, 9 ±6
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Bulk
Series : HMC512
Part Status : Obsolete
Frequency Range : 2.4 ~ 2.7GHz, 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz
Frequency - Center : 2.55GHz, 5.1GHz, 10.2GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 25
Icc Max : 370mA
Pushing (MHz/V) : 30 (Typ)
Power (dBm) : -5.5 ±2.5, 10 ±4, 9 ±6
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
100 in stock
HMC512LP5E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz
Frequency - Center : 5.1GHz, 10.2GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 25
Icc Max : 370mA
Pushing (MHz/V) : 30
Power (dBm) : -5.5±2.5, 10±4, 9±6
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz
Frequency - Center : 5.1GHz, 10.2GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 25
Icc Max : 370mA
Pushing (MHz/V) : 30
Power (dBm) : -5.5±2.5, 10±4, 9±6
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
17 in stock
HMC512LP5ETR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz
Frequency - Center : 5.1GHz, 10.2GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 25
Icc Max : 370mA
Pushing (MHz/V) : 30
Power (dBm) : -5.5±2.5, 10±4, 9±6
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 4.8 ~ 5.4GHz, 9.6 ~ 10.8GHz
Frequency - Center : 5.1GHz, 10.2GHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 25
Icc Max : 370mA
Pushing (MHz/V) : 30
Power (dBm) : -5.5±2.5, 10±4, 9±6
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
460 in stock
HMC5132LP5E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Bulk
Series : HMC513
Part Status : Obsolete
Frequency Range : 5.2 ~ 5.73GHz, 10.43 ~ 22.46GHz
Frequency - Center : 39.105GHz, 10.945GHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 290mA
Pushing (MHz/V) : 25 (Typ)
Power (dBm) : -7 ±3, 8 ±3, 7.5 ±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Bulk
Series : HMC513
Part Status : Obsolete
Frequency Range : 5.2 ~ 5.73GHz, 10.43 ~ 22.46GHz
Frequency - Center : 39.105GHz, 10.945GHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 290mA
Pushing (MHz/V) : 25 (Typ)
Power (dBm) : -7 ±3, 8 ±3, 7.5 ±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
100 in stock
HMC5132LP5ETR
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Tape & Reel (TR)
Series : HMC513
Part Status : Obsolete
Frequency Range : 5.2 ~ 5.73GHz, 10.43 ~ 22.46GHz
Frequency - Center : 39.105GHz, 10.945GHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 290mA
Pushing (MHz/V) : 25 (Typ)
Power (dBm) : -7 ±3, 8 ±3, 7.5 ±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Tape & Reel (TR)
Series : HMC513
Part Status : Obsolete
Frequency Range : 5.2 ~ 5.73GHz, 10.43 ~ 22.46GHz
Frequency - Center : 39.105GHz, 10.945GHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 290mA
Pushing (MHz/V) : 25 (Typ)
Power (dBm) : -7 ±3, 8 ±3, 7.5 ±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
100 in stock
HMC513LP5E
ADI (Analog Devices, Inc.)
Manufacturer : Analog Devices Inc.
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz
Frequency - Center : 5.4725GHz, 10.945GHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 290mA
Pushing (MHz/V) : 25
Power (dBm) : -7±3, 8±3, 7.5±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
Packaging : Strip
Alternate Packaging
Series : -
Part Status : Active
Frequency Range : 5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz
Frequency - Center : 5.4725GHz, 10.945GHz
Voltage - Supply : 3V
Tuning Voltage (VDC) : 2V ~ 13V
2nd Harmonic, Typ (dBc) : 15
Icc Max : 290mA
Pushing (MHz/V) : 25
Power (dBm) : -7±3, 8±3, 7.5±2.5
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 32-VFQFN Exposed Pad, CSP
Size / Dimension : 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height : 0.039" (1.00mm)
0
39 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
