Part Number
Manufacturer
Description
Unit Price
In Stock
CVCO55CC-2745-2860
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2745 ~ 2860MHz
Frequency - Center : 2802.5MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 2.5
Power (dBm) : 4 ±3
Phase Noise Typ (dBc/Hz) : -106
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2745 ~ 2860MHz
Frequency - Center : 2802.5MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 2.5
Power (dBm) : 4 ±3
Phase Noise Typ (dBc/Hz) : -106
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
11 in stock
CVCO55CC-2748-2956
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2748 ~ 2956MHz
Frequency - Center : 2852MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 1.5
Power (dBm) : 7 ±2
Phase Noise Typ (dBc/Hz) : -103
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2748 ~ 2956MHz
Frequency - Center : 2852MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 1.5
Power (dBm) : 7 ±2
Phase Noise Typ (dBc/Hz) : -103
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
13 in stock
CVCO55CC-2756-2756
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : -
Frequency - Center : 2756MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 40mA
Pushing (MHz/V) : 0.5
Power (dBm) : 6 ±2
Phase Noise Typ (dBc/Hz) : -116
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : -
Frequency - Center : 2756MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 40mA
Pushing (MHz/V) : 0.5
Power (dBm) : 6 ±2
Phase Noise Typ (dBc/Hz) : -116
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock
CVCO55CC-2767-2825
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2767 ~ 2825MHz
Frequency - Center : 2796MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.5V ~ 11.5V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 40mA
Pushing (MHz/V) : 2
Power (dBm) : 5 ±2
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2767 ~ 2825MHz
Frequency - Center : 2796MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.5V ~ 11.5V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 40mA
Pushing (MHz/V) : 2
Power (dBm) : 5 ±2
Phase Noise Typ (dBc/Hz) : -110
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock
CVCO55CC-2770-2920
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2770 ~ 2920MHz
Frequency - Center : 2845MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 2.5
Power (dBm) : 4 ±3
Phase Noise Typ (dBc/Hz) : -106
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2770 ~ 2920MHz
Frequency - Center : 2845MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 2.5
Power (dBm) : 4 ±3
Phase Noise Typ (dBc/Hz) : -106
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
4 in stock
CVCO55CC-2778-2945
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2778 ~ 2945MHz
Frequency - Center : 2861.5MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.1V ~ 16V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 40mA
Pushing (MHz/V) : 2
Power (dBm) : 6 ±2
Phase Noise Typ (dBc/Hz) : -107
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2778 ~ 2945MHz
Frequency - Center : 2861.5MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.1V ~ 16V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 40mA
Pushing (MHz/V) : 2
Power (dBm) : 6 ±2
Phase Noise Typ (dBc/Hz) : -107
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock
CVCO55CC-2809-2921
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2809 ~ 2921MHz
Frequency - Center : 2865MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 25mA (Typ)
Pushing (MHz/V) : 3
Power (dBm) : 3 ±3
Phase Noise Typ (dBc/Hz) : -108
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2809 ~ 2921MHz
Frequency - Center : 2865MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 25mA (Typ)
Pushing (MHz/V) : 3
Power (dBm) : 3 ±3
Phase Noise Typ (dBc/Hz) : -108
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
5 in stock
CVCO55CC-2818-2835
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2818 ~ 2835MHz
Frequency - Center : 2826.5MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 40mA
Pushing (MHz/V) : 2
Power (dBm) : 5 ±2
Phase Noise Typ (dBc/Hz) : -113
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2818 ~ 2835MHz
Frequency - Center : 2826.5MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.5V ~ 4.5V
2nd Harmonic, Typ (dBc) : -20
Icc Max : 40mA
Pushing (MHz/V) : 2
Power (dBm) : 5 ±2
Phase Noise Typ (dBc/Hz) : -113
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock

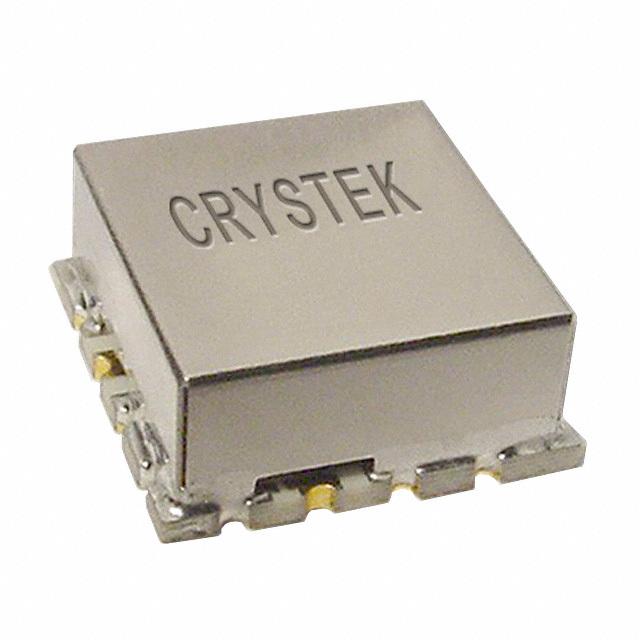

CVCO55CC-2837-2967
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2837 ~ 2967MHz
Frequency - Center : 2902MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -25
Icc Max : 35mA
Pushing (MHz/V) : 2
Power (dBm) : 3 ±2
Phase Noise Typ (dBc/Hz) : -105
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2837 ~ 2967MHz
Frequency - Center : 2902MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -25
Icc Max : 35mA
Pushing (MHz/V) : 2
Power (dBm) : 3 ±2
Phase Noise Typ (dBc/Hz) : -105
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock
CVCO55CC-2850-2950
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2850 ~ 2950MHz
Frequency - Center : 2900MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 25mA (Typ)
Pushing (MHz/V) : 1 (Typ)
Power (dBm) : 5 ±2
Phase Noise Typ (dBc/Hz) : -105
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2850 ~ 2950MHz
Frequency - Center : 2900MHz
Voltage - Supply : 5V
Tuning Voltage (VDC) : 0.3V ~ 4.7V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 25mA (Typ)
Pushing (MHz/V) : 1 (Typ)
Power (dBm) : 5 ±2
Phase Noise Typ (dBc/Hz) : -105
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock
CVCO55CC-2850-3210
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2850 ~ 3210MHz
Frequency - Center : 3030MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.5V ~ 14V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 0.6
Power (dBm) : 5 ±3
Phase Noise Typ (dBc/Hz) : -103
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2850 ~ 3210MHz
Frequency - Center : 3030MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.5V ~ 14V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 35mA
Pushing (MHz/V) : 0.6
Power (dBm) : 5 ±3
Phase Noise Typ (dBc/Hz) : -103
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock
CVCO55CC-2895-3035
Crystek Corporation
Manufacturer : Crystek Corporation
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2895 ~ 3035MHz
Frequency - Center : 2965MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.5V ~ 15V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 40mA
Pushing (MHz/V) : 1
Power (dBm) : 4 ±2
Phase Noise Typ (dBc/Hz) : -108
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
Packaging : Strip
Series : CVCO55
Part Status : Active
Frequency Range : 2895 ~ 3035MHz
Frequency - Center : 2965MHz
Voltage - Supply : 8V
Tuning Voltage (VDC) : 0.5V ~ 15V
2nd Harmonic, Typ (dBc) : -15
Icc Max : 40mA
Pushing (MHz/V) : 1
Power (dBm) : 4 ±2
Phase Noise Typ (dBc/Hz) : -108
Operating Temperature : -40°C ~ 85°C
Package / Case : 16-QFN, Variant
Size / Dimension : 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height : 0.220" (5.59mm)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
