Welcome to Weijie Semiconductor
- Connectors, Interconnects
- Terminals - Turret Connectors
Part Number
Manufacturer
Description
Unit Price
In Stock

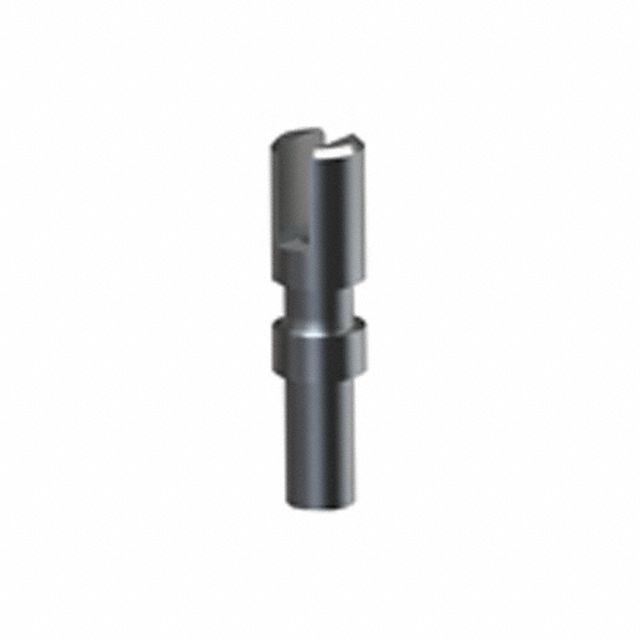

1515-2
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.089" (2.26mm)
Length - Overall : 0.245" (6.22mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : -
Staking Side OD : 0.046" (1.17mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.089" (2.26mm)
Length - Overall : 0.245" (6.22mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : -
Staking Side OD : 0.046" (1.17mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
5210 in stock

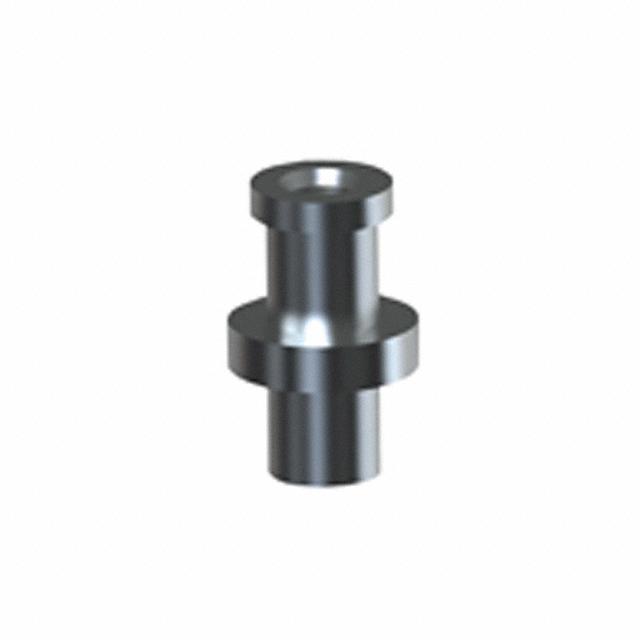

1519-2
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Hollow
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.296" (7.52mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.140" (3.56mm)
Staking Side OD : 0.110" (2.79mm)
Staking Side ID : -
Mounting Hole Diameter : 0.113" (2.87mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Hollow
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.296" (7.52mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : 0.140" (3.56mm)
Staking Side OD : 0.110" (2.79mm)
Staking Side ID : -
Mounting Hole Diameter : 0.113" (2.87mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
13013 in stock

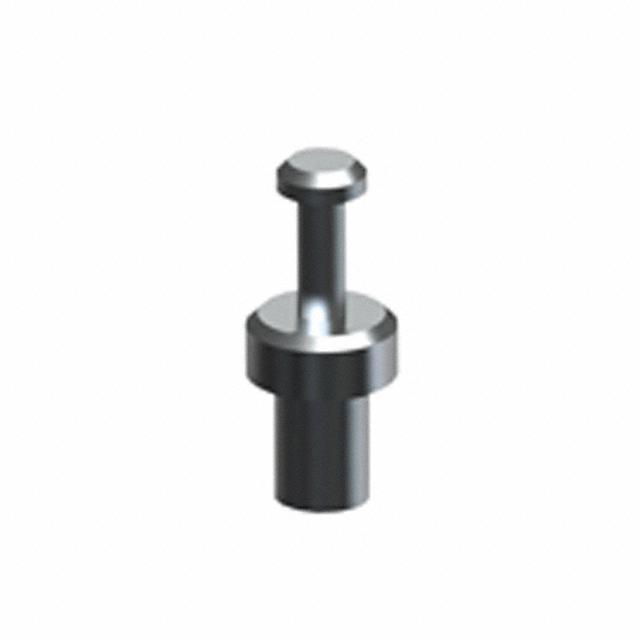

1520-2
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.296" (7.52mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.075" (1.91mm)
Staking Side OD : 0.078" (1.98mm)
Staking Side ID : -
Mounting Hole Diameter : 0.082" (2.08mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.296" (7.52mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.075" (1.91mm)
Staking Side OD : 0.078" (1.98mm)
Staking Side ID : -
Mounting Hole Diameter : 0.082" (2.08mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
29475 in stock
1520-3
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.141" (3.58mm)
Length - Overall : 0.328" (8.33mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.075" (1.91mm)
Staking Side OD : 0.078" (1.98mm)
Staking Side ID : -
Mounting Hole Diameter : 0.082" (2.08mm)
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.141" (3.58mm)
Length - Overall : 0.328" (8.33mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.075" (1.91mm)
Staking Side OD : 0.078" (1.98mm)
Staking Side ID : -
Mounting Hole Diameter : 0.082" (2.08mm)
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
4226 in stock
1520-4
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.172" (4.37mm)
Length - Overall : 0.359" (9.12mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.075" (1.91mm)
Staking Side OD : 0.078" (1.98mm)
Staking Side ID : -
Mounting Hole Diameter : 0.082" (2.08mm)
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.187" (4.75mm)
Length - Below Flange : 0.172" (4.37mm)
Length - Overall : 0.359" (9.12mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.075" (1.91mm)
Staking Side OD : 0.078" (1.98mm)
Staking Side ID : -
Mounting Hole Diameter : 0.082" (2.08mm)
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
8515 in stock

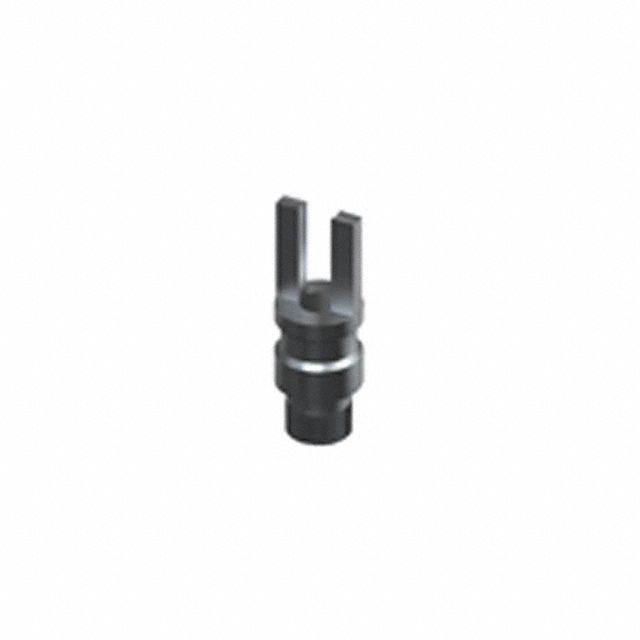

1525-2
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.343" (8.70mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.452" (11.48mm)
Mounting Type : Through Hole
Termination : Staking Flare, Knurled
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : -
Staking Side OD : 0.112" (2.84mm)
Staking Side ID : -
Mounting Hole Diameter : 0.116" (2.95mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.343" (8.70mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.452" (11.48mm)
Mounting Type : Through Hole
Termination : Staking Flare, Knurled
Flange Diameter : 0.156" (3.96mm)
Diameter - Turret Head : -
Staking Side OD : 0.112" (2.84mm)
Staking Side ID : -
Mounting Hole Diameter : 0.116" (2.95mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
3255 in stock

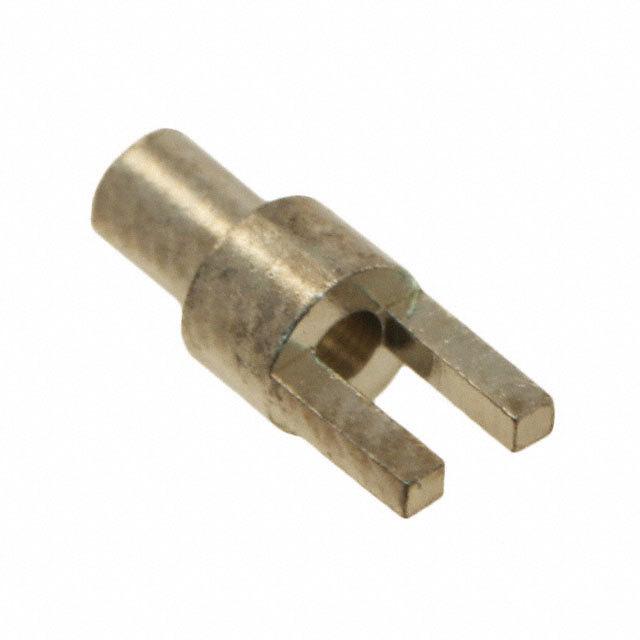

1526-2
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : -
Staking Side OD : 0.062" (1.57mm)
Staking Side ID : -
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.094" (2.39mm)
Diameter - Turret Head : -
Staking Side OD : 0.062" (1.57mm)
Staking Side ID : -
Mounting Hole Diameter : 0.064" (1.63mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
19320 in stock

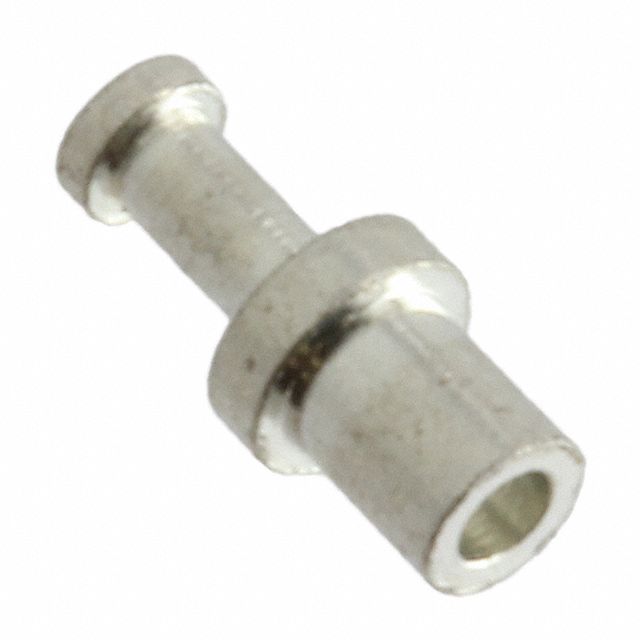

1528-1
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.054" (1.37mm)
Length - Overall : 0.147" (3.73mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.054" (1.37mm)
Length - Overall : 0.147" (3.73mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
11278 in stock

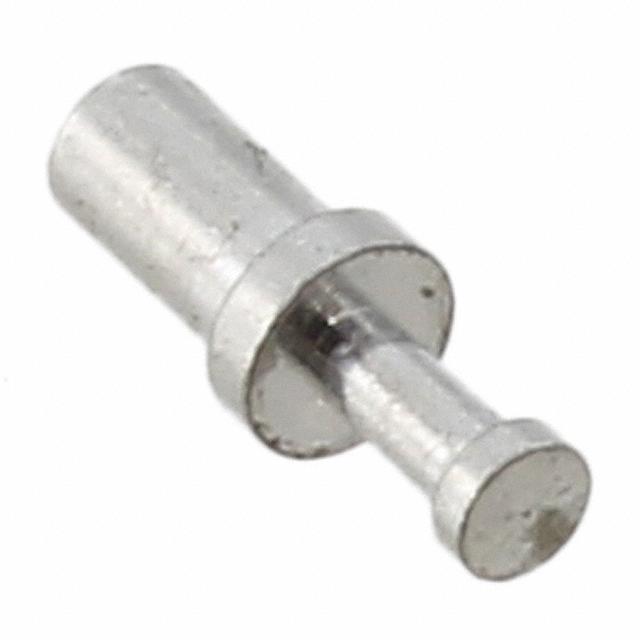

1528-2
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.177" (4.50mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.177" (4.50mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
65844 in stock

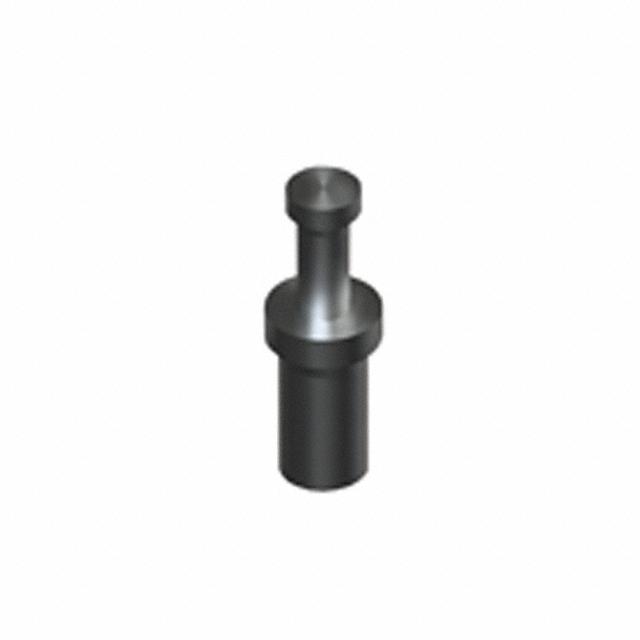

1528-3
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.115" (2.92mm)
Length - Overall : 0.208" (5.28mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Single
Length - Above Board : 0.093" (2.36mm)
Length - Below Flange : 0.115" (2.92mm)
Length - Overall : 0.208" (5.28mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.062" (1.57mm)
Diameter - Turret Head : 0.040" (1.02mm)
Staking Side OD : 0.047" (1.19mm)
Staking Side ID : -
Mounting Hole Diameter : 0.052" (1.32mm)
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
57 in stock
1533-1
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.054" (1.37mm)
Length - Overall : 0.210" (5.33mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.093" (2.36mm)
Diameter - Turret Head : -
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.054" (1.37mm)
Length - Overall : 0.210" (5.33mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.093" (2.36mm)
Diameter - Turret Head : -
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
6000 in stock

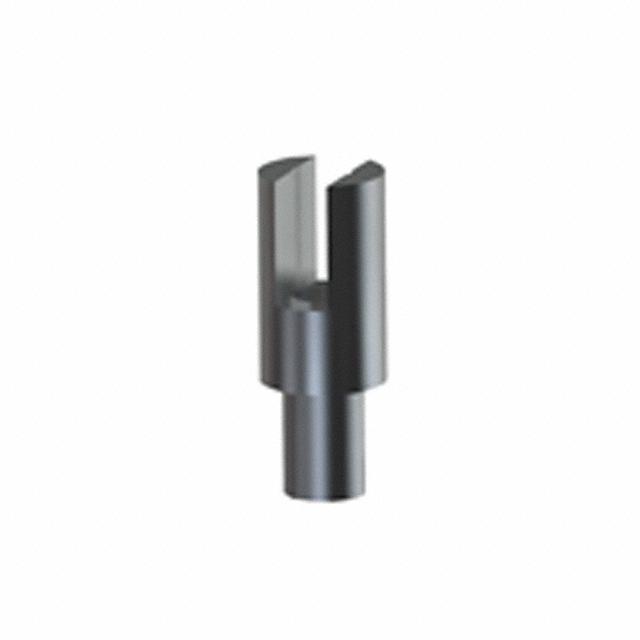

1533-2
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.093" (2.36mm)
Diameter - Turret Head : -
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Mounting Type : Through Hole
Termination : Staking Flare
Flange Diameter : 0.093" (2.36mm)
Diameter - Turret Head : -
Staking Side OD : 0.060" (1.52mm)
Staking Side ID : -
Mounting Hole Diameter : -
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Non-Insulated
0
16647 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
