Welcome to Weijie Semiconductor
- Connectors, Interconnects
- Terminals - Turret Connectors
Part Number
Manufacturer
Description
Unit Price
In Stock

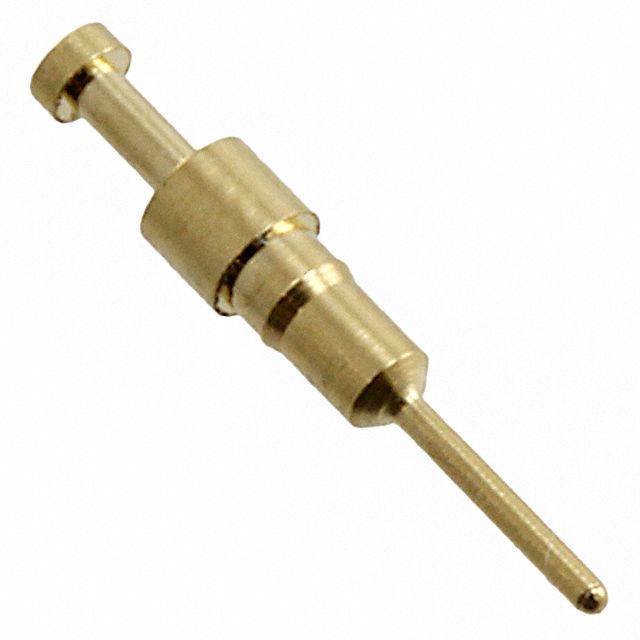

0700-0-00-15-00-00-03-0
Mill-Max
Manufacturer : Mill-Max Manufacturing Corp.
Series : 0700
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.158" (4.01mm)
Length - Below Flange : 0.259" (6.58mm)
Length - Overall : 0.417" (10.59mm)
Mounting Type : Through Hole
Termination : Press-Fit, Barbed
Flange Diameter : 0.072" (1.83mm)
Diameter - Turret Head : 0.053" (1.35mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.057" (1.45mm)
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Insulation : Non-Insulated
Series : 0700
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.158" (4.01mm)
Length - Below Flange : 0.259" (6.58mm)
Length - Overall : 0.417" (10.59mm)
Mounting Type : Through Hole
Termination : Press-Fit, Barbed
Flange Diameter : 0.072" (1.83mm)
Diameter - Turret Head : 0.053" (1.35mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.057" (1.45mm)
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)
Insulation : Non-Insulated
0
5210 in stock

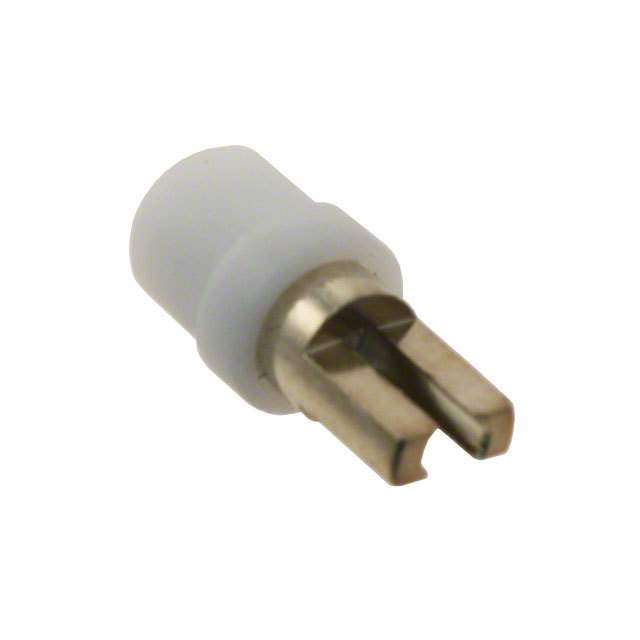

11100
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.375" (9.53mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.172" (4.37mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.136" (3.45mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.375" (9.53mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.172" (4.37mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.136" (3.45mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
154 in stock

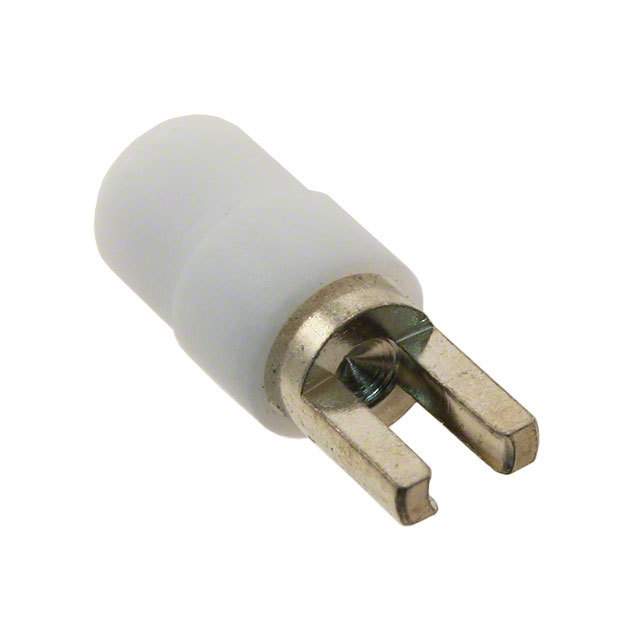

11113
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.328" (8.33mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.478" (12.14mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.328" (8.33mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.478" (12.14mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
197 in stock

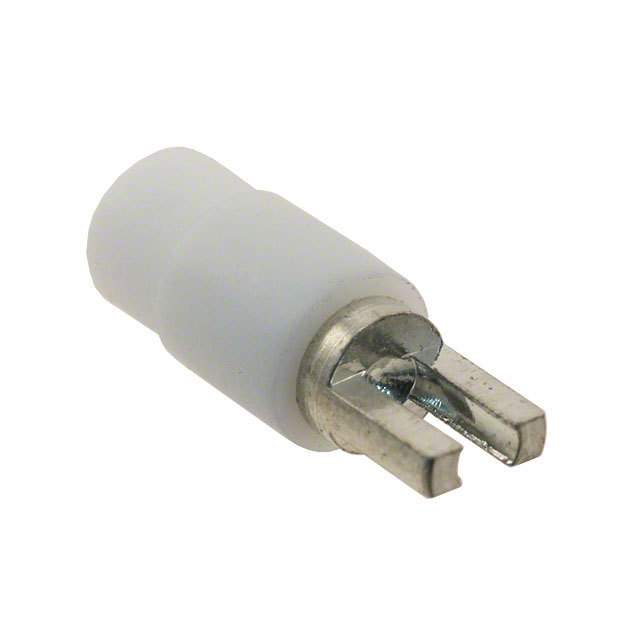

11114
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.390" (9.91mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.540" (13.72mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.390" (9.91mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.540" (13.72mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
800 in stock

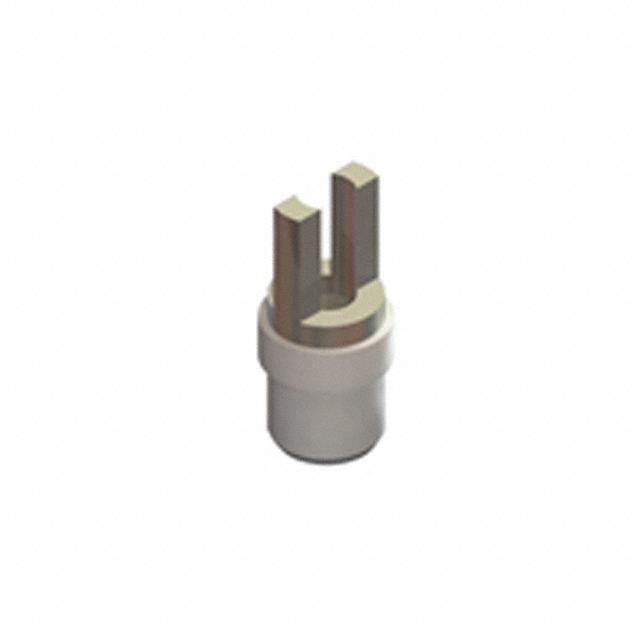

11115
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.453" (11.51mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.603" (15.32mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Single End, Fork, Hollow
Number of Turrets : Single
Length - Above Board : 0.453" (11.51mm)
Length - Below Flange : 0.150" (3.81mm)
Length - Overall : 0.603" (15.32mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
400 in stock
11116
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Double End, Fork
Number of Turrets : Single
Length - Above Board : 0.390" (9.91mm)
Length - Below Flange : 0.212" (5.39mm)
Length - Overall : 0.821" (20.85mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Double End, Fork
Number of Turrets : Single
Length - Above Board : 0.390" (9.91mm)
Length - Below Flange : 0.212" (5.39mm)
Length - Overall : 0.821" (20.85mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.187" (4.75mm)
Diameter - Turret Head : -
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
400 in stock

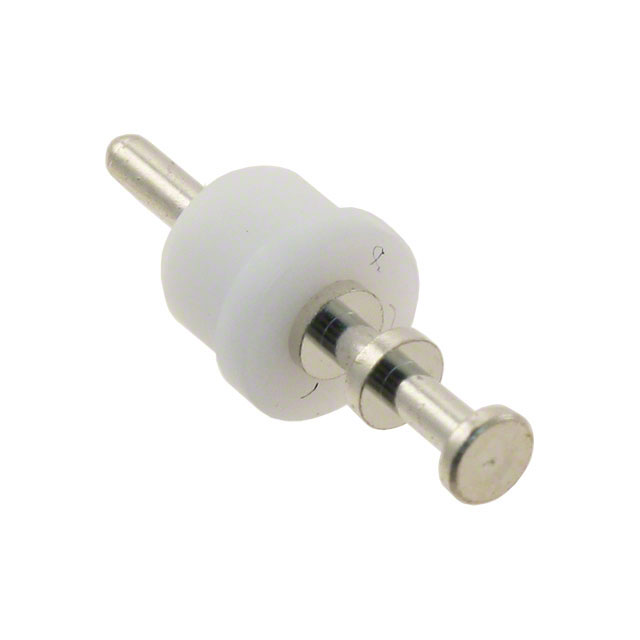

11216
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Double
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.500" (12.70mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.172" (4.37mm)
Diameter - Turret Head : 0.080" (2.03mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.136" (3.45mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Double
Length - Above Board : 0.250" (6.35mm)
Length - Below Flange : 0.250" (6.35mm)
Length - Overall : 0.500" (12.70mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.172" (4.37mm)
Diameter - Turret Head : 0.080" (2.03mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.136" (3.45mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
4586 in stock

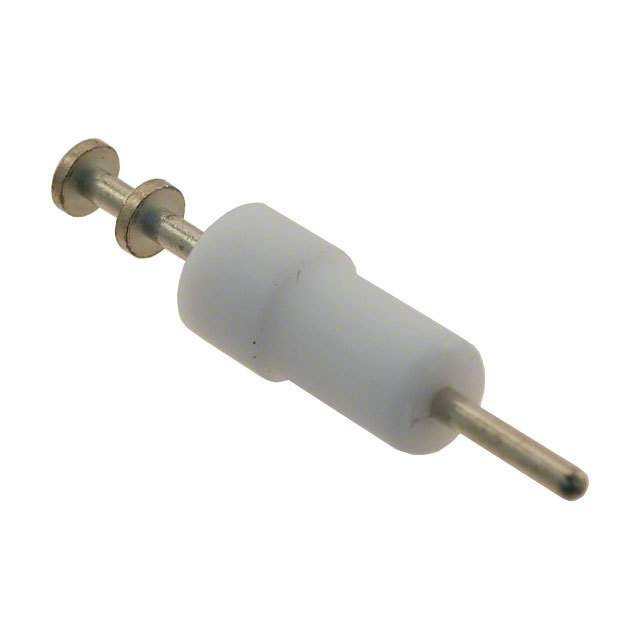

11217
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Double
Length - Above Board : 0.375" (9.53mm)
Length - Below Flange : 0.230" (5.84mm)
Length - Overall : 0.836" (21.23mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.172" (4.37mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.136" (3.45mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Double
Length - Above Board : 0.375" (9.53mm)
Length - Below Flange : 0.230" (5.84mm)
Length - Overall : 0.836" (21.23mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.172" (4.37mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.136" (3.45mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
312 in stock

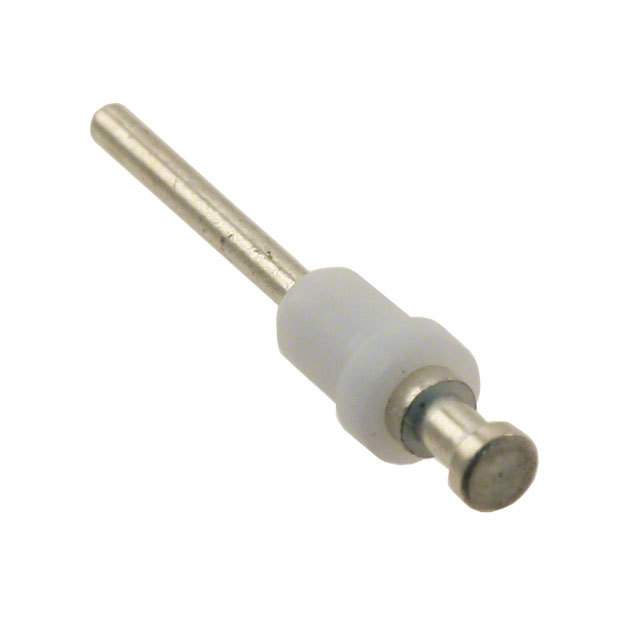

11218
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.140" (3.56mm)
Length - Below Flange : 0.370" (9.40mm)
Length - Overall : 0.370" (9.40mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.093" (2.36mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.069" (1.75mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Double End, Pin
Number of Turrets : Single
Length - Above Board : 0.140" (3.56mm)
Length - Below Flange : 0.370" (9.40mm)
Length - Overall : 0.370" (9.40mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.093" (2.36mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.069" (1.75mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
6960 in stock
11250
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Double End
Number of Turrets : Double
Length - Above Board : 0.196" (4.98mm)
Length - Below Flange : 0.344" (8.74mm)
Length - Overall : 0.540" (13.72mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.312" (7.92mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Double End
Number of Turrets : Double
Length - Above Board : 0.196" (4.98mm)
Length - Below Flange : 0.344" (8.74mm)
Length - Overall : 0.540" (13.72mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.312" (7.92mm)
Diameter - Turret Head : 0.093" (2.36mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
200 in stock
11251
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Double End
Number of Turrets : Double
Length - Above Board : 0.195" (4.95mm)
Length - Below Flange : 0.305" (7.75mm)
Length - Overall : 0.500" (12.70mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.200" (5.08mm)
Diameter - Turret Head : 0.090" (2.29mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Double End
Number of Turrets : Double
Length - Above Board : 0.195" (4.95mm)
Length - Below Flange : 0.305" (7.75mm)
Length - Overall : 0.500" (12.70mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.200" (5.08mm)
Diameter - Turret Head : 0.090" (2.29mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.158" (4.01mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
830 in stock
11300
Keystone Electronics Corp.
Manufacturer : Keystone Electronics
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.210" (5.33mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.310" (7.87mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.086" (2.18mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
Series : -
Part Status : Active
Terminal Type : Single End
Number of Turrets : Double
Length - Above Board : 0.210" (5.33mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.310" (7.87mm)
Mounting Type : Through Hole
Termination : Press-Fit
Flange Diameter : 0.125" (3.18mm)
Diameter - Turret Head : 0.060" (1.52mm)
Staking Side OD : -
Staking Side ID : -
Mounting Hole Diameter : 0.086" (2.18mm)
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : -
Insulation : Insulated
0
350 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
