Part Number

Manufacturer

Description

Unit Price

In Stock

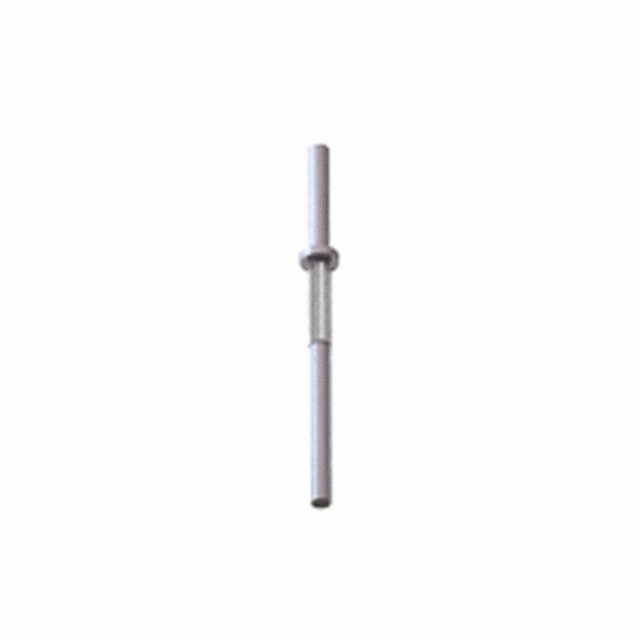

1218

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Double End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : 0.040" (1.02mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.567" (14.40mm)
Length - Overall : 0.832" (21.13mm)
Flange Diameter : 0.080" (2.03mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Nickel Silver
Contact Finish : -
Contact Finish Thickness : -

5858 in stock

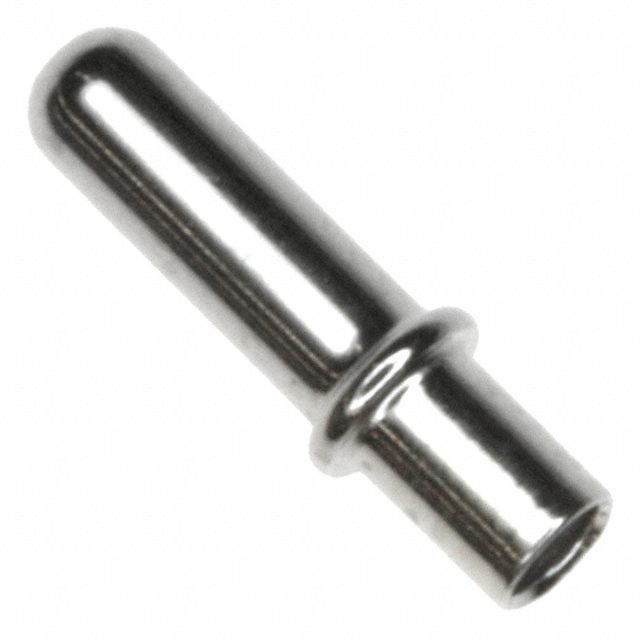

1223

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.093" (2.36mm) Dia
Pin Size - Below Flange : 0.093" (2.36mm) Dia
Length - Above Flange : 0.267" (6.78mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.418" (10.62mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Staking Flare
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm) or 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Nickel
Contact Finish Thickness : -

4316 in stock

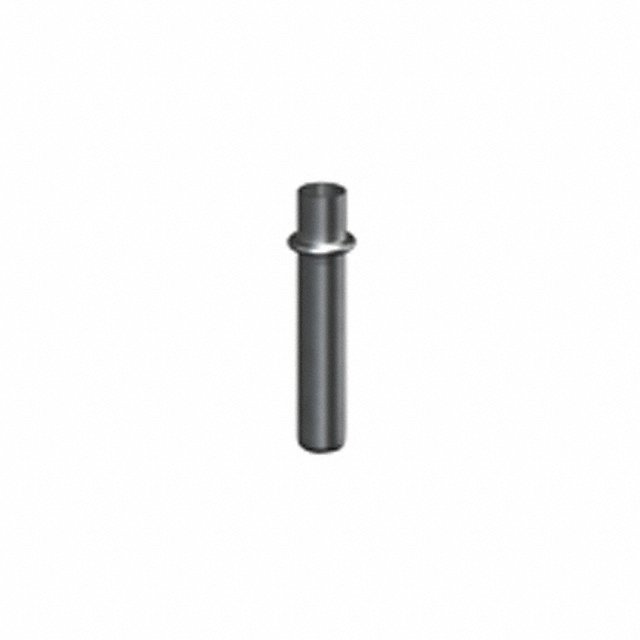

1224

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.093" (2.36mm) Dia
Pin Size - Below Flange : 0.093" (2.36mm) Dia
Length - Above Flange : 0.331" (8.41mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.482" (12.24mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Staking Flare
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm) or 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Nickel
Contact Finish Thickness : -

1019 in stock

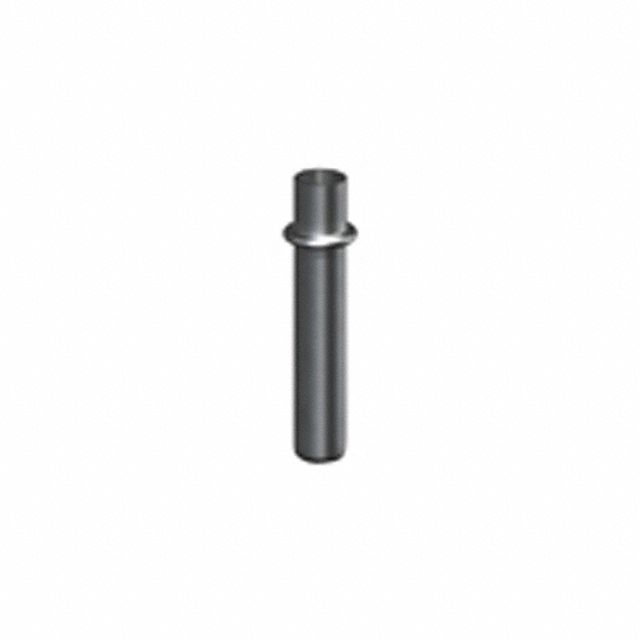

1226

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.093" (2.36mm) Dia
Pin Size - Below Flange : 0.093" (2.36mm) Dia
Length - Above Flange : 0.411" (10.44mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.562" (14.27mm)
Flange Diameter : 0.130" (3.30mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Staking Flare
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm) or 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Nickel
Contact Finish Thickness : -

725 in stock

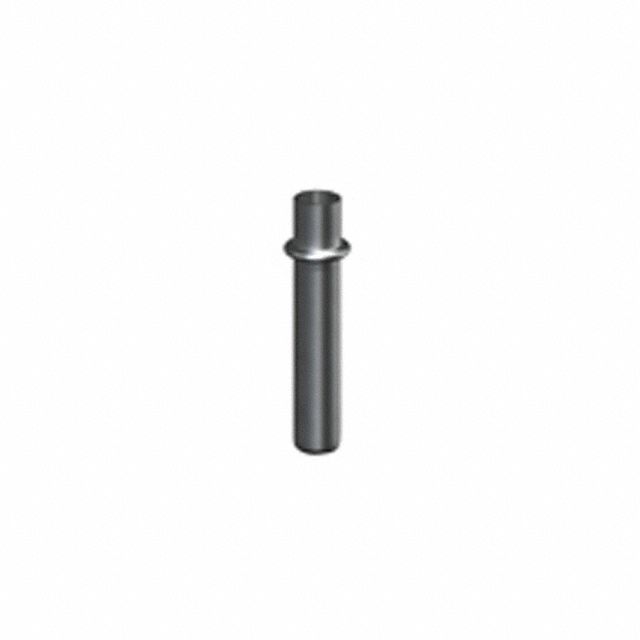

1231

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.156" (3.96mm) Dia
Pin Size - Below Flange : 0.156" (3.96mm) Dia
Length - Above Flange : 0.526" (13.36mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.691" (17.55mm)
Flange Diameter : 0.215" (5.46mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Staking Flare
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm) or 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Nickel
Contact Finish Thickness : -

7545 in stock

1267-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1267
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : -
Length - Overall : 0.291" (7.39mm)
Flange Diameter : 0.032" (0.81mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Press-Fit, Knurled
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1000 in stock

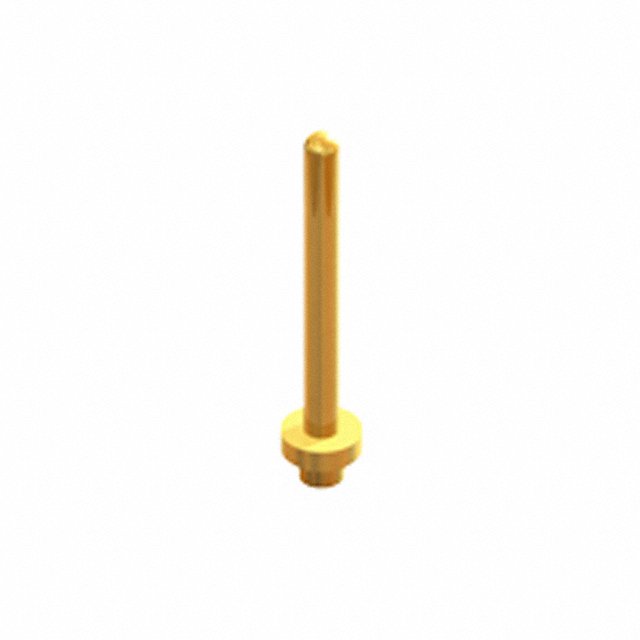

1352-1

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.031" (0.79mm) Dia
Pin Size - Below Flange : 0.040" (1.02mm) Dia
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.028" (0.71mm)
Length - Overall : 0.348" (8.84mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

70161 in stock

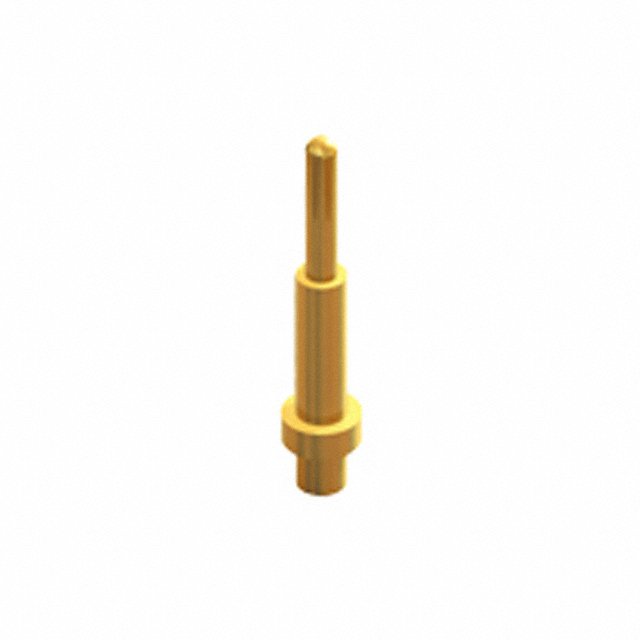

1355-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.032" (0.81mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.312" (7.92mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.424" (10.77mm)
Flange Diameter : 0.078" (1.98mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

16385 in stock

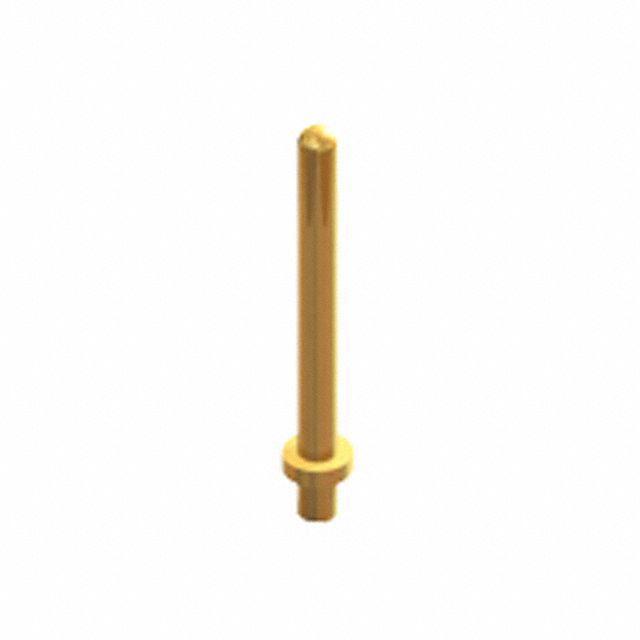

1358-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.380" (9.65mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.482" (12.24mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

26961 in stock

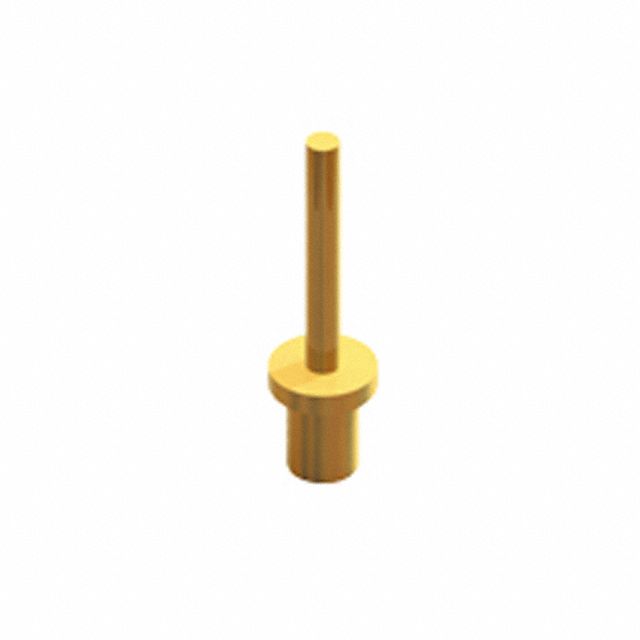

1361-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.050" (1.27mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.219" (5.56mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.344" (8.74mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

13387 in stock

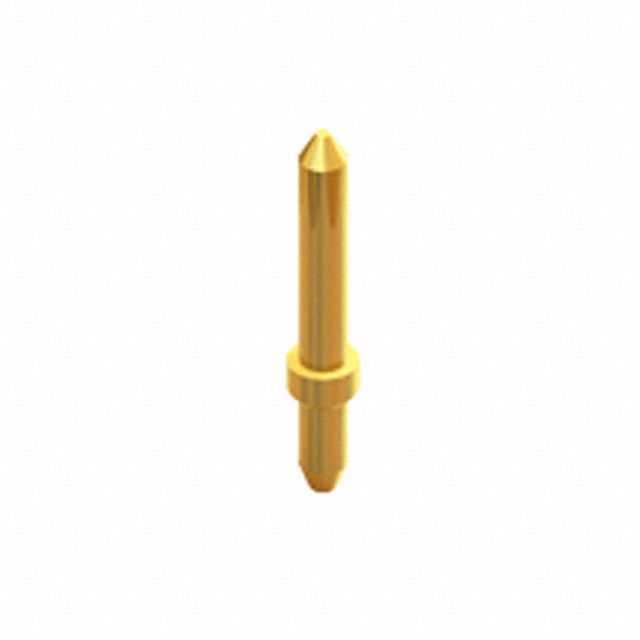

1362-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.063" (1.60mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.400" (10.16mm)
Length - Below Flange : 0.138" (3.51mm)
Length - Overall : 0.594" (15.09mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

923 in stock

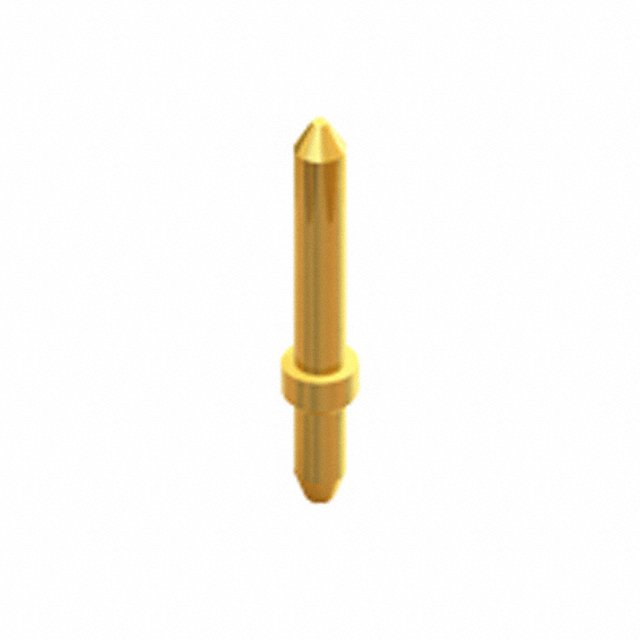

1363-2

Keystone Electronics Corp.

140107 in stock
